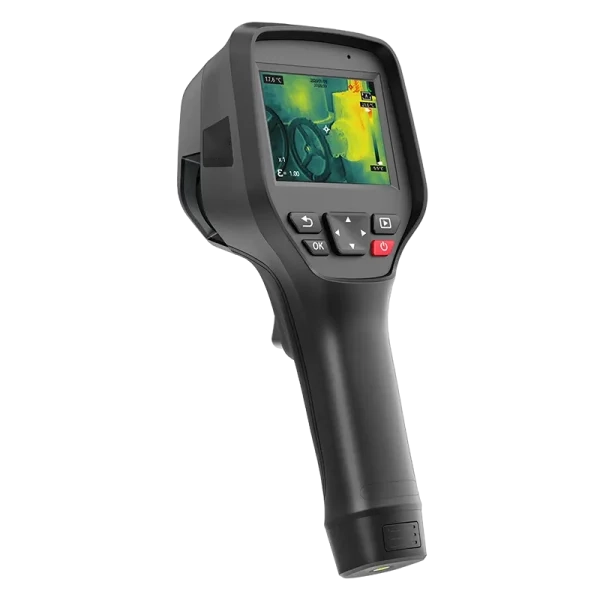

MRG600C OGI Handheld Camera
China Moneypro
Using an uncooled VOx detector featuring high spatial resolution and high sensitivity, powered by infrared thermal imaging technology, RG600C enables non-contact, visual leak location for dozens of gases such as Methane (CH₄), Sulfur Dioxide (SO₂), Freon (R-134a, R-152a) and other gases.

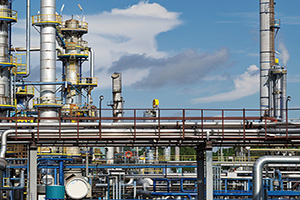

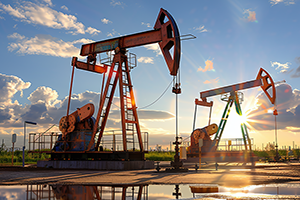

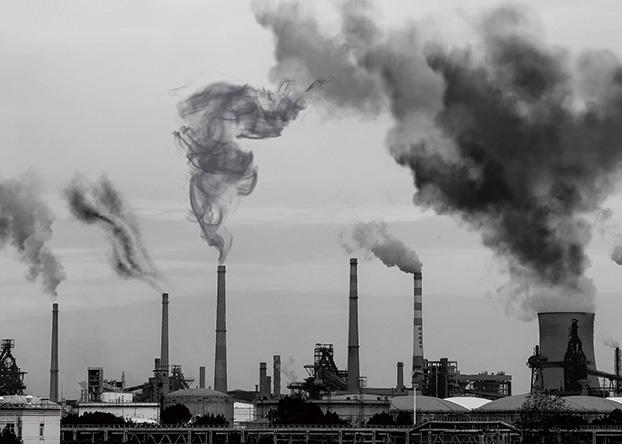

This series are ideal for gas security, emission management, and equipment maintenance in industries such as oil and gas, petrochemical, environmental protection and emergency response.
This series are ideal for gas security, emission management, and equipment maintenance in industries such as oil and gas, petrochemical, environmental protection and emergency response.
Feature
Customized Filter Detector for Clearer Images
Equipped with a 640×512 customized band-pass filter detector to eliminate stray light interference; capable of distinguishing a temperature difference of 0.023°C, capturing gas microleakage.
Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details.
Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details.
Versatile, Which is the Best Helper for Routine Inspections
Simultaneous observation of thermal imaging and visible light to easily locate gas leaks
High accuracy of temperature measurement, easy to meet the dual tasks of gas leakage detection and temperature measurement
5-inch touch screen+ complete analysis functions, easy to facilitate routine inspection task
High accuracy of temperature measurement, easy to meet the dual tasks of gas leakage detection and temperature measurement
5-inch touch screen+ complete analysis functions, easy to facilitate routine inspection task
IIC T4 Explosive-proof, Safe and Reliable
Ex ic IIC T4 explosive-proof rated, suitable for security applications in explosive-proof applicationsuch as oil and natural gas routine inspections.
Specification
| Thermal Imaging Parameters | ||
| Detector Type | Uncooled infrared detector | |
| Infrared Resolution | 640×512 | |
| Spectral Band | 7.0-8.5μm | |
| Detectable Gases | Methane (CH₄), Sulfur Dioxide (SO₂), Freon (R-134a, R-152a) and other gases | |
| Pixel Size | 12μm | |
| Thermal Sensitivity (NETD) | 23mK | |
| Spatial Resolution (IFOV) | 0.63mrad | |
| Image Frequency | 30Hz | |
| Lens Focal Length | 19mm | |
| Field of view (FOV) | 23°×18° | |
| Object Temperature Range | -20°C~+120°C | |
| Temperature Accuracy | ±2% or ±2°C | |
| Camera Functions | ||
| Temperature Measurement Mode | Center point/Hot and cold spot tracking and temperature display | |
| Customized Measurement on Points, Lines, and Areas | Movable points/lines/areas; up to 10 points, 10 areas, and 10 lines | |
| Measurement Unit | Celsius, Fahrenheit, Kelvin | |
| Emissivity Settings | 0.01~1.00, step size 0.01 | |
| Ambient Temperature Settings | -10°C~+50°C, step size 1°C | |
| Distance Settings | 1~20m, step size 1m | |
| Image Mode | Infrared, visible light, dual-spectrum fusion, PIP | |
| Palettes | 10 | |
| Temperature Alarm | Available | |
| Alarm Type | Image Alarm | |
| Temperature Width Stretch | Manual/Auto temperature range | |
| Laser Pointer | Available | |
| Visible Light Camera | 5 megapixels | |
| Video/Photo Storage | XX-IR.jpg (Infrared image with temperature data) and XX-DC.jpg (visible-light image); videos without data. | |
| Voice Note | Available | |
| Language | English, Japanese, Poland, Russian, Korean, Hungarian, Bap, German, French,Spain, Italy, Turkey, and Traditional Chinese | |
| Display Size | 3.5-inch touch screen (480×640) | |
| Image Naming | Auto/manual naming, naming by scanning QR code | |
| Memory Card | Standard 32GB Micro SD card | |
| Battery Type | Rechargeable and detachable lithium-ion battery | |
| Power Supply | USB TypeC | |
| Connecting Method | USB, SD card, Wi-Fi (AP mode or networking mode) | |
| Battery Charging Time | About 3h | |
| Battery Operating Time | About 3h | |
| Cloud Services | Transfer shooting data to a cloud drive, share data and perform secondary analysis at multiple clients; support automatic time synchronization | |
| Power Management | Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, never | |
| Measurement and Analysis | ||
| Laser Pointer | Available | |
| System Functions | ||
| Temperature Alarm | Available | |
| Others | ||
| Analysis Software | PC & App | |
| Tripod Support | Available | |
| Operating Temperature | -10°C~+50°C | |
| Storage Temperature | -20°C~+60°C | |
| Relative Humidity | 10%~95%, non-condensing | |
| Drop Protection | 2m | |
| Ingress Protection Rating | IP54(IEC 60529) | |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) | |
| Dimensions | 258.4×105.1×102.3(mm) | |
| Weight | About 670g | |
| Certificaitons | CE/ROHS, etc. | |
| Packing List | 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list |
