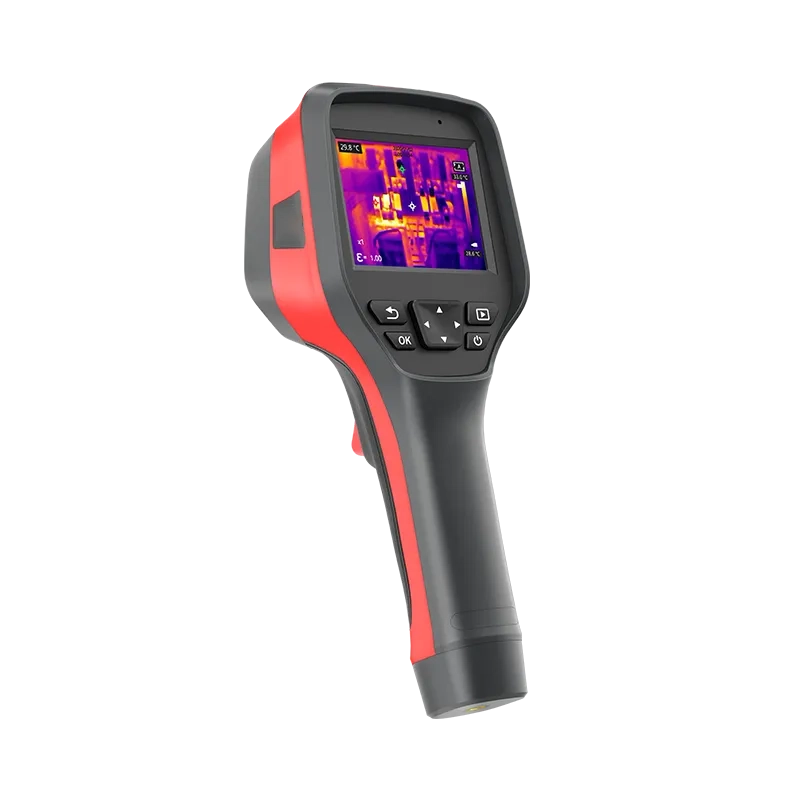

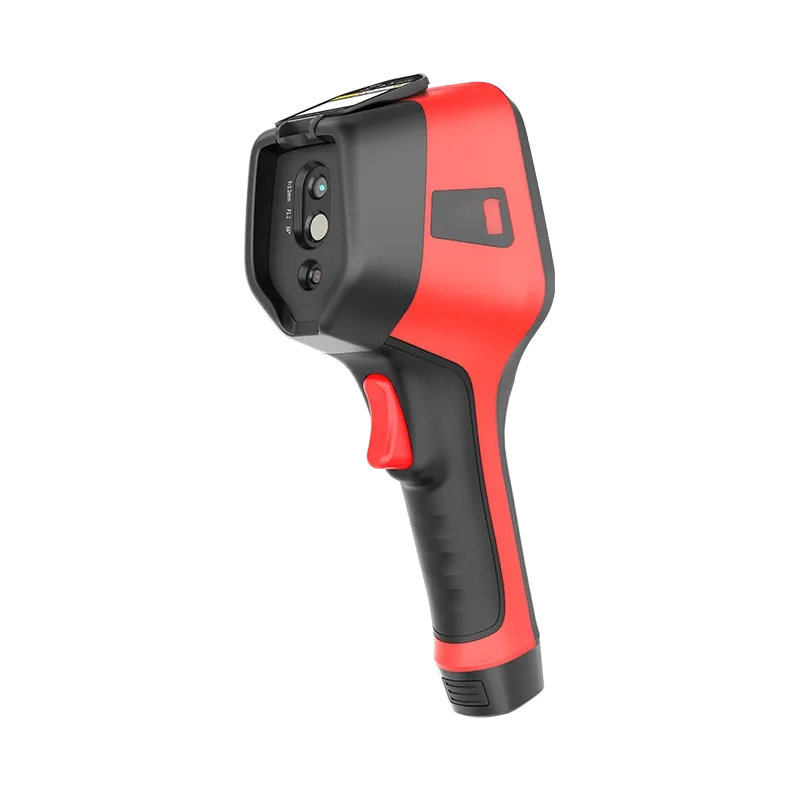

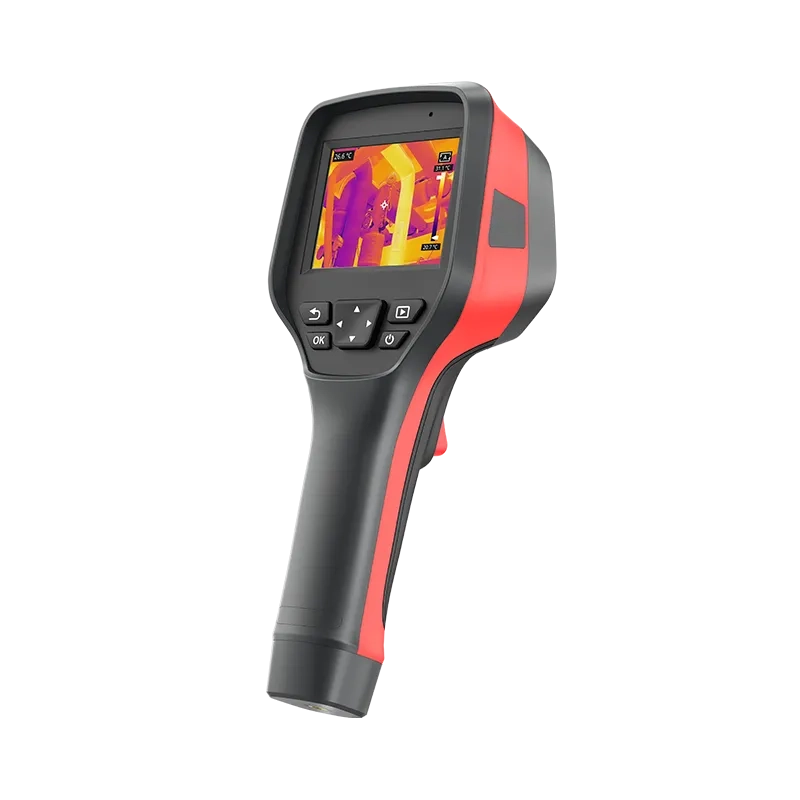

MRM200A Handheld Thermal Camera
China Moneypro
RM200A is equipped with a self-developed 12μm high thermal sensitivity 256×192 infrared thermal imaging detector.

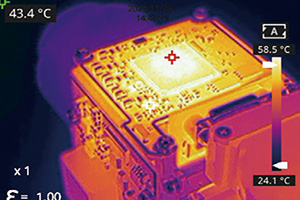

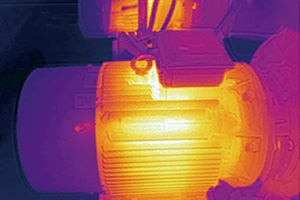

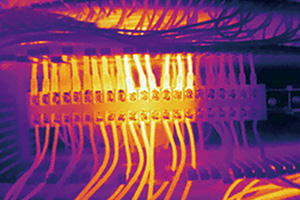

Based on intelligent and precise temperature measurement algorithms and HD image algorithms, it strives to be a professional infrared thermal imaging tool with HD images, a large-screen display, and accurate temperature measurement for applications such as electrical maintenance and circuit design.
Based on intelligent and precise temperature measurement algorithms and HD image algorithms, it strives to be a professional infrared thermal imaging tool with HD images, a large-screen display, and accurate temperature measurement for applications such as electrical maintenance and circuit design.
Feature
Powerful Detector, Clear Imaging
Equipped with a 256×192 self-developed uncooled infrared detector.
40mK thermal sensitivity, capable of distinguishing the minimum temperature difference of 0.04°C, capturing small hot and cold spots.
-20°C~+550°C wide measurement range for monitoring more temperature targets.
40mK thermal sensitivity, capable of distinguishing the minimum temperature difference of 0.04°C, capturing small hot and cold spots.
-20°C~+550°C wide measurement range for monitoring more temperature targets.
Fully-Functional Software
Manually adjusting the temperature range to meet the needs of multiple scenarios and uses.
Support multiple image modes + multiple palettes to meet the needs of temperature measurement under different requirements.
Support the software analysis on PC.
Support multiple image modes + multiple palettes to meet the needs of temperature measurement under different requirements.
Support the software analysis on PC.
Hardcore Configuration

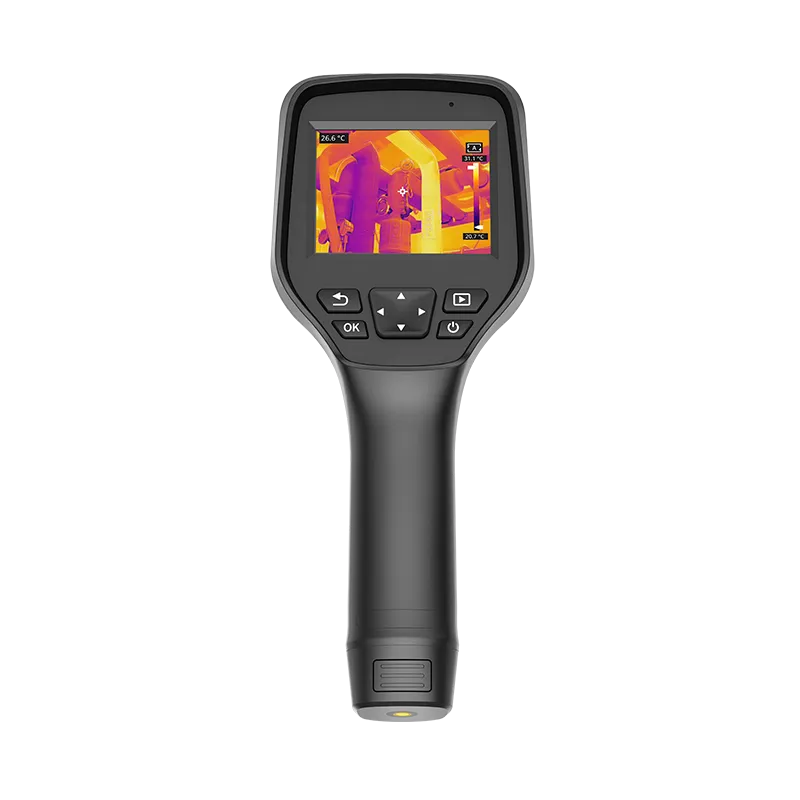

Equipped with a 3.5-inch touch screen, supporting center point, hot and cold spot tracking and temperature display.
IP54, 2m drop protection.
Standard configuration of 2 quick-removal batteries, with a battery life of up to 8h.
IP54, 2m drop protection.
Standard configuration of 2 quick-removal batteries, with a battery life of up to 8h.
Specification
| Thermal Imaging | ||
| Detector Type | Uncooled infrared detector | |
| Infrared Resolution | 256×192 | |
| Pixel Size | 12μm | |
| Spectral Band | 7.5-14μm | |
| NETD | ＜40mK (25°C,F1.0) | |
| Frame Rate | 25 Hz | |
| Lens Focal Length | 3.2mm | |
| FOV | 56°×42° | |
| IFOV | 3.75mrad | |
| Focusing Mode | Fixed focus | |
| Minimum Imaging Distance | 0.3m | |
| Measurement Range | -20°C~+150°C, 100°C~550°C | |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | ||
| Display | 3.5-inch touch screen, 640×480 resolution | |
| Visible Light Camera | 2 megapixels | |
| Digital Zoom | 1× 2× 4× | |
| Palettes | 7 options | |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion | |
| Temperature Width Stretch | Automatic/Manual | |
| Image Storage | ||
| Storage Medium | Standard 32GB MicroSD, up to 128G | |
| Text Notes | Support | |
| Voice Annotation | Support | |
| Image Naming | Auto/manual naming, naming by scanning QR code | |
| Measurement and Analysis | ||
| Analysis Functions on the Device | Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display | |
| Supporting Software | PC (Infrared Analysis Software) | |
| System Functions | ||
| Communication Protocol | Wi-Fi, USB | |
| Video Transmission | Support UVC video transmission | |
| Laser Pointer | Support | |
| Others | ||
| Battery | Rechargeable and detachable lithium-ion battery | |
| Charging Mode | USB Type-C or desktop charger | |
| Battery Life | About 8h (about 4h for a single battery) | |
| Interface | USB Type-C, SD card | |
| Tripod Socket | UNC 1/4-20 interface for tripod | |
| Operating Temperature | -10°C~+50°C | |
| Operating Humidity | 10%~95% (non-condensing) | |
| Storage Temperature | -20°C~+60°C | |
| Ingress Protection Rating | IP54 | |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) | |
| Weight and Dimensions | About 635g, 258.4×105.1×102.3mm | |
| Authentication | CE/RoHS/CMA, etc. | |
| Packing List | Thermal camera, 5V 2A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, portable cloth bag | |
| Voice Control | Voice assistant, quick command recognition | |
| Flashlight | Support | |
| Others | ||
| Microphone/Speaker | Support | |
| Battery | 9000mAh lithium-ion battery, field-replaceable, fast charging | |
| Charging Mode | USB Type-C or desktop charger | |
| Battery Life | Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions) | |
| Interface | USB3.0 Type-C, SD card, SIM card, Mini HDMI | |
| Tripod Socket | UNC 1/4-20 interface for tripod | |
| Operating Temperature | ‘-15°C~+50°C | |
| Operating Humidity | 10%~95% (non-condensing) | |
| Storage Temperature | -40°C~+70°C | |
| Ingress Protection Rating | IP54 | |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) | |
| Weight and Dimensions | <1.7kg (with battery), 140×210×115mm | |
| Authentication | CE/RoHS/CMA, etc. |
