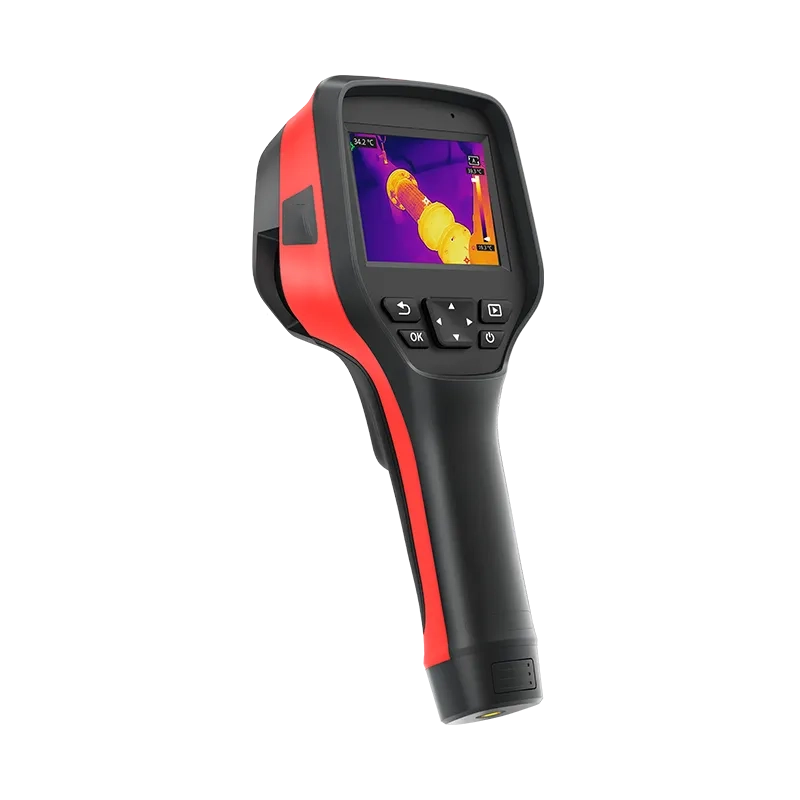

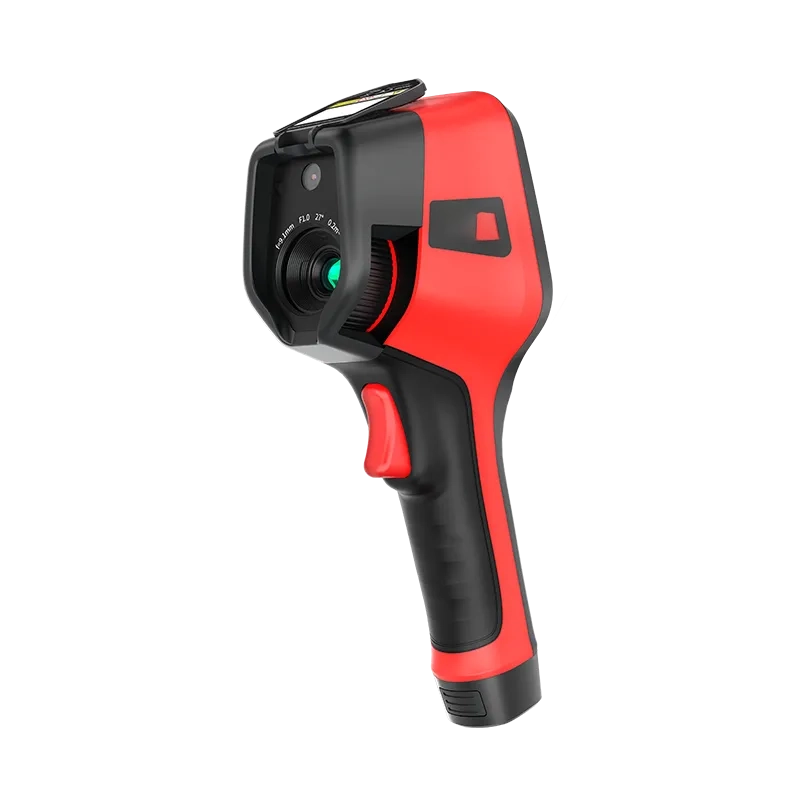

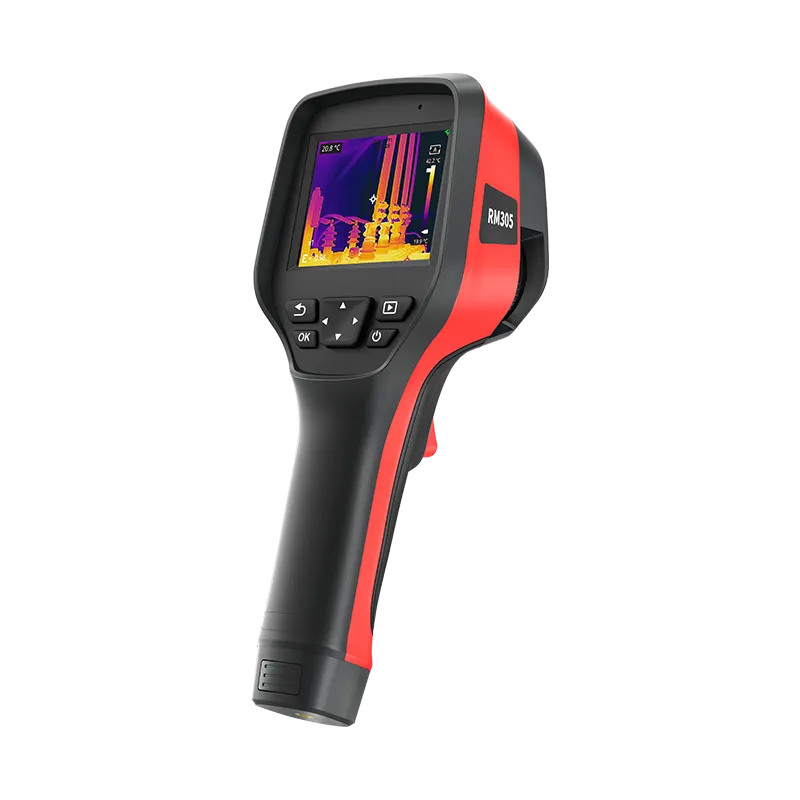

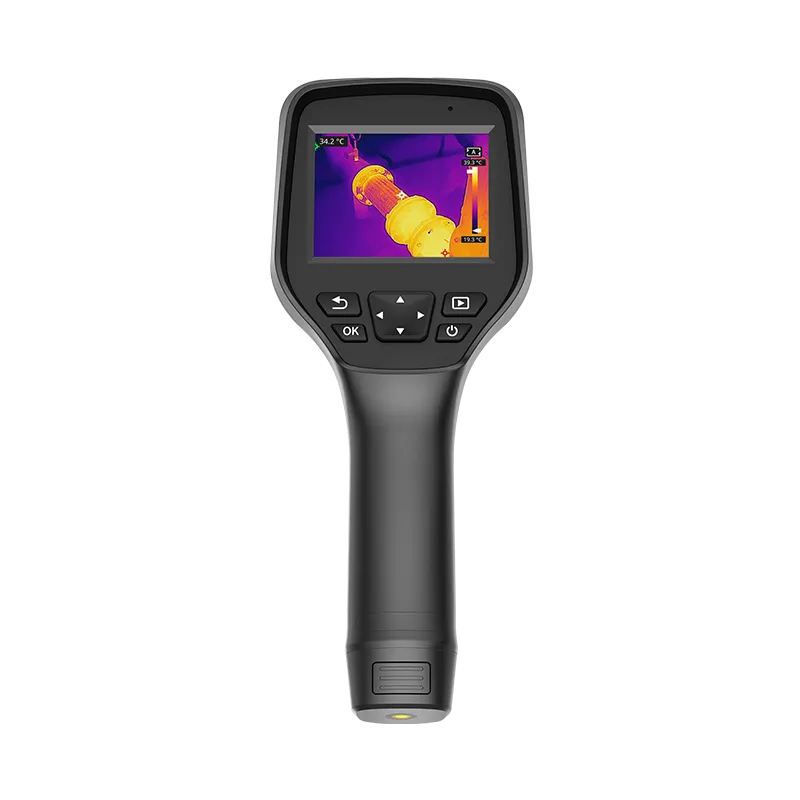

MRM305 Professional Handheld Thermal Camera
China Moneypro
RM305 is a professional-grade handheld thermal camera, featuring high resolution and manual focus for temperature measurement.
It is equipped with a self-developed 384×288 infrared detector, providing a high sensitivity of 35mK. It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.
It is equipped with a self-developed 384×288 infrared detector, providing a high sensitivity of 35mK. It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.
Feature
Clear Thermal Images, Precise Temperature Measurement
12μm high-performance 384×288 uncooled infrared detector.
NETD as low as 35mK, capable of distinguishing temperature differences of 0.035°C.
USB plug-and-play analysis, real-time full-frame transmission, and analysis of temperature information.
NETD as low as 35mK, capable of distinguishing temperature differences of 0.035°C.
USB plug-and-play analysis, real-time full-frame transmission, and analysis of temperature information.
Professional Functions, Multi-dimensional Design
Support full-frame high/low-temperature alarms and scheduled image capture, and record temperature rise changes.
Capable of automatically tracking the highest temperature, the lowest temperature, and the central-point temperature within the measurement area.
Support multiple image modes+10 palette settings to meet temperature measurement under different requirements.
Support professional thermal imaging analysis software on the app, PC, and cloud platform.
Capable of automatically tracking the highest temperature, the lowest temperature, and the central-point temperature within the measurement area.
Support multiple image modes+10 palette settings to meet temperature measurement under different requirements.
Support professional thermal imaging analysis software on the app, PC, and cloud platform.
Hard-core Configuration, High-end Experience
IP54 and 2m drop protection, solid and durable.
3.5-inch touch screen, 640×480 resolution
Built-in laser pointer module for quick target locating.
3.5-inch touch screen, 640×480 resolution
Built-in laser pointer module for quick target locating.
Specification
| Thermal Imaging | |
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 384×288 |
| Pixel Size | 12μm |
| Spectral Band | 7.5-14μm |
| NETD | ＜35mK (25°C,F1.0) |
| Frame Rate | 30 Hz |
| Lens Focal Length | 6.2mm |
| FOV | 43.7°×31.9° |
| IFOV | 1.98mrad |
| Focusing Mode | Manual focusing |
| Measurement Range | -20°C~+150°C, 100°C~550°C |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater |
| Imaging Display | |
| Display | 3.5-inch touch screen, 640×480 resolution |
| Visible Light Camera | 5 megapixels |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Palettes | 10 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Temperature Width Stretch | Automatic/Manual |
| Image Storage | |
| Storage Medium | Standard 32GB MicroSD, up to 512G |
| Text Notes | Support |
| Voice Annotation | Support |
| Image Naming | Auto/manual naming, naming by scanning QR code |
| Measurement and Analysis | |
| Analysis Functions on the Device | Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display |
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
| System Functions | |
| Communication Protocol | Wi-Fi, USB |
| Video Transmission | Support UVC video transmission |
| Laser Pointer | Support |
| Others | |
| Battery | Rechargeable and detachable lithium-ion battery |
| Charging Mode | USB Type-C or desktop charger |
| Battery Life | About 6h (about 3h for a single battery) |
| Interface | USB Type-C, SD card |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | 10%~95% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | About 670g, 258.4×105.1×102.3mm |
| Authentication | CE/RoHS/CMA, etc. |
| Packing List | Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box |
