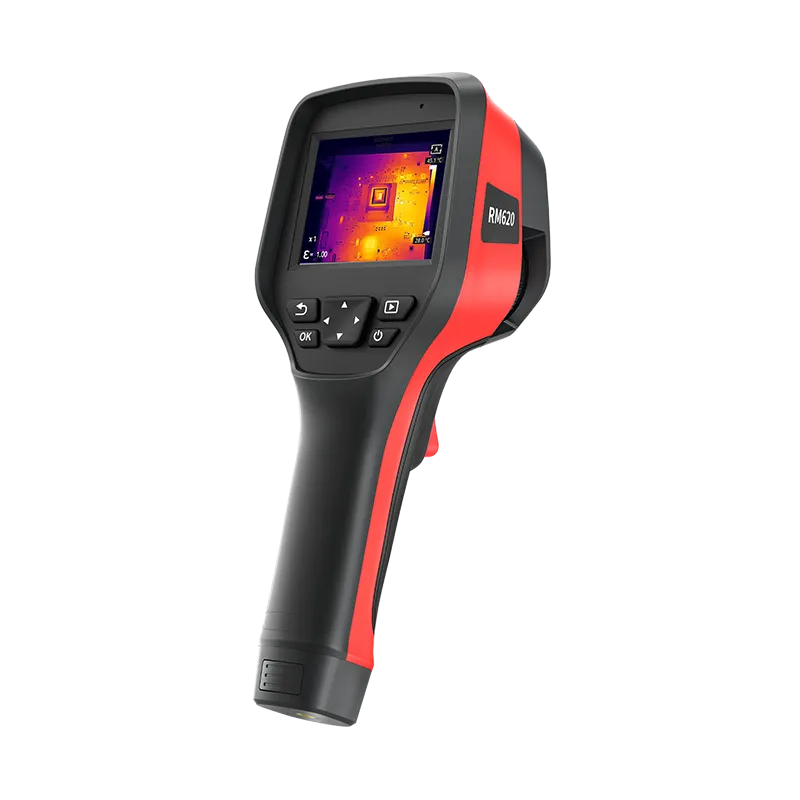

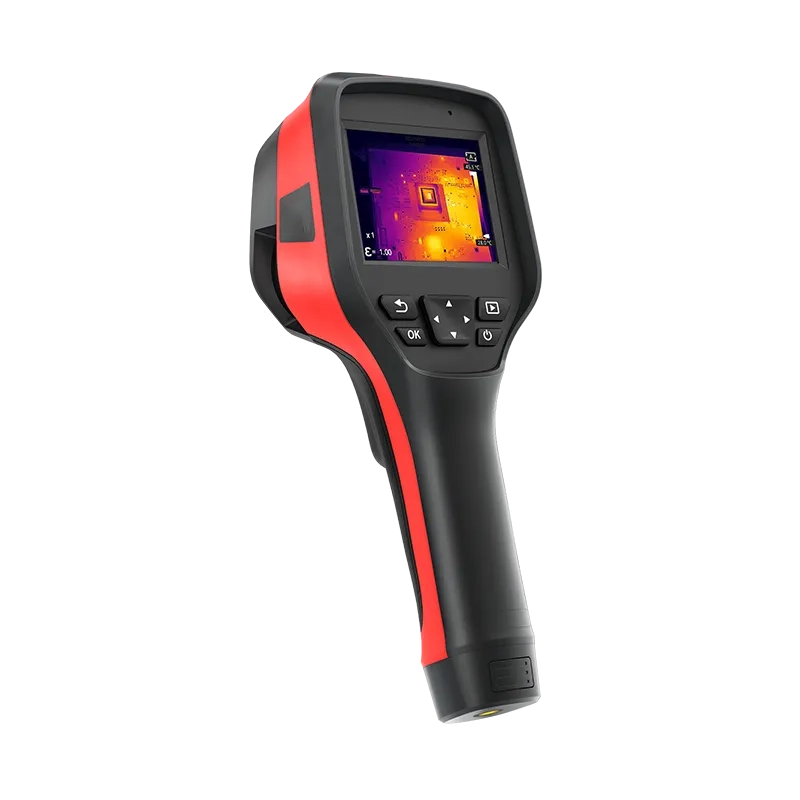

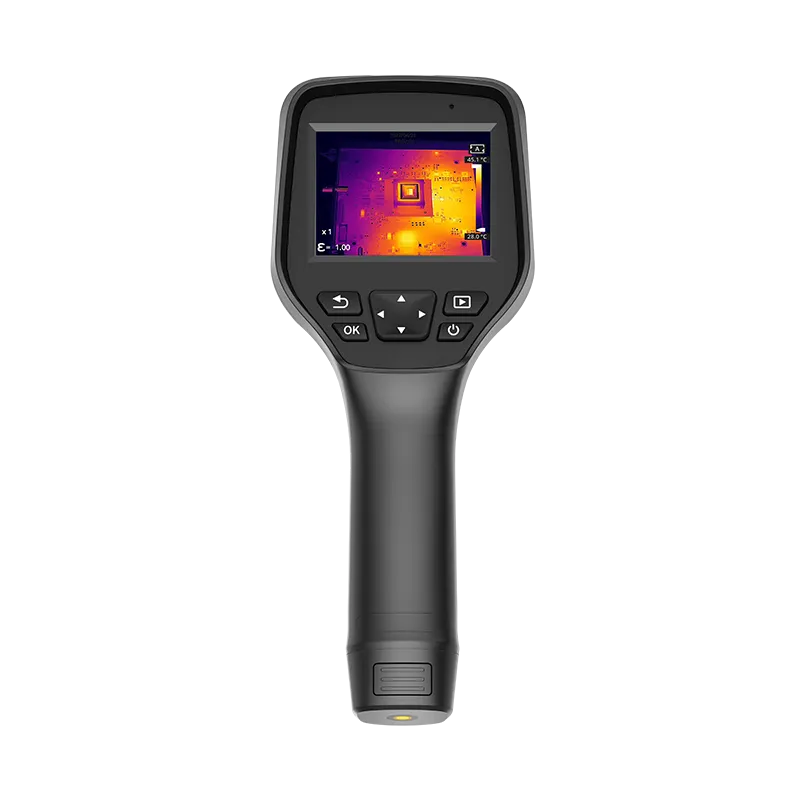

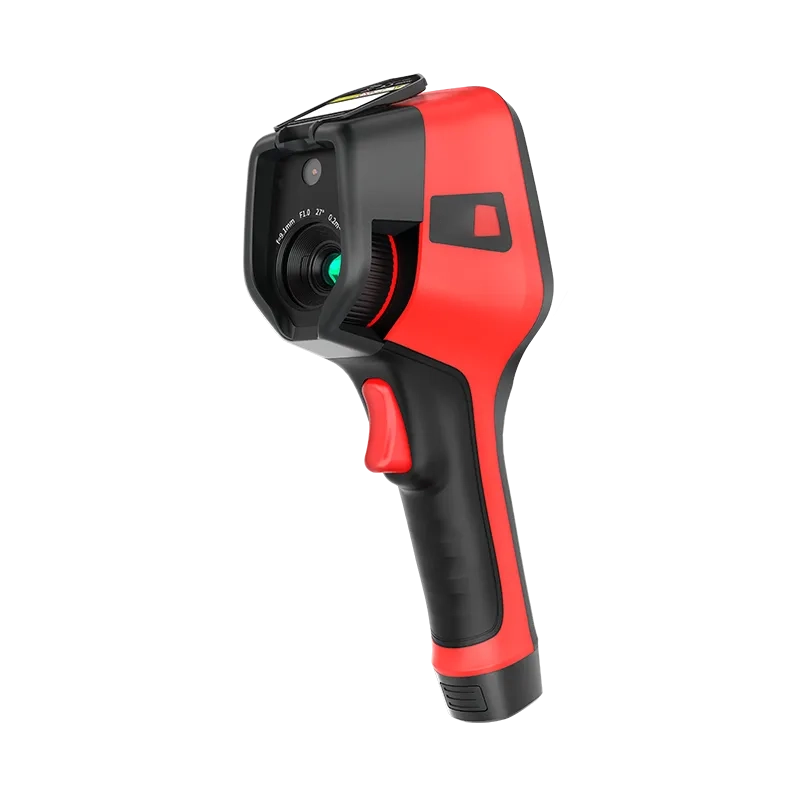

MRM620 Handheld Thermal Camera
China Moneypro
RM600G is a professional-grade handheld thermal camera, featuring high resolution and manual focus for temperature measurement.
It is equipped with a self-developed 640×512 infrared detector, providing a high sensitivity of 35mK.
It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.
It is equipped with a self-developed 640×512 infrared detector, providing a high sensitivity of 35mK.
It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.
Feature
High-definition Thermal Images, Capturing Subtle Hot Spots
Equipped with a self-developed 640×512 high-pixel 12μm advanced-technology detector.
Capable of distinguishing 0.035°C temperature difference, IFOV as low as 0.63mrad, easily capturing subtle hot spots.
Capable of distinguishing 0.035°C temperature difference, IFOV as low as 0.63mrad, easily capturing subtle hot spots.
Smart Upgrade for You to Handle Complexity with Simplicity
Support intelligent shooting, user customization, import and distribution of inspection task packages, simplifying the task process and improving routine inspection efficiency.
Support temperature trend analysis, helping users observe temperature distribution and changes in real time.
Support isotherm function to highlight the temperature segments or areas that need attention.
Support analysis software on the PC client and secondary analysis of video files.
Support temperature trend analysis, helping users observe temperature distribution and changes in real time.
Support isotherm function to highlight the temperature segments or areas that need attention.
Support analysis software on the PC client and secondary analysis of video files.
Upgraded Performance for More Application Scenarios
-20°C~+650°C wider temperature range, suitable for more industrial temperature measurement scenarios.
IP54 and 2m drop protection, solid and durable.
Standard 32GB Micro SD card, expandable to 512GB, supporting temperature video recording.
IP54 and 2m drop protection, solid and durable.
Standard 32GB Micro SD card, expandable to 512GB, supporting temperature video recording.
Specification
| Thermal Imaging | ||
| Detector Type | Uncooled infrared detector | |
| Infrared Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Band | 7.5-14μm | |
| NETD | ＜35mK (25°C,F1.0) | |
| Frame Rate | 30 Hz | |
| Lens Focal Length | 19mm | |
| FOV | 23°× 18° | |
| IFOV | 0.63mrad | |
| Focusing Mode | Manual focusing | |
| Measurement Range | -20°C~+150°C; 100°C~650°C | |
| Measurement Accuracy | ±2°C or ±2% of readings, whichever is greater | |
| Imaging Display | ||
| Display | 3.5-inch touch screen, 640×480 resolution | |
| Visible Light Camera | 5 megapixels | |
| Digital Zoom | 1×, 2×, 4×, 8× | |
| Palettes | 10 | |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion | |
| Temperature Width Stretch | Automatic/Manual | |
| Image Storage | ||
| Storage Medium | Standard 32GB MicroSD, up to 512G | |
| Text Notes | Support | |
| Voice Annotation | Support | |
| Measurement and Analysis | ||
| Analysis Functions on the Device | Custom points/lines/areas; up to 10 points, 10 areas, and 10 lines; Center point/Hot and cold spot tracking and temperature display | |
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) | |
| Video Functions | ||
| Radiation Infrared Video Recording | Support | |
| Non-radiation Infrared or Visible Light Video Recording | Support | |
| System Functions | ||
| Intelligent Routine Inspection | Support | |
| Communication Protocol | Wi-Fi, USB | |
| Video Transmission | Support UVC video transmission | |
| Laser Pointer | Support | |
| Others | ||
| Battery | Rechargeable and detachable lithium-ion battery | |
| Charging Mode | USB Type-C or desktop charger | |
| Battery Life | About 6h (about 3h for a single battery) | |
| Interface | USB Type-C, SD card | |
| Tripod Socket | UNC 1/4-20 interface for tripod | |
| Operating Temperature | -10°C~+50°C | |
| Operating Humidity | 10%~95% (non-condensing) | |
| Storage Temperature | -20°C~+60°C | |
| Ingress Protection Rating | IP54 | |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) | |
| Weight and Dimensions | About 680g, 258.4×105.1×102.3mm | |
| Authentication | CE/RoHS/CMA, etc. | |
| Packing List | Thermal camera, 5V 3A power adaptor, USB cable, SD card, battery ×2, Quick Start Guide, battery charger, calibration certificate, package list, safety box |

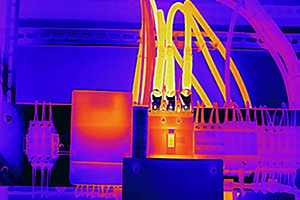

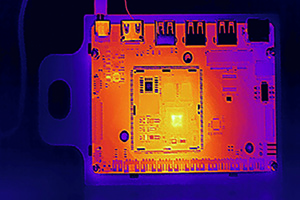

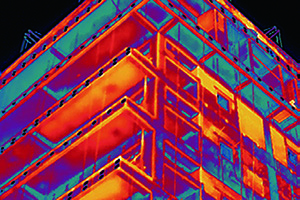

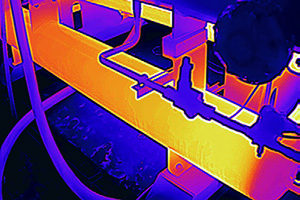

Application Scenariosa
