MTU425C 3.0 Thermal Imaging Scope
China Moneypro
The MTU 3.0 Series redefines precision optics with advanced thermal imaging, modular design, and AI powered performance. Offered in six sub-series—from ultra-light compact units to dual-spectrum, longrange solutions—they meet the demands of hunters, professionals, and tactical users alike. Featuring AI enhanced imaging, shutterless design, ergonomic controls, IP68 protection, and dual-band Wi-Fi, they deliver reliable performance in any environment.
400×300@12μmIR Resolution
20mKNETD
466×4661.43” AMOLED Display type
12 hoursBattery Life
400×300@12μmIR Resolution
20mKNETD
466×4661.43” AMOLED Display type
12 hoursBattery Life

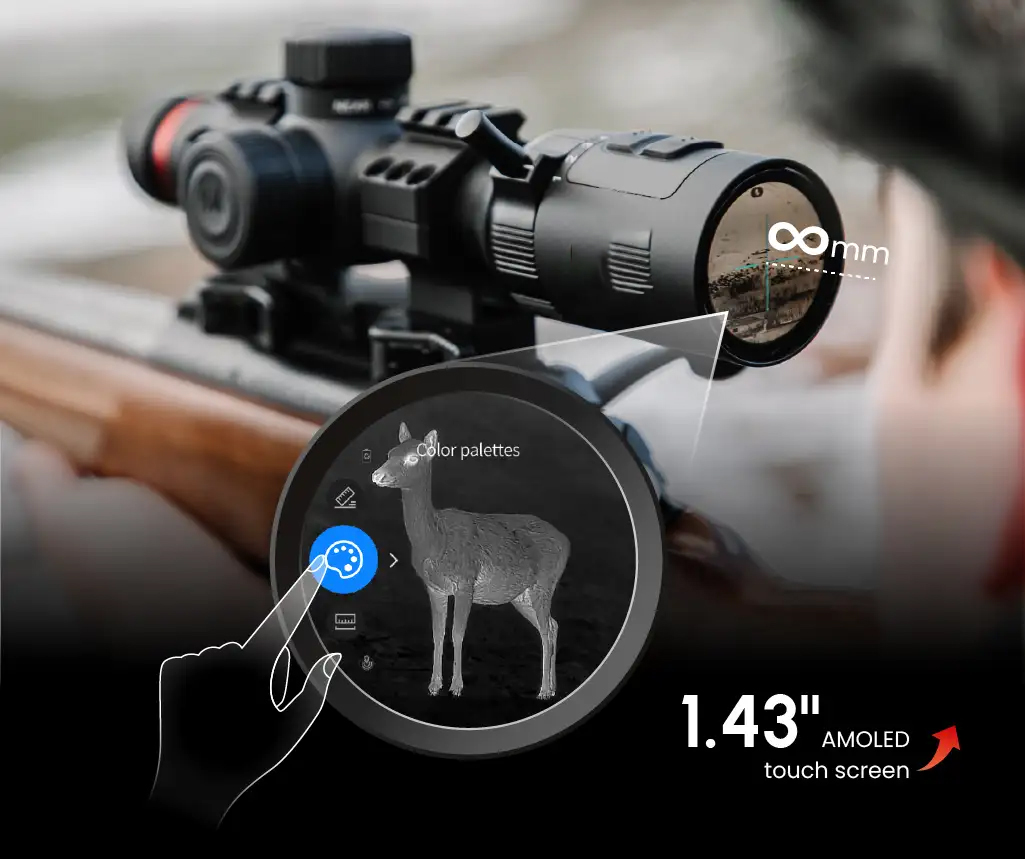

Touch to Control Infinite Eye Relief
The TU Cute 3.0 Series features an innovative 1.43” touchscreen that changes how users observe and control the device. With infinite eye relief, users can enjoy more comfortable viewing without worrying about recoil.

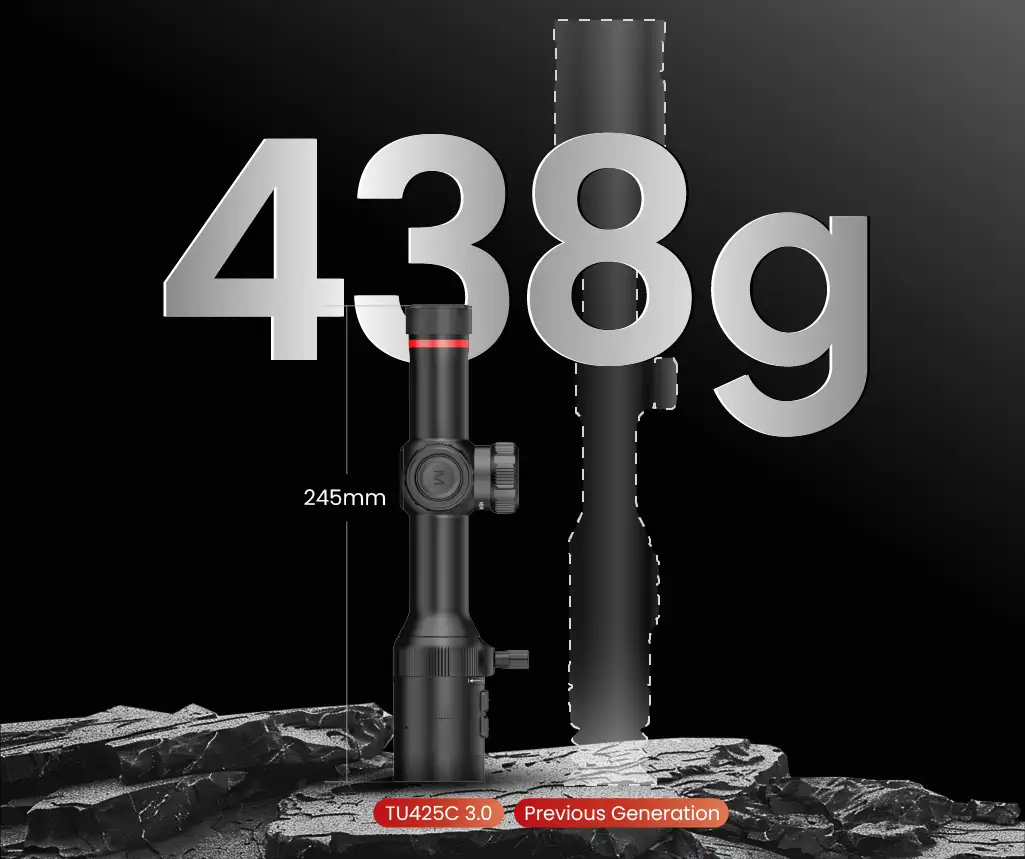

LPVO Style Smallest of the Series
By adopting a LPVO style design, the TU Cute 3.0 Series revolutionarily combines ultra-compact housing with advanced thermal technology, providing a superior size and weight experience compared to traditional scopes.
Hyper-Light Algorithm Ultra-Premium Visuals
Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.
Shutterless Design Uninterrupted Visuals
The innovative shutterless 3.0 technology eliminates the clicking sound and image freezing, ensuring uninterrupted real-time footage during actual hunts, in case any shots are lost or missed during calibration.

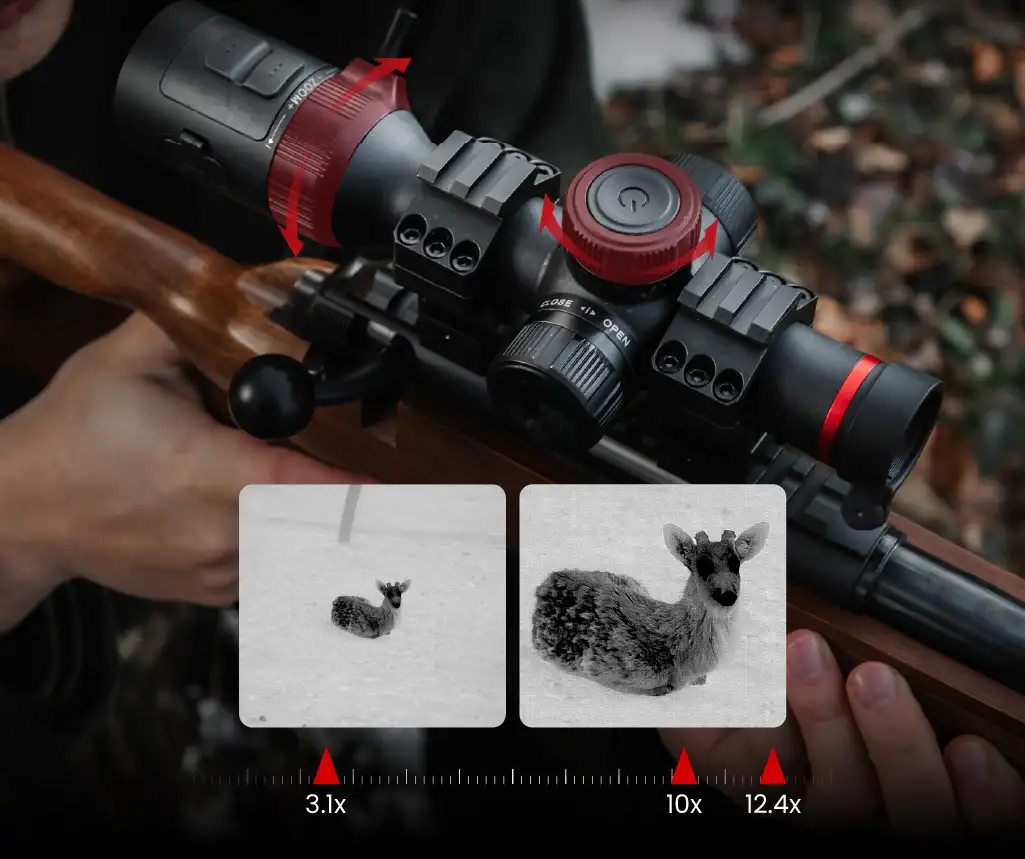

Ergonomic Design Easy to Operate
After rounds of field testing, we evaluate the design features based on hunters’ feedback, adjusting and refining them to meet user habits. The focus wheel, zoom lever and button layouts are crafted with ergonomic detail for intuitive control.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.0 | |||
| Field of view | 8.2°×8.2° | |||
| FOV m@100m | 14×14 | |||
| Magnification | 0.7x~2.8x | |||
| Detection range | 1300m/1400yd | |||
| Focus | Manual | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 1.43” AMOLED 466×466 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB-C (Charge/USB2.0) | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 18500 ×1 Battery (Built-in) and 18650 ×2 Battery (External) | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 6000J/1200G | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 438/15.45 | |||
| Size (mm/in) | 245×89×70/9.65×3.50×2.76 | |||
| Standard | Device, Lens Cover, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card | |||
| Optional | Bluetooth Remote Control, Laser Rangefinder, 18650 Battery | |||
