MS070TA Miniature Two-Axis Tri-Light Pod

I. Product Introduction

The S070TA miniature optoelectronic pod consists of an uncooled infrared thermal imager, long and short focal length visible light cameras (7x hybrid zoom), a two-axis servo stabilization platform, and an image processing component (autonomous recognition and tracking). It features ultra-small size, ultra-light weight, high precision, and low latency, and can be applied to small and micro UAVs to perform day and night reconnaissance and surveillance missions over target areas.

The optoelectronic pod uses an uncooled infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, while simultaneously outputting infrared and visible light video in real time for mission personnel to view.

This miniature pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to our ViewControlStudio display and control software platform to assist the overall unit in quickly completing the development of the UAV system.

This optoelectronic pod is mainly used in scenarios such as reconnaissance, guidance, border patrol, personnel search and rescue, and forest fire prevention.

I. Photos of the actual product

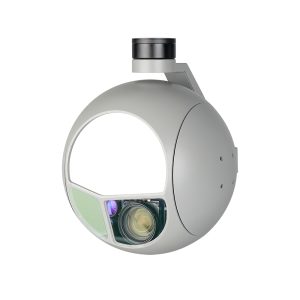

Figure 1 Product Image

II. Product Functions

a) It has self-testing and fault reporting functions;

b) It has the ability to detect long-wave infrared and visible light bands and can output infrared and visible light images simultaneously;

c) Features 7x optical hybrid zoom in visible light;

d) Possesses the ability to move freely along two axes: azimuth and pitch;

e) It has the function of receiving commands from the control station and completing pod operations;

f) It has functions such as manual search, scanning, centering, automatic tracking, and data indexing;

g) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;

h) Possesses typical target (person, vehicle) recognition capabilities;

i) Features multi-target tracking capability; (optional)

j) It has a manual target locking/unlocking function;

k) It has an automatic target tracking function, which can automatically track targets and has the ability to resist natural interference;

l) It has a memory tracking function, which can recapture the target in a short time after it is briefly lost;

m) It has the function of adjusting the gate size;

n) It has a tracking point switching function;

o) It can communicate bidirectionally with the ground station via RS422/100Mbps network and output information such as infrared images, visible light images, system working status, camera working status, optical axis position, and line-of-sight angular velocity;

p) It has photo and video recording functions;

q) Equipped with manual drift correction function;

III. Mounting Platform

Miniature rotary-wing drones, fixed-wing drones, loitering munitions, etc.

IV. Main Technical Parameters

model	S070TA
Infrared thermal imager
Detector type	Uncooled focal plane detector
Operating band	8μm～14μm
Detector resolution	640×512
Pixel size	12μm
Lens focal length	25mm
Field of view	17.5°×13.1°
Electron Magnification	1～4X
Short-focal-length visible light camera
CMOS resolution	4 million
focal length	4.45mm
Field of view	79.7°×50.3°
Video resolution	1920×1080
Long-range visible light camera
CMOS resolution	4 million
focal length	16mm
Field of view	26.1° x 14.9°
Video resolution	1920×1080
Hybrid zoom with long and short focal lengths	7 times
Servo Platform
Orientation angle	-90° to +90°
Pitch angle	-90° to +30° (positive for upward)
Angular position accuracy	≤0.3°
Stable accuracy	≤0.1mrad (1σ1°/2Hz, 2°1Hz)
Maximum angular velocity	Azimuth ≥ 50°/s, Pitch ≥ 50°/s
Image processing components
Automatic recognition	Capable of automatically recognizing people and vehicles with a target count of ≥32.
Automatic tracking	Target size ≥ 16×16
Tracking frame rate	50Hz
Image output	RTSP/UDP/RTMP are selectable, and the bitrate can be set from 100kbps to 6Mbps.
System Indicators
Power supply voltage	12V to 32VDC
power	Stable power consumption: ≤12W Peak power consumption: ≤20W
weight	≤250g
volume	≤70mm×71.5mm×95.3mm
interface
Control Interface	RS422/RS232/Network optional
Video interface	100M network
Storage interface	≤512G memory card (Micro SD card)
External plug-ins	J30-15ZKP
Image format	JPG format
Video format	AVI format
Environmental adaptability
Operating temperature	-20℃～+55℃ (-40℃ optional)
Storage temperature	-40℃ to +60℃
Shock resistance	≥400g
