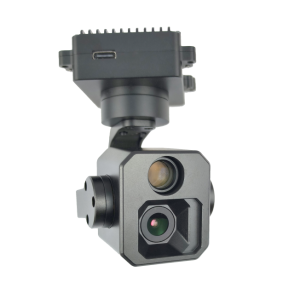

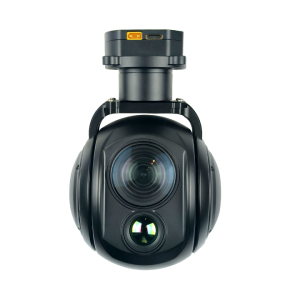

MW55 Miniature Three-Axis Long and Short Focal Spectrum Visible Light Stabilized Pod

1. Overview

The MW55 gimbal uses a three-frame gyroscope stabilization control system with an embedded gimbal cable. It is equipped with a 10-megapixel visible light CMOS sensor and a starlight-level visible light CMOS sensor, and has two field of view angles. It can output 1080P high-definition visible light video in real time. At the same time, the gimbal components have target locking and tracking functions.

2. Frame corner

Azimuth: -90° to +90°;

Pitch angle: -120° to +90°;

Roll angle: -30° to +30°;

Stability accuracy: 0.02° (1σ, perturbation 0.5°@1Hz)

3. CMOS Imaging Sensor Specifications

1) Ten-million-level CMOS

Pixels: 13 million;

Focal length: 3.5mm;

Field of view: 70.4° (D) × 39.6° (V), error ±5%;

Distortion: ≤5%;

Depth of field: 169cm～INF

Lens configuration: 5P + 1IR (650nm band)

Real-time video resolution: 1920×1080;

Maximum photo resolution: 4K, 1920×1080;

Recognition distance: Under visibility conditions of not less than 8km, the target recognition distance for adults is greater than 200m;

2) Starlight-level CMOS

Pixels: 2 million;

Focal length: 10.3mm;

Field of view: 30.9° (D), 17.4° (V);

Distortion: ≤0.7%;

Lens configuration: 5P + 1IR;

Real-time video resolution: 1920×1080;

Maximum photo resolution: 1920×1080;

Recognition distance: Under visibility conditions of not less than 8km, the target recognition distance for adults is greater than 350m;

4. Power supply

DC9V～15V, steady-state power consumption 9W;

5. Weight and volume

The gimbal weighs approximately 55g and measures 44mm × 46mm × 60mm.

The tracking servo board weighs approximately 35g and measures 52mm × 52mm × 18mm.

The control box and base plate weigh approximately 20g (optional).

6. Output Interface

Video: Network, HDMI;

Control: TTL serial port, network, SBUS;

Storage: SD card storage;

7. Environmental adaptability requirements

Operating temperature: -40℃～+55℃;

Storage temperature: -45℃～+60℃;

Rain resistance: The system can operate normally under light rain conditions.
