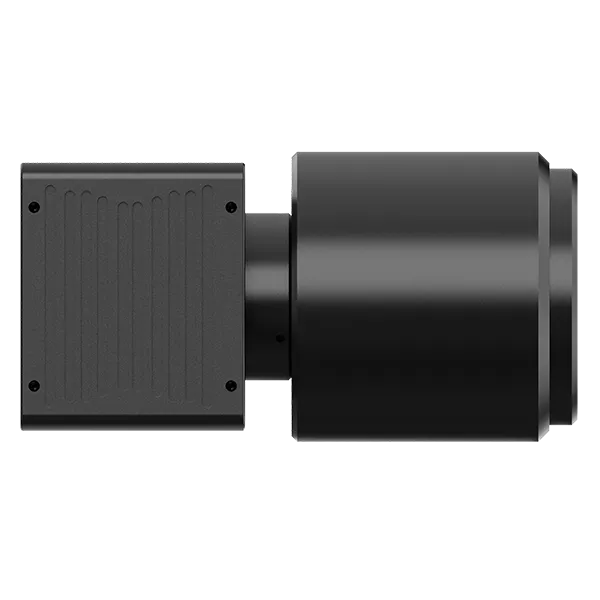

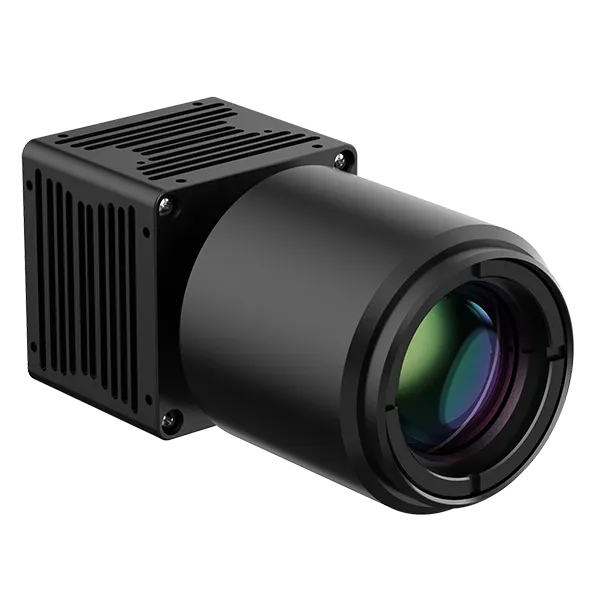

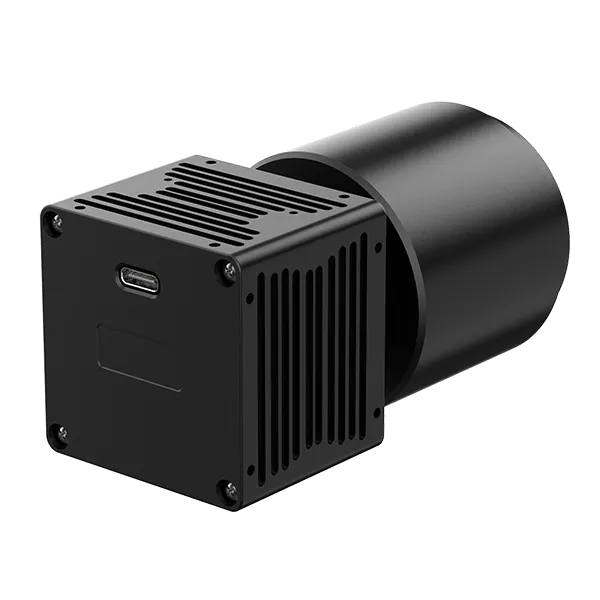

Keen MB615 Uncooled Short-Wave Infrared Module Component
China Moneypro
The Keen B615 short-wave infrared module component adopts a high-sensitivity InGaAs short-wave infrared detector with a pixel size of 15μm and an array size of 640×512.
Combined with excellent image processing algorithms, it can provide more delicate and high-quality images.
The product features low power consumption, low noise, and wide dynamic range.
It supports multiple serial communication and video output interfaces.
It is widely used in security monitoring, machine vision, semiconductor testing, laser detection, and other fields.
Combined with excellent image processing algorithms, it can provide more delicate and high-quality images.
The product features low power consumption, low noise, and wide dynamic range.
It supports multiple serial communication and video output interfaces.
It is widely used in security monitoring, machine vision, semiconductor testing, laser detection, and other fields.
Feature
Excellent Performance
Equipped with a self-developed InGaAs shortwave infrared detector with a resolution of 640×512 and a pixel size of 15μm.
Combines miniaturization, low power consumption, and lightweight design.
Built-in TEC temperature control system ensures lower dark current.
Combines miniaturization, low power consumption, and lightweight design.
Built-in TEC temperature control system ensures lower dark current.
All Weather Multi-Scenario Imaging
The product showcases a robust capacity to permeate haze and smoke, enabling long detection distances even in adverse weather conditions.
The InGaAs spectral band covers various commonly used laser wavelengths, making it widely applicable in the laser field.
It features some thermal imaging characteristics, capable of detecting high-temperature radiation targets (≥250°C).
The InGaAs spectral band covers various commonly used laser wavelengths, making it widely applicable in the laser field.
It features some thermal imaging characteristics, capable of detecting high-temperature radiation targets (≥250°C).
Multiple Selections
It supports multiple video protocols, including BT.656, BT.1120, and LVDS.
Expandable USB 3.0 and Cameralink user interfaces.
It provides an SDK that is simple and easy to use, supporting secondary development.
Expandable USB 3.0 and Cameralink user interfaces.
It provides an SDK that is simple and easy to use, supporting secondary development.
Specification
| Performance Indicators | |
| Detector Type | InGaAs Short-Wave Infrared Detector |
| Resolution | 640×512 |
| Pixel Pitch | 15μm |
| Detector Frame Rate | 25/50Hz |
| Spectral Band | 0.9～1.7μm |
| Quantum Efficiency | ≥70% |
| Operability | ≥99.8% |
| Average Pixel Dark Current | ≤ 60fA (@-0.2V image element bias@25℃) |
| Exposure Time Range | 0.1~30ms |
| Integration type | Snapshot global shutter |
| Cooling Mode | TEC 1 |
| Depth of Output Data | 8bit/10bit/14bit |
| Image Adjustment | |
| Palette | Support |
| Digital Zoom | 1.0~2.0× continuous zoom (step size: 0.1) |
| Image Processing | Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement |
| Mirroring | Horizontal/Vertical/Diagonal |
| Cross Cursor | Display/Blank/Move |
| Power and Interface | |
| Power Supply Range | 5-24V DC (Recommended voltage of 12V DC) |
| Typical Power Consumption at 25°C | ＜1.5w |
| Digital Video | Cameralink/USB 3.0 |
| Communication Interface | RS-232/RS-422/UART (3.3V) |
| Optical Interface | C-Mount |
| Physical Characteristics | |
| Weight | 130±3g |
| Size | 48×48×48.5mm |
| Environment Adaptability | |
| Operating Temperature | -40℃～+50℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5-95%, non-condensing |
| Vibration | 6.06g, random vibration, 3 axial |
| Shock | 80g, 4ms, final peak sawtooth wave, three axes and six directions |
| Product Certification | RoSH2.0 |
Application Scenariosa
Biological Science
Education and Research
Material Sorting
Quality Inspection
