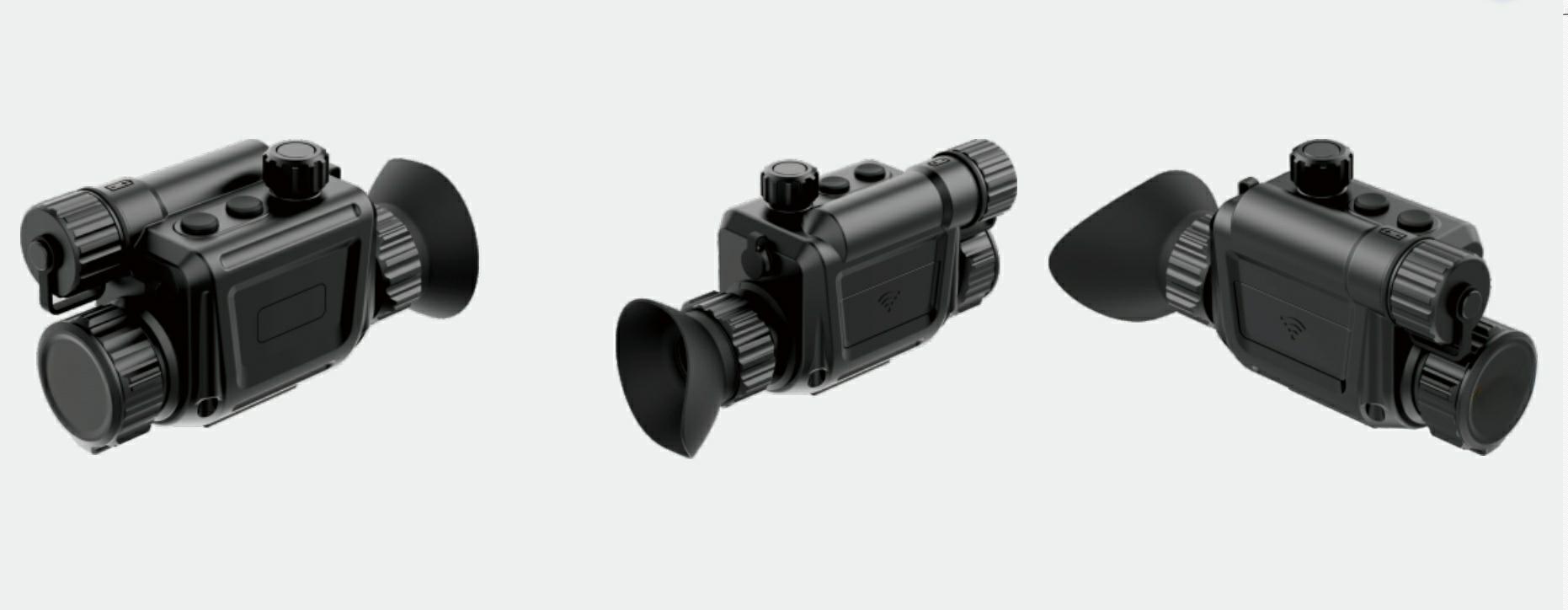

China Moneypro MMPS630 Miniature Dual-Purpose Thermal Sight

China Moneypro
China Moneypro MMPS630 is a miniature dual-purpose thermal sight designed to operate in complete darkness, smoke, and dust. It can be used as a standalone weapon sight or paired with a day optic to enhance aiming accuracy. An intuitive scroll-wheel UI enables quick switching among handheld, gunsight co-work, and helmet modes, significantly improving the effectiveness of individual operators in all-weather, all-terrain missions.
Rugged, lightweight, and highly adaptable, China Moneypro MMPS630 is suitable for military, law-enforcement, counter-terrorism, and search-and-rescue applications, offering advanced tactical performance backed by reliable engineering.

Main Features

  • Multi-mode adaptability: handheld / gunsight / co-work / helmet
  • Intelligent target recognition: auto-identifies personnel, vehicles, drones
  • Lightweight & portable: ≤280 g magnesium-alloy shell; IP67 protection
  • Ultra-long endurance: ≥12 h continuous operation (18650 battery)
  • One-click zeroing & ballistic calculation for higher first-round hit probability
  • Image/video capture: up to 10,000 images or 12 h video storage
  • Wireless control: Wi-Fi image transmission + remote command
  • Multi-reticle & Picture-in-Picture display for tactical flexibility
China Moneypro MPS630 Miniature Dual-Purpose Thermal Sight

Technical Parameters

IR Parameters

  • Resolution: 640 × 512
  • Pixel Pitch: 12 μm
  • Frame Rate: 50 Hz
  • OLED: 1024 × 768

Optical Parameters

  • Focal Length: 26.7 mm F1.0
  • Field of View: 16.3° × 13.1°
  • Magnification: 1×
  • Diopter Adjustment: -5D ~ +3D
  • Exit Pupil Distance: 20 mm / 40 mm

Power Supply

  • Battery: 18650 × 1
  • Operating Time: ≥ 12 h

Physical Characteristics

  • Weight: ≤ 280 g
  • Dimensions: ≤ 120 × 50.5 × 75 mm

Environmental

  • Protection Rating: IP67
  • Operating Temperature: -40°C ~ +55°C
  • Reliability: 1000 G / 0.3 ms

Interfaces

  • Electrical: Type-C / RS232 / PAL
  • Mechanical: L4G24 (Picatinny compatible)

Functional Parameters

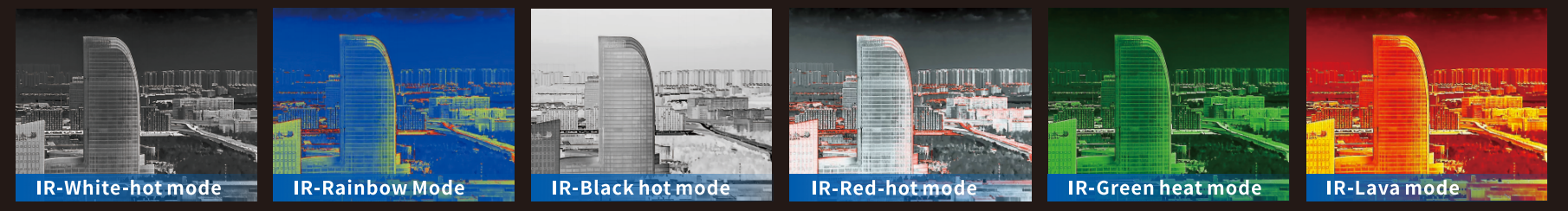

  • Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow
  • Digital Zoom: 1–4×
  • Digital Compass: Azimuth, Pitch, Roll
  • Memory: 128 GB
  • Intelligent Target Recognition: Personnel, vehicles, drones
  • Picture-in-Picture: Yes
  • Probabilistic Ranging: Yes
  • One-Click Zeroing: Yes
  • Ballistic Calculation: Yes
  • Wi-Fi: Yes
  • Flip Protection: Yes

Effective Range

  • Personnel: Detection up to 1 km, recognition 0.4–0.8 km
  • Vehicles: Detection up to 2 km, recognition 1 km
China Moneypro MPS630 Miniature Dual-Purpose Thermal Sight
China Moneypro MPS630 Miniature Dual-Purpose Thermal Sight

FAQ

Q1. What makes China Moneypro MPS630 reliable in extreme environments?
A1. China Moneypro MPS630 uses a magnesium-alloy housing with IP67 protection, operates from -40°C to +55°C, and is shock-qualified to 1000 G / 0.3 ms, ensuring stable performance in harsh conditions.

Q2. How does intelligent target recognition help operators?
A2. The onboard algorithm auto-identifies personnel, vehicles, and drones, reducing operator workload and improving response speed.

Q3. Can China Moneypro MPS630 be mounted on different platforms?
A3. Yes, with L4G24/Picatinny compatibility, it supports rifles, machine guns, and helmet mounts.

Q4. Is the power system sufficient for long missions?
A4. A single 18650 battery powers ≥12 h continuous operation, minimizing downtime during extended tasks.

Q5. What do one-click zeroing and ballistic calculation provide?
A5. Faster sight alignment and real-time trajectory compensation, ensuring higher accuracy in dynamic scenarios.
