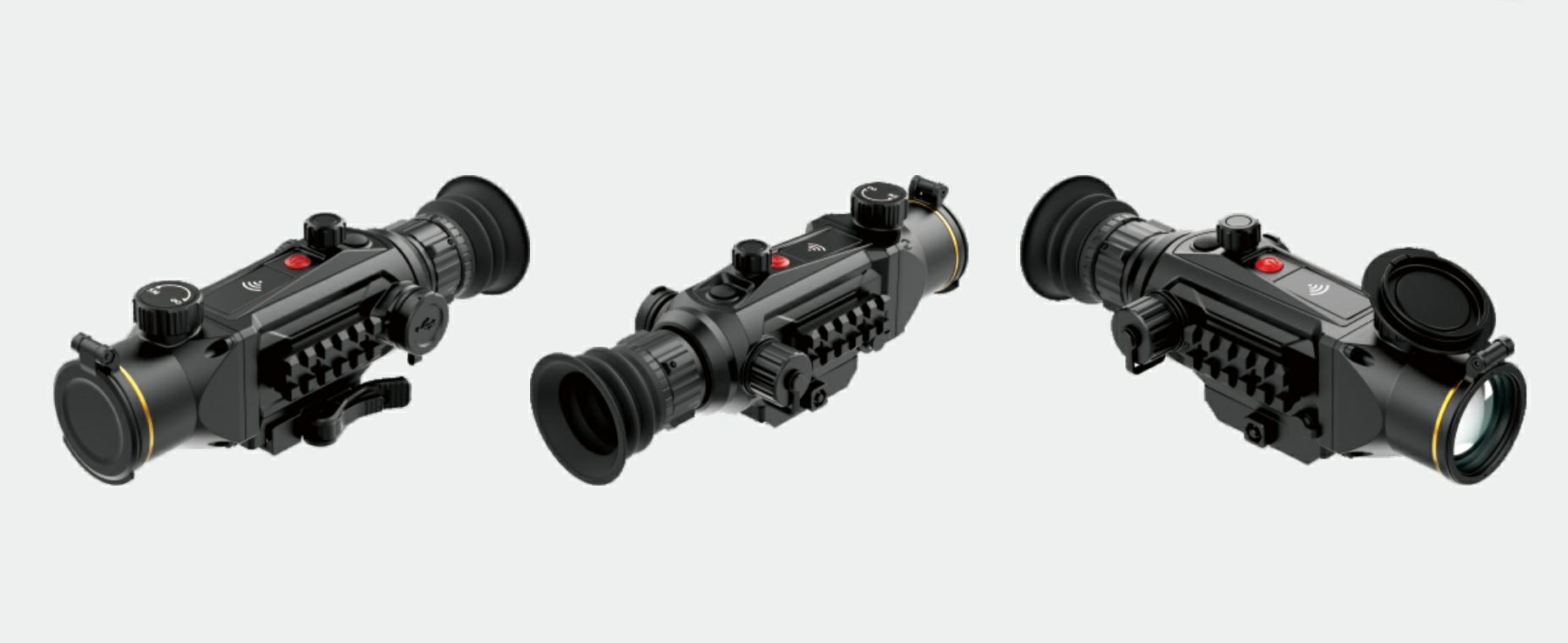

China Moneypro MMPS645-L Laser Thermal Gun Sight
China Moneypro
China Moneypro MMPS645-L integrates cutting-edge technologies including laser ranging, ballistic calculation, Wi-Fi transmission, and automatic photo/video recording at the moment of firing. Engineered for enhanced shooting accuracy and operational efficiency, the built-in Wi-Fi enables real-time image and data transfer to mobile devices, facilitating tactical analysis, team collaboration, and mission evaluation.
The system records each shot with video and photos, ensuring complete documentation of critical moments. Designed for versatility, durability, and ease of use, it can be mounted on multiple weapon platforms. MMPS645-L is highly suitable for military, law enforcement, counter-terrorism, and civilian search and rescue missions.
The system records each shot with video and photos, ensuring complete documentation of critical moments. Designed for versatility, durability, and ease of use, it can be mounted on multiple weapon platforms. MMPS645-L is highly suitable for military, law enforcement, counter-terrorism, and civilian search and rescue missions.
Key Features
- Automatic target distance calculation and real-time reticle adjustment via integrated LRF module.
- Equipped with 3rd-gen 12μm / 640×512 (50Hz) infrared detector for smooth, high-resolution imaging.
- Detects and identifies human targets up to 700 meters.
- Battery replacement without shutdown for 24/7 operations.
- Lightweight magnesium alloy shell with IP67 protection, designed for complex environments.
- Intuitive single-scrollwheel interface for effortless control.
- Shock resistance up to 1200g/0.3ms, capable of operating in extreme climates.
- Directional guidance indicators, photo/video capture, stores up to 10,000 images or 12 hrs of video.
- Supports Wi-Fi transmission and remote command.
- Intelligent reticle adjustment for increased first-round hit probability.
- Multiple reticle options (range & mil-dot) to optimize accuracy.
- Adaptable to a wide range of weapon platforms.
- Modular design for rapid deployment.
Technical Specifications
IR Parameters
- Resolution: 640×512
- Pixel Pitch: 12μm
- Frame Rate: 50Hz
- OLED: 1024×768
Power Supply
- Battery: External 1×18650 / Internal 2×18500
- Operating Time: 12h
Physical Parameters
- Weight: ≤750g
- Dimensions: ≤245mm × 95mm × 95mm
Optical Parameters
- Focal Length: 45mm F1.1
- FOV: 9.7° × 7.8°
- Diopter Adjustment: -4D ~ +2D
- Exit Pupil Distance: ≥35mm
Laser Module
- Wavelength: 905nm
- Range: 50–2000m
- Accuracy: ±2m
- Display: 0.96″ OLED
- Removable: Yes
Environmental Requirements
- Protection: IP67
- Operating Temperature: -40℃ ~ +55℃
- Reliability: 1200g/0.3ms
Functional Parameters

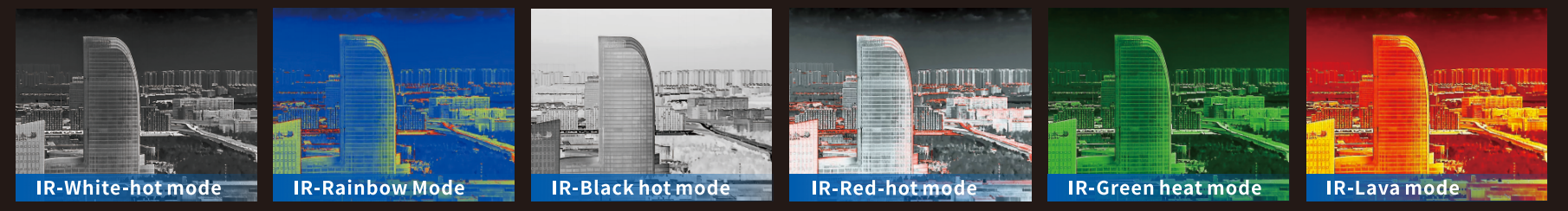

- Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
- Digital Zoom: 1–4×
- Digital Compass: Azimuth, Pitch, Roll angle
- Memory: 128GB
- Intelligent Target Recognition: Personnel, vehicles, drones, etc.
- Reticle: Multiple range and mil-dot
- Custom Reticle: Supports offline upgrades
- Picture-in-Picture: Yes
- One-Click Zeroing: Yes
- Ballistic Calculation: Yes
- Wi-Fi: Yes
Interfaces
- Electrical: Type-C / RS232 / PAL
- Mechanical: Standard Picatinny Rail
Effective Range
- Personnel Recognition (IR):up to 0.75 km
- Personnel Detection (IR):up to 1.8 km
- Vehicle Recognition (IR):up to 1.5 km
- Vehicle Detection (IR):up to 3.75 km
FAQ
Q1: How accurate is the China Moneypro MPS645-L’s laser ranging system?
A1: China Moneypro MPS645-L offers laser ranging with ±2m accuracy across distances from 50m up to 2000m, ensuring reliable target data for both long- and short-range engagements.
Q2: Can the device be used continuously in harsh environments?
A2: Yes. With IP67 protection and shock resistance of 1200g/0.3ms, it operates flawlessly in extreme cold, heat, high-altitude plateaus, and humid rainforest conditions.
Q3: How does Wi-Fi integration improve mission performance?
A3: Wi-Fi enables real-time image streaming and data transfer to command centers or mobile devices, ensuring tactical teams have synchronized situational awareness during operations.
Q4: What makes the ballistic calculation system unique?
A4: The integrated ballistic computer automatically calculates trajectory adjustments based on laser range data, optimizing reticle alignment and significantly increasing first-round hit probability.
Q5: How does China Moneypro MPS645-L compare with conventional thermal sights?
A5: Unlike conventional models, the China Moneypro MPS645-L combines thermal + laser + Wi-Fi + ballistic computation in one compact platform, making it one of the most advanced multi-role thermal gun sights available globally.
