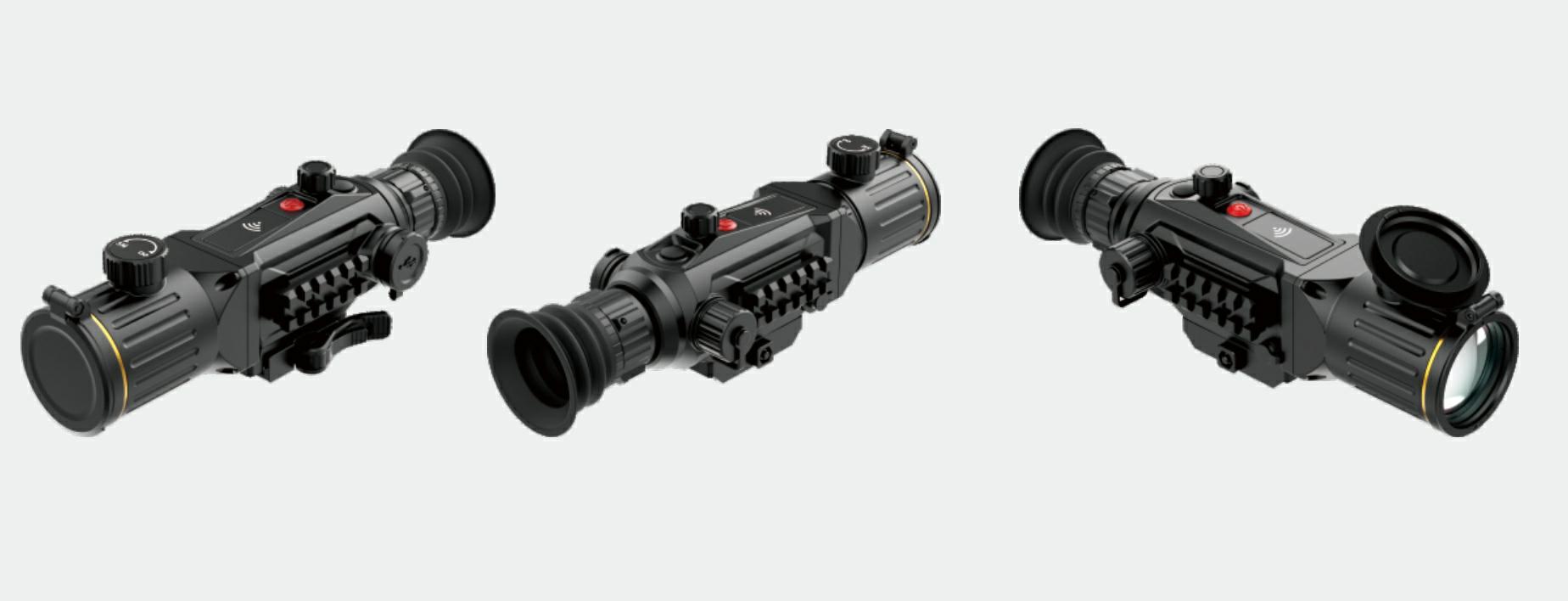

China Moneypro MMPS650 Lightweight Dual-FOV Multi-Purpose Thermal Sight
China Moneypro
China Moneypro MMPS650 is a distinguished multi-purpose thermal sight with dual-FOV gun sight design (WFOV & NFOV), engineered to enhance tactical performance and operational efficiency. Equipped with a high-resolution infrared sensor and intelligent image processing algorithms, it delivers crisp imaging and accurate target identification in real-time.
The Wide Field of View (WFOV) mode provides broader situational awareness, while the Narrow Field of View (NFOV) mode enhances accuracy for long-distance target acquisition. This dual-mode flexibility ensures operators can adapt seamlessly to varying tactical requirements.
Even in extreme conditions—complete darkness, heavy smoke, or challenging terrain—the MPS650 enables precise target detection and reliable imaging, ensuring mission success across military, law enforcement, counter-terrorism, and civilian applications.
The Wide Field of View (WFOV) mode provides broader situational awareness, while the Narrow Field of View (NFOV) mode enhances accuracy for long-distance target acquisition. This dual-mode flexibility ensures operators can adapt seamlessly to varying tactical requirements.
Even in extreme conditions—complete darkness, heavy smoke, or challenging terrain—the MPS650 enables precise target detection and reliable imaging, ensuring mission success across military, law enforcement, counter-terrorism, and civilian applications.
Key Features
- Dual FOV Switchingfor rapid transition between wide and narrow fields of view.
- Equipped with 3rd-gen 12μm/640×512 (50Hz) infrared detectorfor high-resolution imagery.
- Detects and identifies single-person targets at distances up to 800 meters.
- 24/7 operationwith hot-swappable battery replacement capability.
- Rugged magnesium alloy shellwith IP67 protection rating, suitable for harsh environments.
- Withstands 1200g/0.3ms shocks, adaptable to jungles, plateaus, deserts, and cold regions.
- Intuitive single-scrollwheel designfor effortless operation.
- Directional guidance indicators with photo/video capture(stores 10,000 images or 12 hours of video).
- Wi-Fi enabledfor image transmission and remote command control.
- Intelligent reticle adjustment to maximize first-round hit probability.
- Supports multi-range and mil-dot reticlesfor precise shooting.
- Adaptable to multiple weapon platformsfor tactical flexibility.
- Automatic target recognitionto enhance combat efficiency.
- Modular designfor rapid deployment.
Technical Parameters
IR Parameters
- Resolution: 640×512
- Pixel Pitch: 12μm
- Frame Rate: 50Hz
- OLED Display: 1024×768
Power Supply
- Battery: External 1×18650 / Internal 2×18500
- Operating Time: 12 hours
Physical Characteristics
- Weight: ≤860g
- Dimensions: ≤275mm × 95mm × 95mm
Environmental Requirements
- Protection: IP67
- Operating Temperature: -40℃ ~ +55℃
- Reliability: 1200g/0.3ms
Interface
- Electrical: Type-C / RS232 / PAL
- Mechanical: Standard Picatinny Rail
Laser Module (Optional)
- Wavelength: 905nm
- Measurement Range: 50–2000m
- Accuracy: ±2m
Optical Parameters
- Focal Length (WFOV): 25mm
- WFOV: 17.5° × 14.3°
- Focal Length (NFOV): 50mm
- NFOV: 8.8° × 7.2°
- Diopter Adjustment: -4D ~ +2D
- Exit Pupil Distance: ≥35mm
Functional Parameters

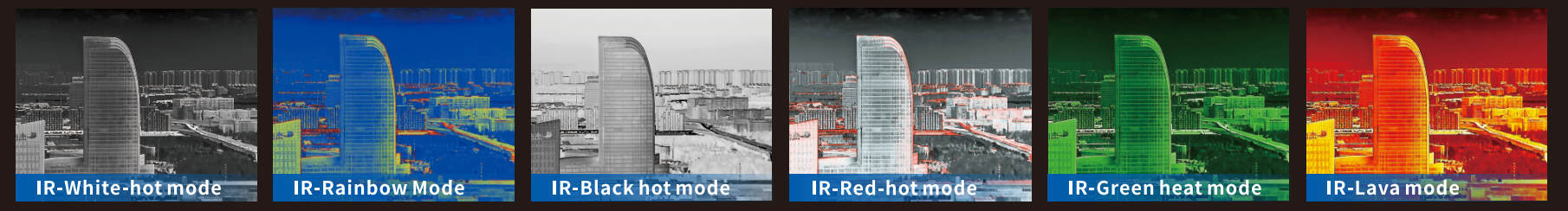

- Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
- Digital Zoom: 1–4×
- Digital Compass: Azimuth, Pitch, Roll angle
- Memory: 128GB
- Intelligent Target Recognition: Personnel, Vehicles, Drones
- Reticle: Multi-range and Mil-dot Reticles
- Custom Reticle: Supports offline customization and upgrade
- Picture-in-Picture: Yes
- Probabilistic Ranging: Yes
- One-Click Zeroing: Yes
- Ballistic Calculation: Yes
- Wi-Fi: Yes
Effective Range
- IR Recognition: Personnel 0.8 km | Vehicle 1.6 km
- IR Detection: Personnel 2 km | Vehicle 4 km
FAQ:
Q1: How does the dual-FOV system improve tactical performance?
A1: The dual-FOV design allows users to seamlessly switch between wide-angle situational awareness and narrow-angle precision aiming, ensuring maximum flexibility in both close-quarter and long-range scenarios.
Q2: What makes the China Moneypro MPS650 suitable for extreme environments?
A2: With its IP67-rated magnesium alloy shell and ability to withstand 1200g/0.3ms shocks, the MPS650 performs reliably in deserts, jungles, plateaus, and arctic conditions.
Q3: Can the China Moneypro MPS650 support real-time data sharing?
A3: Yes, the integrated Wi-Fi transmission system enables real-time image transfer and remote command control, critical for team coordination and tactical operations.
Q4: What is the effective detection and recognition range?
A4: The China Moneypro MPS650 provides personnel recognition up to 800m and vehicle recognition up to 1.6 km, with extended detection ranges of 2 km for personnel and 4 km for vehicles.
Q5: Is the reticle system customizable?
A5: Yes, China Moneypro MPS650 supports multi-range and mil-dot reticles, as well as offline reticle customization and upgrades, ensuring adaptability to specific mission requirements.
