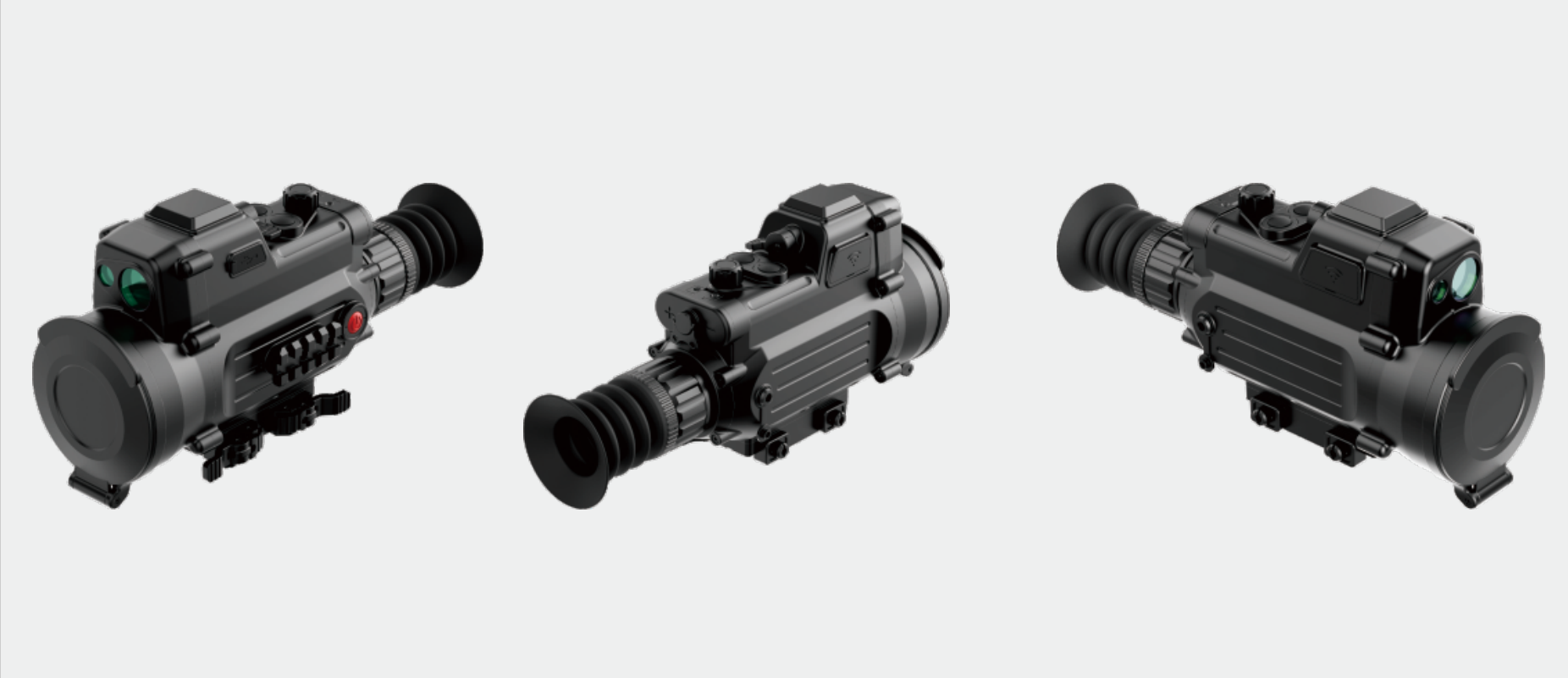

China Moneypro MMPS670-AI Long Range Multi-Functional Thermal Sight

China Moneypro
China Moneypro MMPS670-AI is the world’s first smart dual-band common axis automatic firing thermal sight, integrating multiple cutting-edge technologies. It combines high-resolution infrared sensors, smart image processing algorithms, and an automatic firing device to ensure accurate target capture in extreme environments. The laser rangefinder provides accurate distance measurement, while the Beidou positioning system and electronic compass ensure directional awareness. The ballistic calculation module enhances shooting accuracy.
The automatic firing device driven by AI algorithm can automatically fire after the target is locked, significantly improving the operational efficiency.
The product is sturdy and durable, easy to operate, lightweight, and highly adaptable, capable of being mounted on various weapon platforms. It is widely used in military, police operations, counter-terrorism and other fields, providing powerful technical support and significant tactical advantages for modern combatants.

Key Features

  • One-click calibration, automatic tracking, target matching, and automatic firing.
  • Multispectral imaging (IR + Visible Light) ensures performance across varying environments.
  • Capable of detecting and identifying single-person targets at distances up to 1200 meters.
  • Integrated electronic compass and BeiDou module for real-time azimuth calculation.
  • Automatically collects or manually inputs environmental variables to enhance firing accuracy.
  • Magnesium alloy shell with IP67 protection, adaptable to complex environments.
  • Intuitive single-scrollwheel design for effortless control without memorization.
  • Withstands 1500g/0.3ms strong impacts and operates in extreme environments (cold/hot, plateaus, rainforests, jungles).
  • Features directional guidance indicators, photo/video capture, and stores 10,000 images or 12 hrs of video.
  • Supports Wi-Fi image transmission and remote command control.
  • Intelligently adjusts reticle to enhance first-round hit probability.
  • Integrated multi-range and mil-dot reticles for optimized shooting accuracy.
  • Adaptable to multiple weapon platforms for tactical flexibility.
  • Automatically identifies typical targets to enhance combat efficiency.
China Moneypro MPS670-AI Long Range Multi-Functional Thermal Sight

Parameters

Imaging Parameters

  • Resolution: 640×512
  • Pixel Pitch: 12µm
  • Visible Light Sensor: 2 MP
  • Frame Rate: 50Hz
  • OLED: 1280×1024

Physical Characteristic

  • Weight: ≤1050g
  • Dimensions: 300mm × 120mm × 150mm

Interface

  • Electrical: Type-C/RS232/PAL
  • Mechanical: Standard Picatinny rail

Environmental Requirements

  • Protection: IP67
  • Operating Temperature: -40℃ ~ +55℃
  • Reliability: 1500G/0.3ms

Laser Module

  • Wavelength: 1535nm Eye-Safe
  • Measurement Range: 1.5km (Personnel), 4km (Vehicle)
  • Accuracy: ±1m
  • Accuracy Rate: 99%
  • Ranging Frequency: 1Hz

Optical Parameters

  • IR Focal Length: 70mm F1.0
  • IR FOV: 6.2° × 5.0°
  • Visible Light Focal Length: 55mm F7
  • Visible Light FOV: 3.85° × 3.05°
  • Diopter Adjustment: -5D ~ +2D
  • Exit Pupil Distance: ≥45mm

Power Supply

  • Battery: 2*18650
  • Operating Time: 6h

Functional Parameters

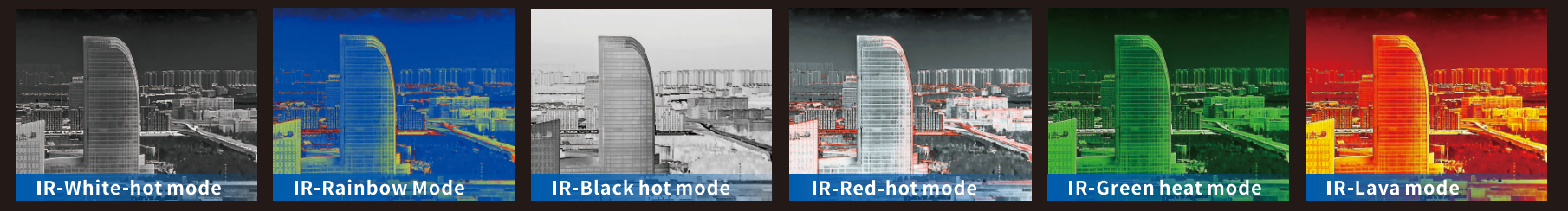

  • Display Modes: White Hot, Black Hot, Red Hot, Green Hot, Lava, Rainbow, Outline
  • Digital Zoom: 1-4x
  • BeiDou: ≤10m (CEP)
  • Digital Compass: Azimuth, Pitch, Roll
  • Memory: 128G
  • Intelligent Target Recognition: Personnel, vehicles, drones, etc.
  • Reticle: Multiple range and mil-dot reticles
  • Custom Reticle: Supports offline customization and upgrade
  • Defogging: Yes
  • Picture-in-Picture: Yes
  • Firing Data Loading: Support
  • One-Click Zeroing: Yes
  • Ballistic Calculation: Yes
  • Wi-Fi: Yes

Effective Range

  • Visible Light Recognition: 1.2km (Personnel), 2.4km (Vehicle)
  • Visible Light Detection: 3km (Personnel), 6km (Vehicle)
  • IR Recognition: 1.3km (Personnel), 2.6km (Vehicle)
  • IR Detection: 3.25km (Personnel), 6.5km (Vehicle)
China Moneypro MPS670-AI Long Range Multi-Functional Thermal Sight

FAQ

Q1: What makes the China Moneypro MPS670-AI different from standard thermal sights?
A1: China Moneypro MPS670-AI integrates dual-band imaging (IR + visible light), AI-driven automatic firing, and BeiDou navigation, providing unmatched precision and automation compared to conventional systems.

Q2: How accurate is the laser rangefinder under extreme conditions?
A2: The integrated 1535nm eye-safe laser delivers up to 99% accuracy with ±1m precision, even in harsh environments like rain, smoke, or dust.

Q3: Can China Moneypro MPS670-AI sustain operations in high-vibration or shock-prone scenarios?
A3: Yes. With a durability rating of 1500G/0.3ms and IP67 protection, it withstands extreme vibrations, impacts, and environments ranging from jungles to high-altitude plateaus.

Q4: How long can the device operate continuously in the field?
A4: Powered by dual 18650 batteries, China Moneypro MPS670-AI provides up to 6 hours of continuous operation, with hot-swappable battery support for extended missions.

Q5: Is the automatic firing function customizable for different mission profiles?
A5: Yes. Users can manually set environmental parameters or allow the AI to calculate firing solutions automatically, making it suitable for precision missions and rapid-response engagements.
