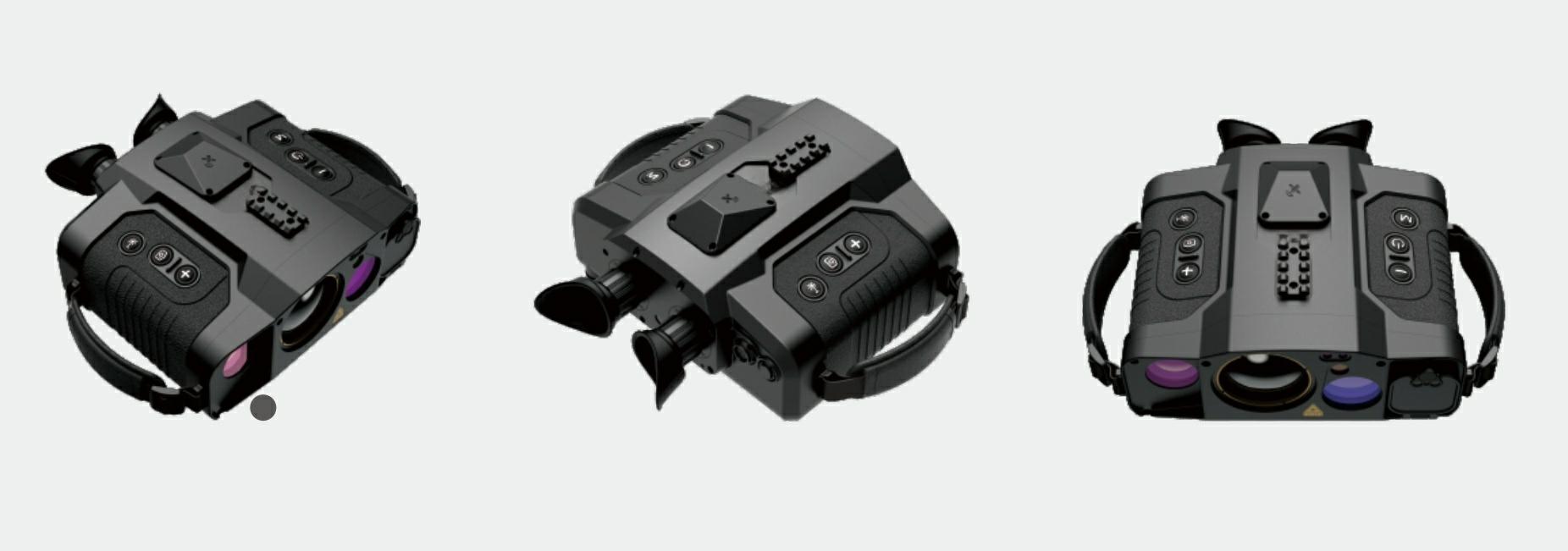

China Moneypro MMY5221 Long-Range Multifunction Thermal Binoculars (Cooled Type)
China Moneypro
China Moneypro MMY5221 is a multifunctional handheld binocular system that integrates HOT mid-wave cooled IR imaging, visible light imaging, and LRF (Laser Rangefinder) into a compact intelligent platform.
Equipped with a 1024×768 @10μm rapid-cooling infrared detector, electronic compass, zoom IR/day sight lens, and WiFi module, it supports self-positioning, target positioning, target cueing, and recognition capabilities.
With advanced fusion mode, it combines infrared, visible light, and data processing for day/night observation, target search, and precise ranging. The system also supports photo/video recording, real-time data transmission, and multi-environment adaptability.
China Moneypro MMY5221 is designed for combat reconnaissance, precise targeting, and battlefield awareness, serving as a powerful tactical companion for modern infantry
Equipped with a 1024×768 @10μm rapid-cooling infrared detector, electronic compass, zoom IR/day sight lens, and WiFi module, it supports self-positioning, target positioning, target cueing, and recognition capabilities.
With advanced fusion mode, it combines infrared, visible light, and data processing for day/night observation, target search, and precise ranging. The system also supports photo/video recording, real-time data transmission, and multi-environment adaptability.
China Moneypro MMY5221 is designed for combat reconnaissance, precise targeting, and battlefield awareness, serving as a powerful tactical companion for modern infantry
Key Features
- Equipped with 1024×768 @10μm rapid-cooling IR detector, achieving cooling time ≤2.5 minutes.
- Supports continuous optical zoomfor both infrared and visible light modules, providing flexible observation adjustment.

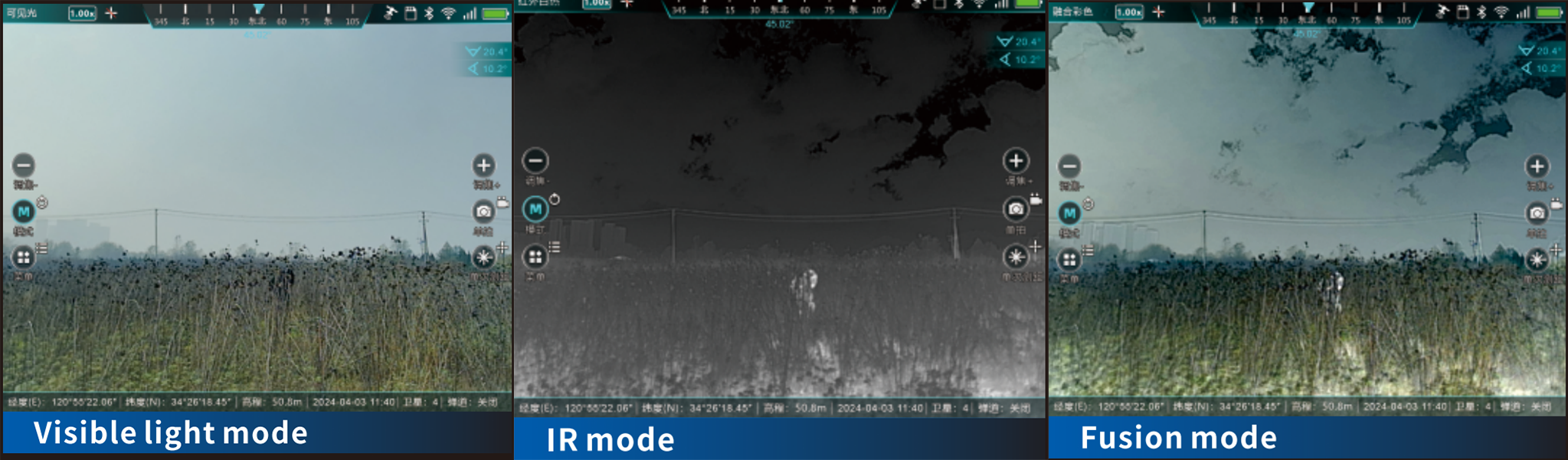

- Fusion mode with narrow field-of-view integration, delivering clear imaging and detailed rendering.
- Integrated with BD+GPS+GLONASS positioning, electronic compass, WiFi, and geolocation tracking.
- High-definition visible light sensor with fog penetrationfor complex environments.
- Rapid acquisition of local geographic coordinatesand azimuth data for accurate target identification.
- Battery undervoltage indicationand reverse polarity protection ensure safe operation.
Technical Parameters
IR Module
- Detector Type: Cooled IR FPA with HOT Technology 1024×768 @10μm
- FOV: 2.6°×2° ~ 8.2°×6.2°
Visible Light Module
- Detector Type: Color HD CMOS, 1/1.8”, 4MP
- FOV: 1.93°×1.54° ~ 8.84°×7.08°
Positioning & Orientation
- Mode: BD+GPS+GLONASS
- DMC Accuracy: ≤0.5°
- Self-Position Precision: CEP ≤5m, Pe ≤5m
- Target Locating Precision: CEP ≤30m (target at 3km)
Laser Designation
- Wavelength: 830nm / 660nm
- Range: >600m (Low), >2000m (High)
Laser Rangefinder
- Wavelength: 1.535μm (Eye-Safe)
- Range: 80m ~ 10000m
- Precision: ≤2m
Imaging
- Infrared: Supports brightness/contrast adjustment, white hot & black hot polarity switching
- Visible Light: Supports defogging, brightness, and contrast adjustment
- Magnification: 1.0×–4.0× continuous optical zoom & E-zoom
Other Specs
- Weight: ≤3kg (without battery)
- Operating Time: ≥6h
- Battery: 8 × Military 18650 Rechargeable Batteries
- Interface: USB / PAL / RS232 / HDMI / WiFi / Bluetooth
- Operating Temperature: -40℃ ~ +55℃
- Storage Temperature: -55℃ ~ +70℃
- Protection Level: IP67
Effective Range
- Visible Light:
- Personnel Recognition: 4km
- Vehicle Recognition: 8km
- Personnel Detection: 8km
- Vehicle Detection: 20km
- Infrared:
- Personnel Recognition: 3.5km
- Vehicle Recognition: 7km
- Personnel Detection: 8.7km
- Vehicle Detection: 17.5km
FAQs
Q1: How fast does China Moneypro MY5221 reach operational readiness?
A1: The cooled IR detector achieves a cooling time of ≤2.5 minutes, ensuring rapid deployment in the field.
Q2: What’s the maximum detection range of China Moneypro MY5221?
A2: With its eye-safe 1.535μm laser rangefinder, the IR5221 can detect targets up to 10km with a precision of ≤2m.
Q3: Can it operate effectively in foggy or low-visibility environments?
A3: Yes, the visible light sensor features fog penetration and defogging functions, maintaining clear imaging in complex weather conditions.
Q4: Is the China Moneypro MY5221 suitable for long missions?
A4: Powered by 8 standard military 18650 batteries, it provides ≥6 hours of continuous operation, suitable for extended reconnaissance tasks.
Q5: How does the system enhance battlefield awareness?
A5: Through its fusion mode, GPS/GLONASS positioning, and WiFi real-time data transmission, it delivers multi-spectral target acquisition and tactical intelligence sharing in real time.
