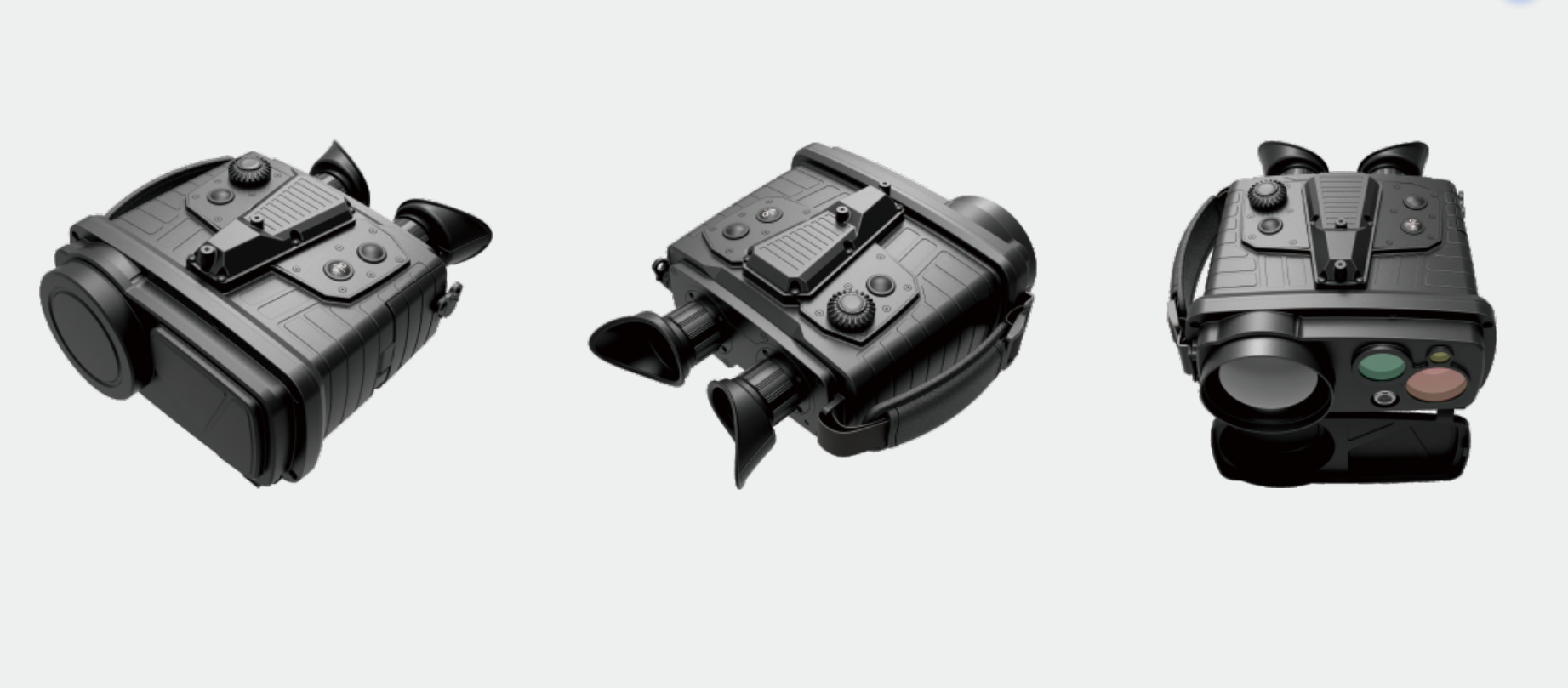

China Moneypro MMY522B Long-Range Multifunction Thermal Binoculars (Uncooled Type)

China Moneypro
China Moneypro MMY522B Long-Range Multifunction Thermal Binoculars are advanced reconnaissance devices designed for forward battlefield surveillance under night and low-visibility conditions. With integrated IR imager, visible light camera, laser rangefinder (LRF), GNSS positioning module, electronic compass, and storage module, they enable individual soldiers to perform long-range day-and-night reconnaissance, obtain precise geographic coordinates of targets, and enhance target acquisition accuracy.
This system provides direct battlefield control support for combat personnel and ensures superior situational awareness, making it highly effective for military, border patrol, counter-terrorism, and long-range surveillance missions.

Key Features

  • High measurement accuracywith exceptional stability and repeatability.
  • Rapid positioningwith strong signal reception and high-precision geolocation.
  • Effective target identificationwith automatic highlighting of critical objectives.
  • Voice interactionfor intuitive operation and battlefield command support.

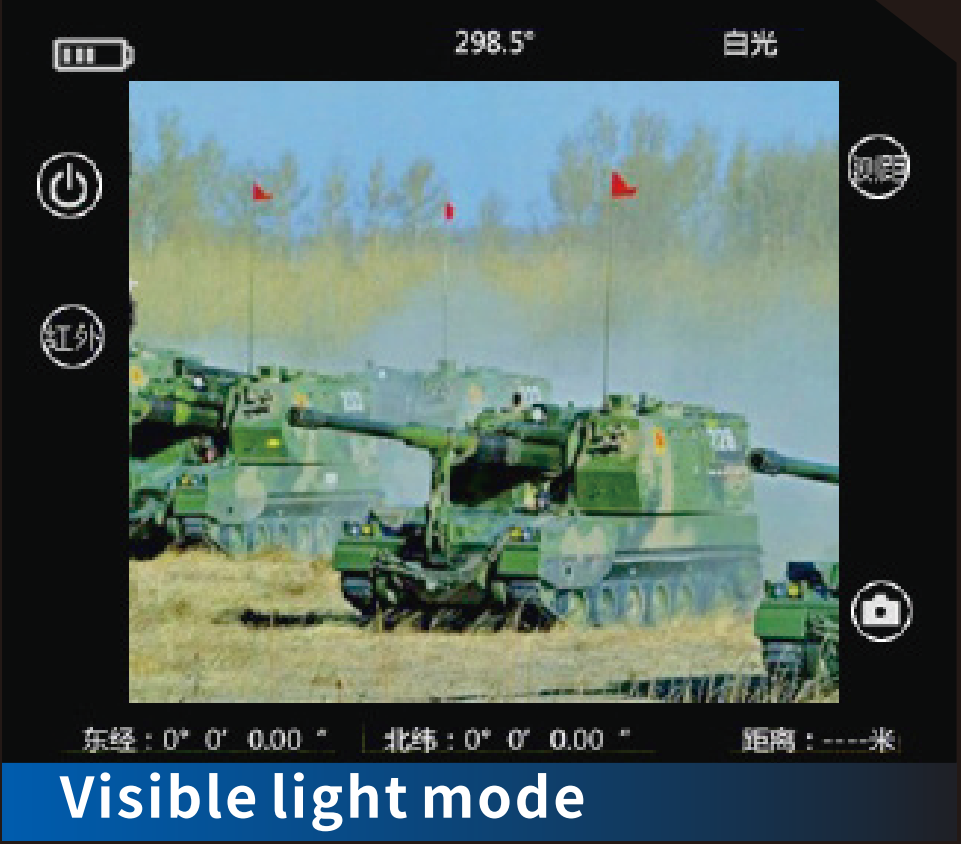

  • IR & Visible Light Dual-Mode Operationto ensure clear imagery in all environments.
  • Long endurancewith ≥10 hours of continuous operation.
  • Supports BeiDou positioning modulefor enhanced orientation and target precision.
China Moneypro MY522B Long-Range Multifunction Thermal Binoculars (Uncooled Type)

Technical Parameters

Thermal Camera

  • Detector Type: Uncooled IR FPA
  • Resolution: 640 × 512
  • Wavelength: 12μm
  • FOV: ≥6.1° × 5.0°

Day Camera

  • FOV: ≥3° × 2.2°
  • Defog: Supported (penetration ratio ≥1.5 when visibility ≤4km)

Laser Rangefinder

  • Range: 50m–6000m
  • Precision: ≤2m
  • Accuracy: ≥98%
  • Wavelength: 1.535μm (Eye-safe)

BeiDou Positioning Accuracy

  • Horizontal: ≤6m (CEP)
  • Elevation: ≤8m (PE)
  • Supports external BeiDou module interface

Target Locating Precision

  • DMC Accuracy: ≤0.5° (RMS, inclination range -15° ~ +15°)
  • CEP ≤20m (target @ 2km)

Power & Operation

  • Operation Time: ≥10hrs (ambient temperature)
  • Power Interface: Supports external supply

Physical Characteristics

  • Weight: ≤1.6kg
  • Carrying Weight: ≤2.3kg

Interfaces

  • Data: Standard USB
  • Video: Standard PAL
  • Communication: RS232

Environmental Adaptability

  • Operating Temperature: -40°C ~ +55°C
  • Storage Temperature: -55°C ~ +70°C

Effective Range

  • Visible Light Recognition:Personnel 3km | Vehicle 6km
  • Visible Light Detection:Personnel 6km | Vehicle 12km
  • IR Recognition:Personnel 1.2km | Vehicle 2.5km
  • IR Detection:Personnel 2.4km | Vehicle 5km
China Moneypro MY522B Long-Range Multifunction Thermal Binoculars (Uncooled Type)
China Moneypro MY522B Long-Range Multifunction Thermal Binoculars (Uncooled Type)

FAQ

Q1: What is the maximum detection range of China Moneypro MY522B thermal binoculars?
A1: China Moneypro MY522B can detect personnel targets up to 2.4km and vehicles up to 5km in IR mode, while visible light mode extends vehicle detection to 12km.

Q2: How accurate is the laser rangefinder in battlefield conditions?
A2: The integrated 1.535μm eye-safe LRF provides a measurement range of 50m–6000m, with precision ≤2m and ≥98% accuracy, ensuring reliable target data.

Q3: Can China Moneypro MY522B support GNSS/BeiDou navigation for precise positioning?
A3: Yes, the binoculars include a BeiDou positioning module with ≤6m CEP horizontal accuracy and ≤8m elevation precision, making it ideal for target location reporting.

Q4: How long can the system operate continuously in the field?
A4: With optimized power management, China Moneypro MY522B provides ≥10 hours of continuous operation under standard ambient conditions, supporting extended reconnaissance missions.

Q5: Is China Moneypro MY522B suitable for harsh weather and terrain?
A5: Absolutely. The binoculars are ruggedized to operate between -40°C to +55°C, and are tested for reliable performance in cold, hot, plateau, rainforest, and desert environments.
