| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
520~1300mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage |
SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |

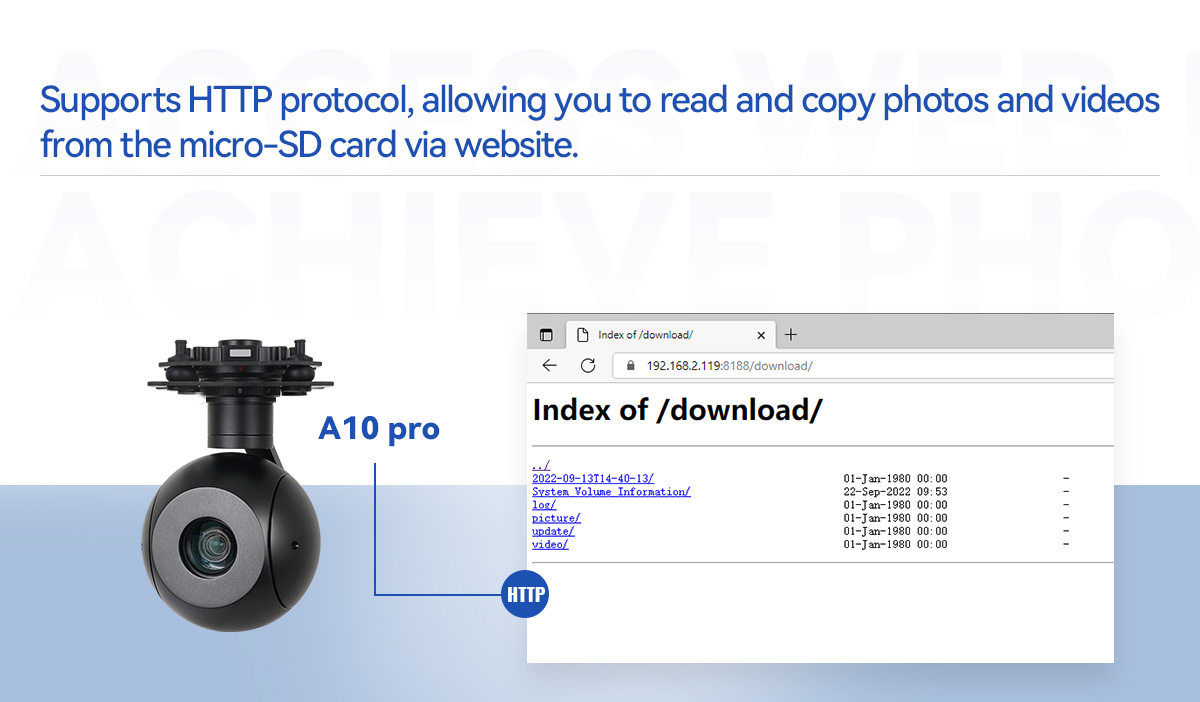

| Card reading online |
HTTP read pictures |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

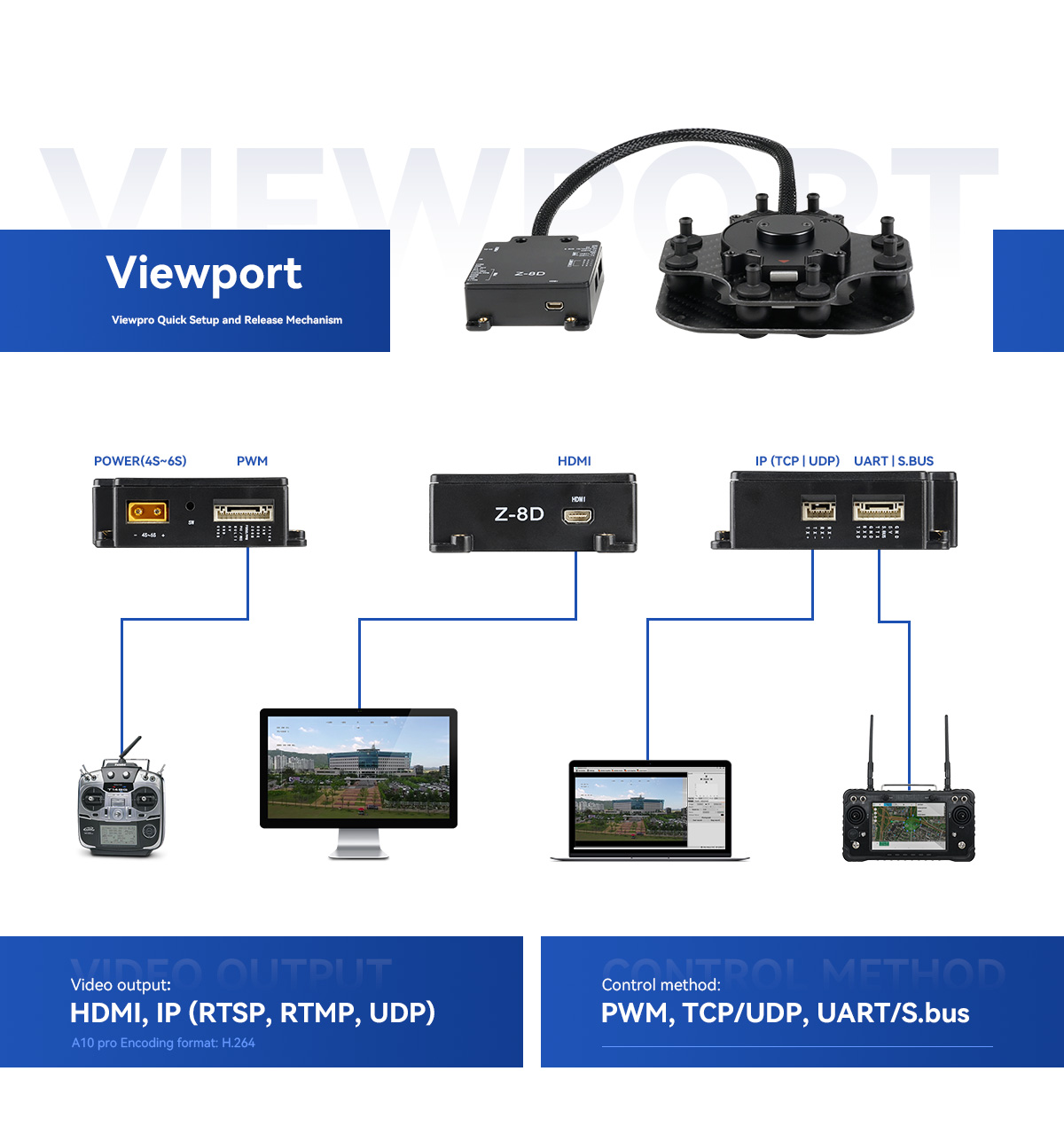

| Control method |
PWM / TTL / S.BUS/ TCP(IP output version)/UDP(IP output version) |

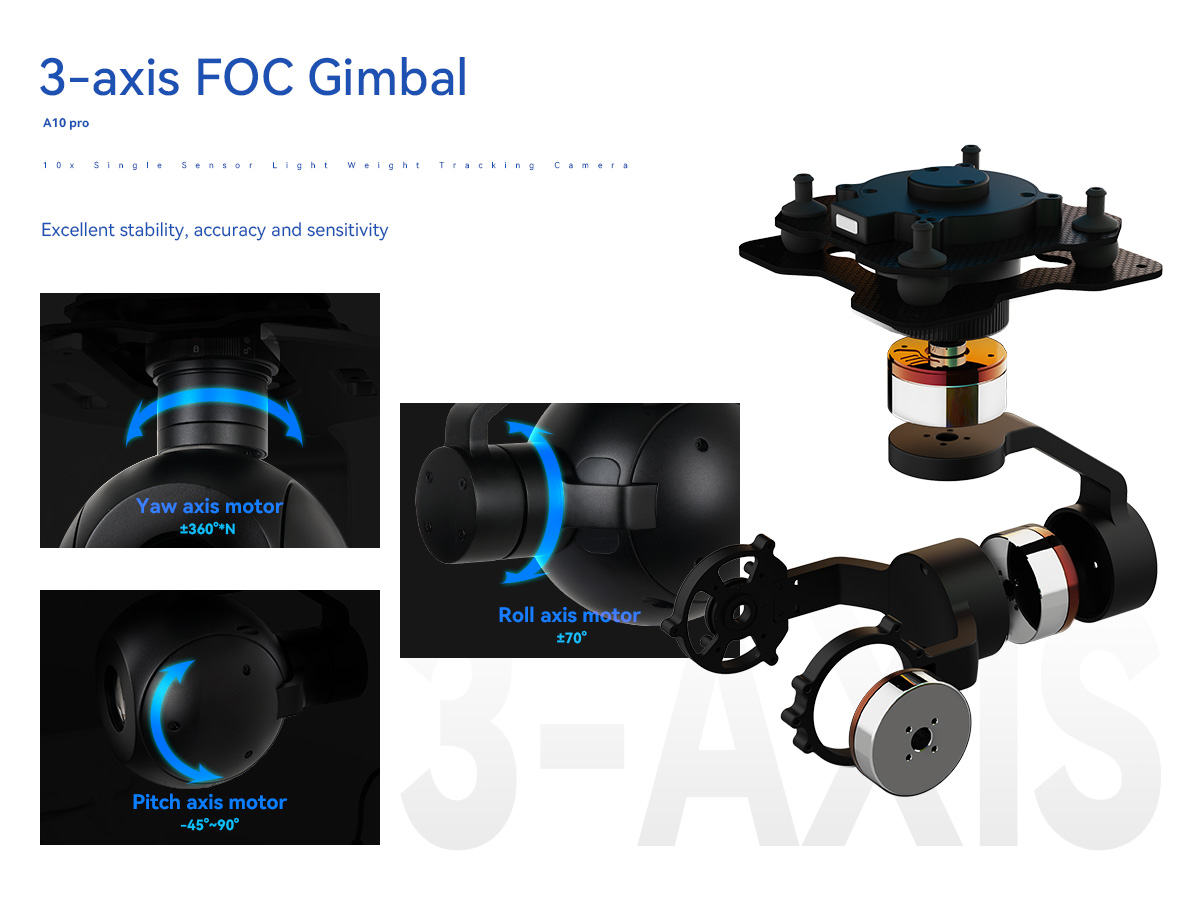

| Gimbal Spec |
| Angle scope of structure design |
Pitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle scope of software design |
Pitch/Tilt: -45°～115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll/Yaw: ±0.02° |
| One-key to center |
√ |
| Camera Spec |
| Imager Sensor |
1/2.8″ SONY CMOS Sensor |
| Total pixel |
5.13MP |
| Picture quality |
Full HD 1080 (1920*1080) |

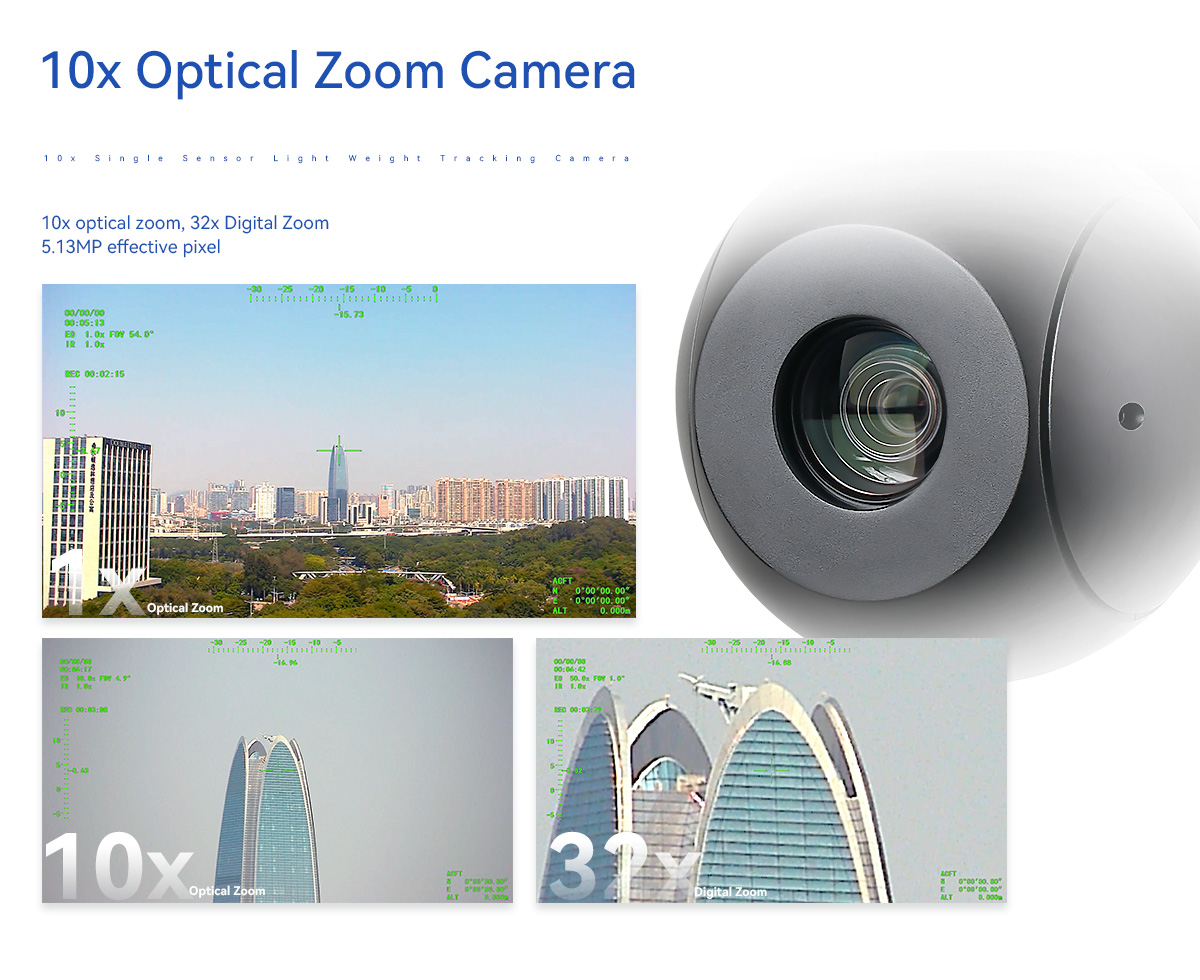

| Optical zoom |
10x, f = 4.7mm ~ 47mm, F1.7~F3.1 |
| Digital zoom |
32x |
| Angle of View (H) |
69.9°(Wide end) ~ 8.7° (Tele end) |
| Min target distance |
0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Min illumination |
Color(1/30s, 72.0dB): 0.02 lux , BW(1/30s, 72.0dB): 0.005lux
Color DSS(1/1s, 72.0dB): 0.002 lux , BW DSS(1/1s, 72.0dB): 0.0005 lux |
| Shutter speed |
1/1sec ~ 1/100,000 sec |
| White balance |
Auto / One Push / Manual / Indoor / Outdoor |
| Focus |
Auto / One Push / Manual |
| Iris |
0 ~ 20 steps |
| Exposure |
Auto / Manual / Priority Mode (Shutter priority & aperture priority) |
| Sync system |
Progressive Scan |
| Sync. System Internal |
Internal |
| Backlight compensation |
Yes |
| Auto ICR |
Yes |
| Image stabilization |
Yes |
| Defog |
Yes |

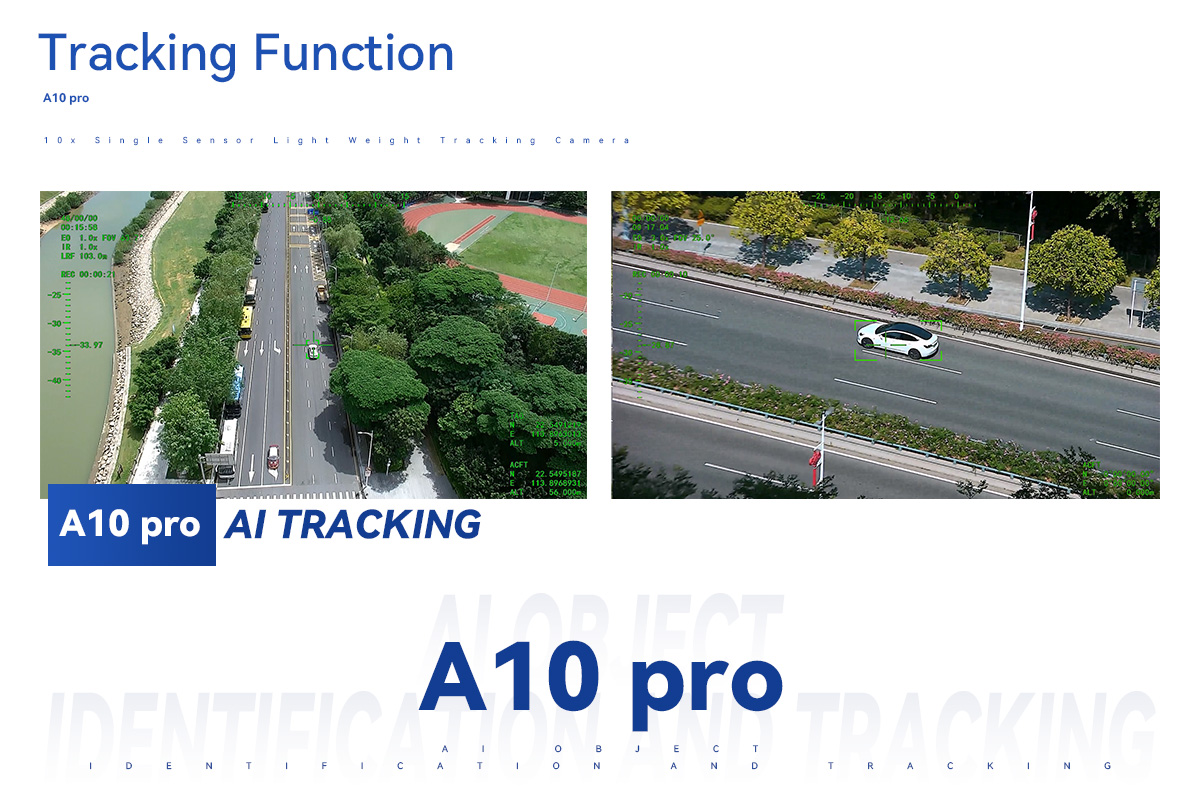

| EO Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |

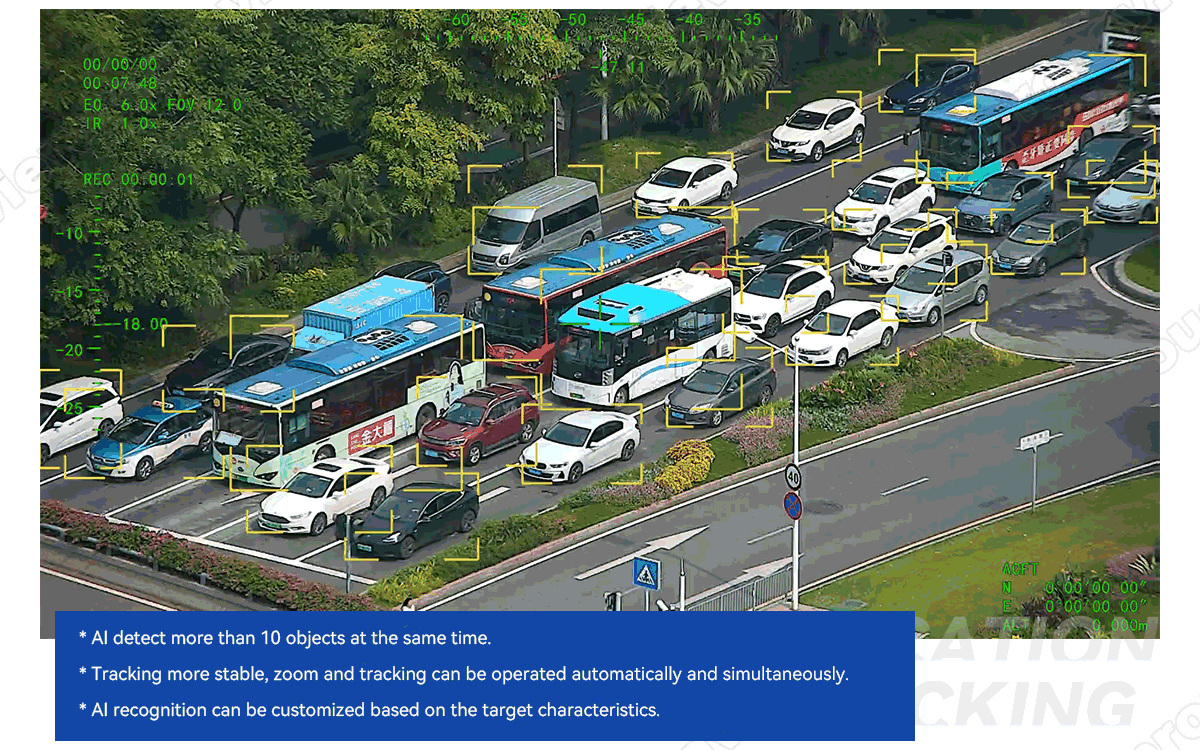

| EO Camera AI Performance |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |
| N.W. |
660g(Viewport version with Viewport) |

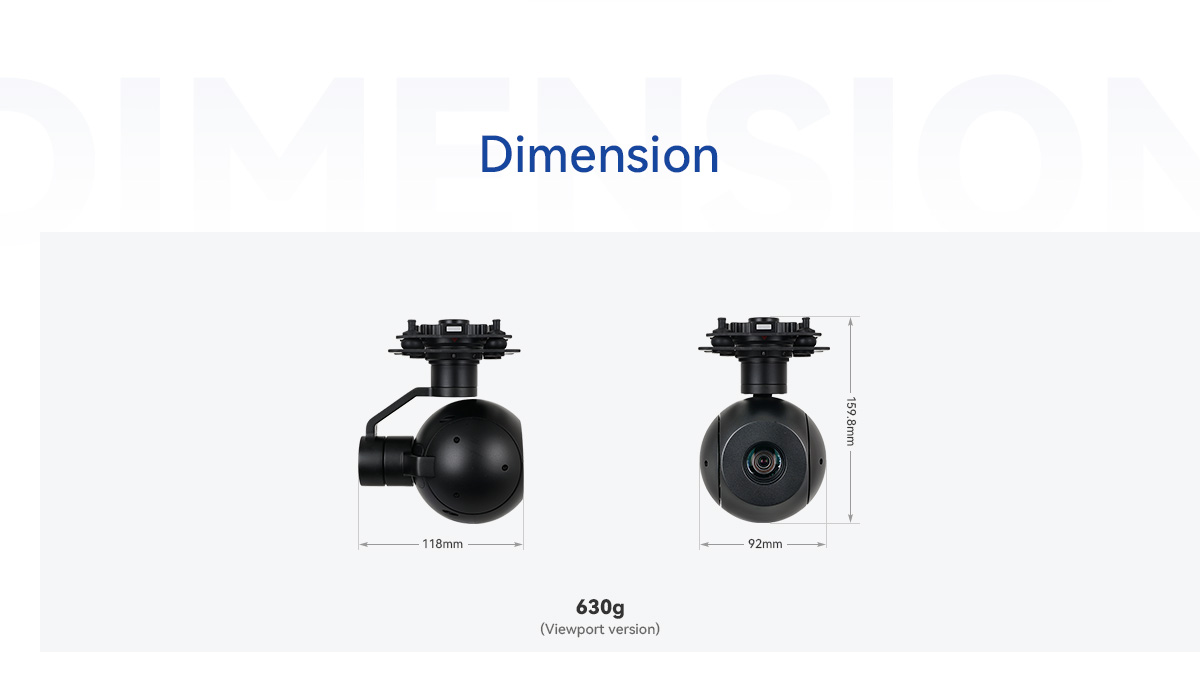

| Product meas. |
121.5*96*158.1mm / 121.5*96*163.8mm(Viewport Version) |
| Accessories |
1pc gimbal camera device, screws, USB to TTL cable / Hight quality box with foam cushion |
| G.W. |
1740g |

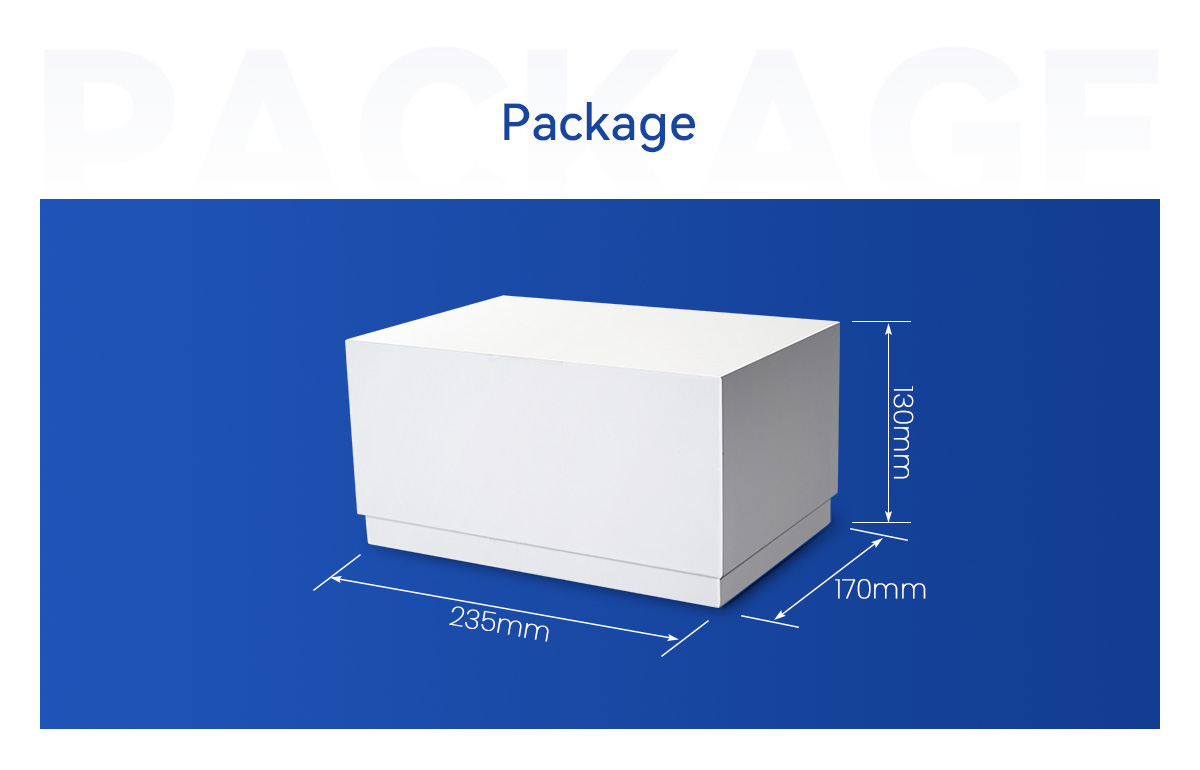

| Package meas. |
300*250*200mm |
