| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
580mA~1900mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage |
TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |
| Card reading online |
HTTP read pictures |

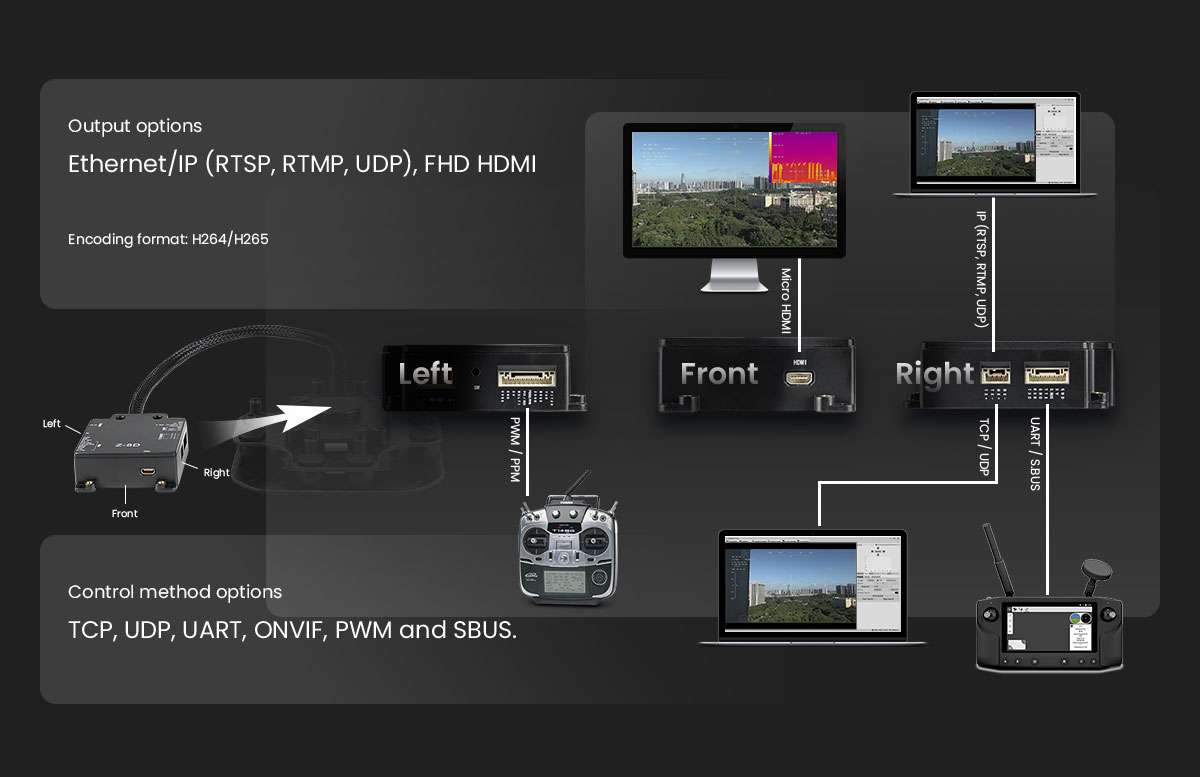

| Control method |
PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

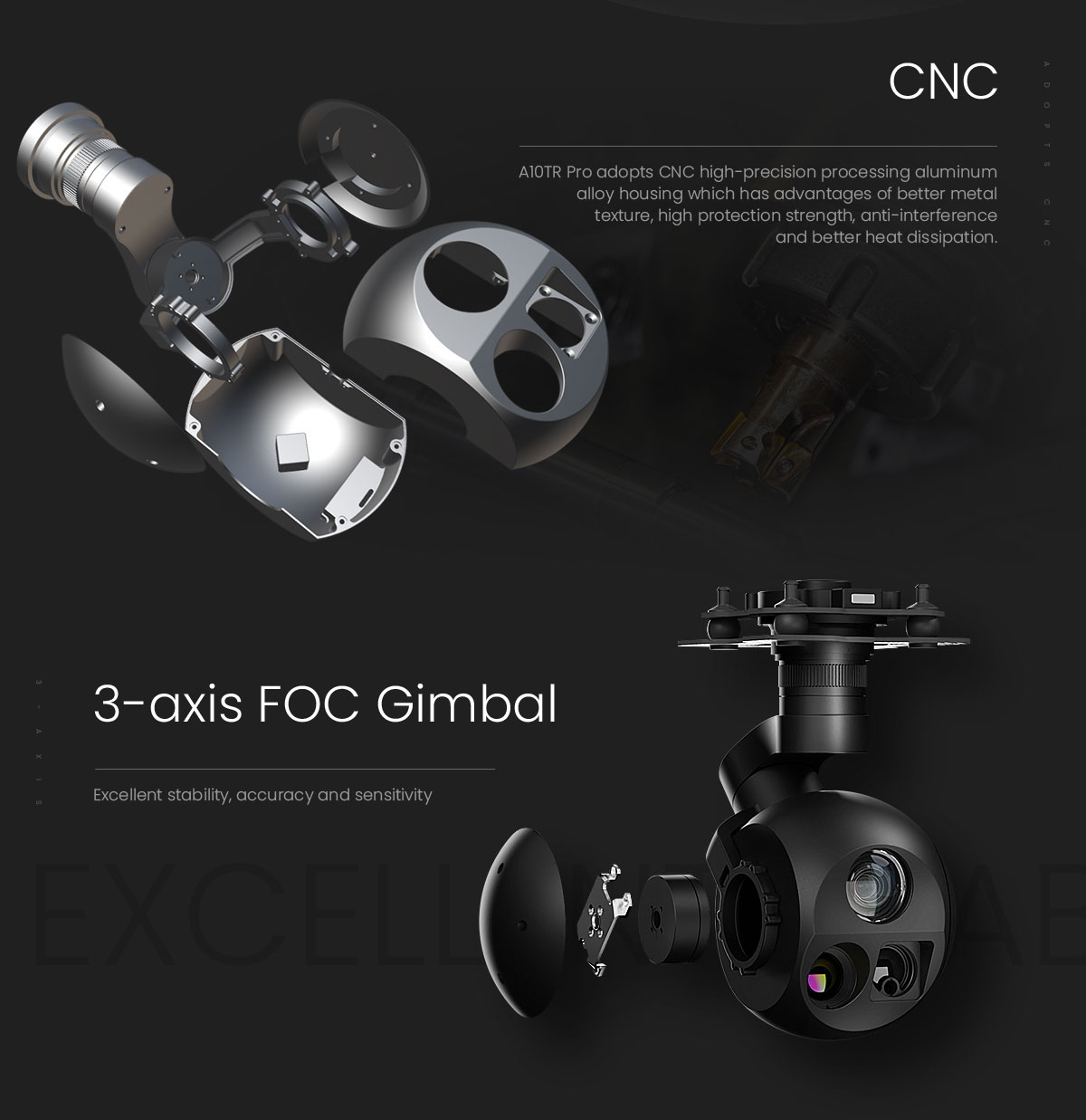

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -50°～140°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -45°～135°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |
| EO Camera Spec |
| Imager Sensor |
1/3″ Panasonic CMOS Sensor |
| Total pixel |
5.13M |
| Picture quality |
Full HD 1080 (1920*1080) |
| Optical zoom |
10x, f = 5.1mm ~ 51mm |
| Digital zoom |
32x |
| Angle of View (D, H, V) |
D: 68°(Wide end) ~ 6.7° (Tele end) |
| H: 54°(wide end) ~ 4.9°(tele end) |
| V: 31°(wide end) ~ 4.0°(tele end) |
| Sync system |
Progressive Scan |
| Sync. System Internal |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color : 0.5 lux , BW : 0.1lux
Color DSS : 0.125 lux , BW DSS : 0.025 lux |
| Gain Control (AGC) |
Off / On |
| White balance |
Auto / One Push / Manual / Indoor / Outdoor |
| Shutter speed |
1/30(25) ~ 1/30,000 sec |
| Focus |
Auto / One Push / Manual |
| Iris |
0 ~ 20 steps |
| Exposure |
Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N |
| Defog |
Yes |

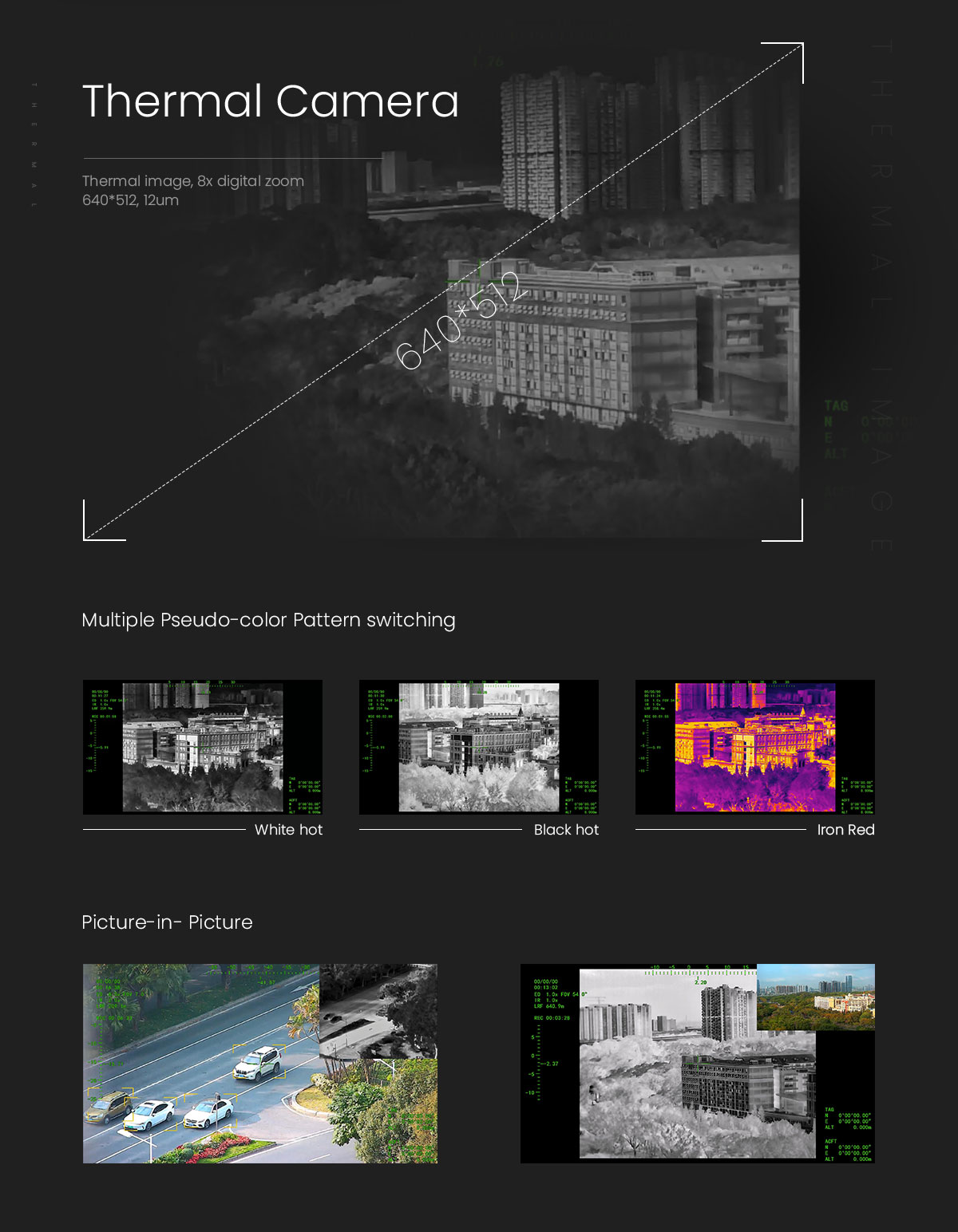

| IR Thermal Imager Spec |
| Focus Length |
19mm |
| Coating Film |
DLC |
| Horizontal FOV |
22.9° |
| Vertical FOV |
18.4° |
| Diagonal FOV |
29.0° |
| Detective Distance (Man: 1.8×0.5m) |
792 meters |
| Recognize Distance (Man: 1.8×0.5m) |
198 meters |
| Verified Distance (Man: 1.8×0.5m) |
99 meters |
| Detective Distance (Car: 4.2×1.8m) |
2428 meters |
| Recognize Distance (Car: 4.2×1.8m) |
607 meters |
| Verified Distance (Car: 4.2×1.8m) |
303 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel pitch |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@F.0 @25℃ |
| Color palette |
White, iron red, pseudo color |
| Digital zoom |
1x ~ 8x |
| Sync correct time |
Yes |

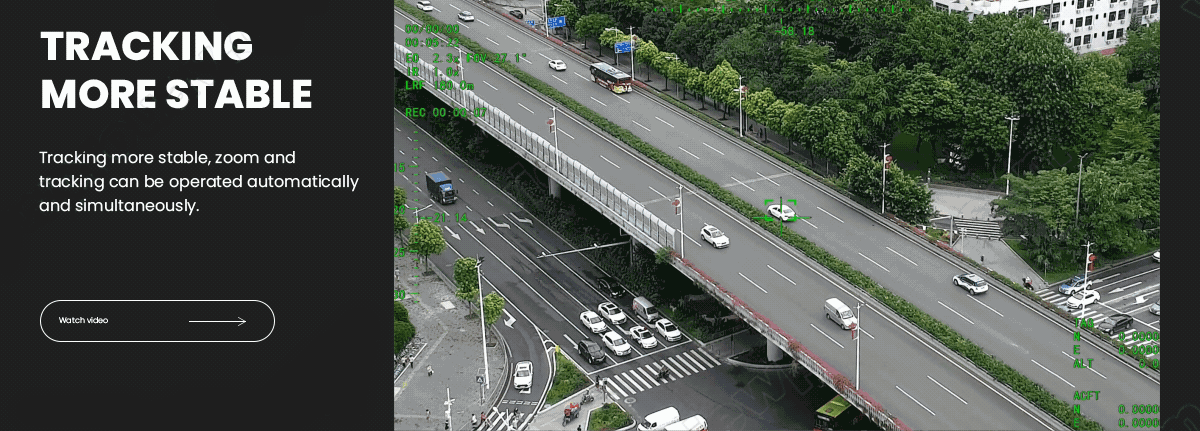

| IR Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |

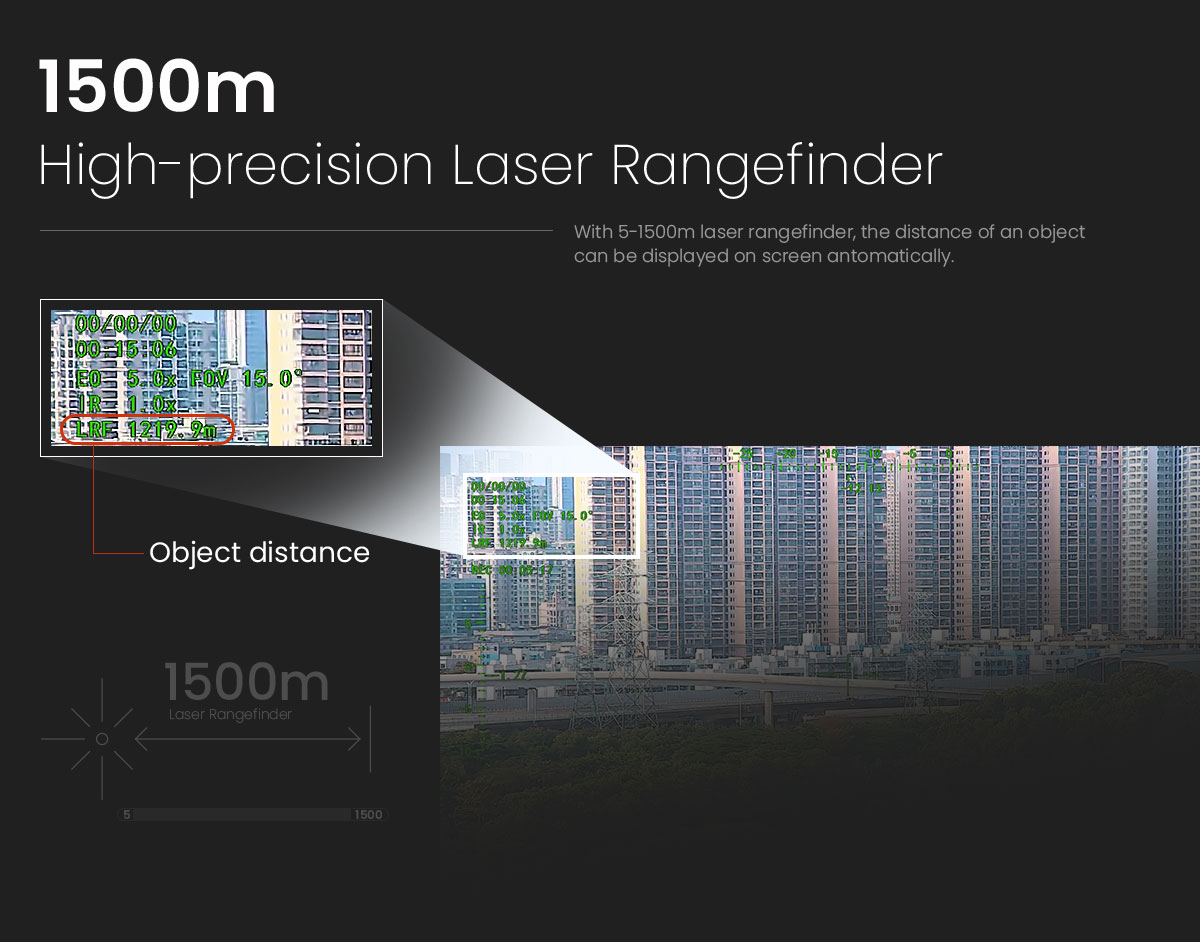

| IR Laser Rangefinder |
| Range |
5~1500 meters |
| Resolution |
1:<400±1 2:＞400±0.4% |
| Light Beam |
905nm pulse laser |
| Divergent Angle |
3~10 mrad |
| Measuring Respond Time |
1:<0.06s/m(≤100) 2:<0.28s/m(≥100~600) 3:<0.85s/m(≥600~1000) 4:<1s/m(≥1000~1500) |
| Power |
0.5~0.9W |
| Location Resolving |
Latitude and longitude of target |
| Ranefinder |
Target distance measuring |

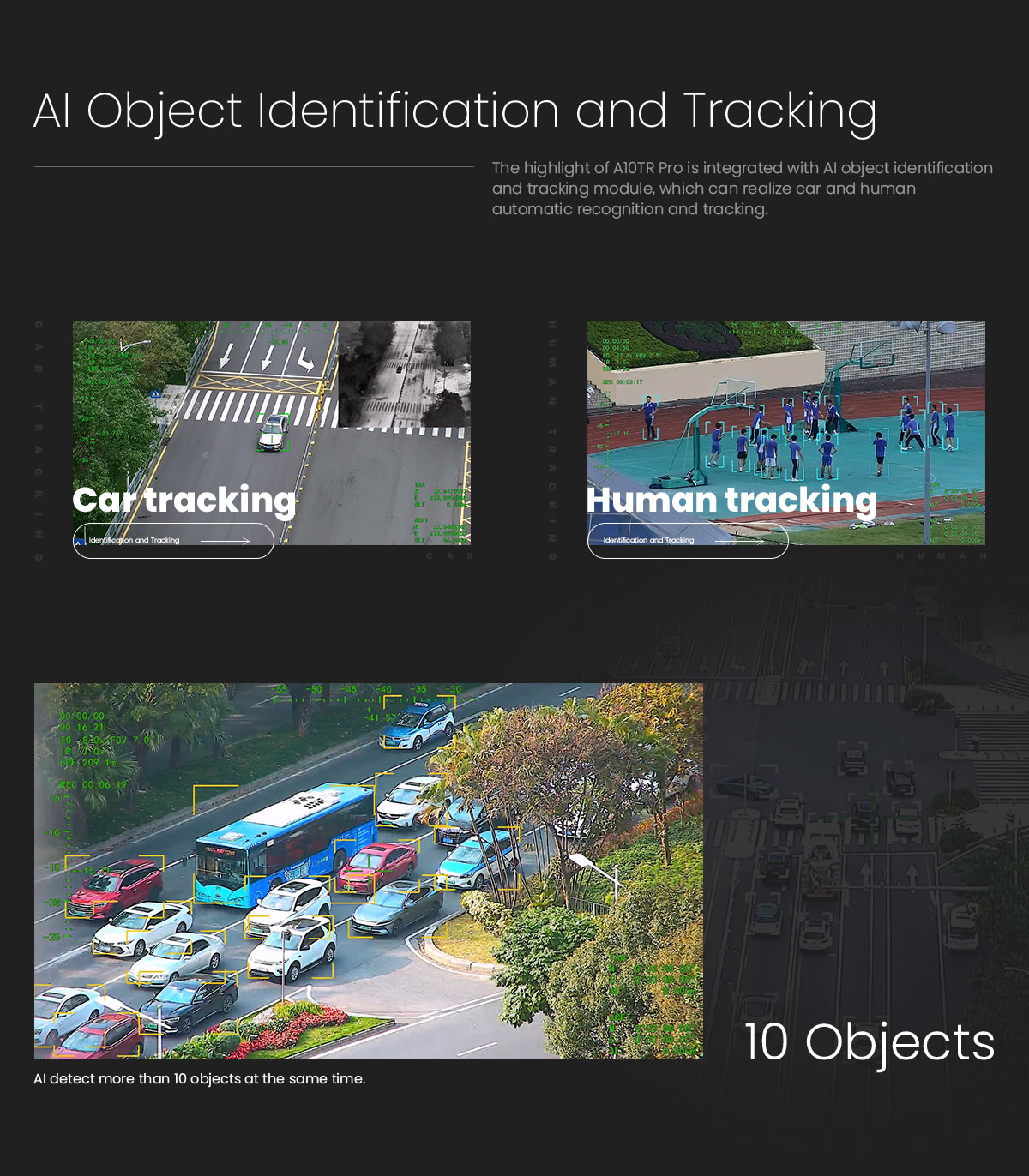

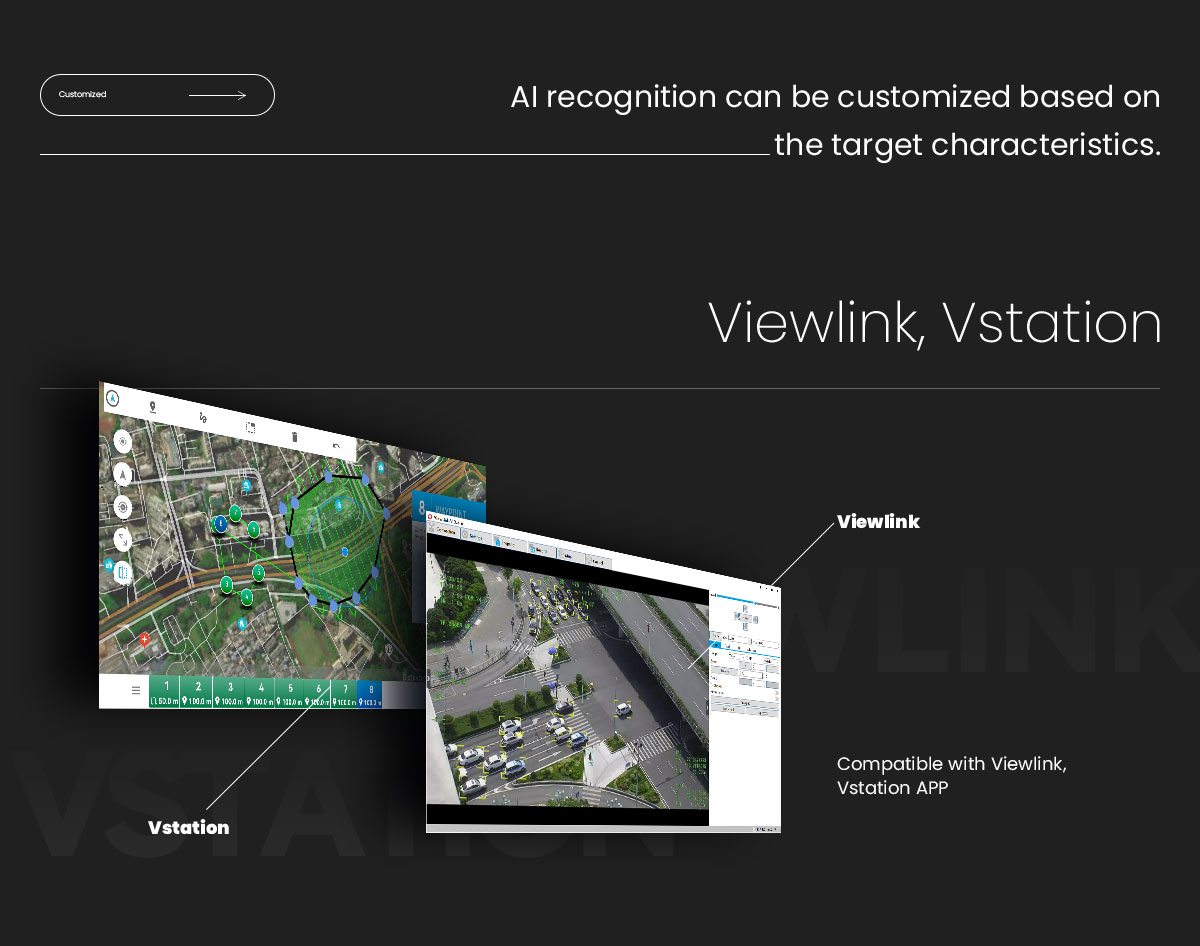

| AI Performance |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |
| N.W. |

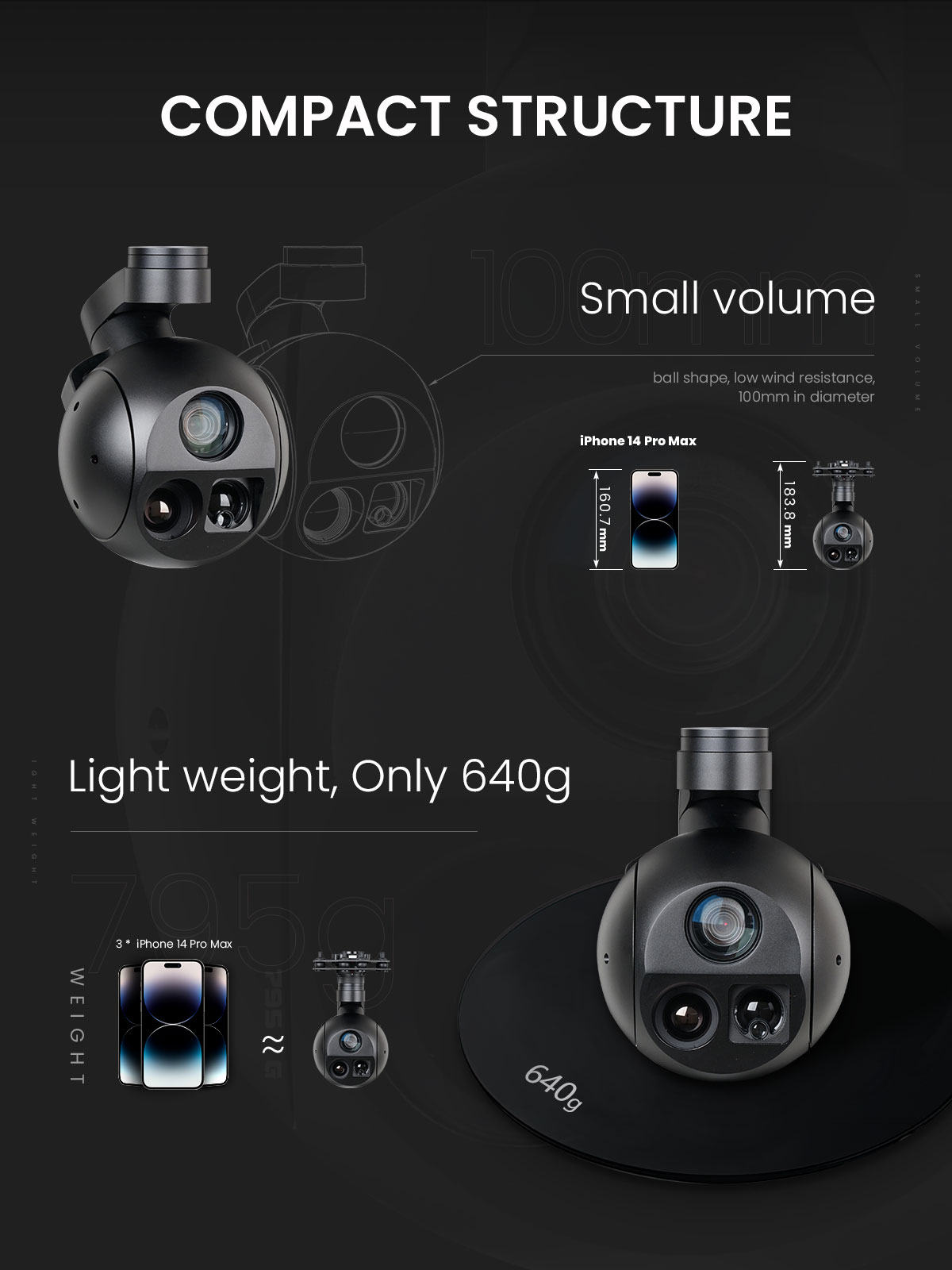

654g (Viewport version) |

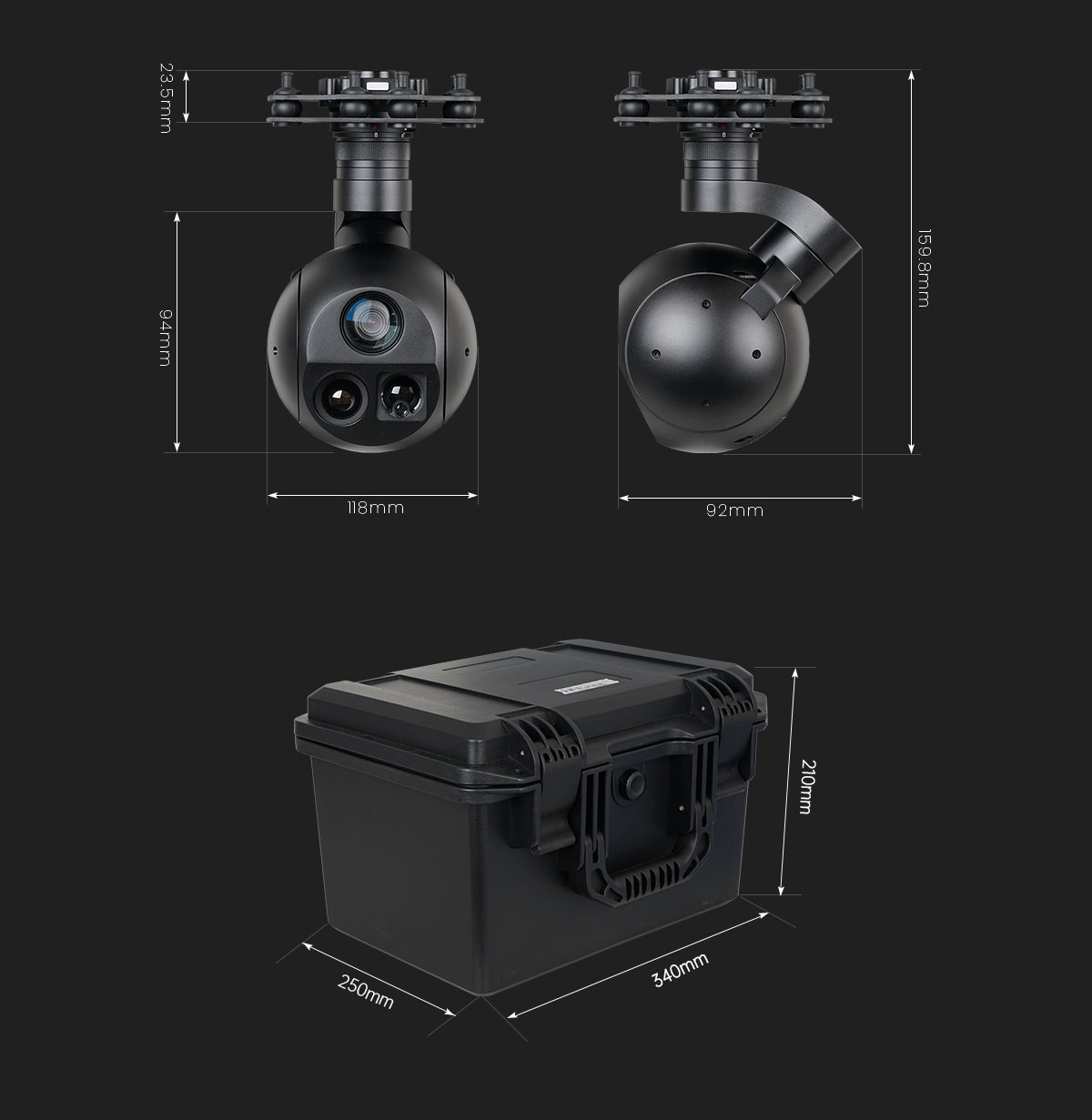

| Product meas. |
114.7*100*178.1mm (Standard version) /114.7*100*183.8mm (Viewport version) |

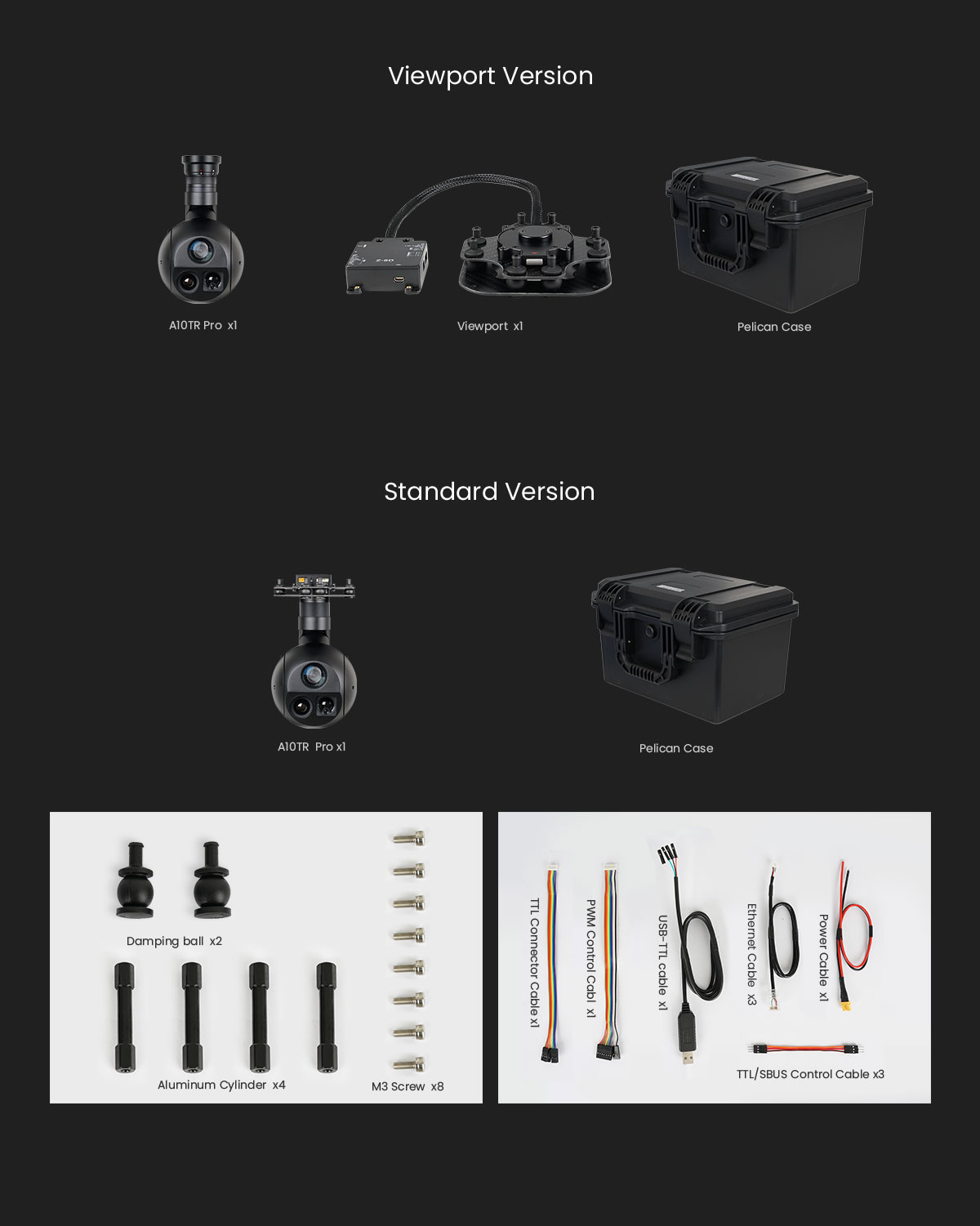

| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
2194g |
| Package meas. |
350*300*250mm |
