| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S (14.8V~25.2V) |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
660~1250mA @ 16V |
| Power consumption |
Average 10.6W, Max 20W |
| Working environment temp. |
-20℃ ~ +50℃ |
| Output |
Micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps H264/H265) |
| Local-storage |
TF card (Up to 256G, class 10, FAT32 format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4(1080P 30fps) |

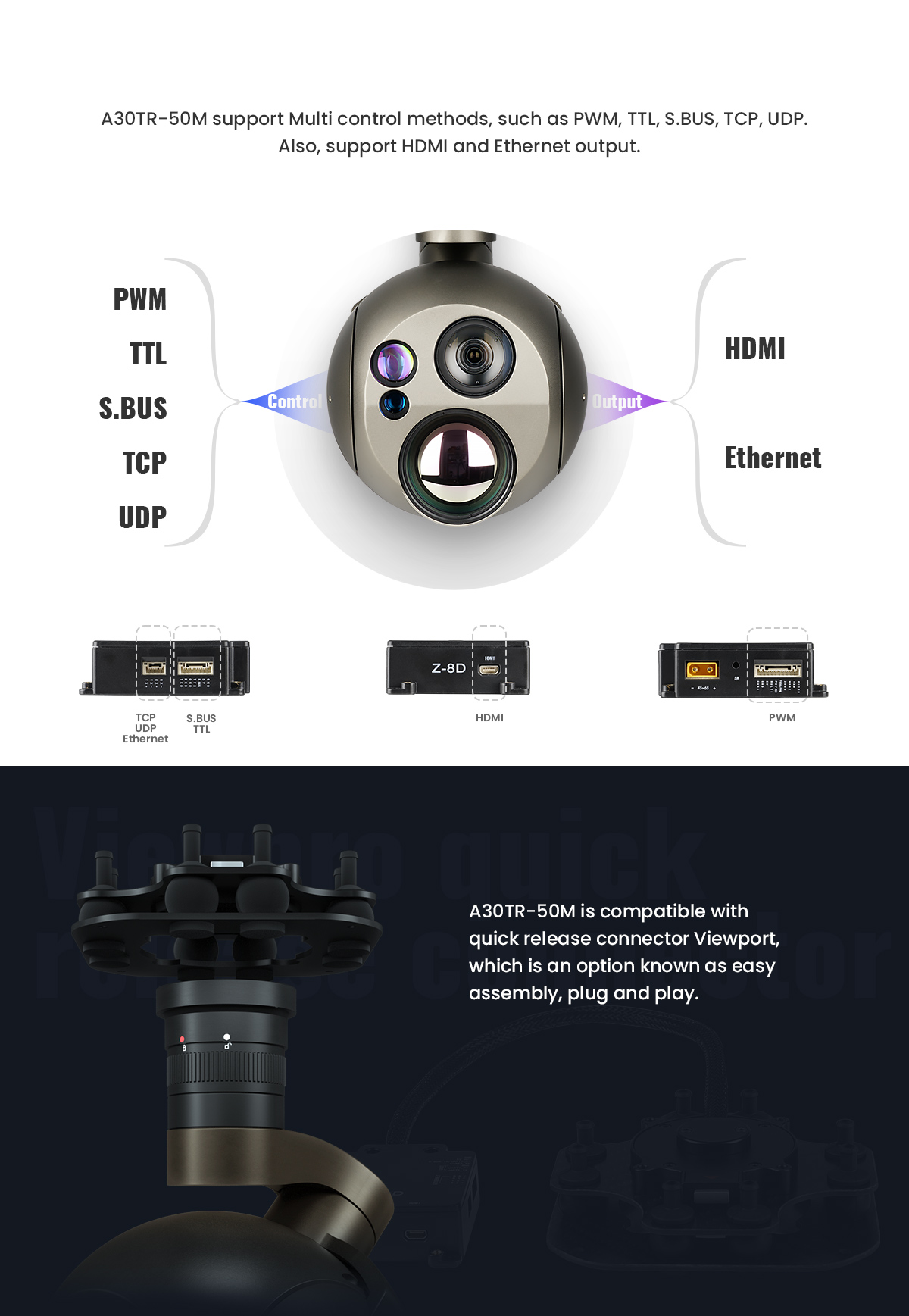

| Control method |
PWM / TTL / S.BUS / TCP / UDP |

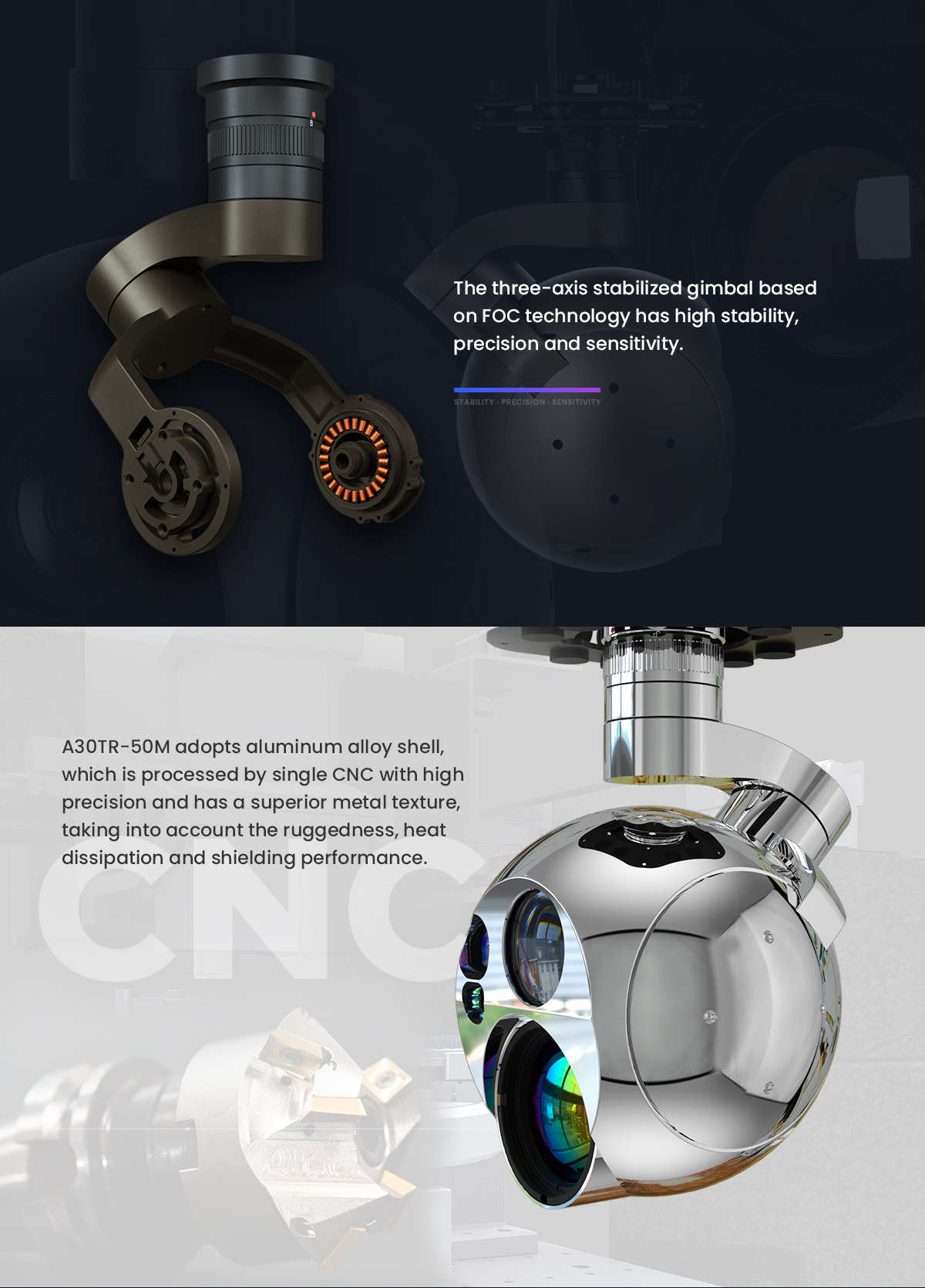

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -55°(Up)～125°(Down), Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll/Yaw: ±0.02° |
| One-key to center |
√ |
| Camera spec |
| Imager Sensor |
1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |

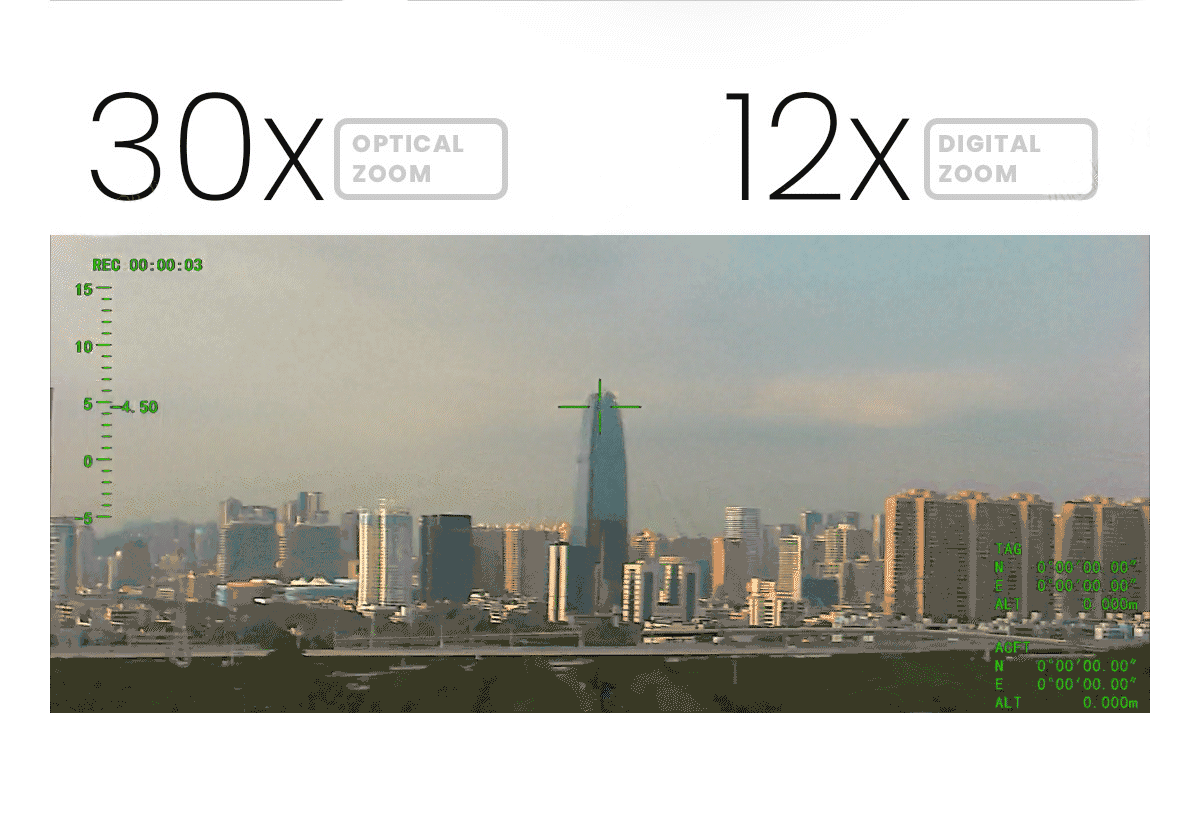

| Lens optical zoom |
30x, F=4.3~129mm |
| Digital zoom |
12x (360x with optical zoom) |
| Min object distance |
10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle |
64.0°(wide end) ~ 2.4°(tele end) |
| S/N ratio |
more than 50dB |
| Min illumination |
Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed |
1/1s to 1/10,000s, 22 steps |
| Back light compensation |
On/Off |
| Noise reduction |
On/Off |
| Image stabilization |
On/Off |
| Defog |
On/Off |

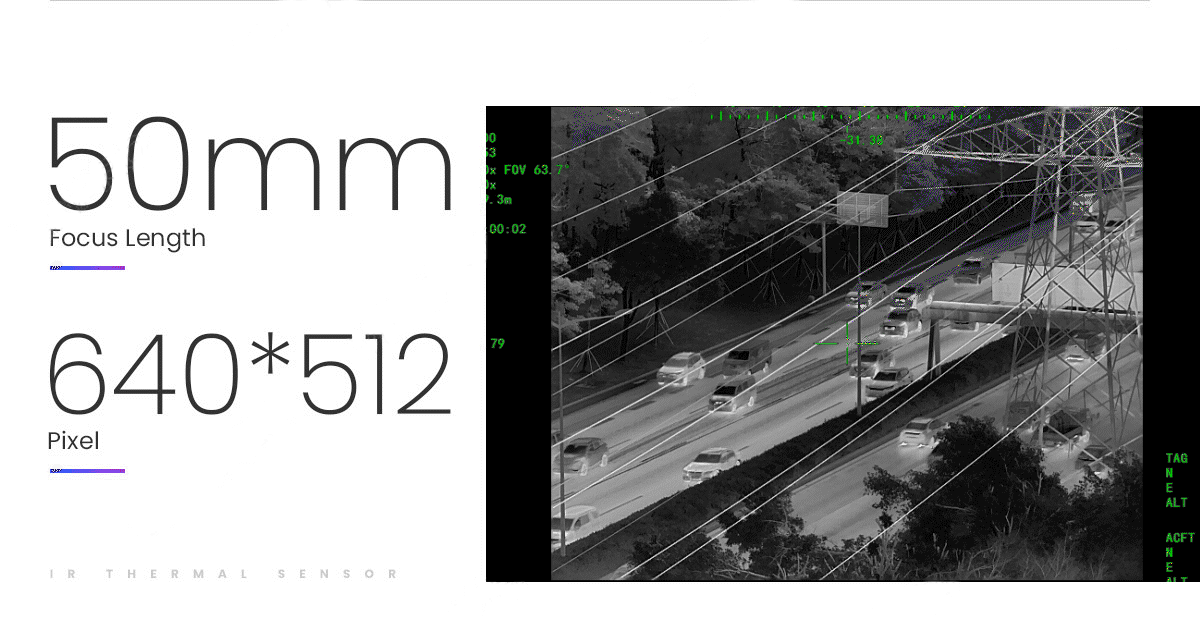

| IR Thermal Imager Spec |
| Focus Length |
50mm |
| Horizontal FOV |
8.8° |
| Vertical FOV |
7.0° |
| Diagonal FOV |
11.2° |
| Detective Distance (Man: 1.8×0.5m) |
2083 meters |
| Recognize Distance (Man: 1.8×0.5m) |
521 meters |
| Verified Distance (Man: 1.8×0.5m) |
260 meters |
| Detective Distance (Car: 4.2×1.8m) |
6389 meters |
| Recognize Distance (Car: 4.2×1.8m) |
1597 meters |
| Verified Distance (Car: 4.2×1.8m) |
799 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel size |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤40mK@25℃, F#1.0 |

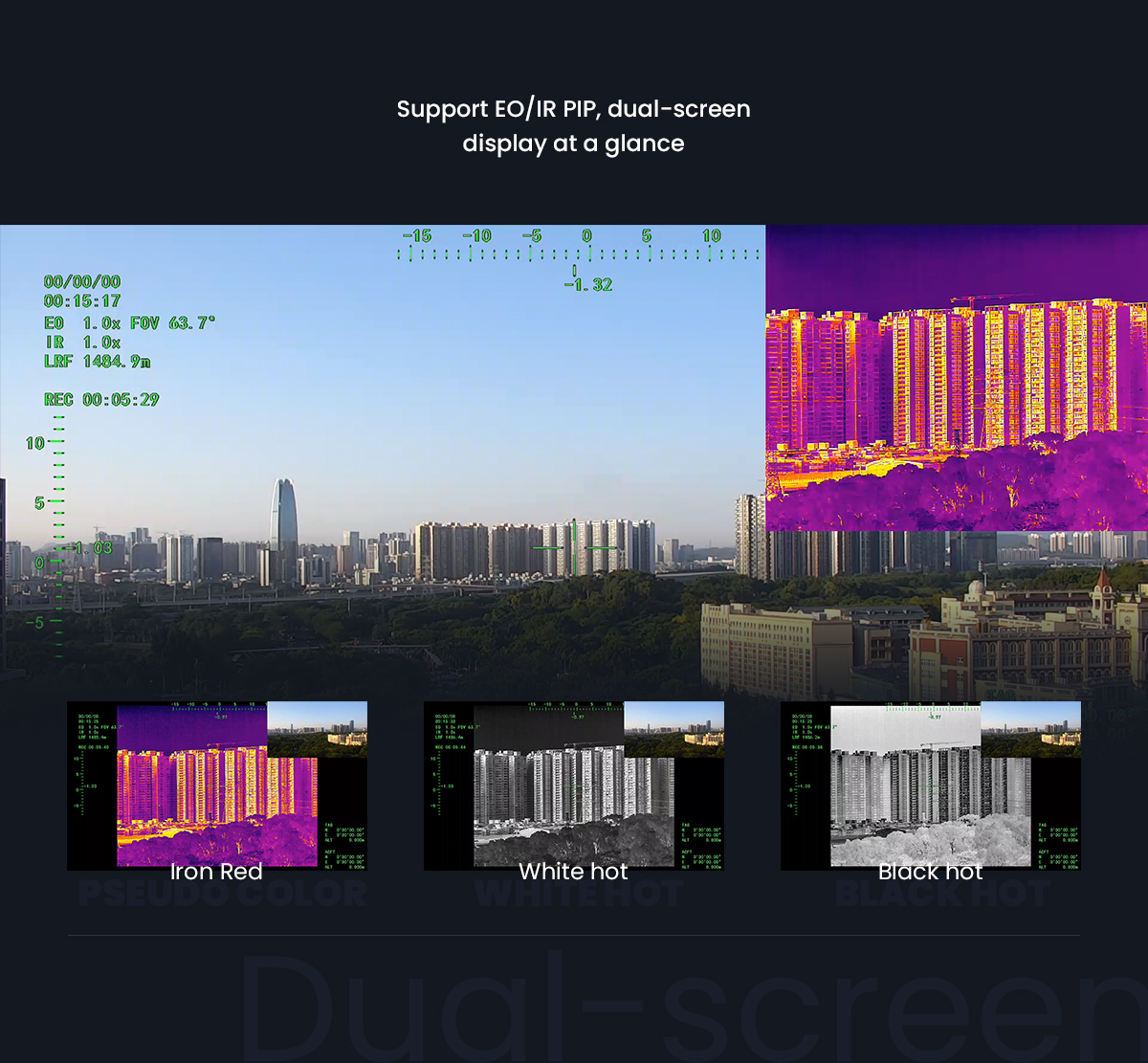

| Color palette |
white hot, black hot, pseudo color |
| Digital zoom |
1x~8x |

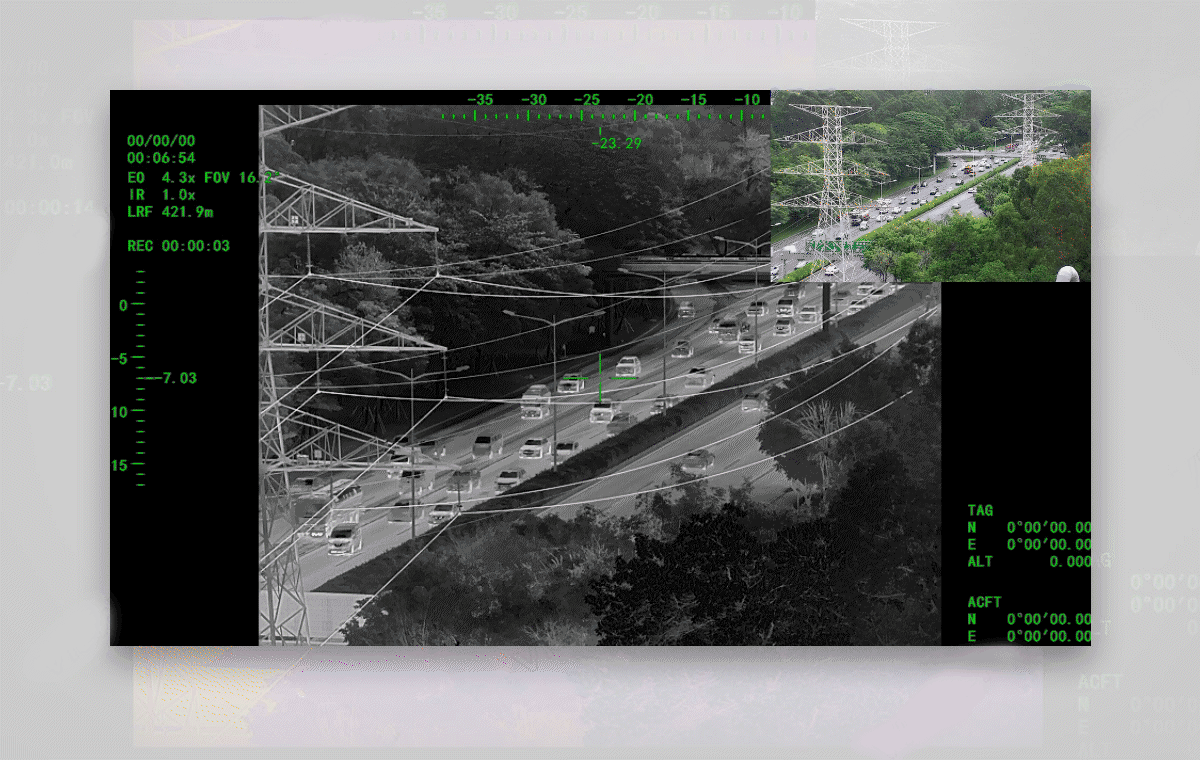

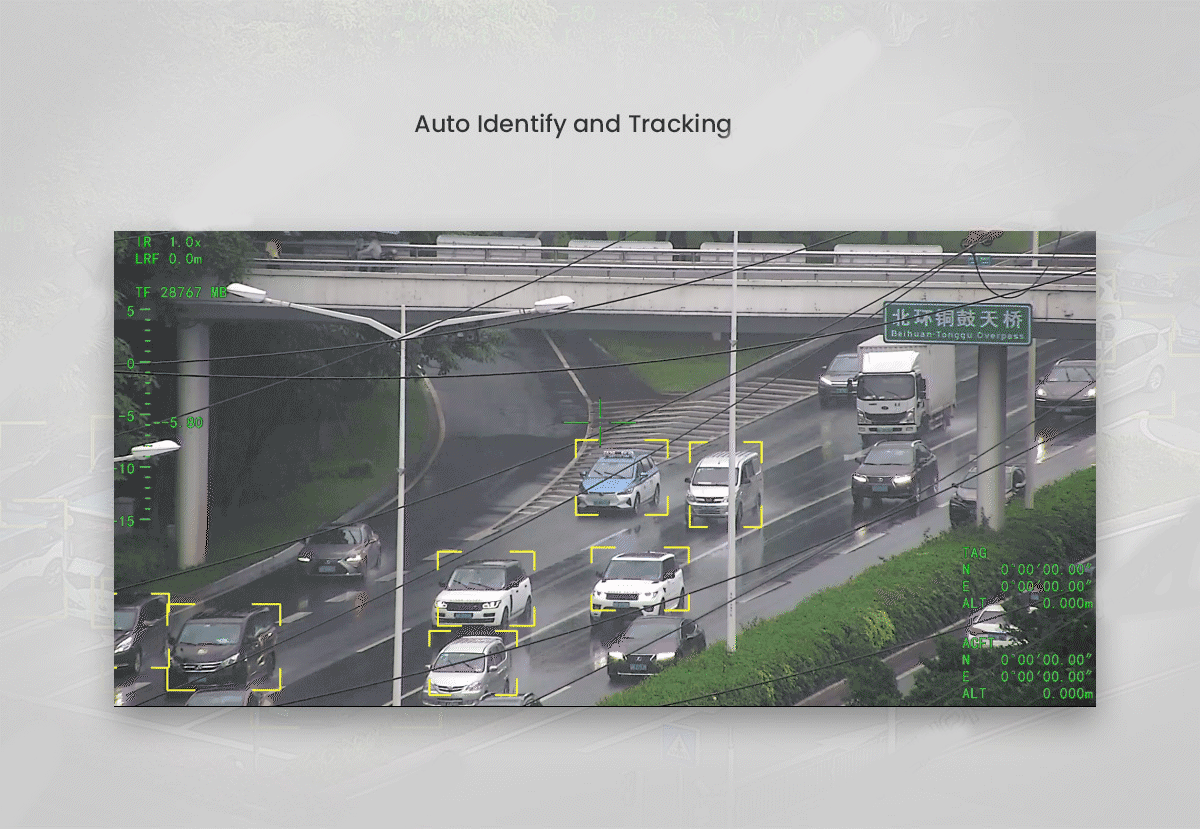

| EO / IR Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |

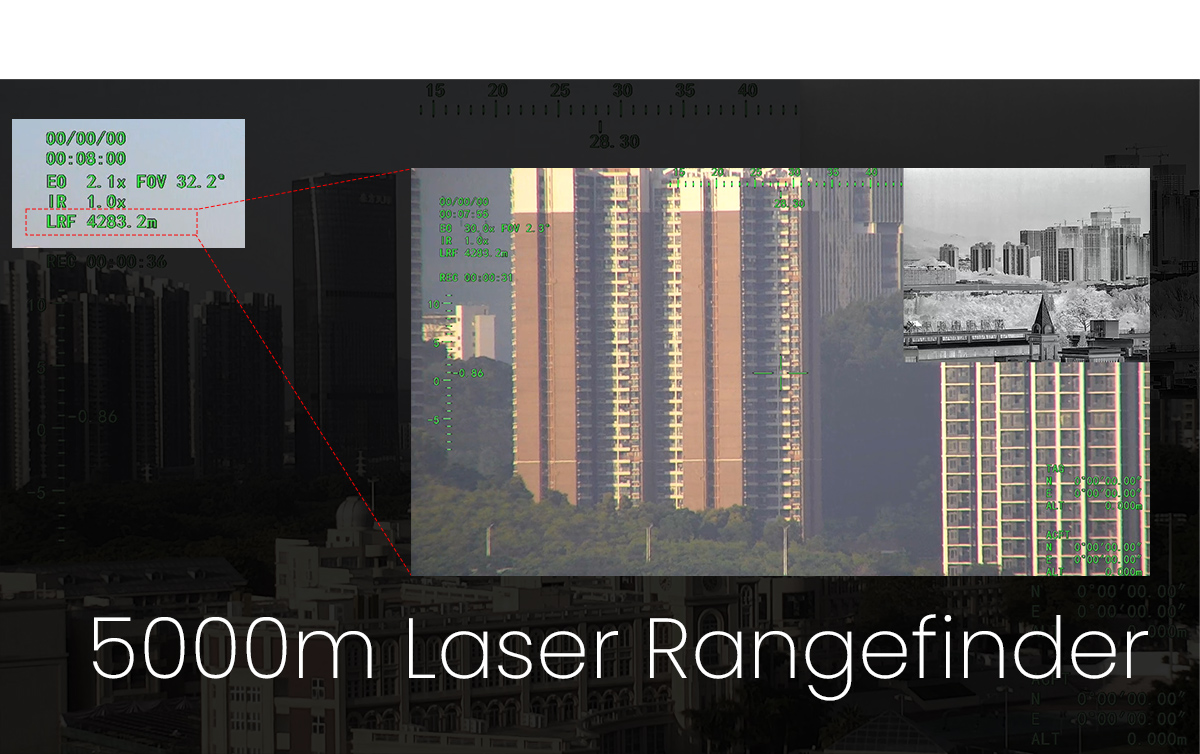

| IR Laser Rangefinder |
| Measure ability |
≥5km for big target (eg. building)
≥3km for car（2.3m×2.3m ）
≥1.5km for people（1.75m×0.75m ）(Based on typical value:
LOS visibiligy: ≥8km
Diffuse reflection rate: ≥0.3
Humility: ≤80%) |
| Accuracy (Typical value) |
≤ ±1m (RMS) |
| Wave length |
1535nm pulse laser |
| Divergent Angle |
≤ 0.5mrad |
| Measurement frequency |
1~10HZ |
| Location Resolving |
Latitude and longitude of target |
| Ranefinder |
Measure the distance between the object at the center of screen and the laser rangefinder |
| EO Camera AI Performance |
| TOPS |
1T |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |
| N.W. |
1411±10g (Viewport version) |
| Product meas. |
145.8*138*222.1mm (Standard version) / 145.8*138*227.8mm (Viewport version) |

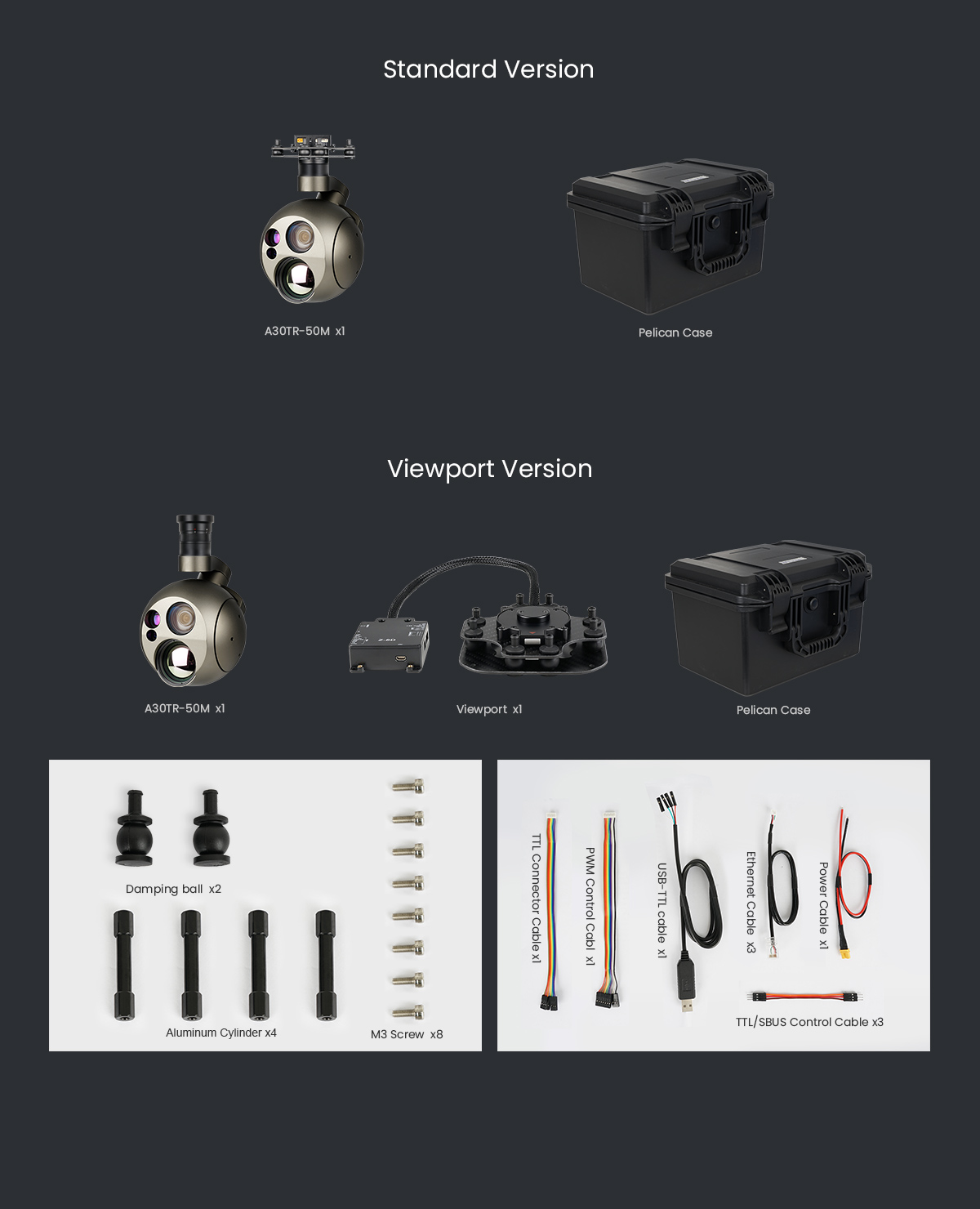

| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
3138g |
| Package meas. |
350*300*250mm |
