| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
500~1500mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage |
TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |

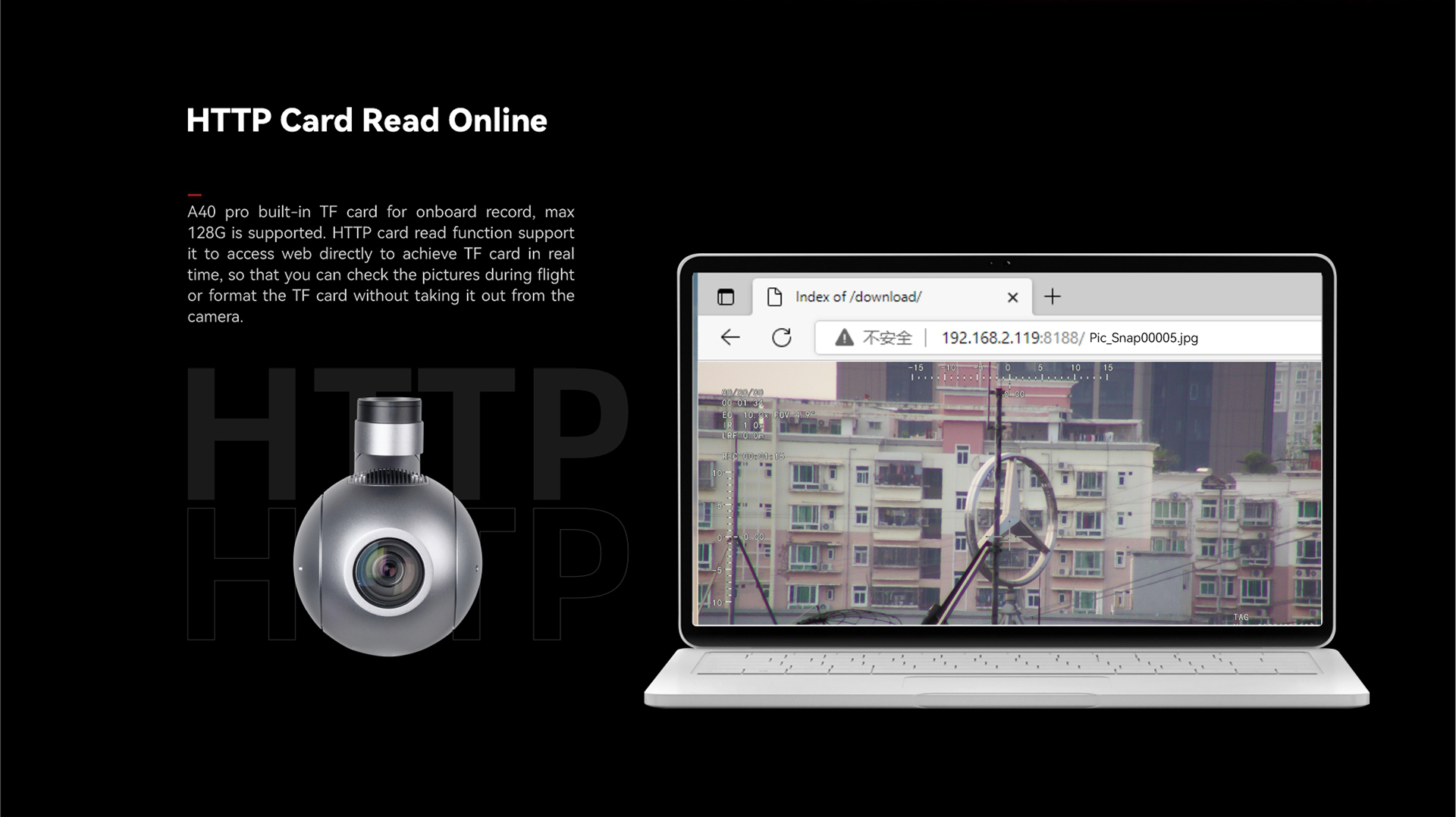

| Car reading online |
HTTP read pictures in TF card |
| Control method |
PWM / TTL / S.BUS / TCP(IP output) / UDP(IP output) |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

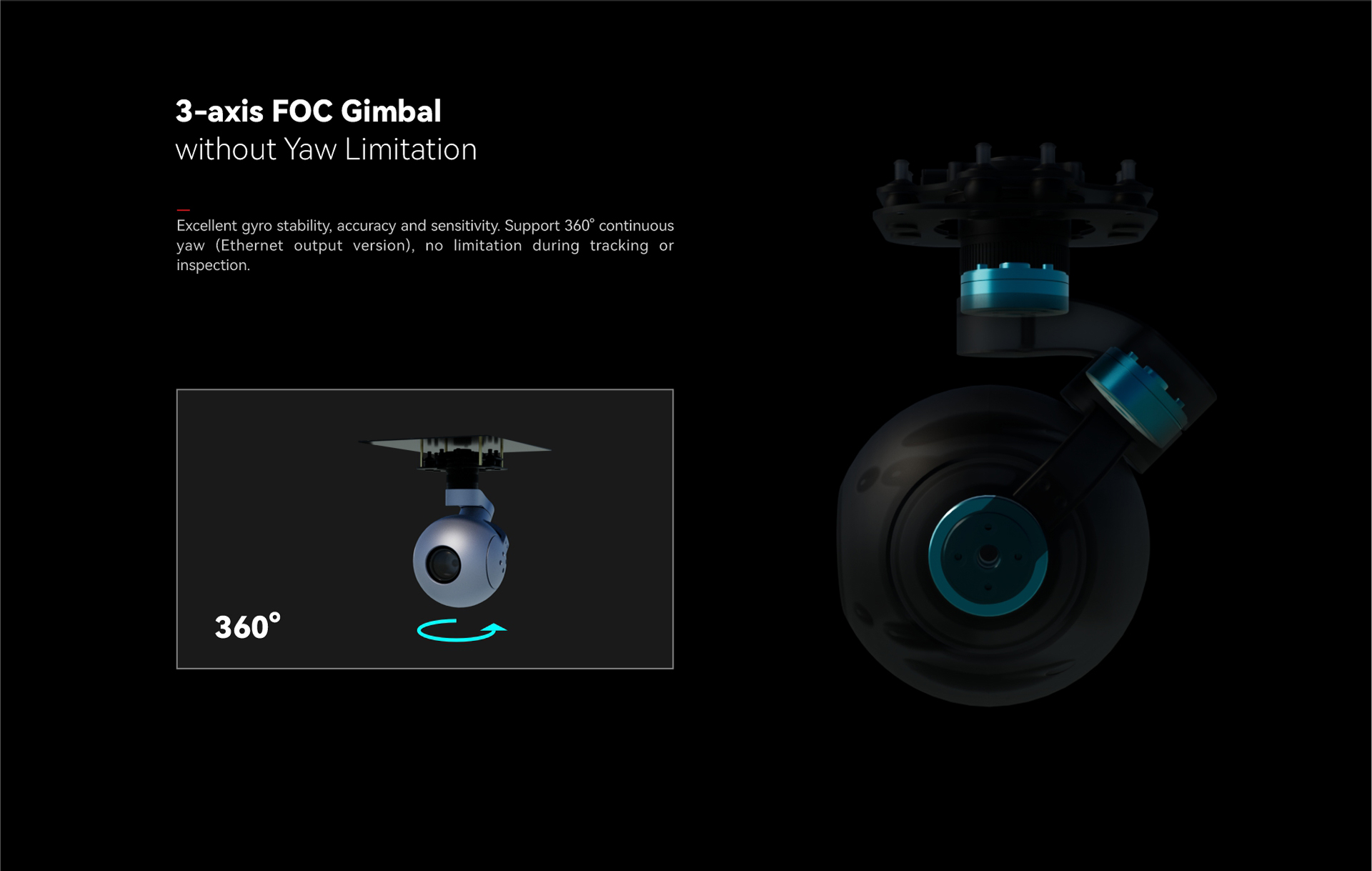

| Gimbal Spec |
| Angle range of structure design |
Pitch/Tilt:-60°～130°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Angle range of software design |
Pitch/Tilt: -45°～125°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll/Yaw: ±0.02° |
| One-key to center |
√ |
| EO Camera spec |
| Imager Sensor |
SONY 1/2.8″ CMOS |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |

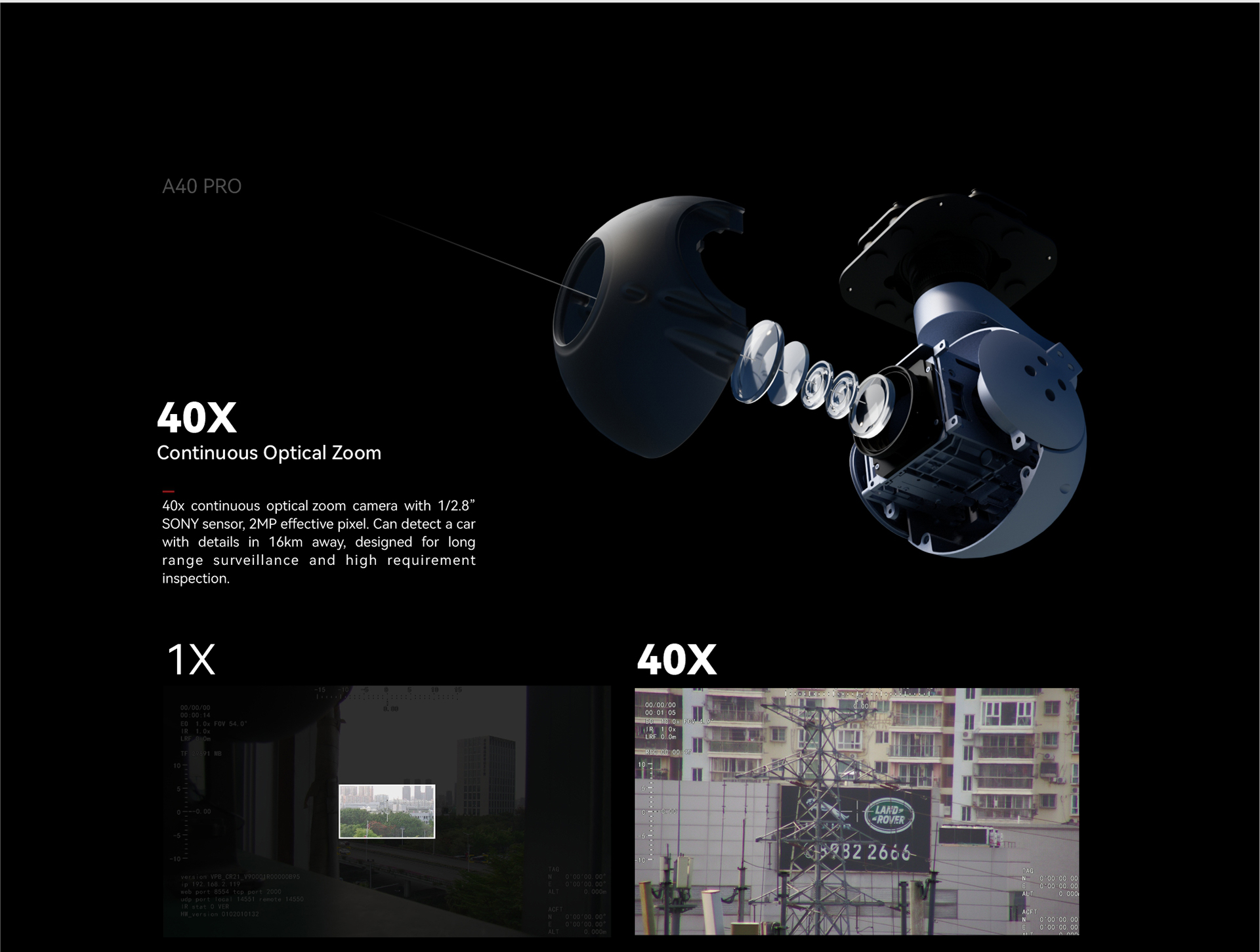

| Lens optical zoom |
40x, f=4.25mm(wide end)~170mm(tele end), F1.6~F4.95 |
| Digital zoom |
32x |
| Min object distance |
0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Horizontal viewing angle |
66.35°(wide end) ~ 1.9°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority) |
| Focusing system |
Auto , One Push, Manual |
| White balance |
Auto, Indoor, Outdoor, One Push , Manual |
| Shutter speed |
1/1s to 1/30,000s |
| Auto ICR |
Yes |
| Image stabilization |
Yes |
| Progressive scan mode |
Yes |
| Backlight compensation |
Yes |
| Defog |
Yes |
| OSD |
Yes |
| Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |
| AI auto-zoom |
Yes |
| EO Camera AI Performance |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |

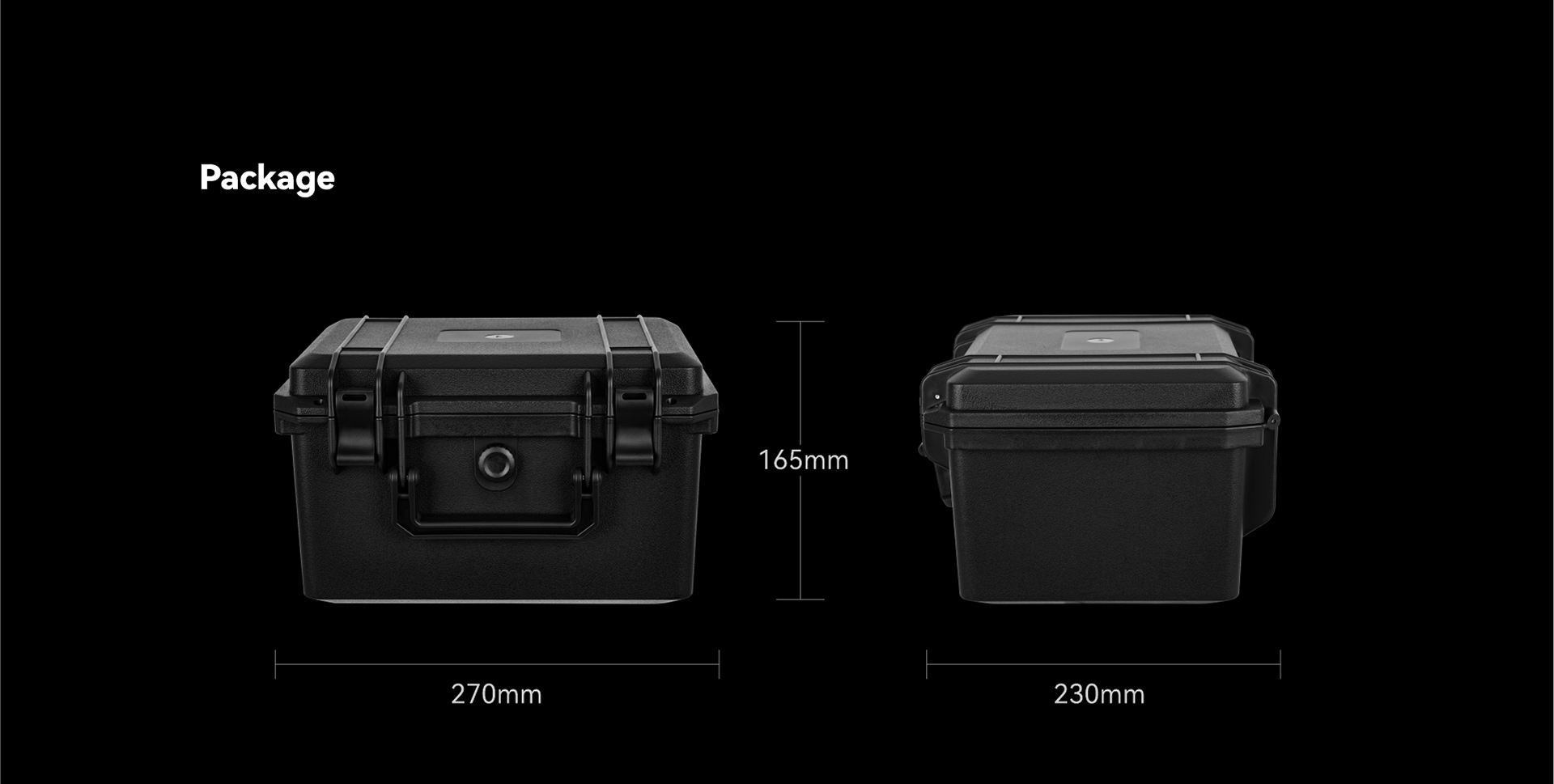

| Packing Information |
| N.W. |

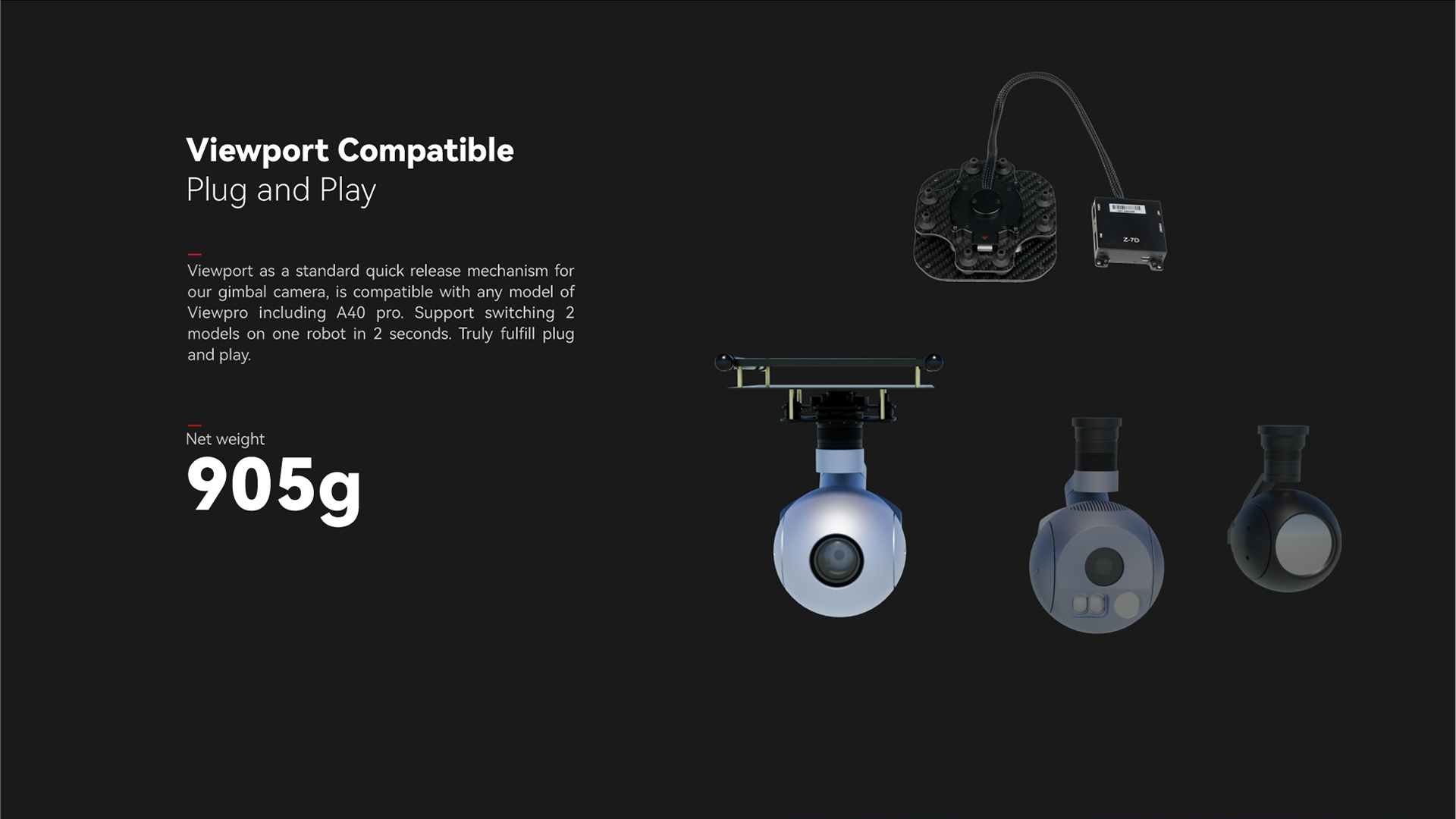

1074g(Viewport Version with Viewport) |

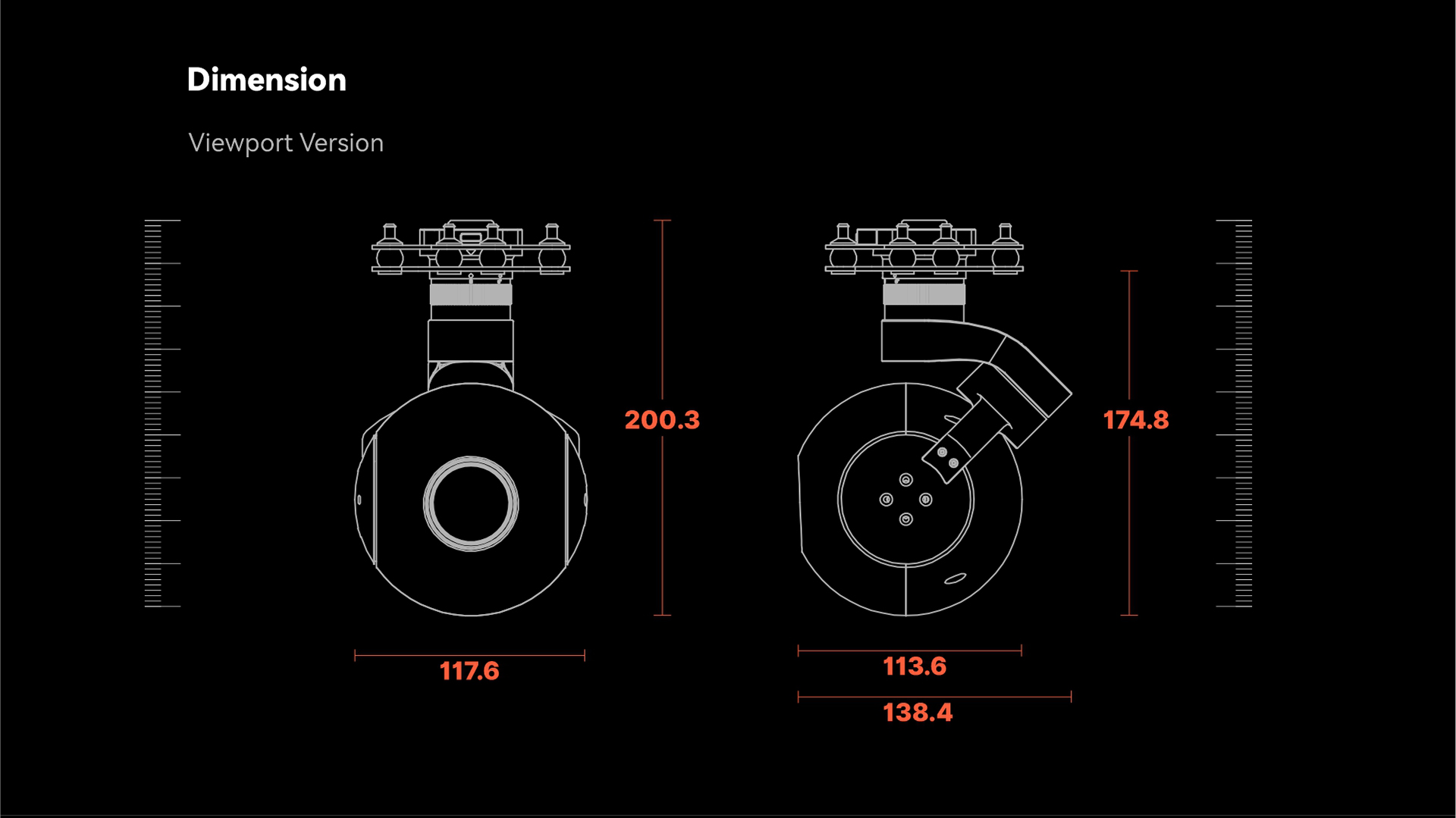

| Product meas. |
134.5*118*197.7mm / 134.5*118*203.4mmmm(Viewport Version) |

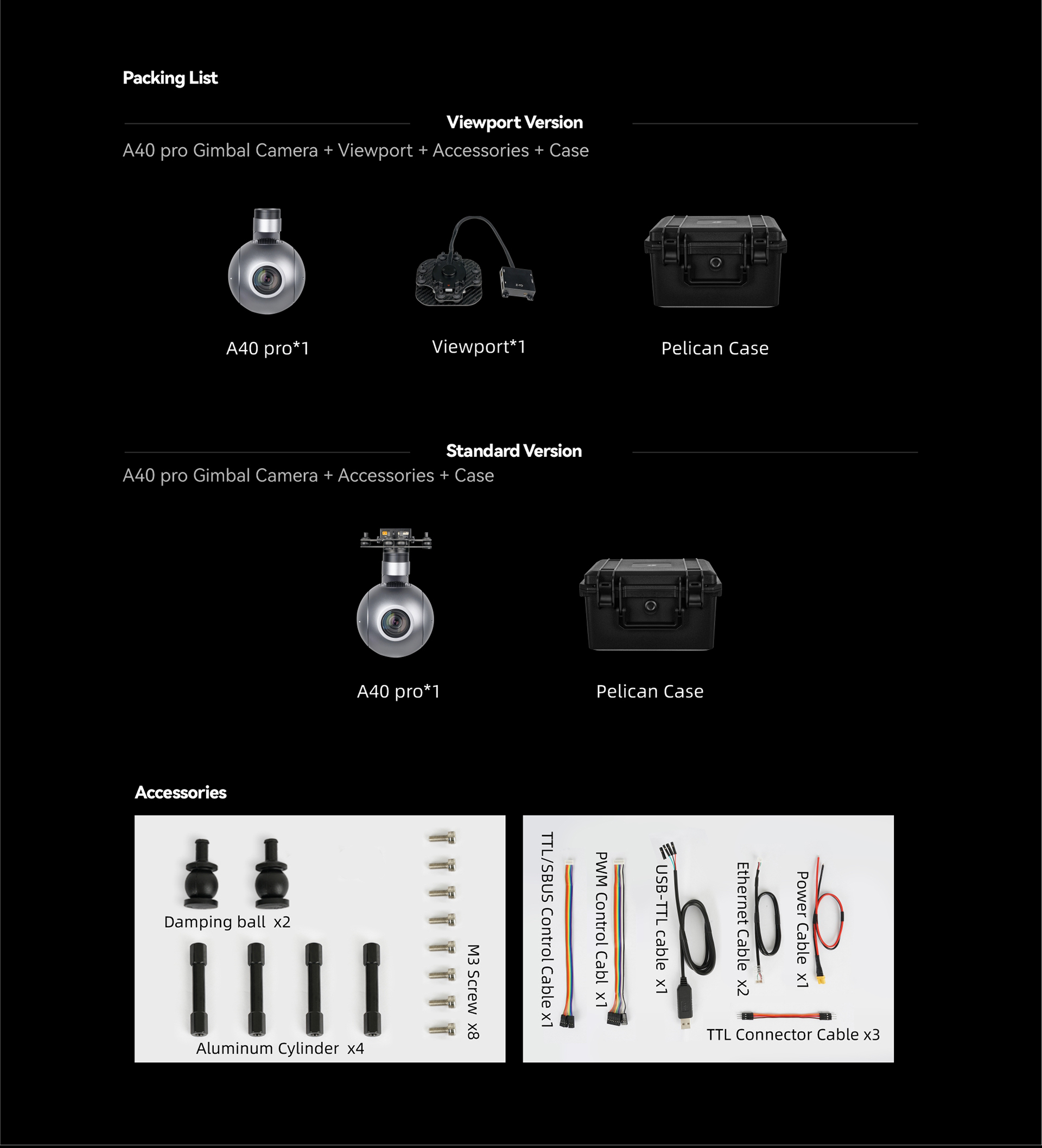

| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
2646g |
| Package meas. |
360*300*250mm |
