| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
800~1600mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| IP rating |
IP44 |
| Output |
micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage |
TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |

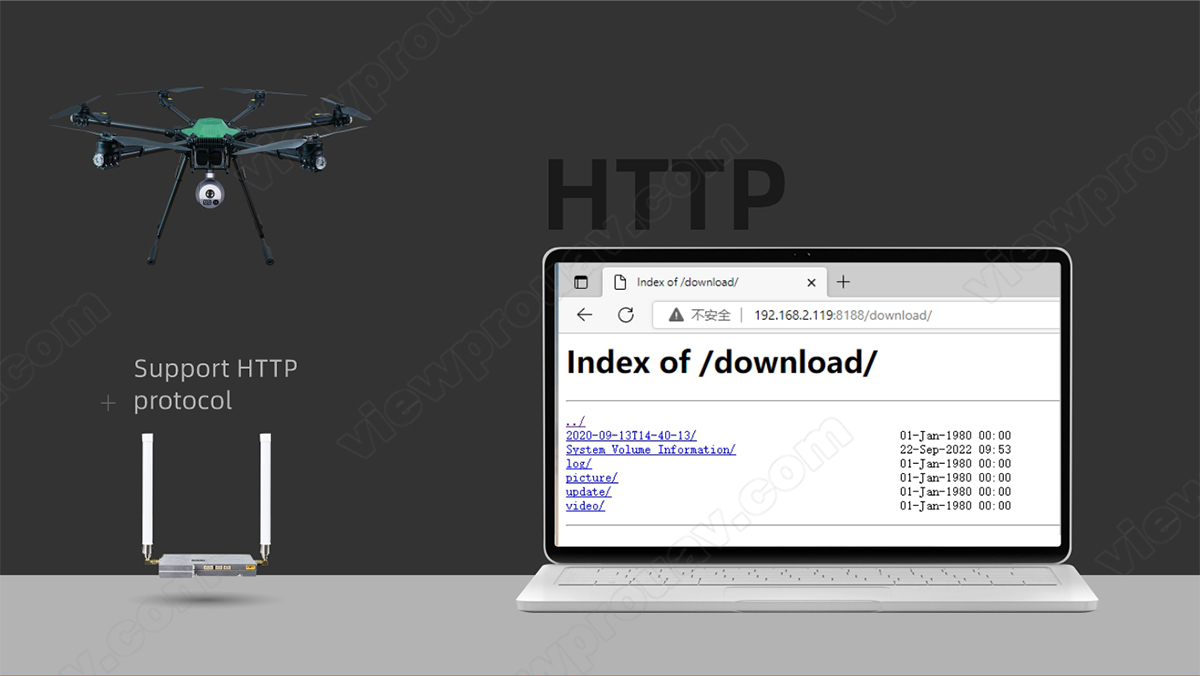

| Card reading online |
HTTP read pictures |

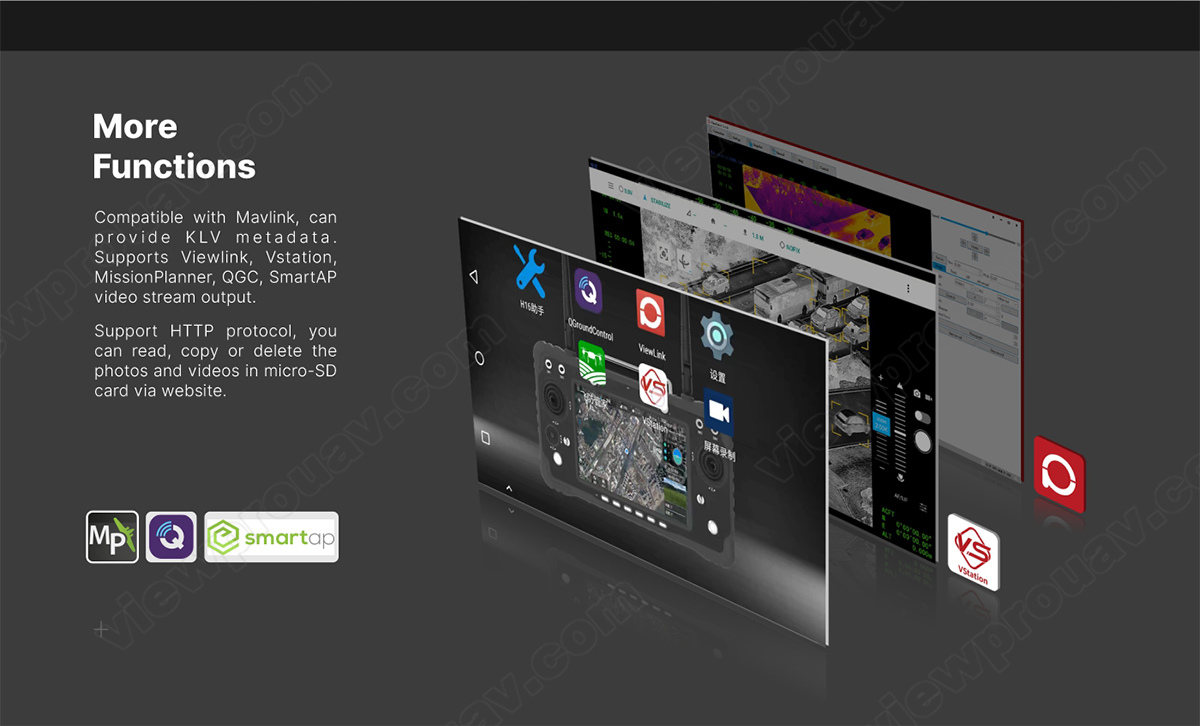

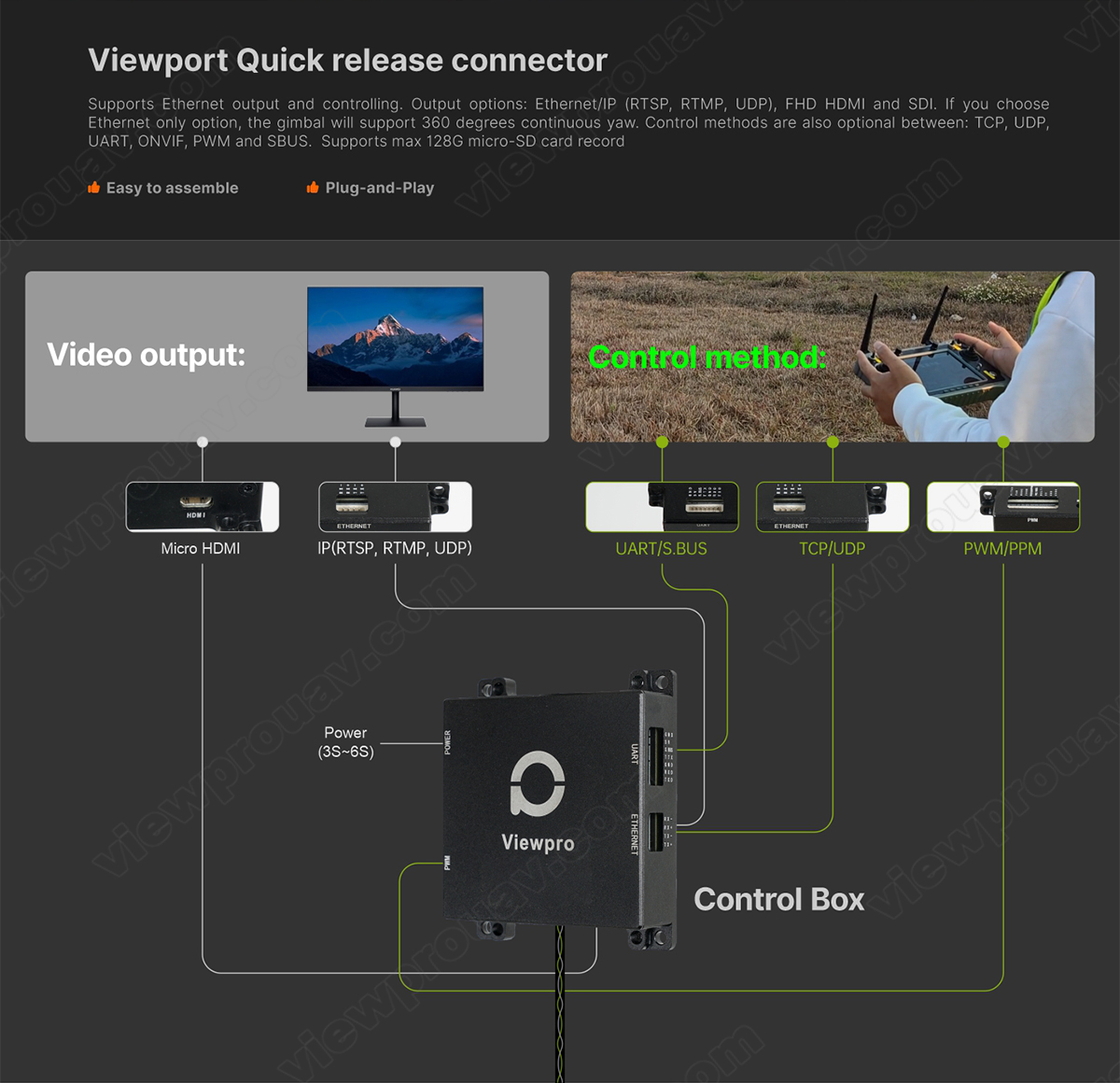

| Control method |
PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

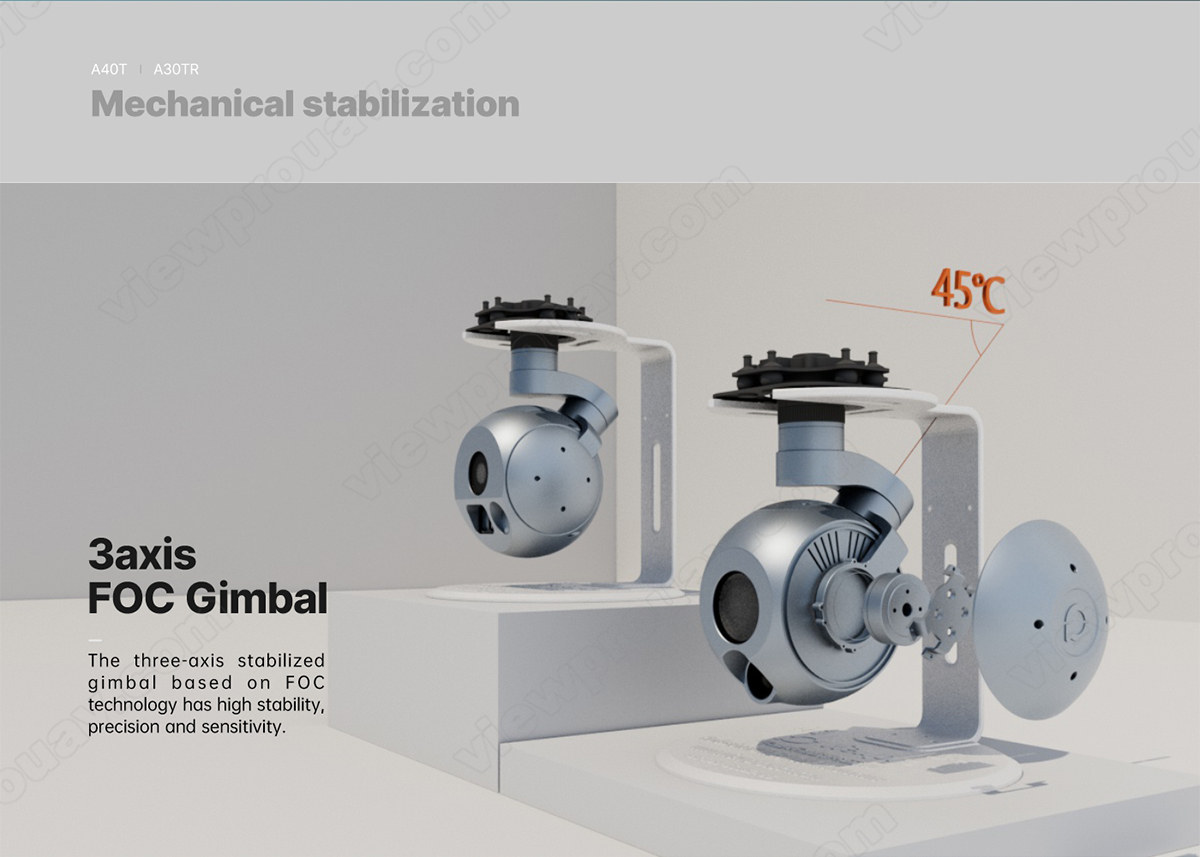

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -60°～150°, Roll: ±40°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -45°～125°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |

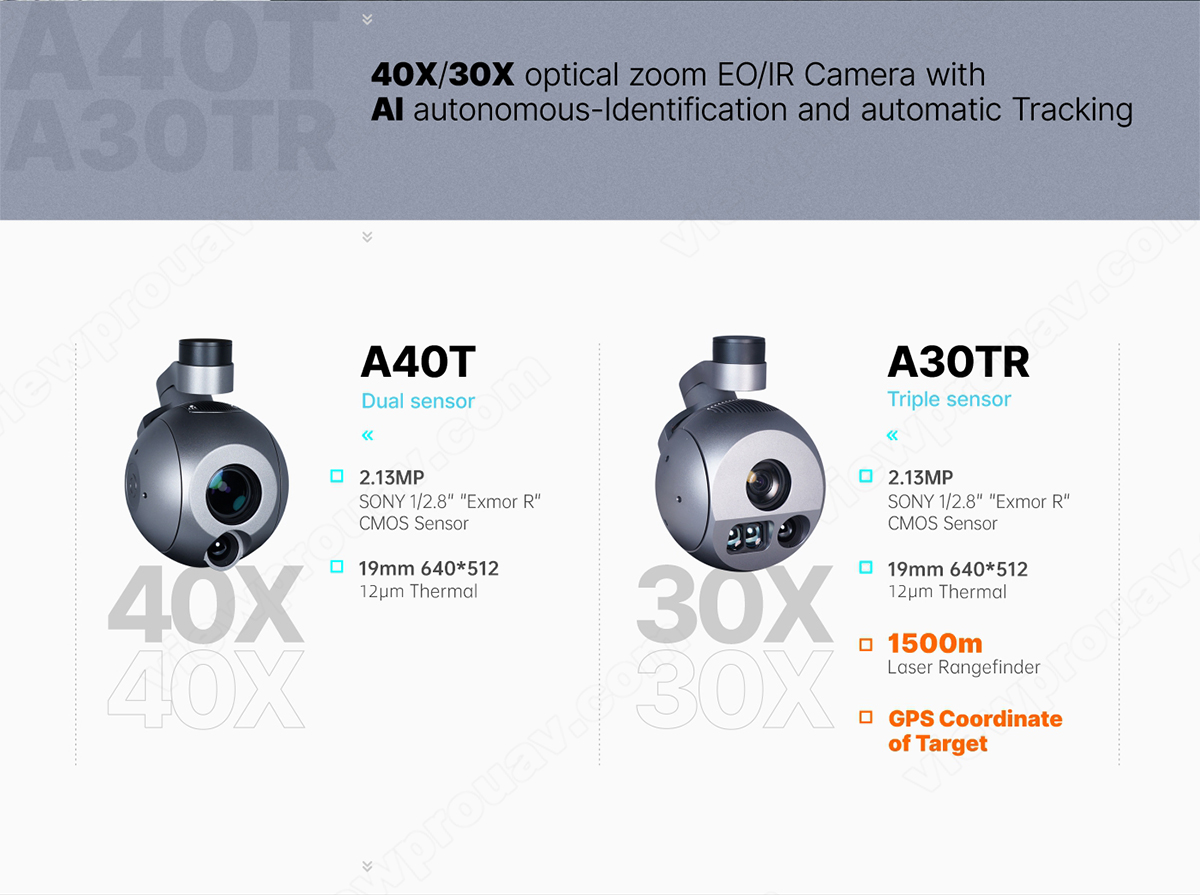

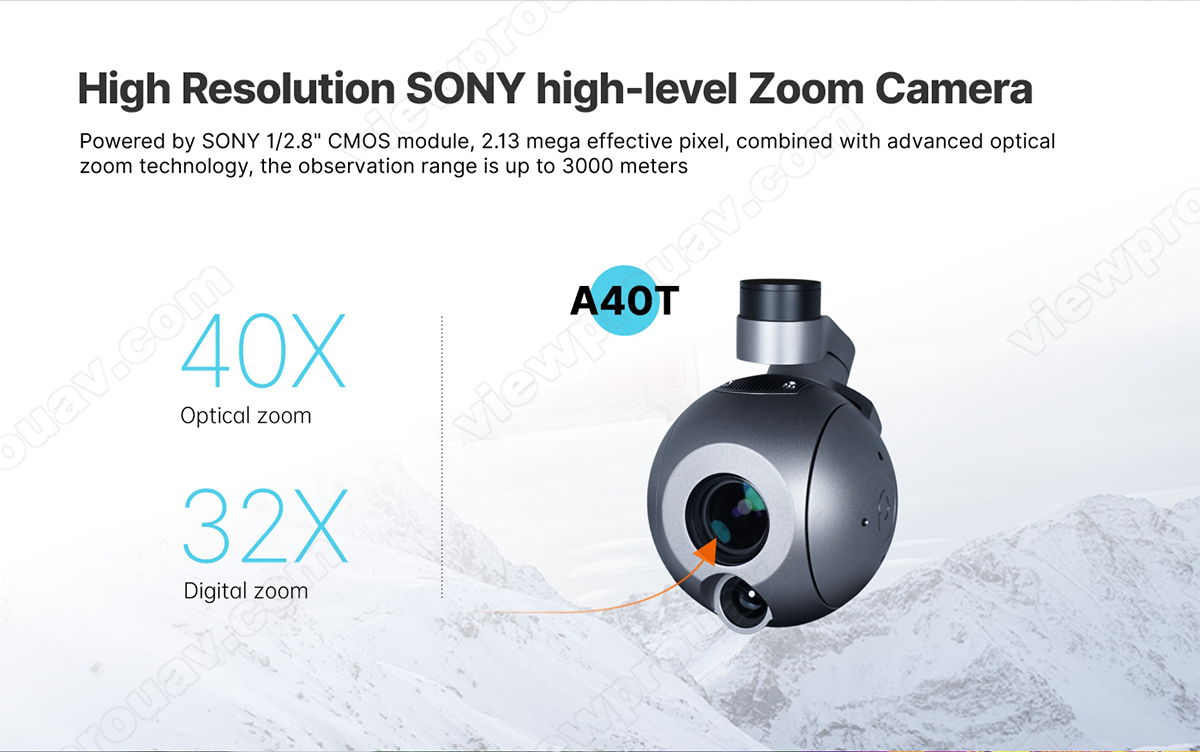

| Camera spec |
| Imager Sensor |
SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |

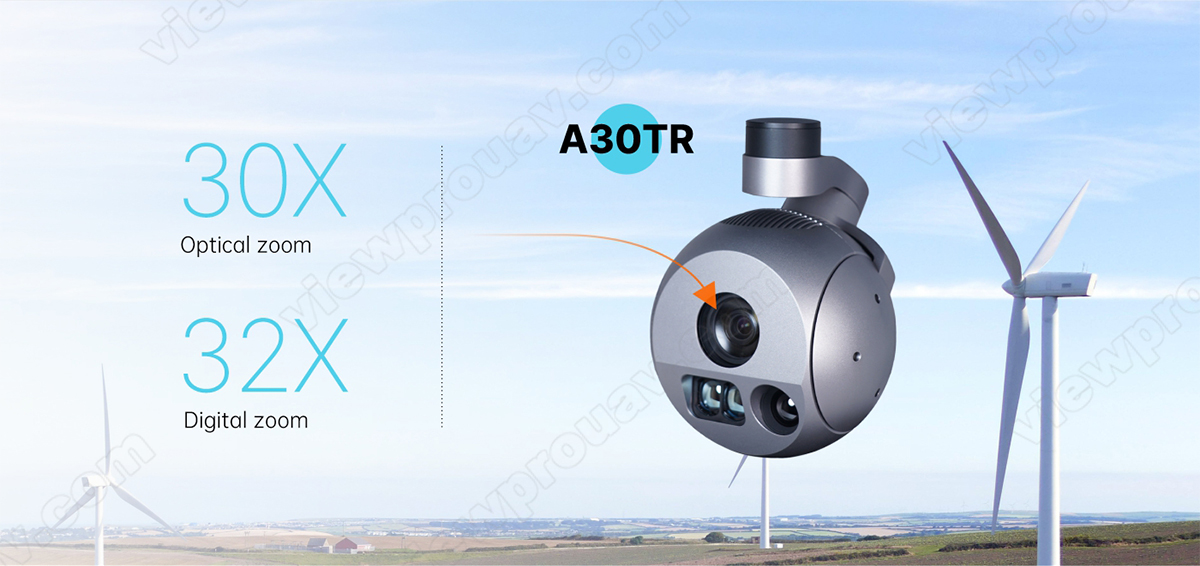

| Lens optical zoom |
30x, f=4.3~129mm |
| Digital zoom |
12x (360x with optical zoom) |
| Min object distance |
10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle |
1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color 0.01lux@F1.6 |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed |
1/1s to 1/10,000s, 22 steps |
| Backlight compensation |
Yes |
| Aperture control |
16 steps |
| Defog |
Yes |
| OSD |
Yes |

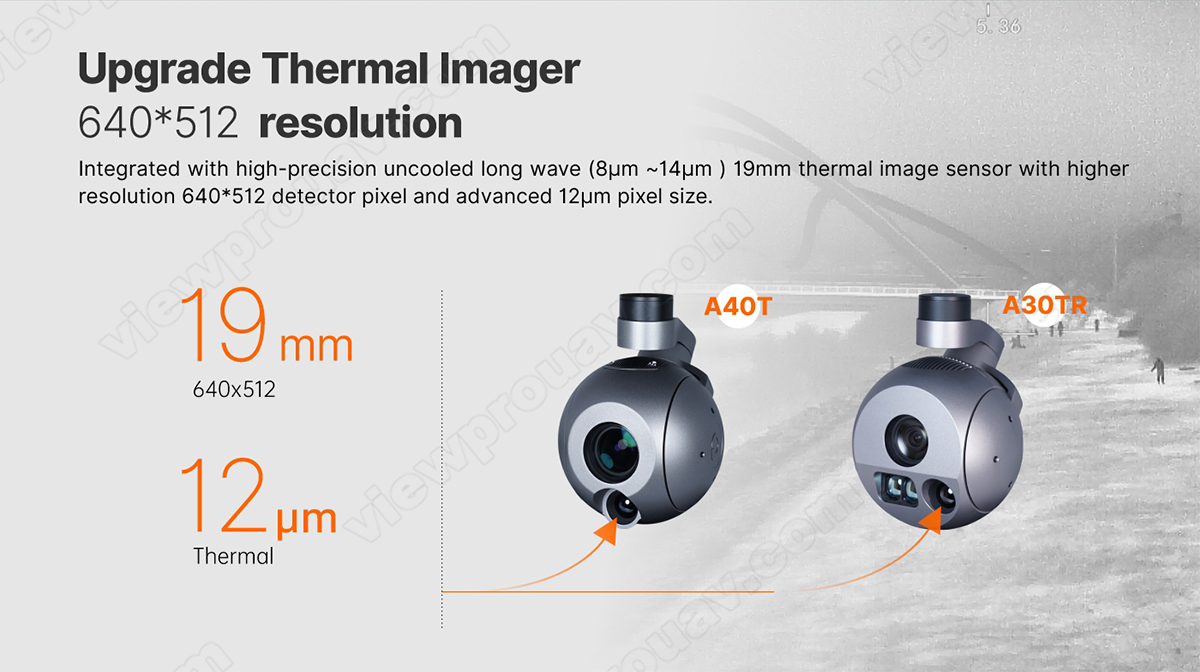

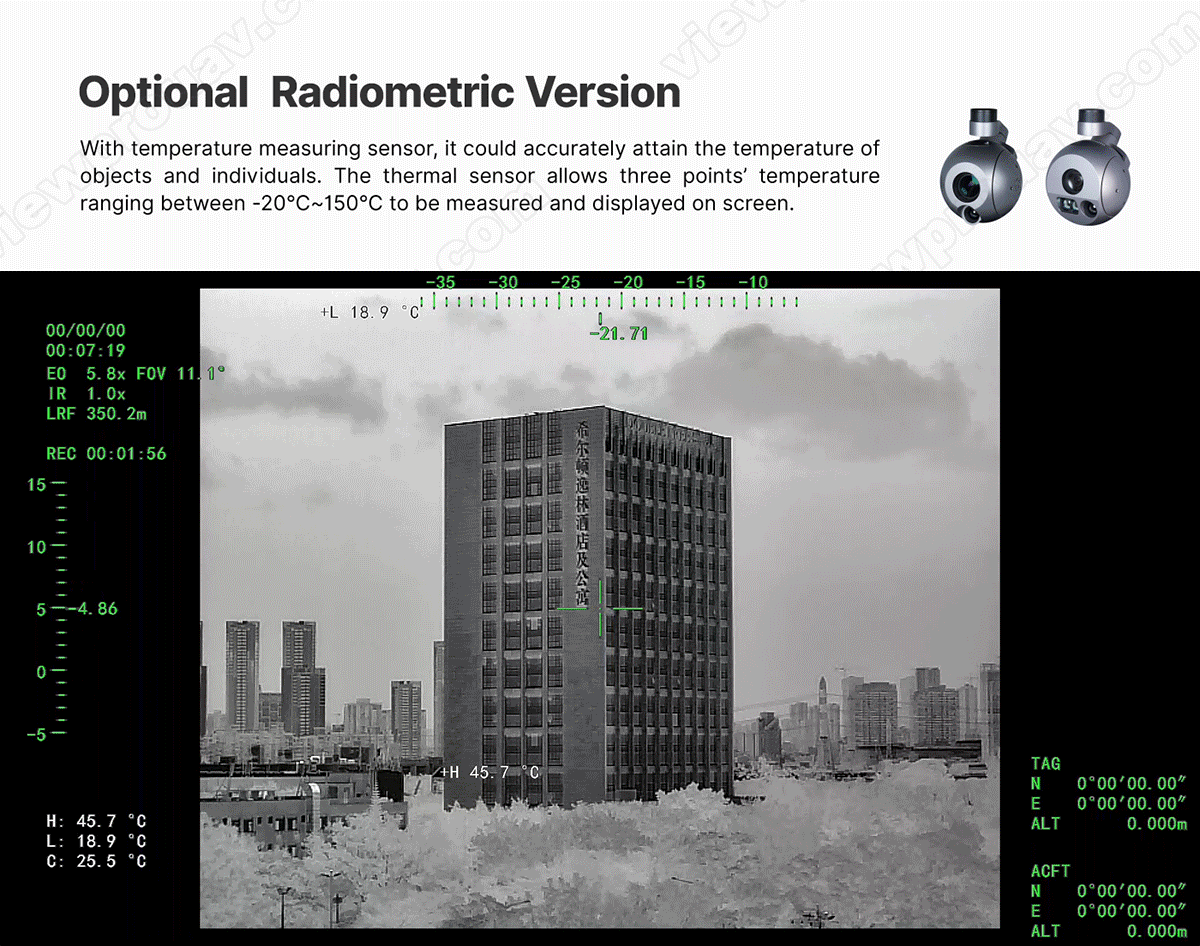

| IR Thermal Imager Spec |
| Focus Length |
19mm |
| Coating Film |
DLC |
| Horizontal FOV |
22.9° |
| Vertical FOV |
18.4° |
| Diagonal FOV |
29.0° |
| Detective Distance (Man: 1.8×0.5m) |
792 meters |
| Recognize Distance (Man: 1.8×0.5m) |
198 meters |
| Verified Distance (Man: 1.8×0.5m) |
99 meters |
| Detective Distance (Car: 4.2×1.8m) |
2428 meters |
| Recognize Distance (Car: 4.2×1.8m) |
607 meters |
| Verified Distance (Car: 4.2×1.8m) |
303 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel pitch |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@F.0 @25℃ |
| Color palette |
White hot, black hot, pseudo color |
| Digital zoom |
1x ~ 8x |
| Sync correct time |
Yes |

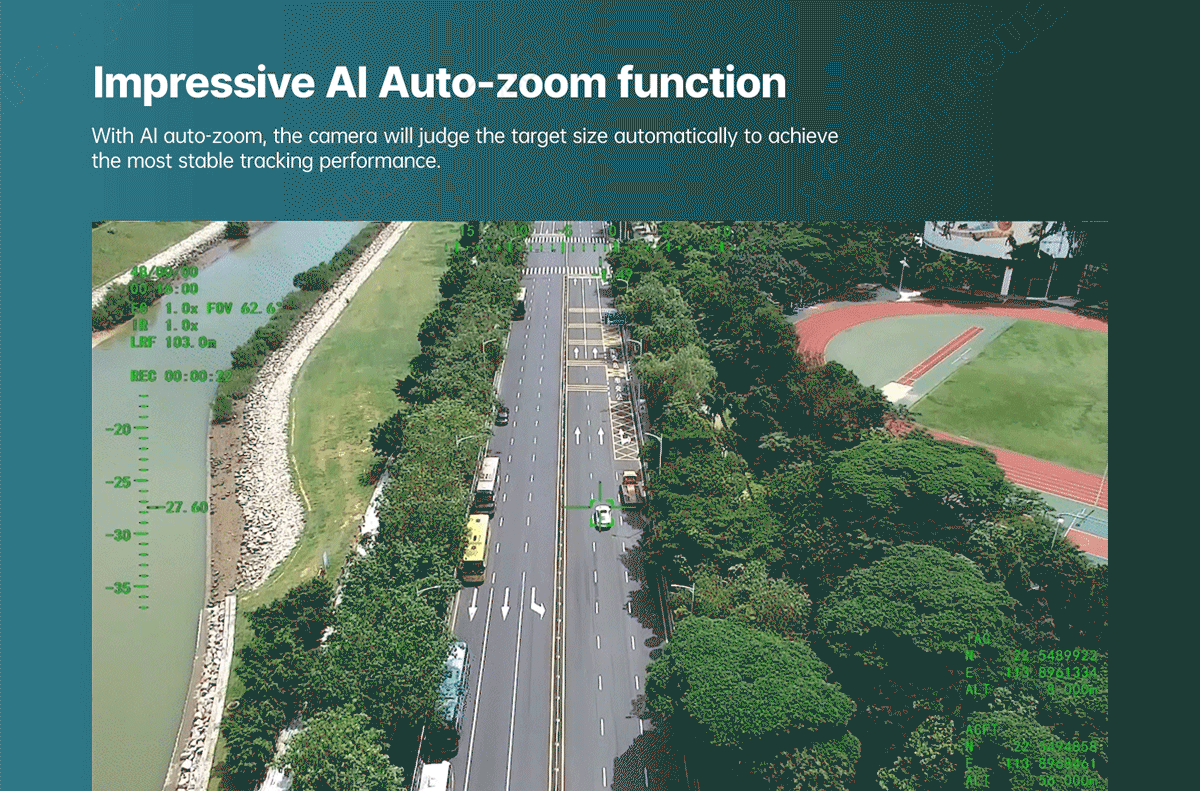

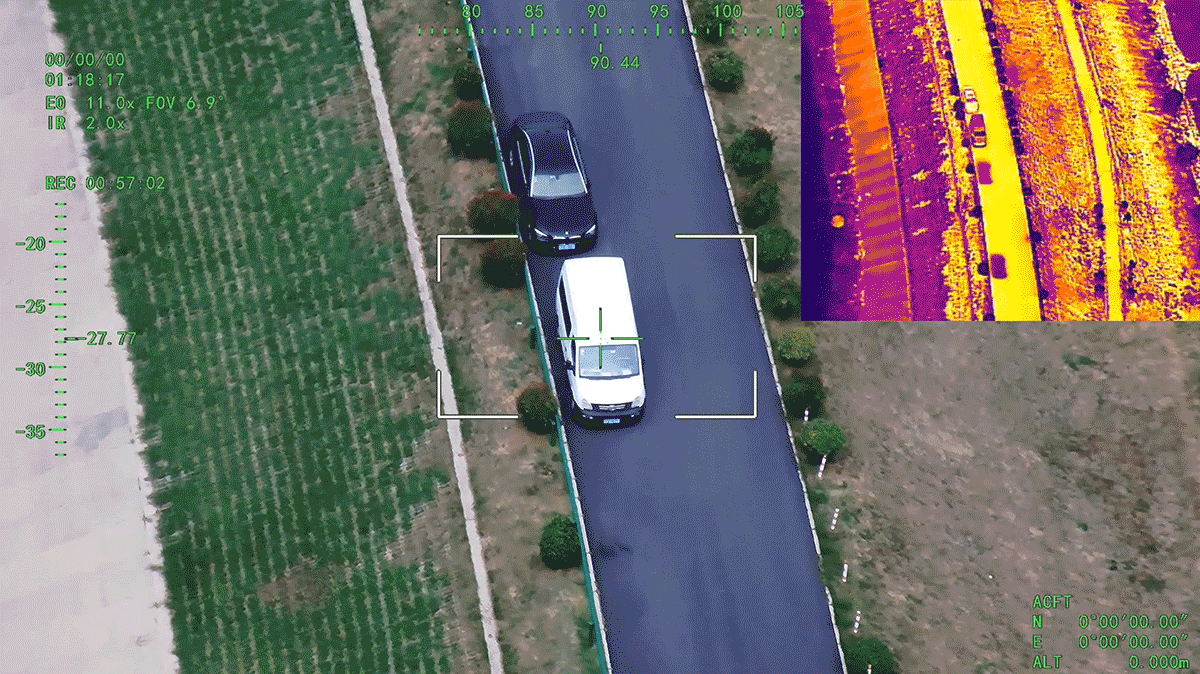

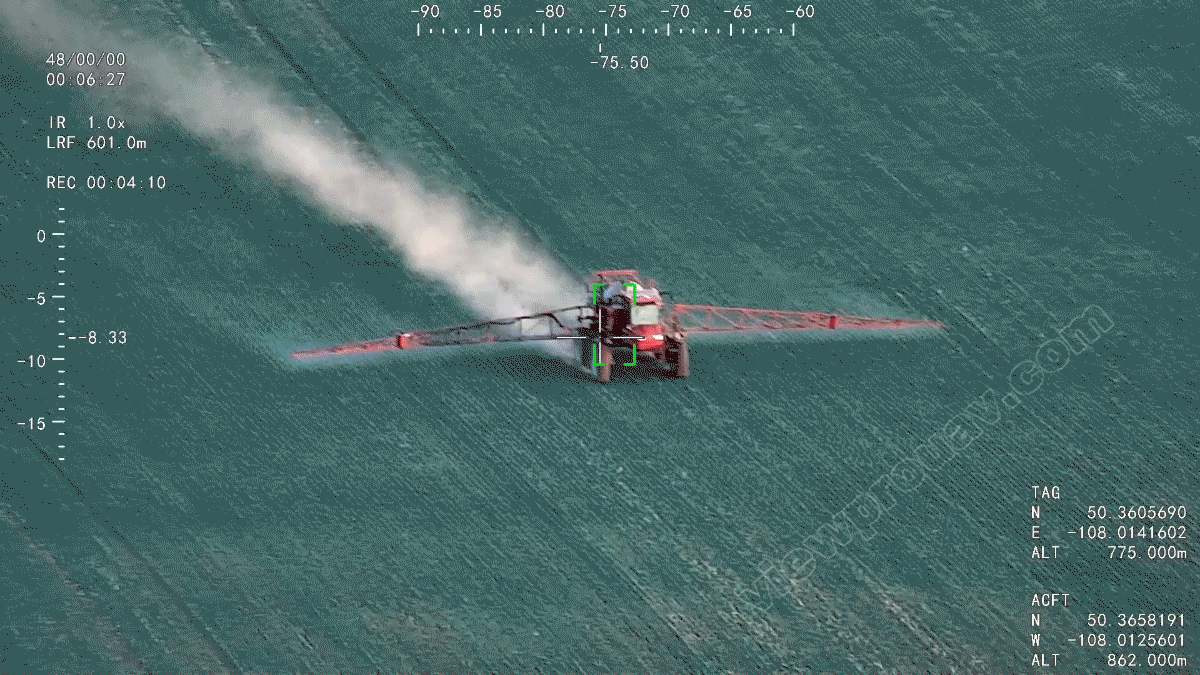

| EO / IR Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |

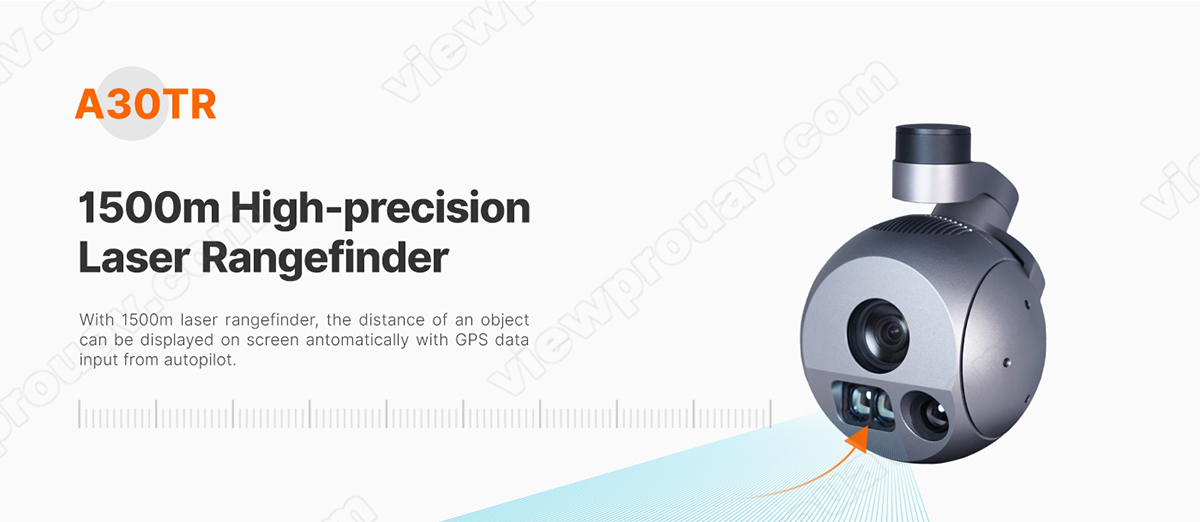

| IR Laser Rangefinder |
| Range |
5~1500 meters |
| Resolution |
0.5m |
| Working current: |
80mA （max） |
| Light Beam |
905nm pulse laser |
| Divergent Angle |
3 mrad |
| Laser pulse frequency |
1HZ |
| Power |
＜ 1 mW (safe for eye) |
| Ranging mode |
Pulse |

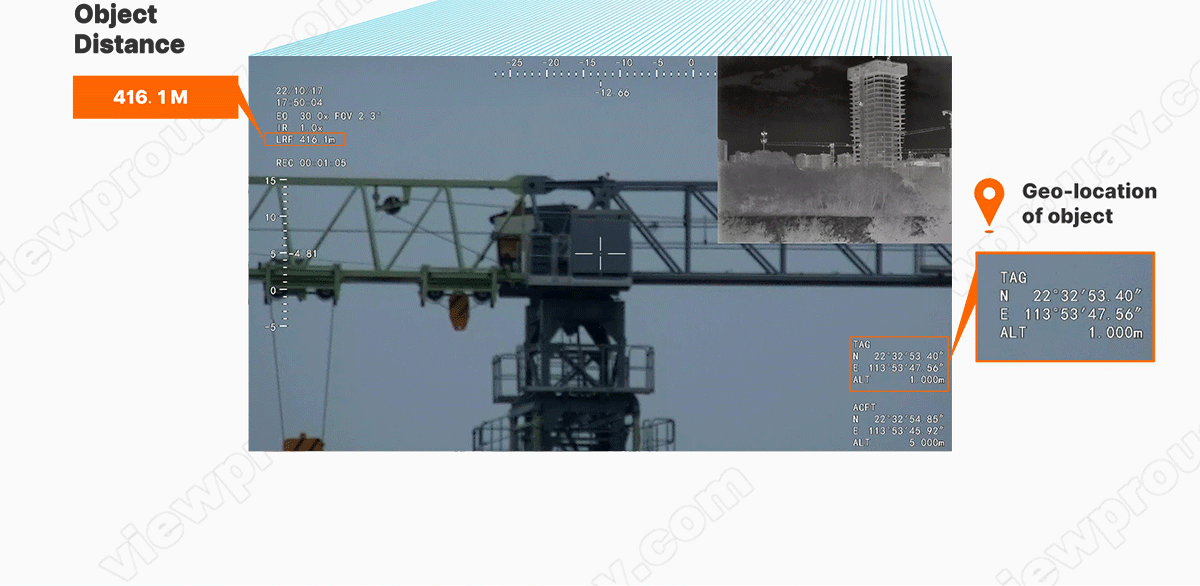

| Location Resolving |
Latitude and longitude of target |
| Ranefinder |
Target distance measuring |

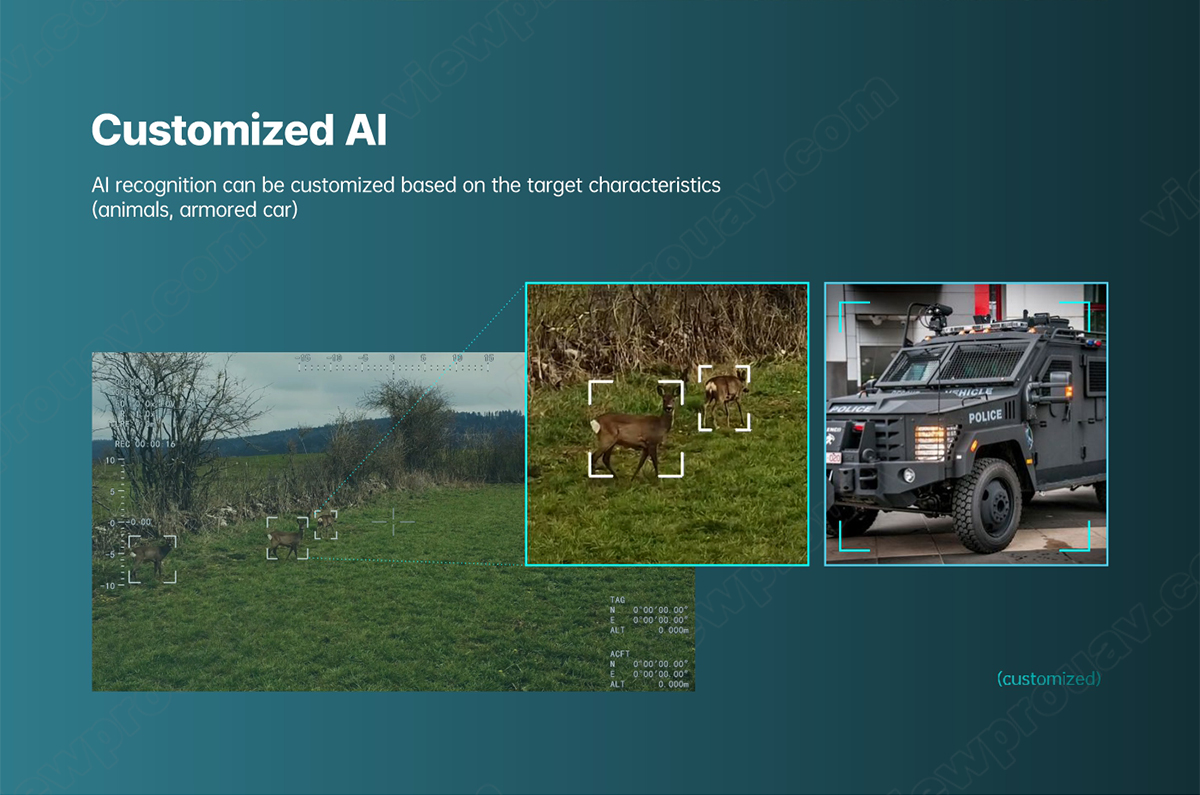

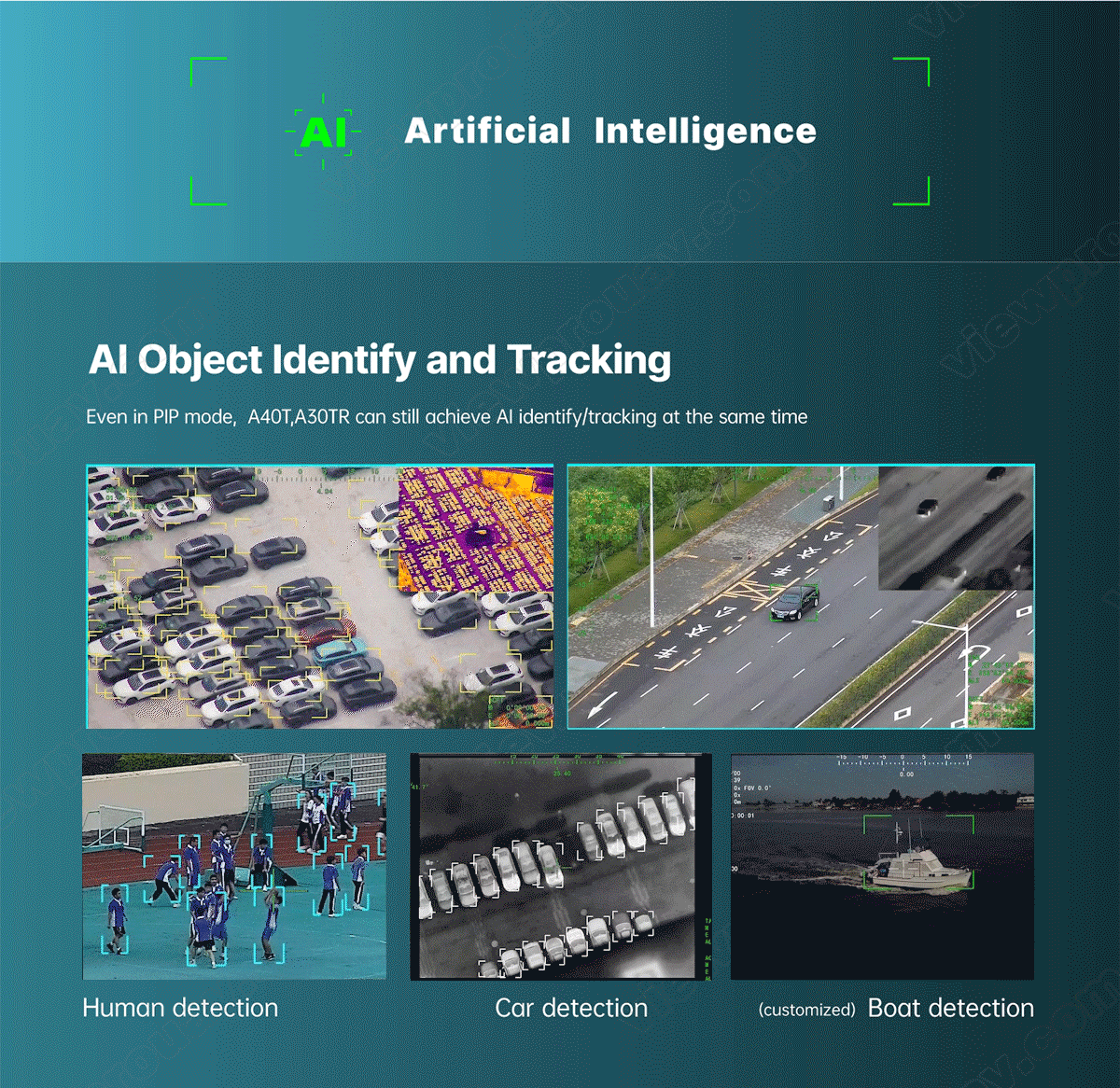

| EO Camera AI Performance |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |
| N.W. |
1234g (Viewport version) |

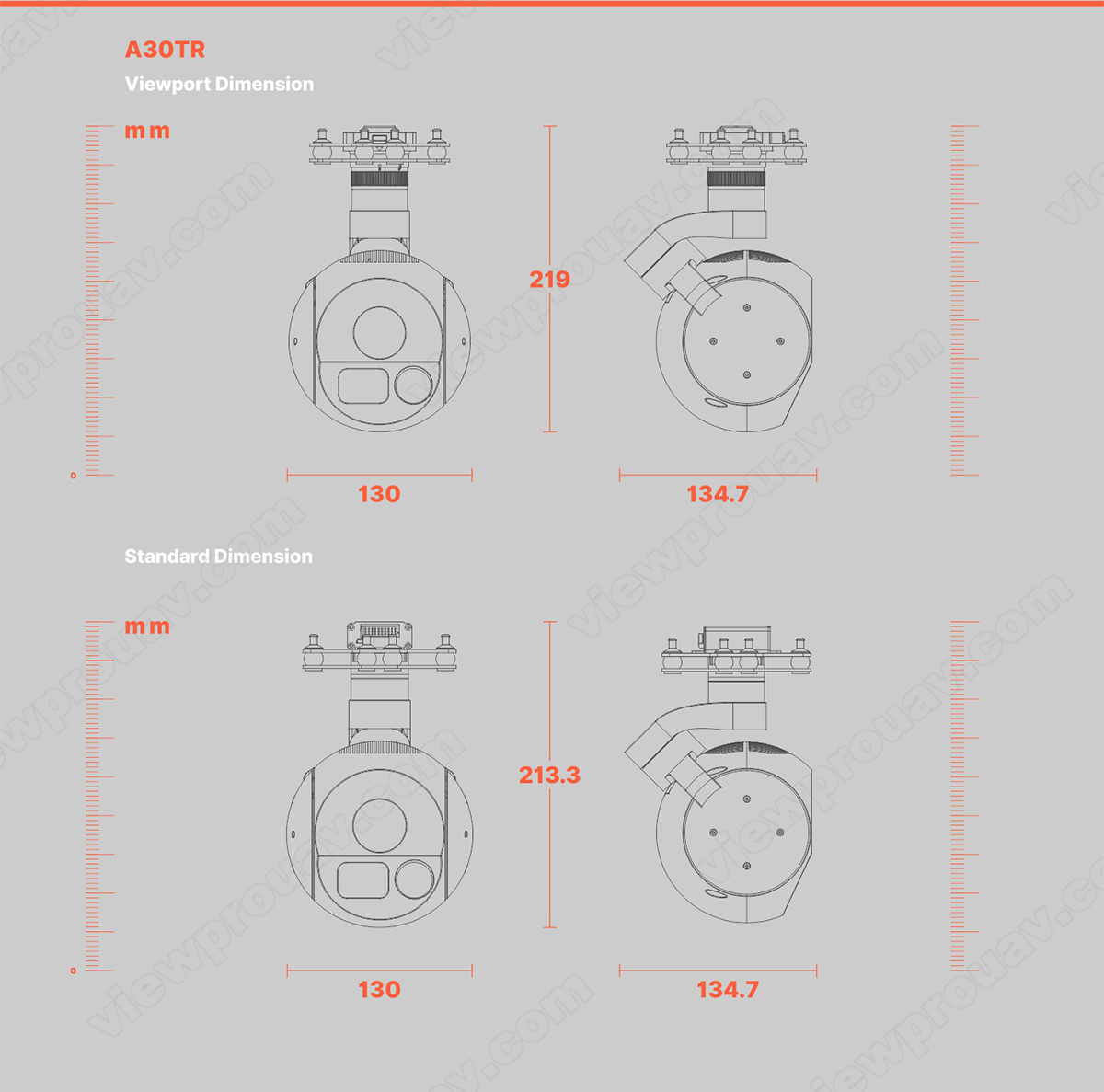

| Product meas. |
144.2*130*213.3mm (Standard version) /144.2*130*219mm (Viewport version) |
| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
2964g |

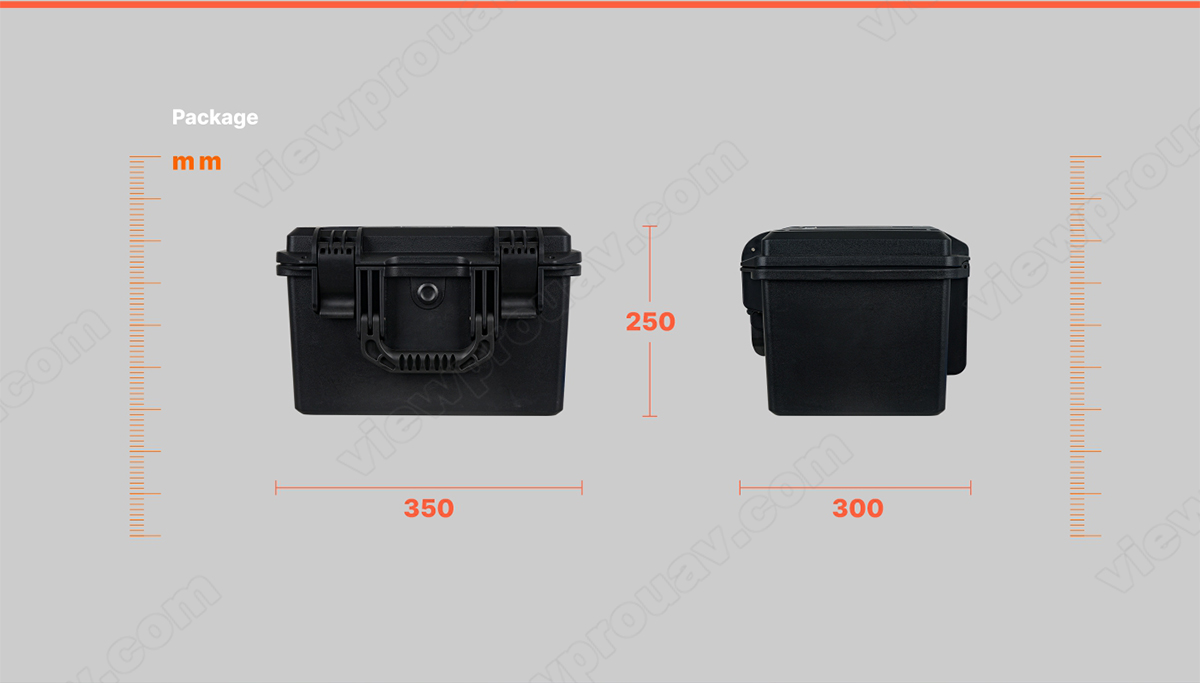

| Package meas. |
350*300*250mm |
