| Hardware Parameter |
| Working voltage |
12V |
| Input voltage |
3S ～ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
1350～1600mA @ 12V |
| Idle current |
1350mA @ 12V |
| Working environment temp. |
-20℃ ～ +60℃ |
| Output |
micro HDMI(1080P30/60fps)/IP (1080P/720p 30/60fps ) |
| Local-storage |
SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Control method |
PWM / SBUS / TTL / TCP (IP output version) |

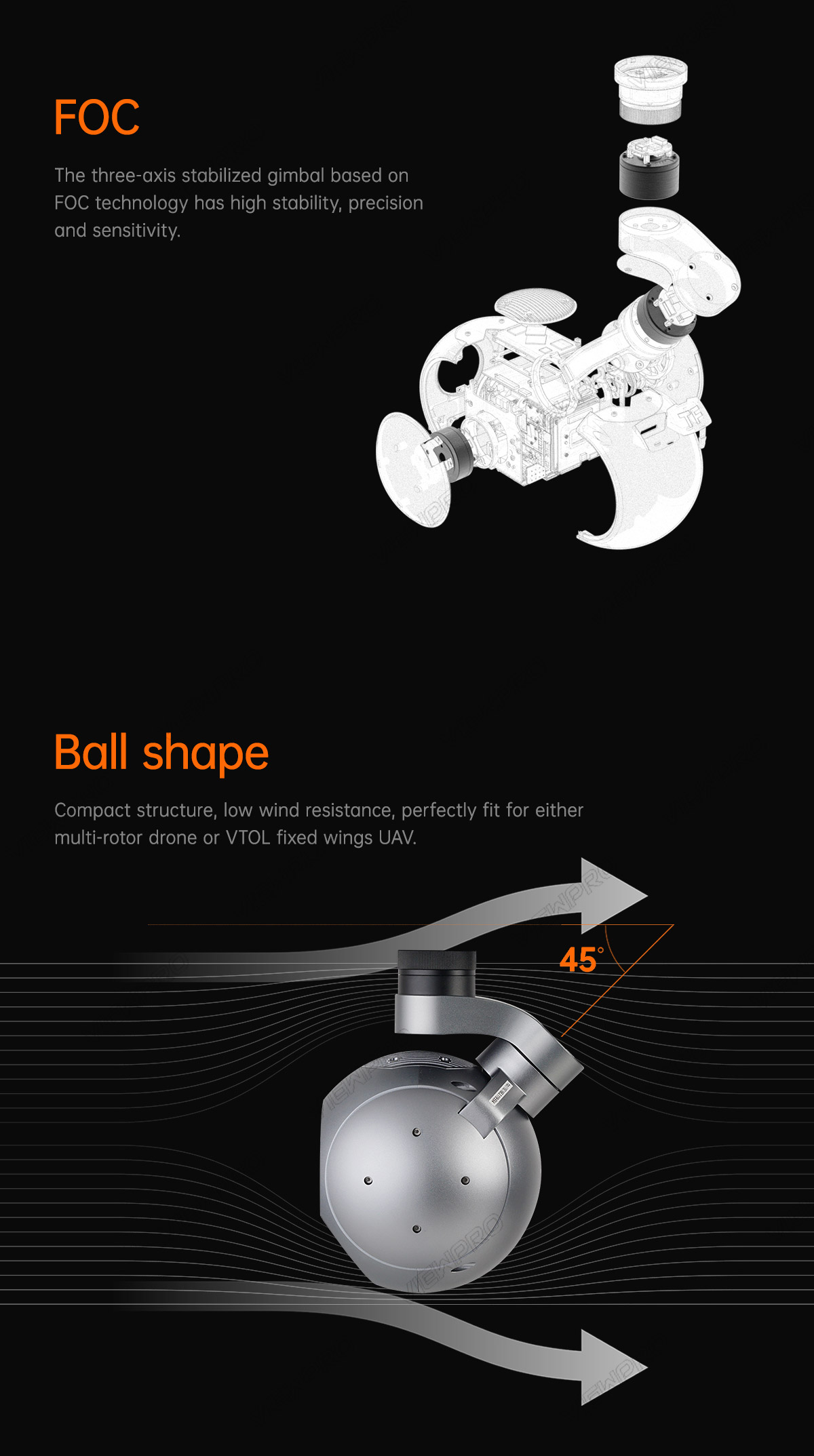

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -55°～130°,Roll: ±45°,Yaw/Pan: ±300°/ ±360°*N (IP/SDI output version) |
| Controllable Range |
Pitch/Tilt: -45°～90°,Yaw/Pan: ±290°/ ±360°*N (IP/SDI output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |
| Camera Spec |
| Imager Sensor |
1/2.8″ Sony IMX462LQR CMOS Sensor |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |
| Photo storage format |
JPG(1920*1080 / 1280*720) |
| Video storage format |
MP4 (1080P/720P 25fps/30fps) |

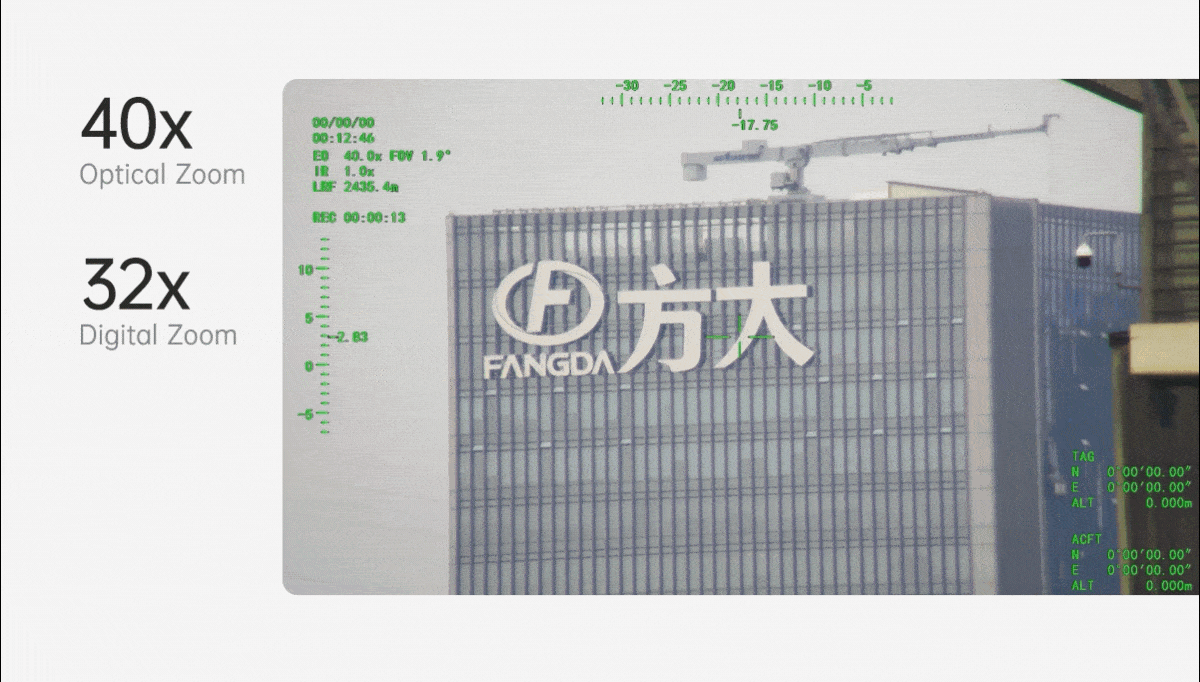

| Lens optical zoom |
40x, F=4.25～170mm |
| Digital zoom |
Off / MAX x2 ～ x32 |
| Min object distance |
0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Angle of View (D, H, V) |
Wide: 73.80° / 66.35° / 39.98° |
| Tele: 2.16° / 1.90° / 1.11° |
| AF Mode |
Auto/One Push/Manual |
| Iris |
Close ～ F1.6 |
| Shutter speed |
1/1 ～ 1/30,000 sec |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux
Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux |
| Exposure control |
Auto / Iris. Priority / Shut. Priority / Manual |
| Gain Control(AGC) |
0 ～ 10 steps |
| White balance |
Auto / One Push / Manual / Indoor / Outdoor |
| Back Light |
Off / BLC / HLC / WDR |
| Defog |
Off / Manual / Auto |
| OSD |
Yes |

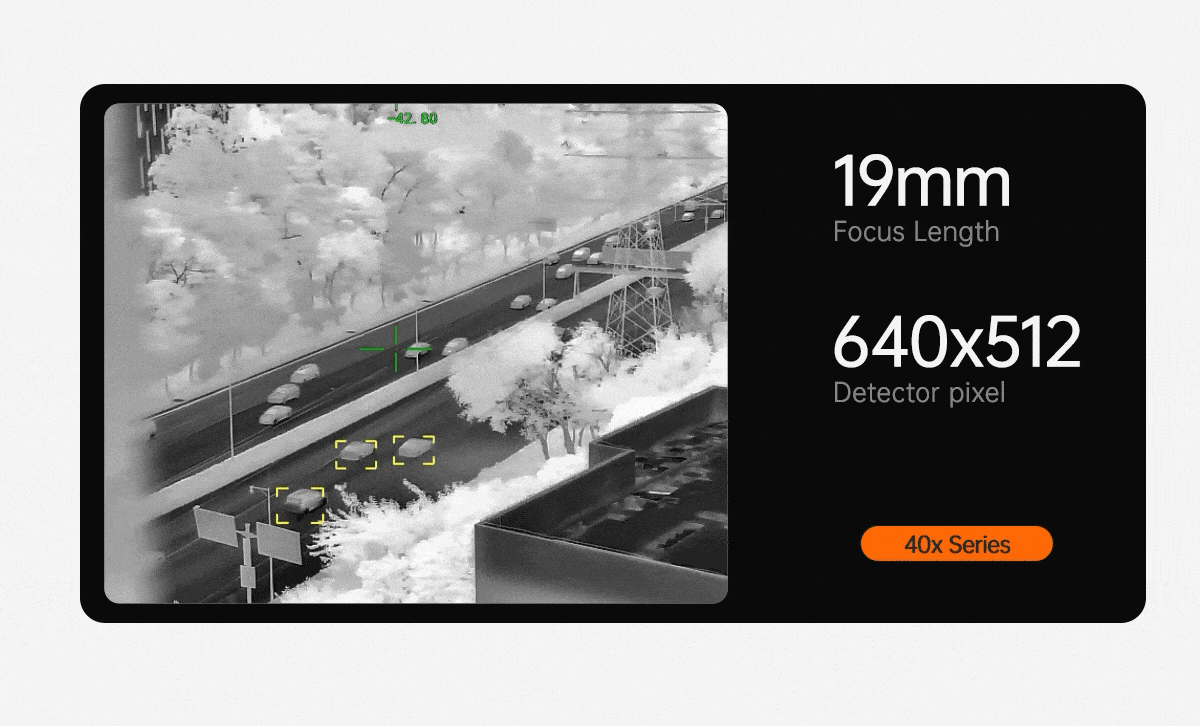

| Thermal Imager Spec |
| Lens size |
19mm |
| Coating Film |
DLC |
| Horizontal FOV |
22.9° |
| Vertical FOV |
18.4° |
| Diagonal FOV |
29° |

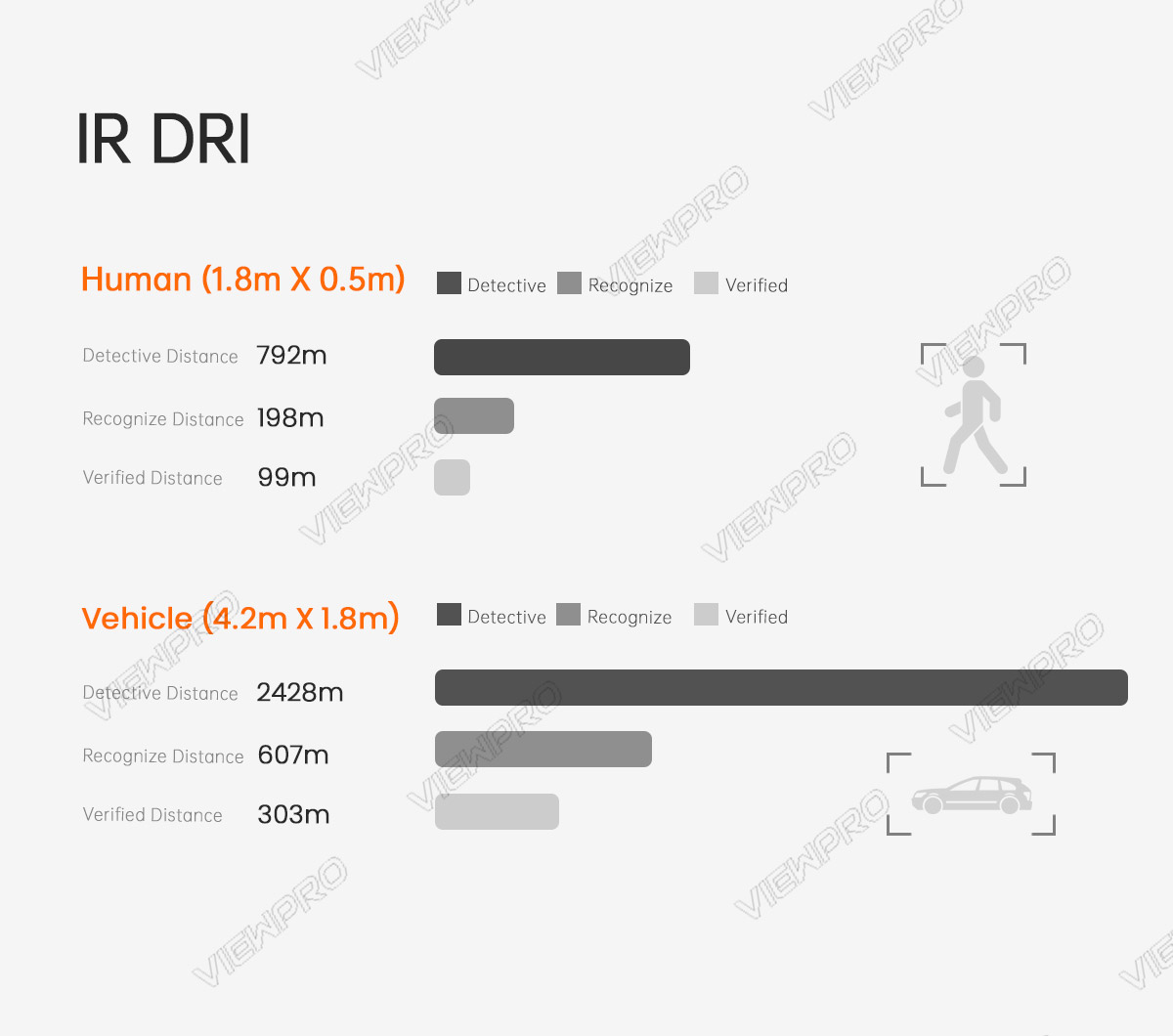

| Detective Distance (Man: 1.8×0.5m) |
792 meters |
| Recognize Distance (Man: 1.8×0.5m) |
198 meters |
| Verified Distance (Man: 1.8×0.5m) |
99 meters |
| Detective Distance (Car: 4.2×1.8m) |
2428 meters |
| Recognize Distance (Car: 4.2×1.8m) |
607 meters |
| Verified Distance (Car: 4.2×1.8m) |
303 meters |
| Working mode |
Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel size |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK (@25℃) |

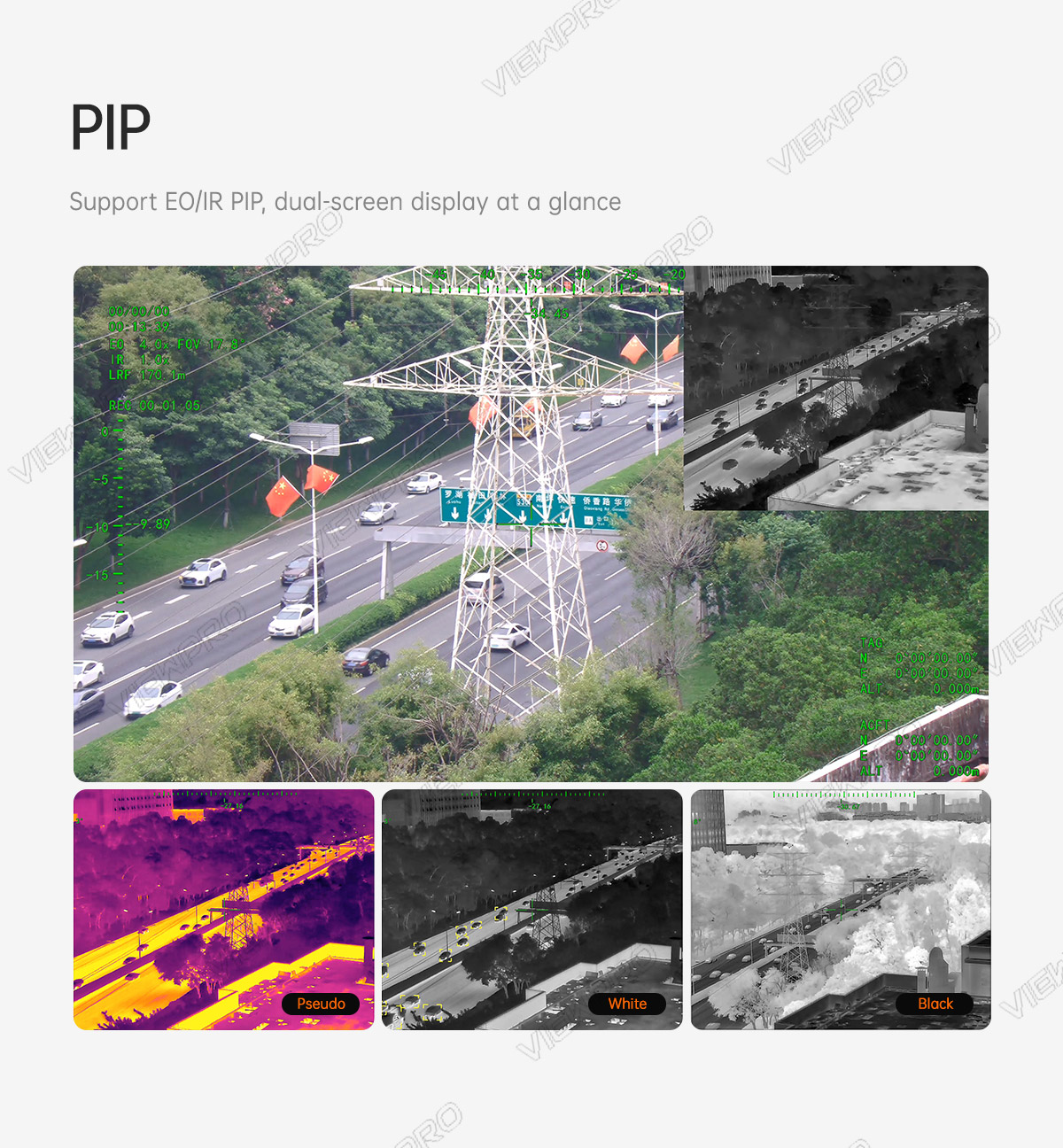

| Color palette |
White, iron red, pseudo color |
| Digital zoom |
1x ～ 8x |
| Sync correct time |
Yes |

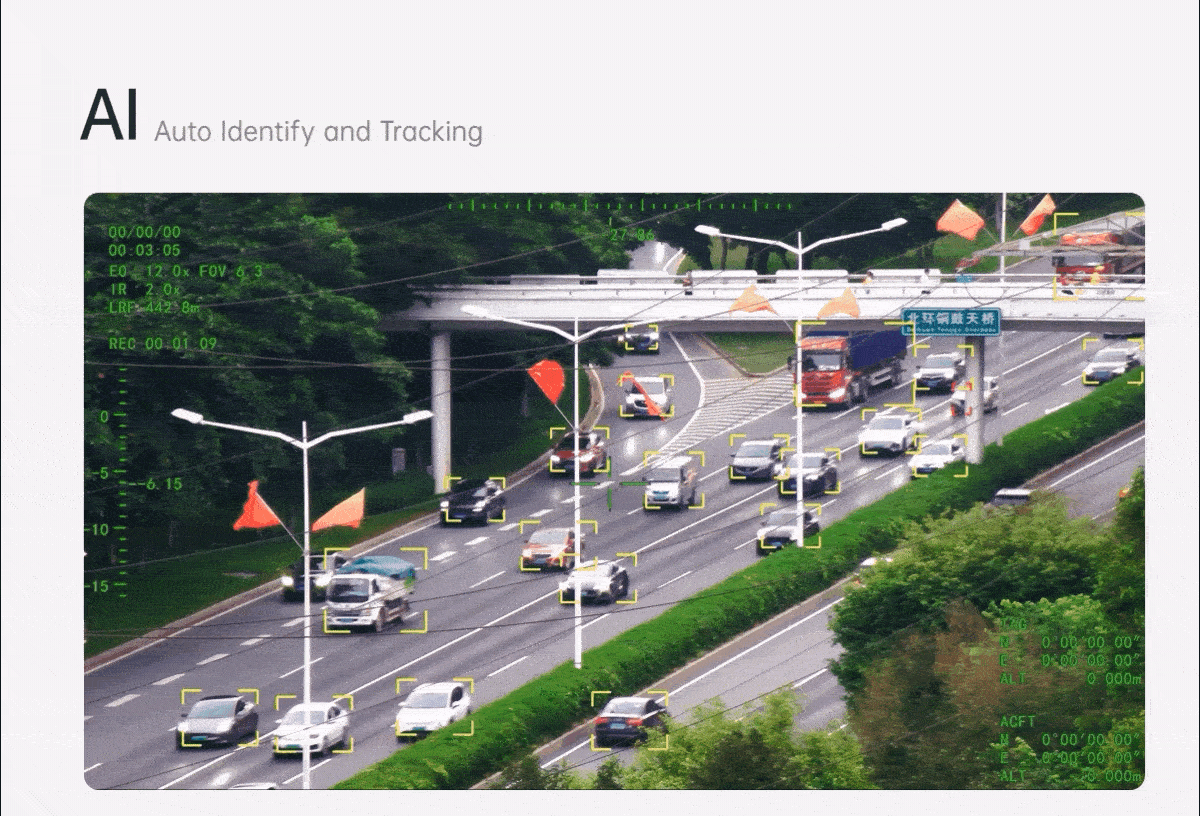

| EO/IR Camera Object Tracking& EO camera AI Recognition Performance |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
＞32 pixel/frame |
| Object memory time |
100 frames (4s) |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |
| N.W. |
1095g(Viewport Version) |

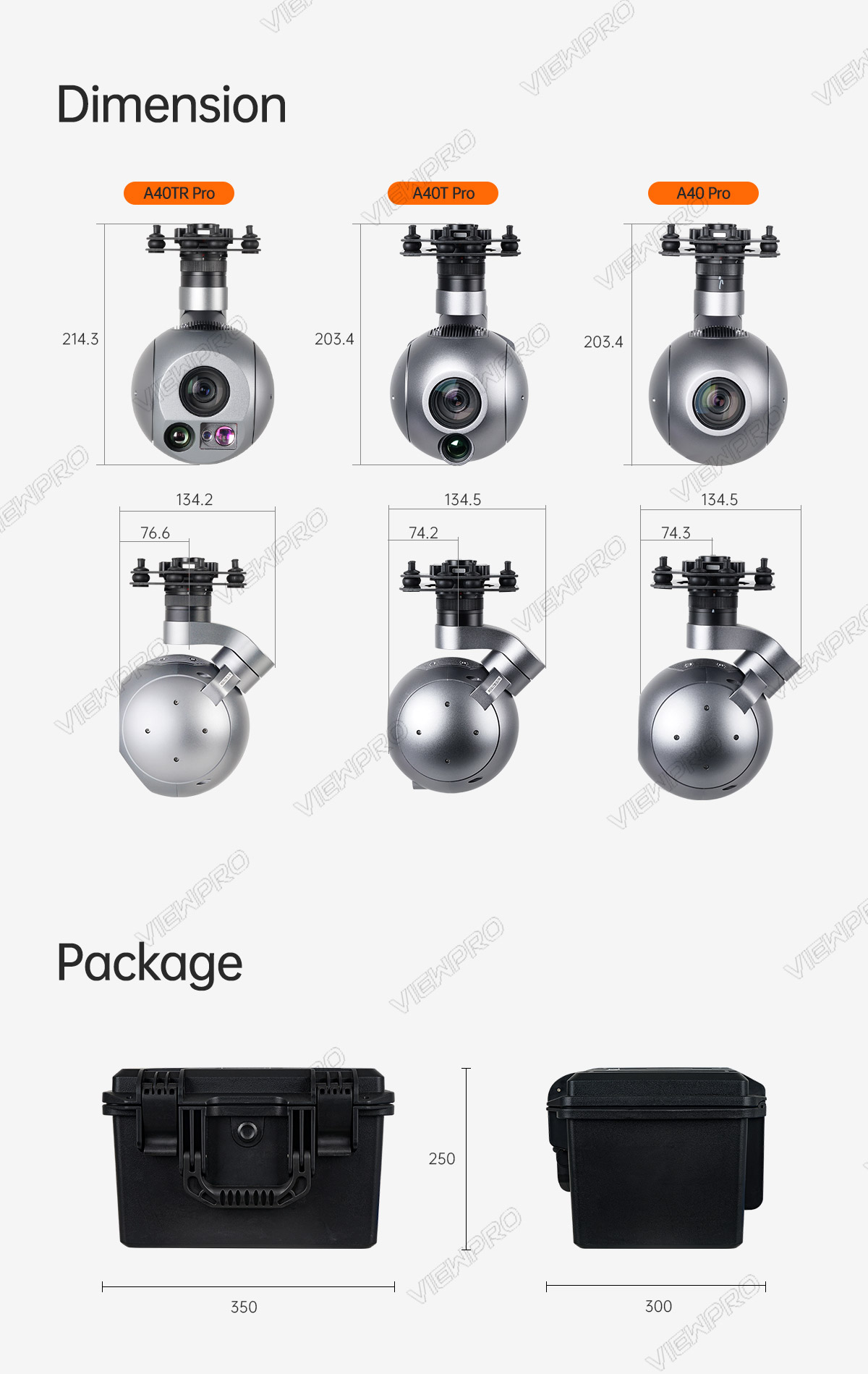

| Product meas. |
118*137.3*207.8mm（Standard Version）118*137.3*213.5（Viewport Version） |
| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards
Hight quality plastic box with foam cushion |
| Package meas. |
360*300*250mm |
