| Hardware Parameters |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
1200~2500mA @ 16V |
| Working environment temp. |
-20°C ~ +60°C |
| Video Output |
micro HDMI (1080P 30/60fps) / IP Rtsp (720P/1080P 30fps) |
| Local-storage |
SD card (Up to 128G,class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG (1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |

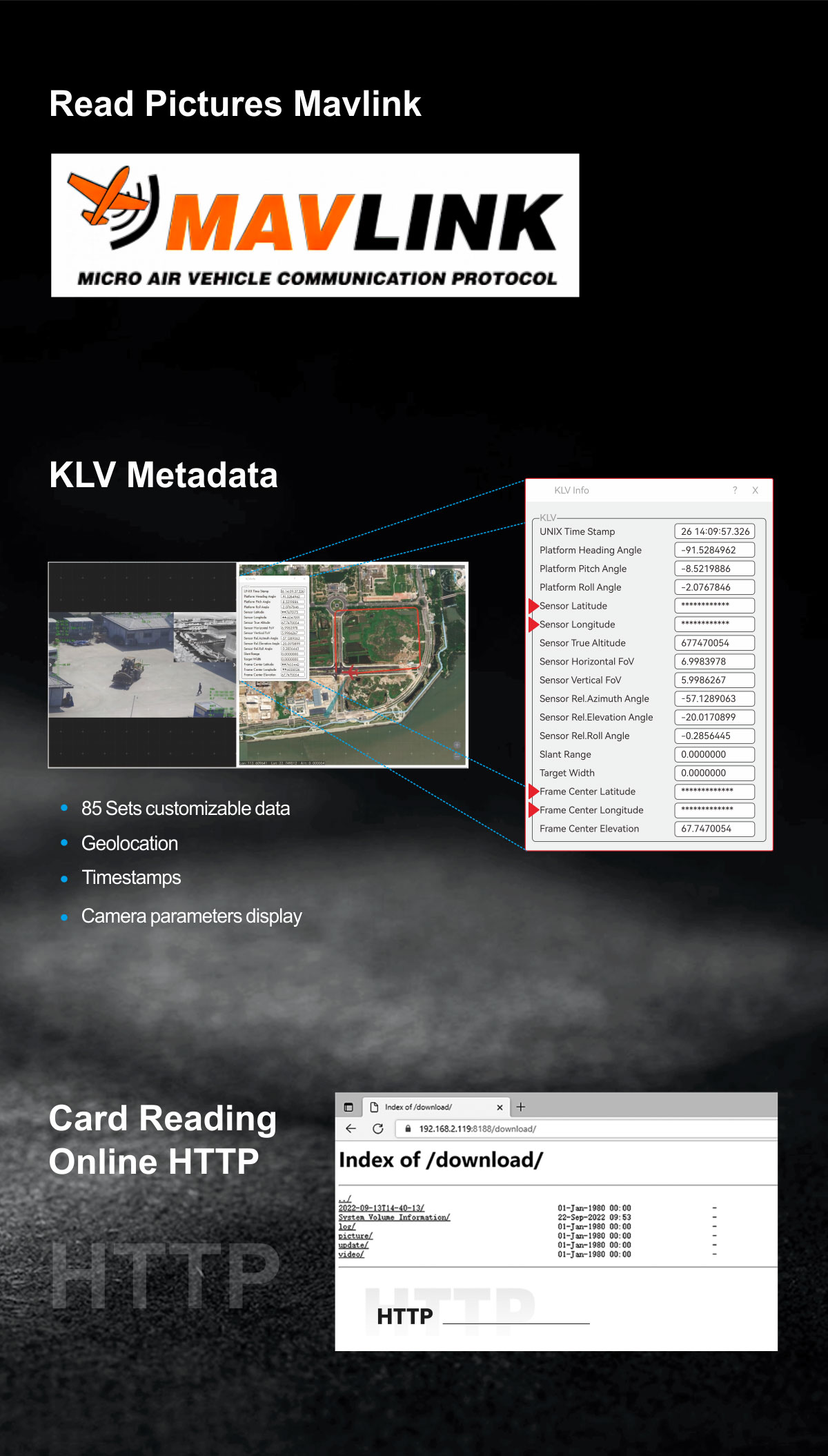

| Network reader |
HTTP reading |
| Control method |
PWM / S.BUS / TTL / TCP(IP output version) / UDP(IP output version) |
| Gimbal Parameters |
| Mechanical Range |
Pitch/Tilt: -60°～130°, Roll: ±40°,
Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -45°～90°,
Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll/Yaw：±0.02° |
| One-key to center |
√ |
| Camera Parameters |
| Imager Sensor |
1/2.8″ Sony CMOS |
| Effective pixel |
2.13 MP |
| Lens |
Optical zoom: 40x
f = 4.25 mm (Wide), 170 mm (Tele) F1.6 to F4.95 |
| Digital zoom |
32x |
| Angle of view ( H ) |
66.35°(Wide) ~ 1.9°(Tele) |
| Min. object distance |
0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Focus |
Auto / One-click auto focus / Manual |
| White balance |
Auto / Indoor / Outdoor / One-key / Manual |
| Shutter speed |
1/1 to 1/30,000 S |
| Exposure control |
Auto / Manual / Priority mode ( Shutter priority / Aperture priority ) |
| Sync system |
Internal |
| Back light compensation |
Yes |
| Auto ICR |
Yes |
| Progressive scan |
Yes |
| Image stabilizer |
Yes |
| Defog mode |
Yes |
| IR Thermal Imager Parameters |
| Focus Length |
19mm |
| Coating Film |
DLC |
| Horizontal FOV |
22.9° |
| Vertical FOV |
18.4° |
| Diagonal FOV |
29.0° |
| Detective Distance (Man: 1.8×0.5m) |
792 meters |
| Recognize Distance (Man: 1.8×0.5m) |
198 meters |
| Verified Distance (Man: 1.8×0.5m) |
99 meters |
| Detective Distance (Car: 4.2×1.8m) |
2428 meters |
| Recognize Distance (Car: 4.2×1.8m) |
607 meters |
| Verified Distance (Car: 4.2×1.8m) |
303 meters |
| Working mode |
Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel size |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK @F.0 @25℃ |

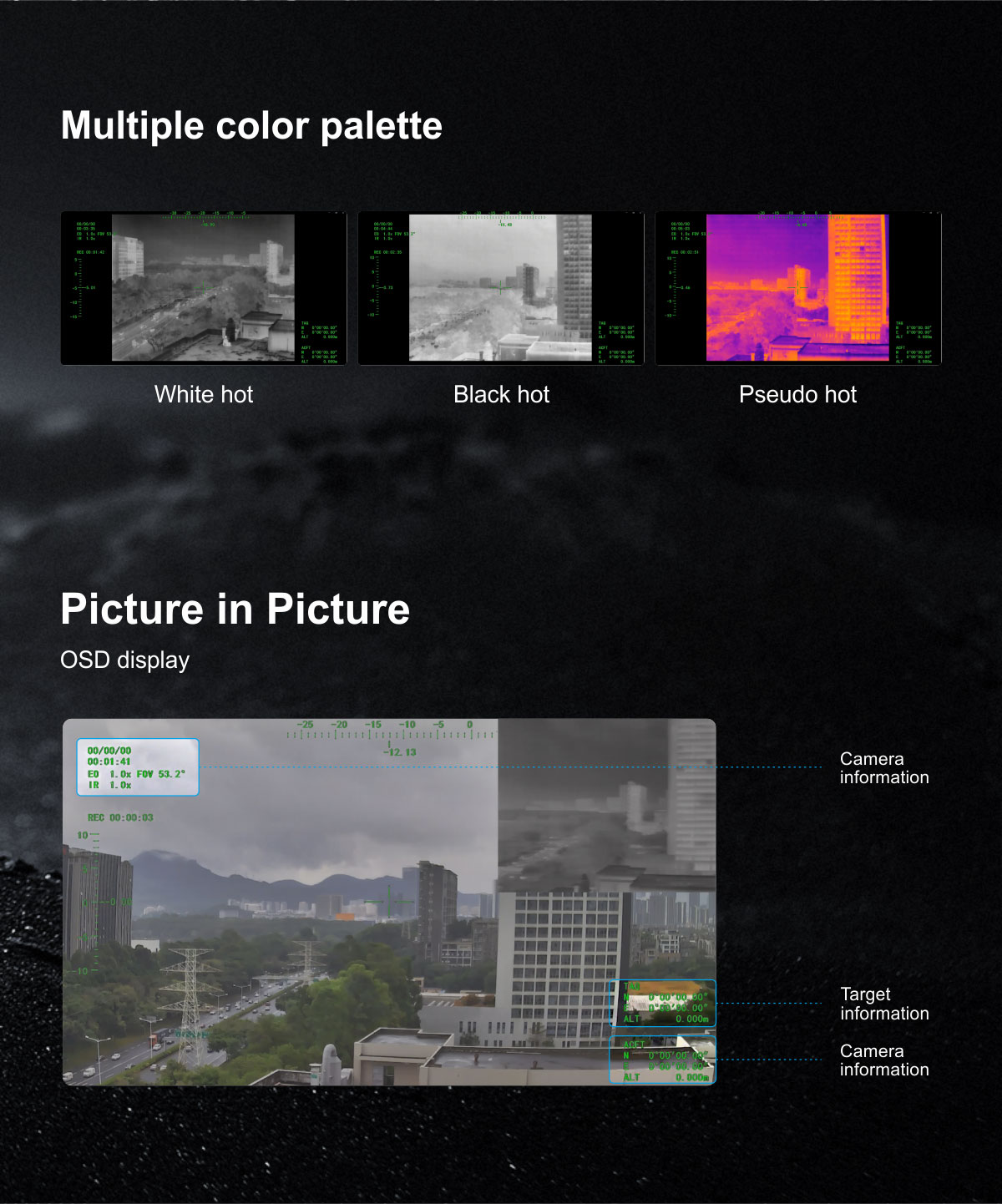

| Color palette |
White hot, black hot, pseudo color |
| Digital zoom |
1x ~ 8x |
| Sync correct time |
Yes |
| EO / IR Camera Object Tracking Parameters |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
48 pixel/frame |
| Object memory time |
100 frames |
| AI Tracking Linkage |
Yes |
| Laser Rangefinder Parameters |
| Effective range |
For Vehicle≥3000m For human≥2000m |
| Minimum range of measurement |
15m |
| Range accuracy |
±1m |
| Range frequency |
1~10Hz |
| Wave length |
1535±5nm |
| Divergence angle |
~0.6mrad |
| Coordinate resolve |
Logitude and latitude of target |
| Measurement |
Measure distance from center of object to laser rangefinder sensor |
| Camera AI Recogn |
ition Performance Parameters |
| Target type |
Vehicle, Human |
| Simultaneous detection quantity |
≥10 targets |
| Contrast ratio |
≥5% |
| Minimum size of target |
5 X 5 pixel |
| Vehicle detection ratio |
≥85% |
| False alarm ratio |
≤10% |

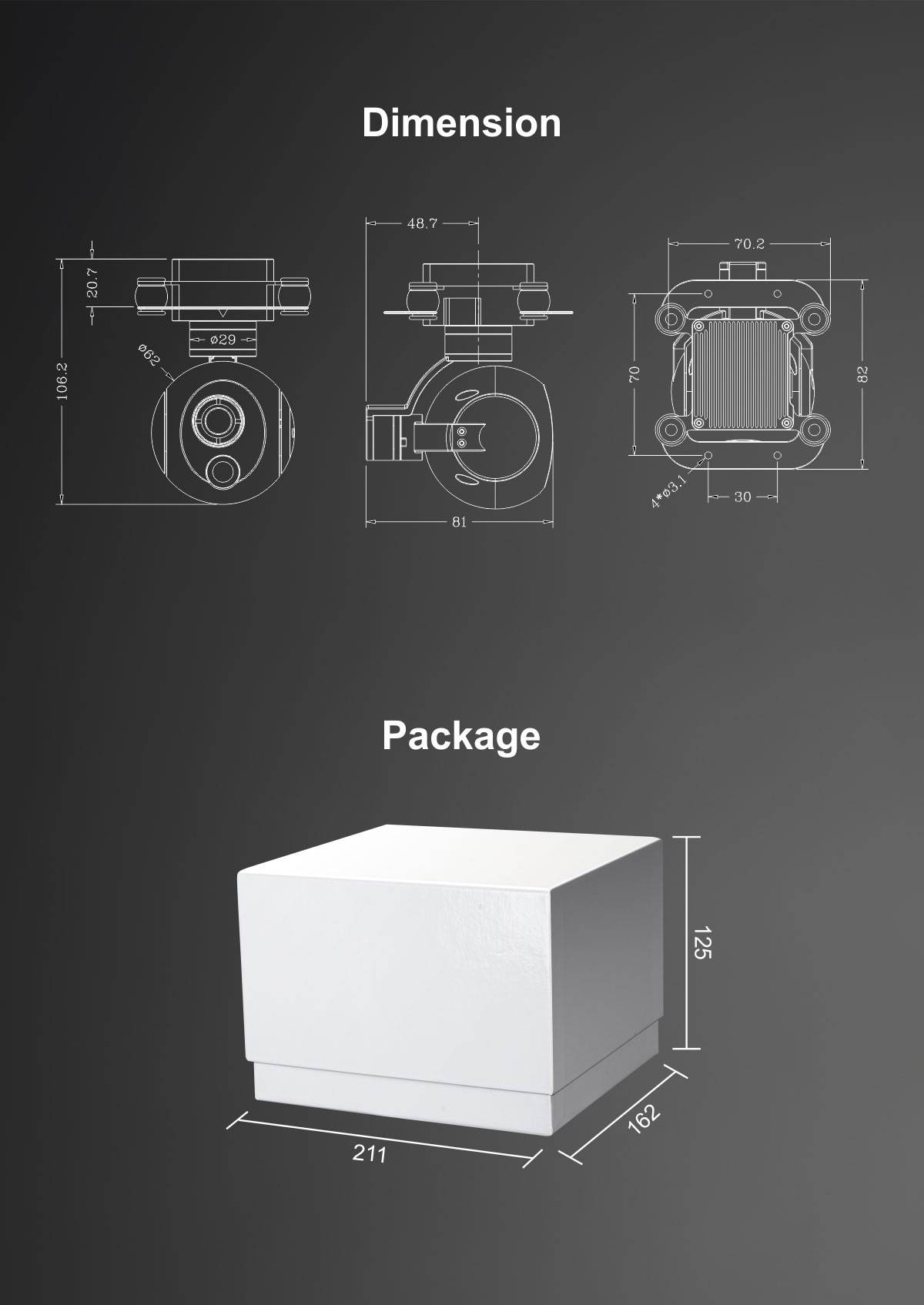

| Packing Information |
| N.W. |
1136g (Viewport Version) |
| Product meas. |
134.2*125*210.4mm（Viewport Version ） |
