| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
310mA~1600mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| IP rating |
IP44 |
| Output |
micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage |
TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P 30fps) |

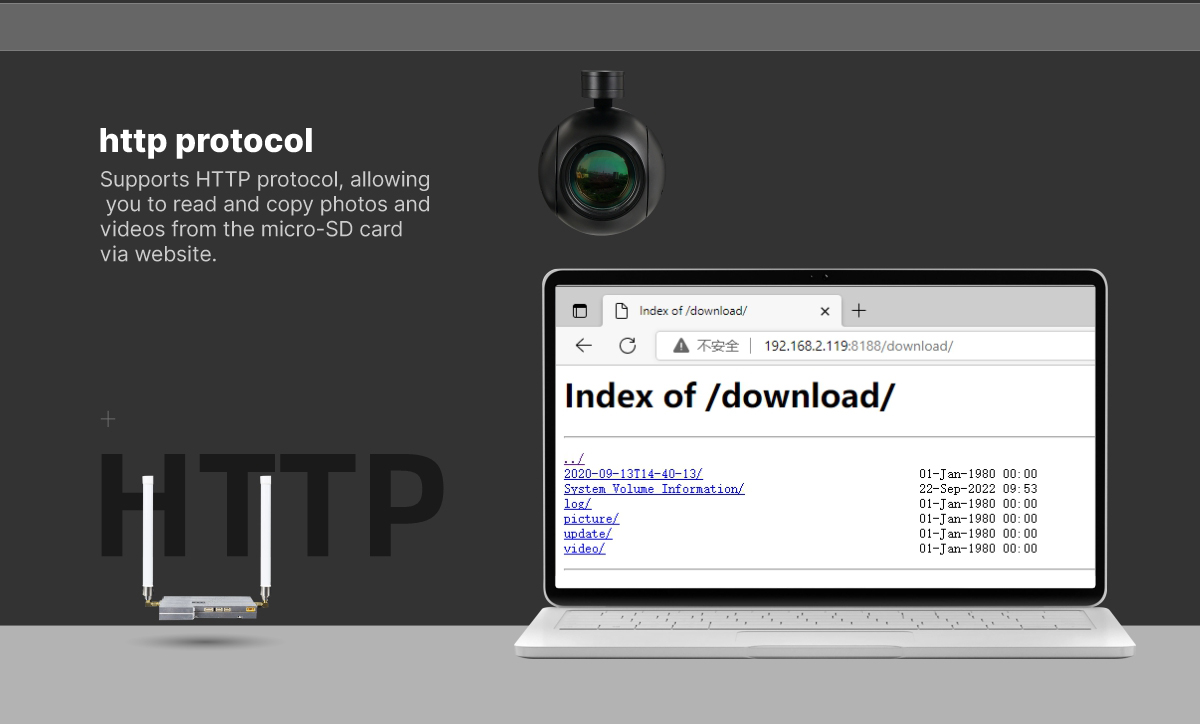

| Card reading online |
HTTP read pictures |

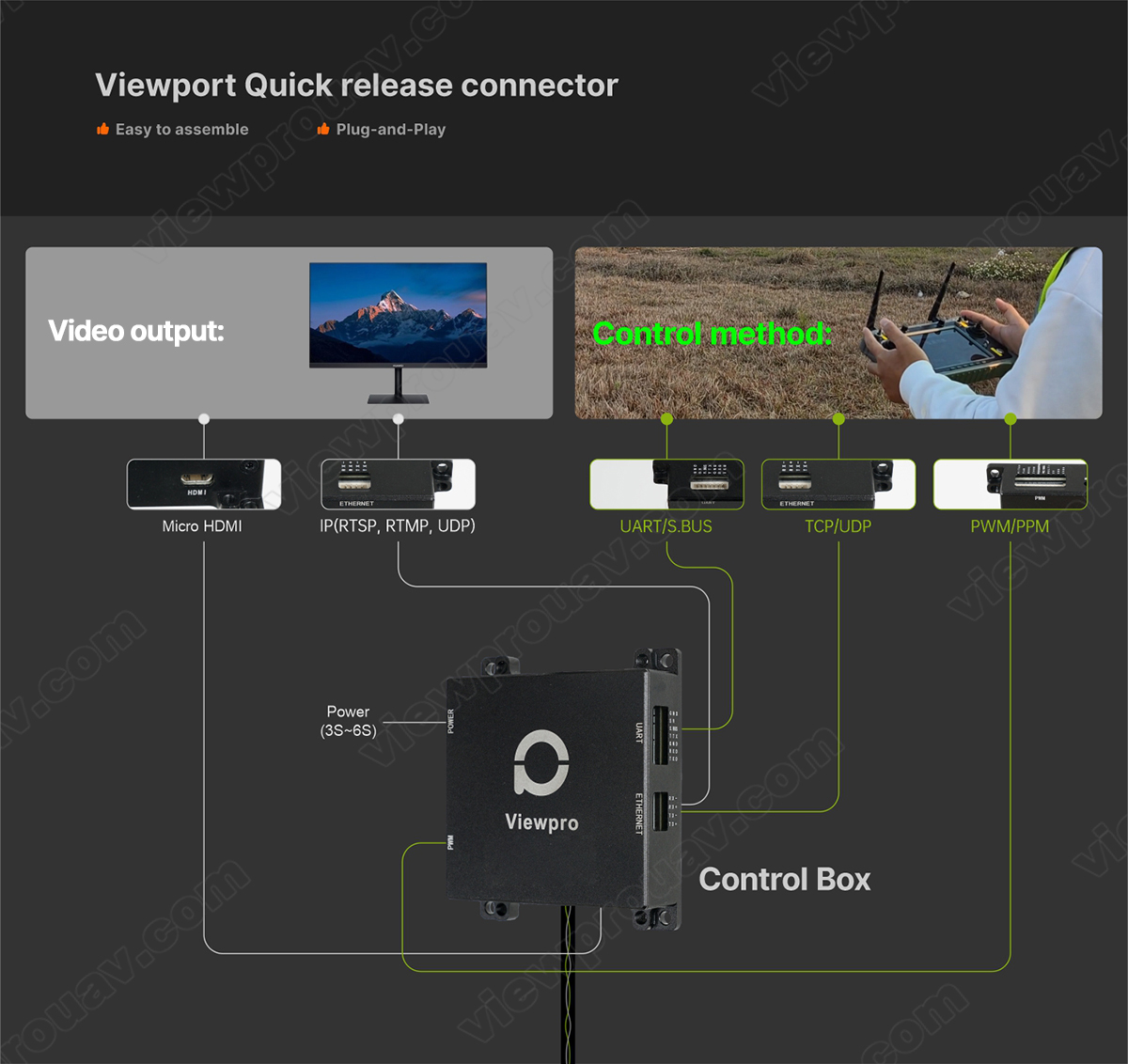

| Control method |
PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version) |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

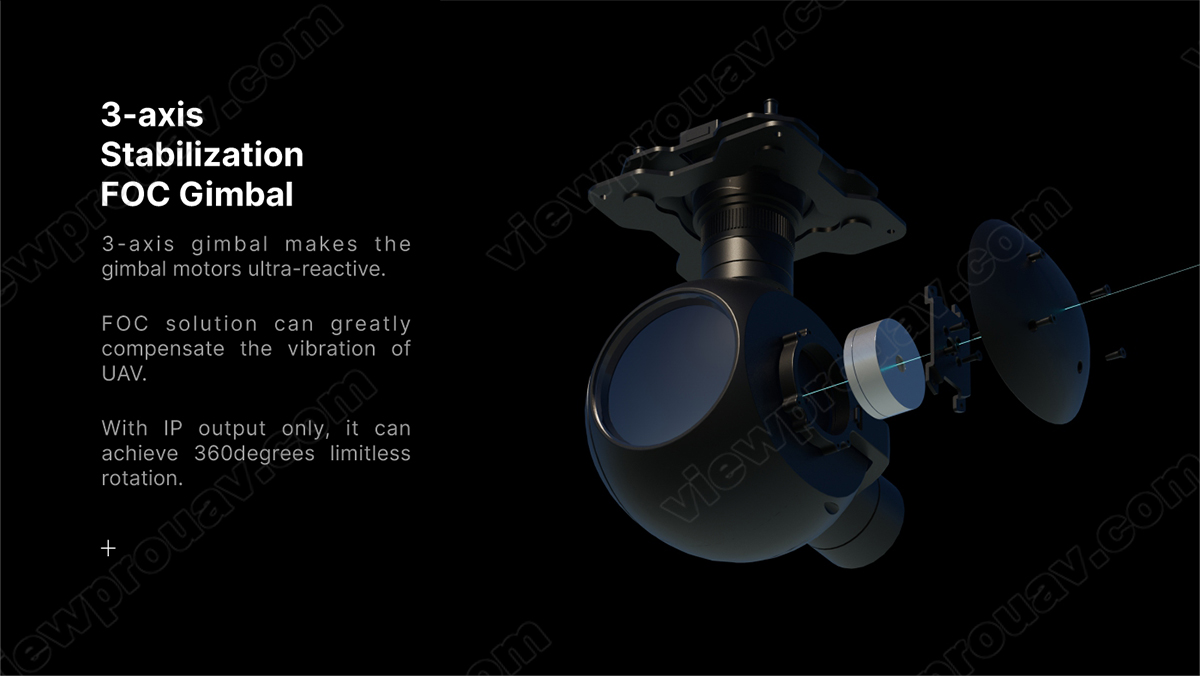

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -40°~100°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -35°~95°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw:±0.02° |
| One-key to center |
√ |
| IR Thermal Imager Spec |
| Focus Length |
50mm |
| Coating Film |
DLC |
| Horizontal FOV |
8.8° |
| Vertical FOV |
7.0° |
| Diagonal FOV |
11.2° |
| Detective Distance (Man: 1.8×0.5m) |
2083 meters |
| Recognize Distance (Man: 1.8×0.5m) |
521 meters |
| Verified Distance (Man: 1.8×0.5m) |
260 meters |
| Detective Distance (Car: 4.2×1.8m) |
6389 meters |
| Recognize Distance (Car: 4.2×1.8m) |
1597 meters |
| Verified Distance (Car: 4.2×1.8m) |
799 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel pitch |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@F.0 @25℃ |

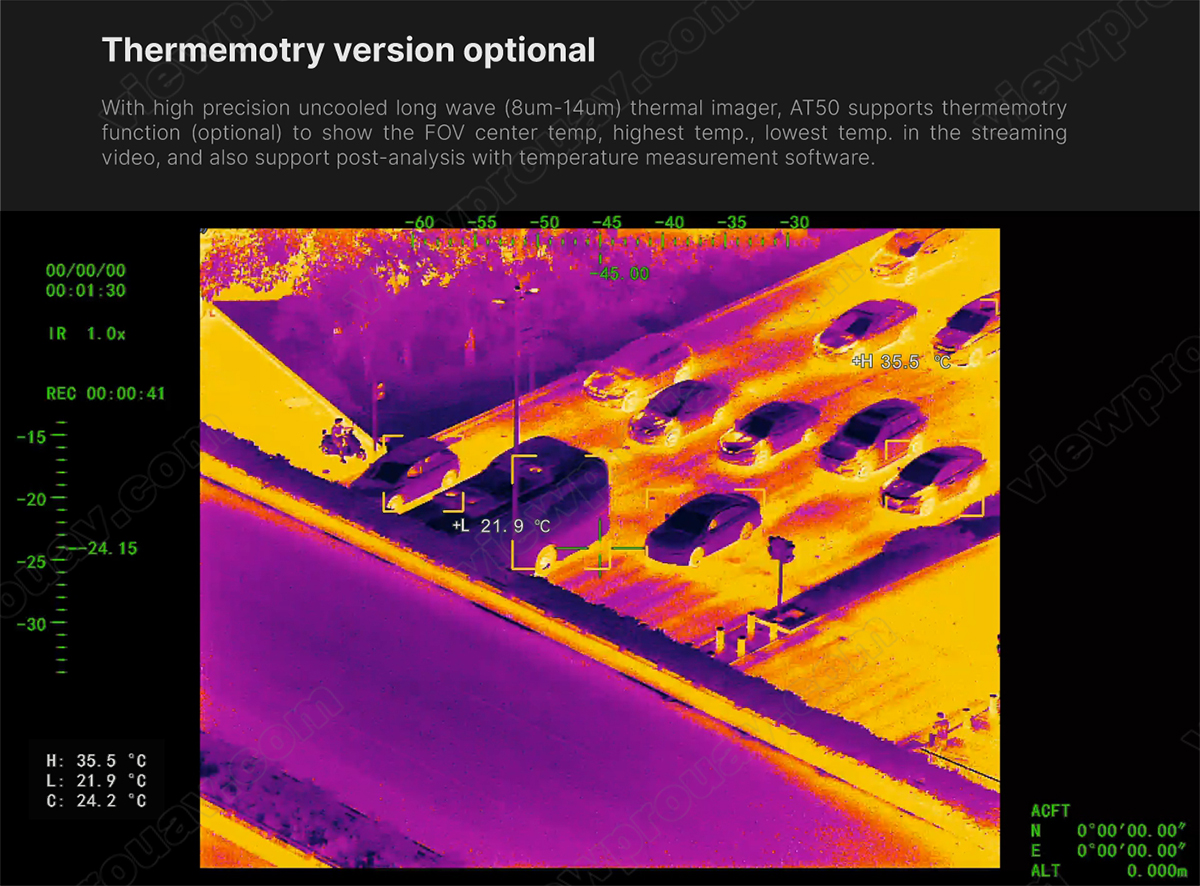

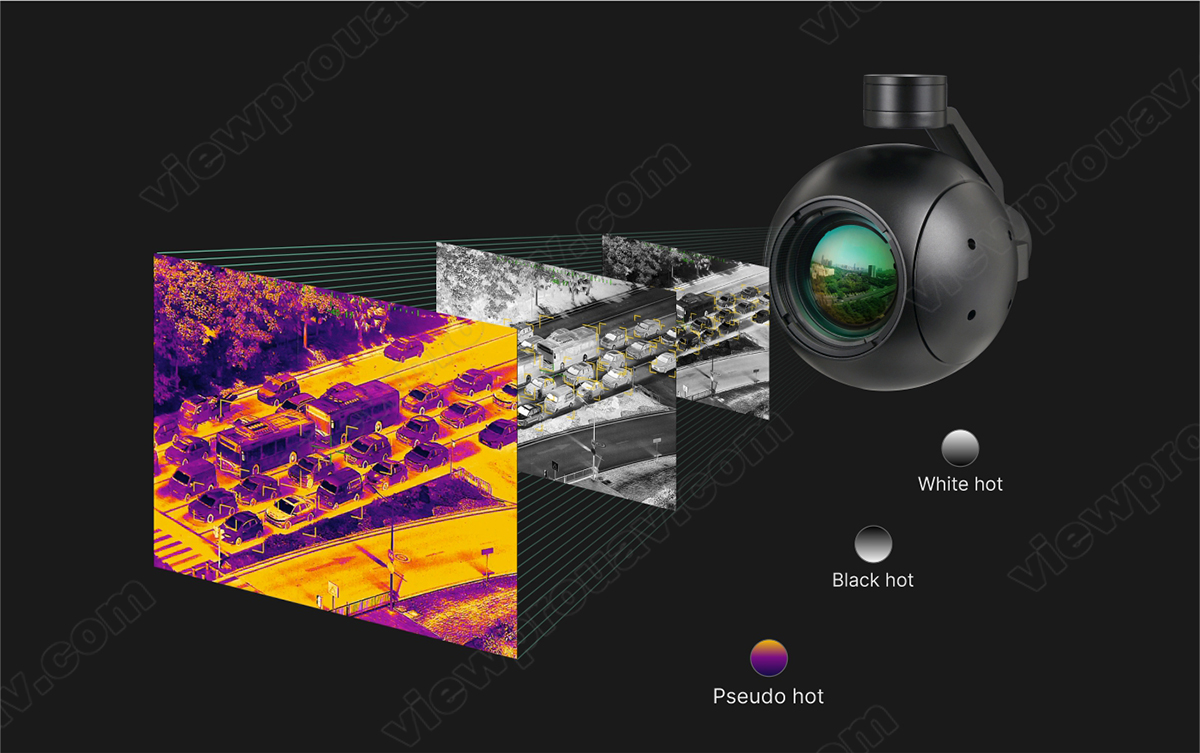

| Color palette |
White hot, black hot, pseudo color |
| Digital zoom |
1x ~ 8x |
| Sync correct time |
Yes |
| IR Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |

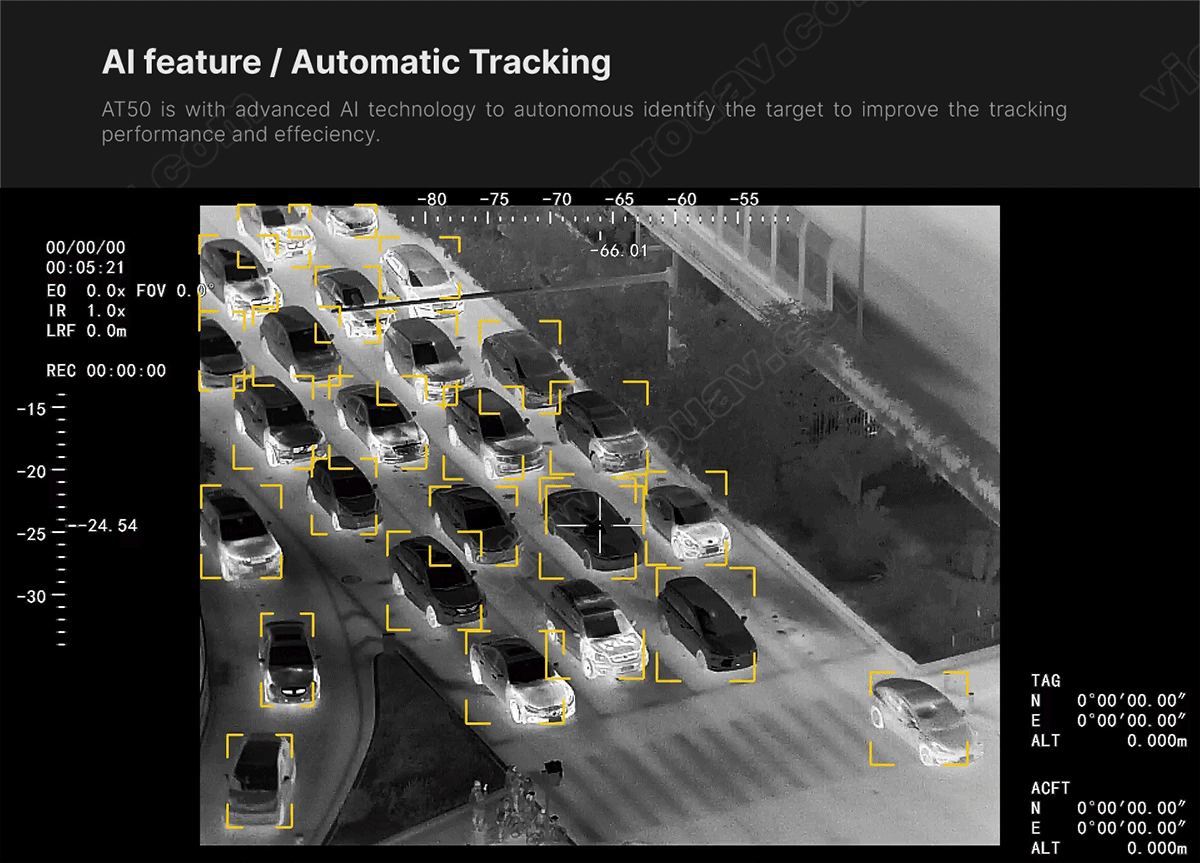

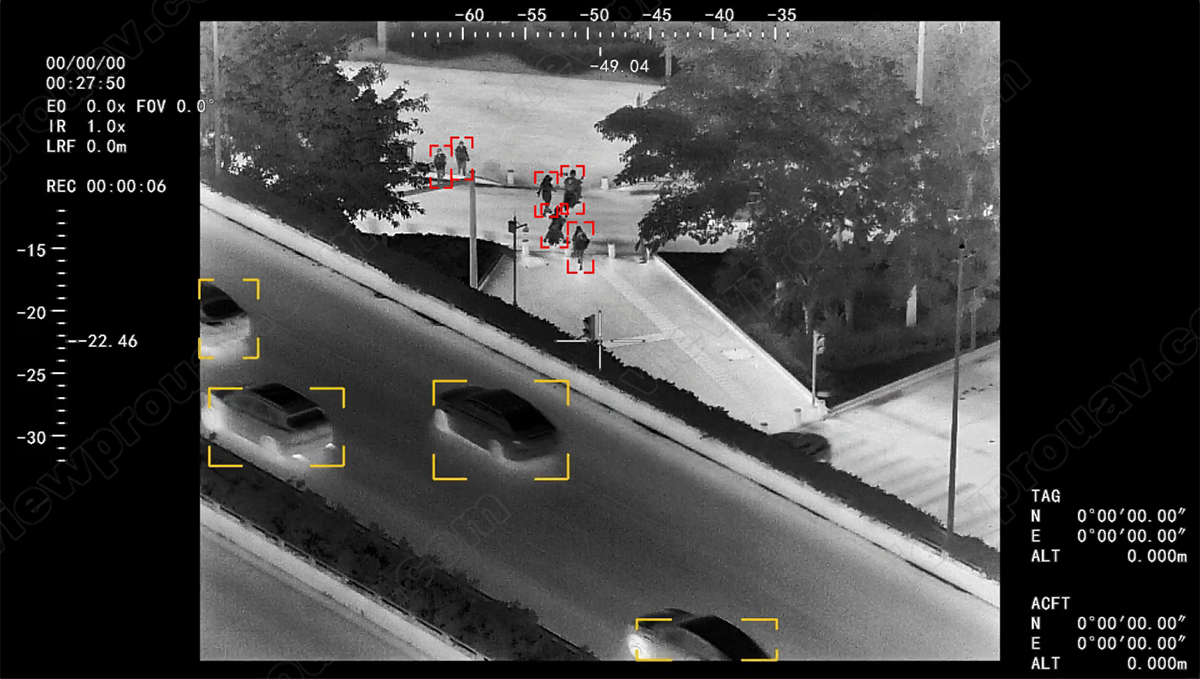

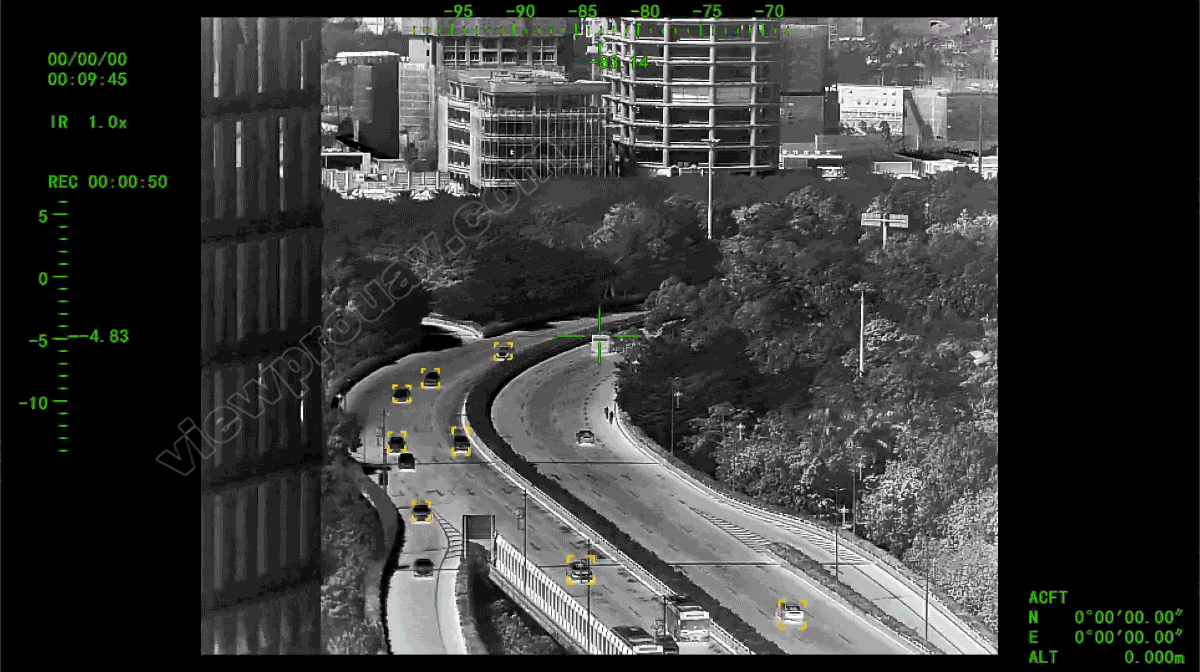

| AI Performance |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |
| N.W. |
860g (Viewport version) |

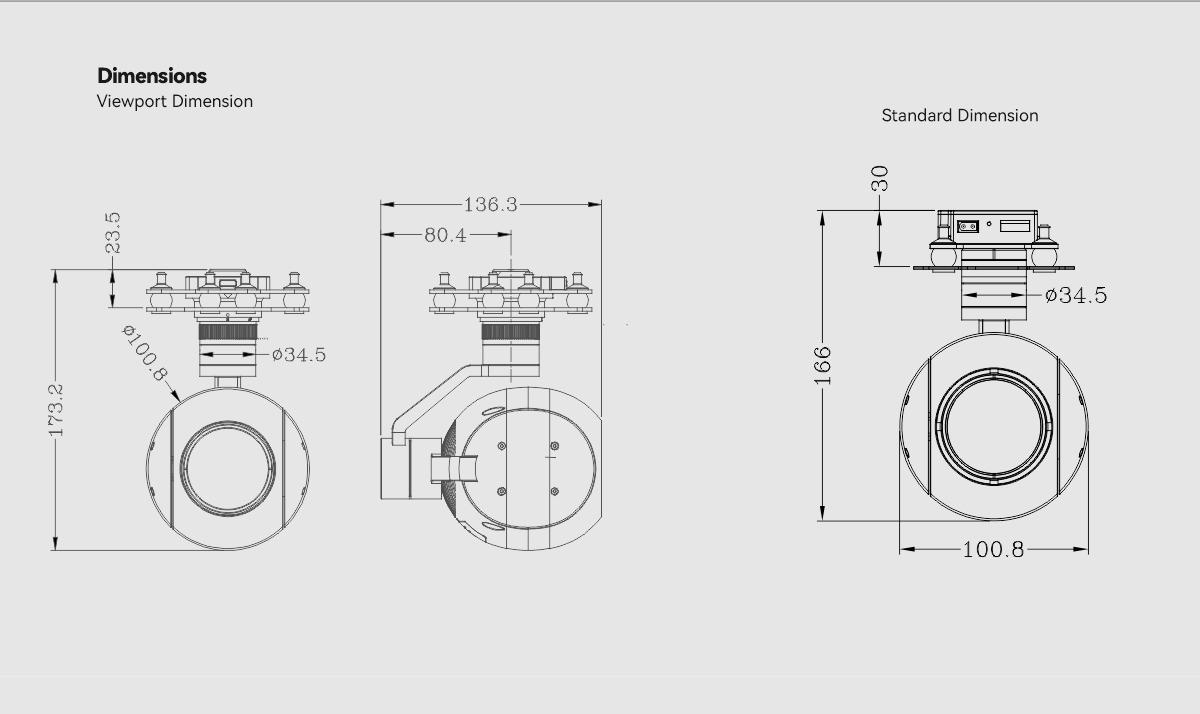

| Product meas. |
134*100.8*167.5mm (Standard version) /134*100.8*173.2mm (Viewport version) |

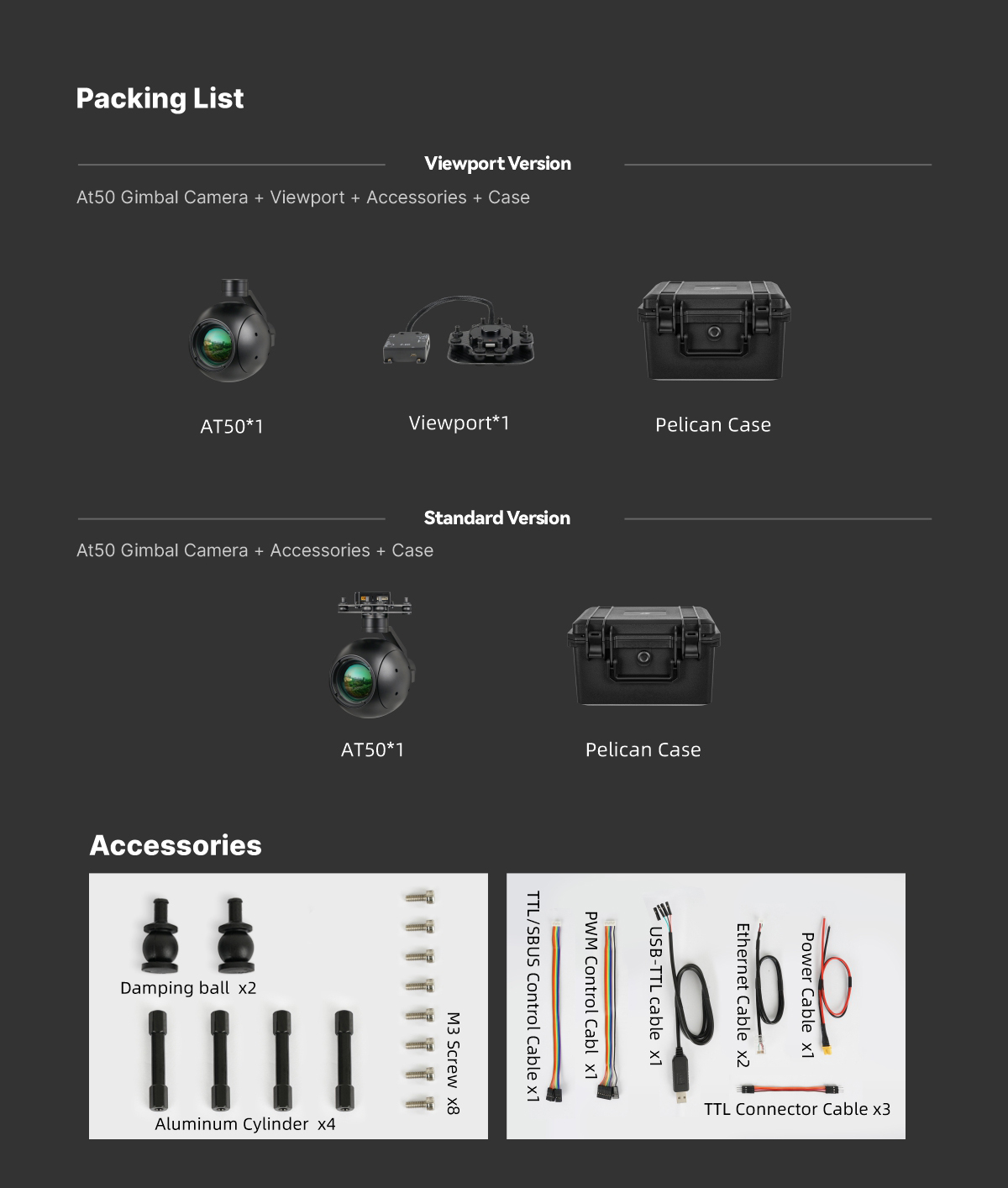

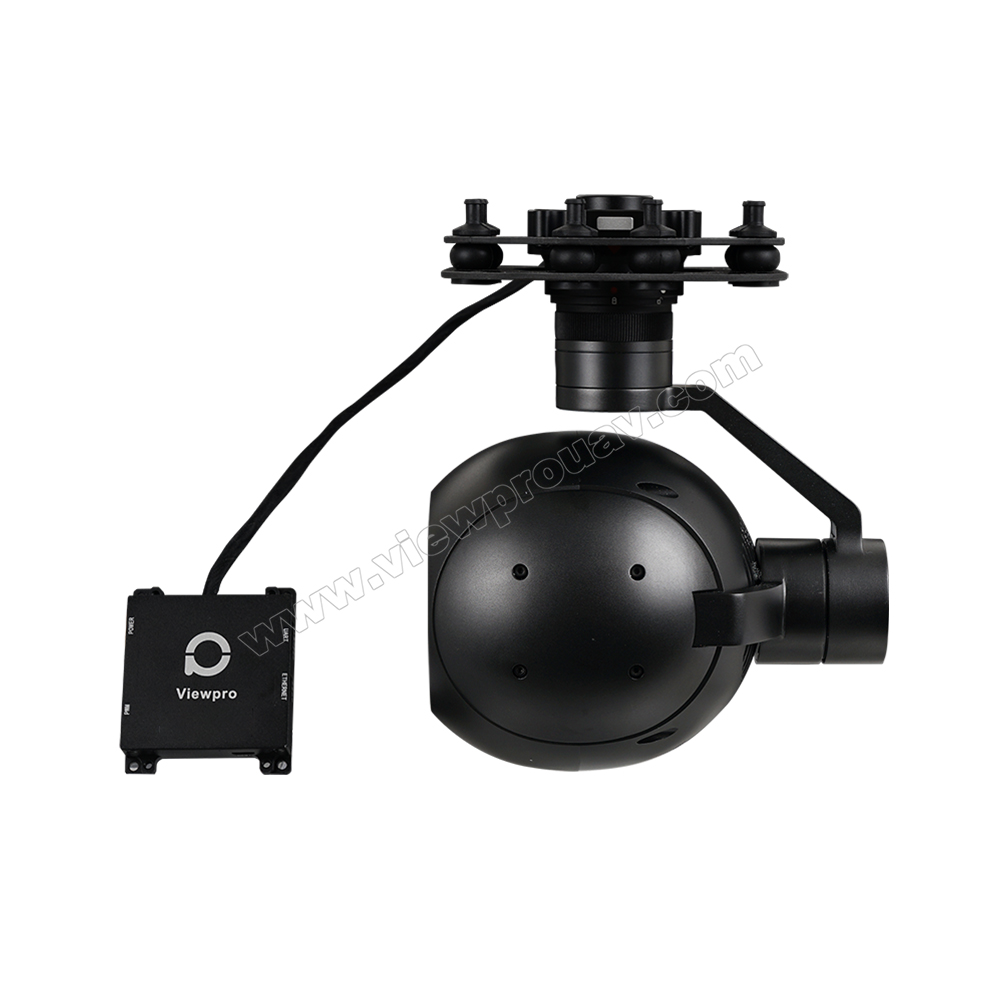

| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
1969g |
| Package meas. |
350*300*250mm |
