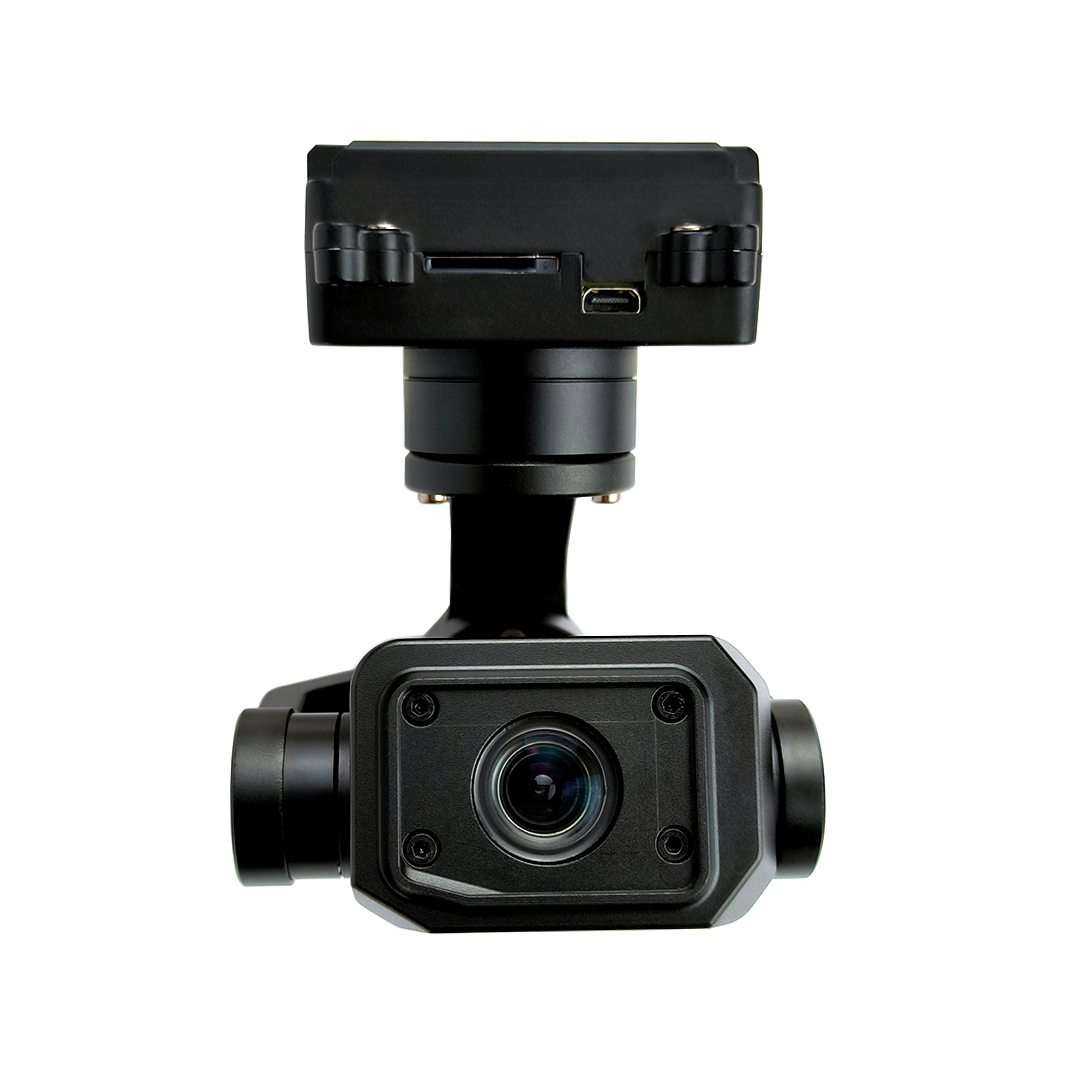

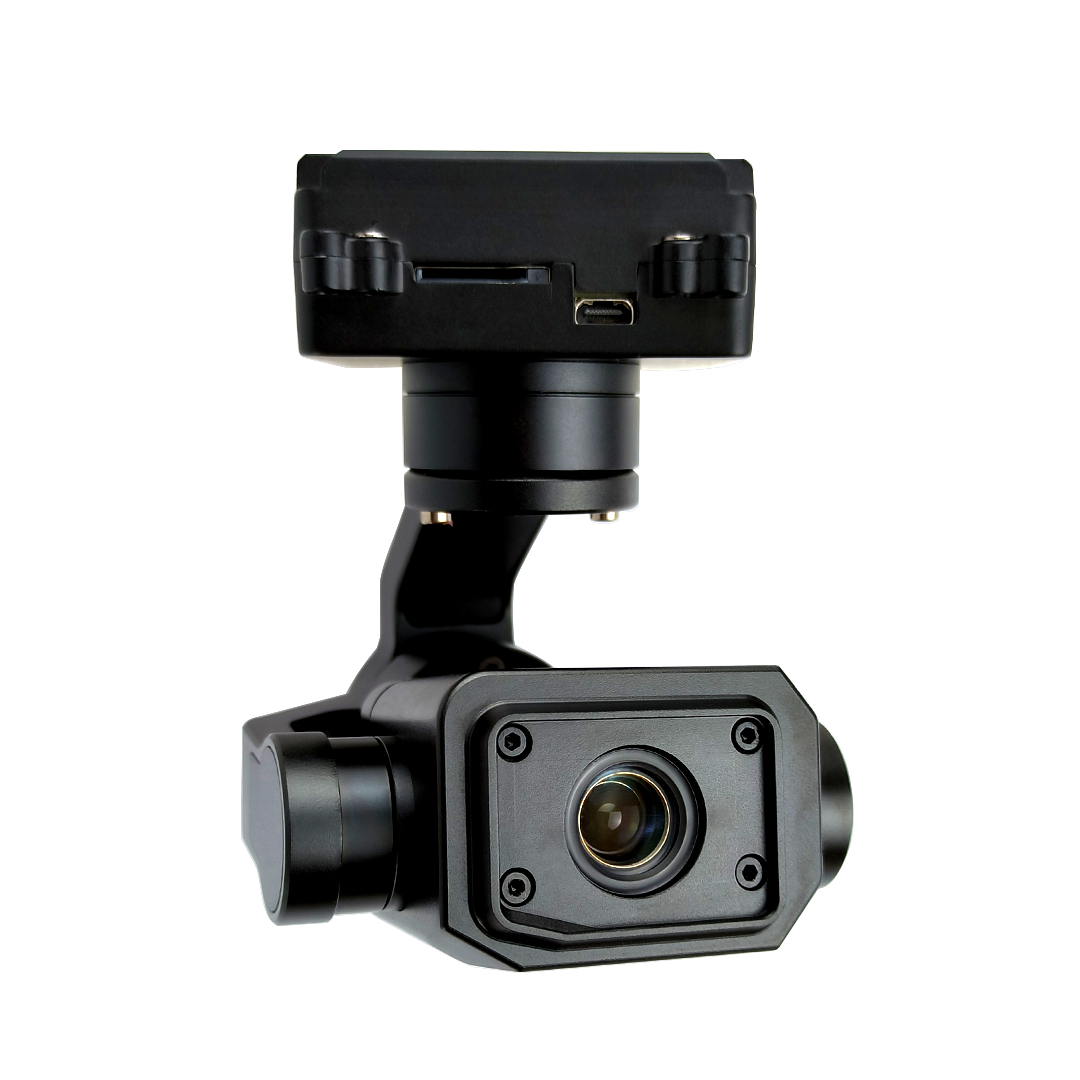

DHU03 is a single light integrated system with 3x optical zoom and high-precision professional three-axis stab gimbal. It adopts HDMI&IP output, and the adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The zoom visible light camera adopts a SENSOR with an effective pixel count of 48 million; The system supports network RTSP stream output. Network, serial port① and S.BUS, and can control the camera andPTZ, and support local TF storage.
Voltage：
DC12V-26.2V
Power：
Dynamic 6W
Roll angle action range：
-45°～ +45°
Pitch angle action range：
-130°～ +30
Yaw angle action range：
-150°～ +150°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal Jitter Angle：
±0.03°
One-Click Restore：
One-click restore to the initial position
Pan- tilt control speed is adjustable：
When the pan-tilt rotates, the speed is adaptive based on the current speed mode and the multiple of the visible light camera
Control mode：
Support network IP control, SBUS control, serial port control(Optional PWM control)
SENSOR：
1/2 inch 48 megapixel CMOS SENSOR
Optical Zoom：
3x High definition optical zoom lens, 15mm(Wide)-50mm(Tele)±5%
Digital zoom：
9x digital zoom
Focusing time：
Real time fast focusing function, focusing time<1s
Field Angle (FOV)：
D : WIDE 28.98º±3% TELE 9.06º±3% H : WIDE 23.48º±3% TELE 7.29º±3% V : WIDE 17.81º±3% TELE 5.49º±3%
Video output：
Network high-definition RTSP output 1080P, video stream local TF storage
