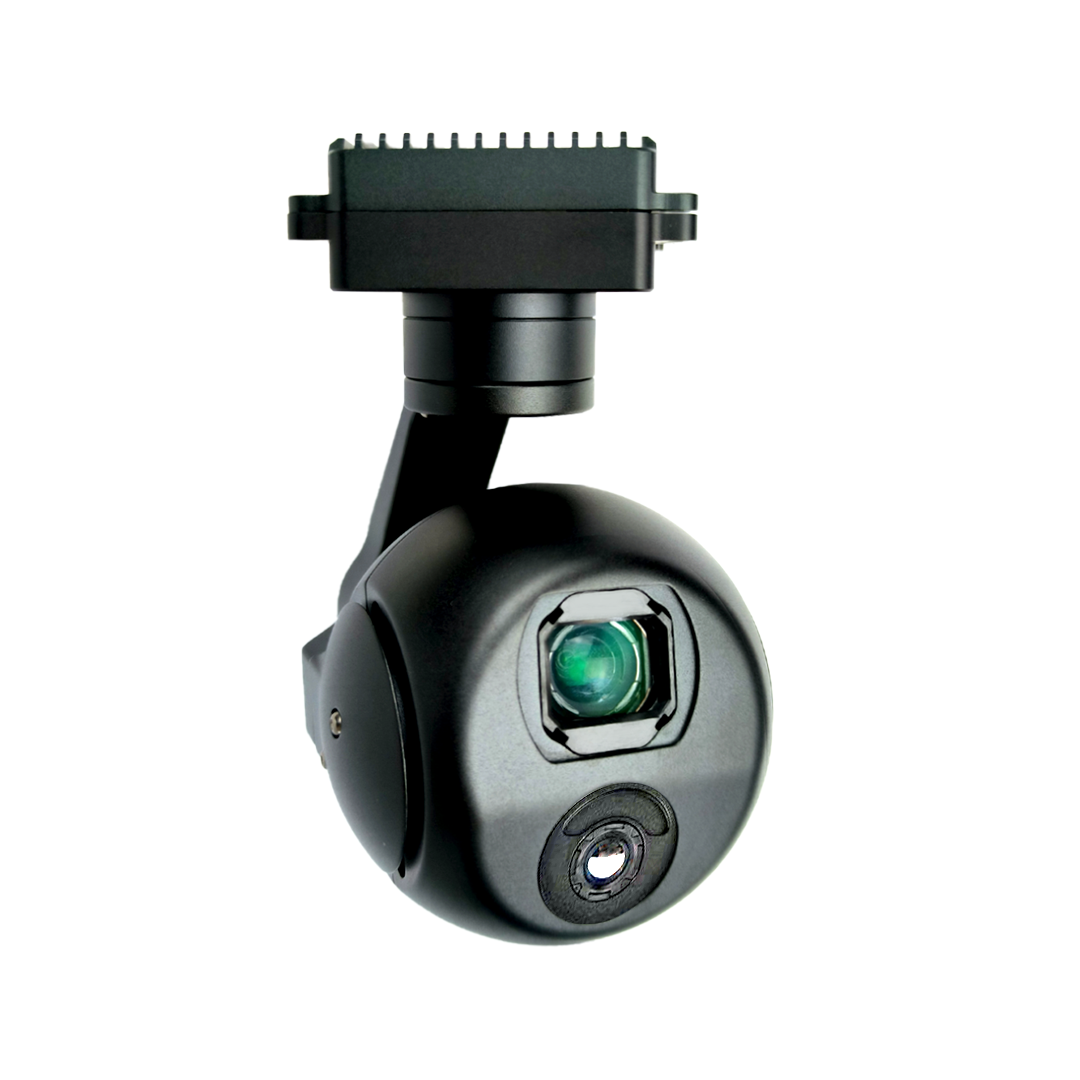

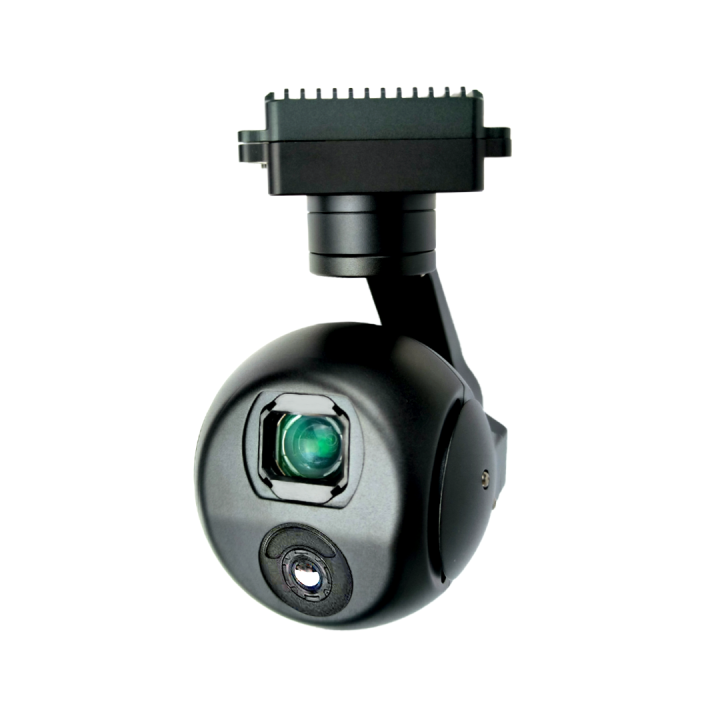

The DHU05G207 is a zoom dual-optical system integrating a 45x hybrid zoom, a 256×192 thermal imaging module, and a high-precision professional three-axis stabilization pod. It features dual network IP and HDMI outputs, and a high-precision encoder Field-of-Center (FOC) control scheme for the gimbal, resulting in high stability, compact size, light weight, and low power consumption. The system supports RTSP picture-in-picture streaming, multiple picture-in-picture modes, multiple pseudo-color display options, and global temperature measurement. The visible light camera features a 4-mega pixel sensor. Both the camera and gimbal can be controlled via the serial port, S.BUS, and network. Local TF dual-channel video recording and photography are supported.
Voltage：
DC 12V-26V
Power：
Dynamic 6.5W
Roll Angle action range：
-45°~+45°
Pitch action range：
-45°~+100°
Yaw angle action range：
-140°～ +140°
The amount of angular jitter in pitch and roll direction：
±0.02°
The amount of horizontal Angle jitter：
±0.03°
One-click return function：
One click automatic quick return to the initial position
PTZ control speed adjustable：
When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera
Control mode：
Support network IP, S.Bus and Serial port control (Optional PWM control)
CMOS Size：
1/2.8 inch 4MP CMOS SENSOR
Optical zoom：
5x HD optical zoom lens, f=5±10%～25±10%mm
focusing time：
Real time focusing, fast focusing time < 1s
Video Output：
Network RTSP 1080p output, video stream local TF storage
Field Angle(FOV)：
D : WIDE 61.1º TELE 12.41º H : WIDE 50.12º TELE 10.81º V : WIDE 38.07º TELE 8.13º
Support mode：
1080P 30fps
Resolution ratio：
256*192 pixel
Space between pixels：
12μm
Type：
Uncooled Vanadium Oxide Detector
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤50mk@25℃@F1.0
Field Angle：
7mm Lens，FOV：24.7°x 18.9°
Measurement (Optional)：
Global temperature measurement, optional full pixel temperature saving
