MDHU05G609 45x hybrid zoom + thermal imaging
China Moneypro

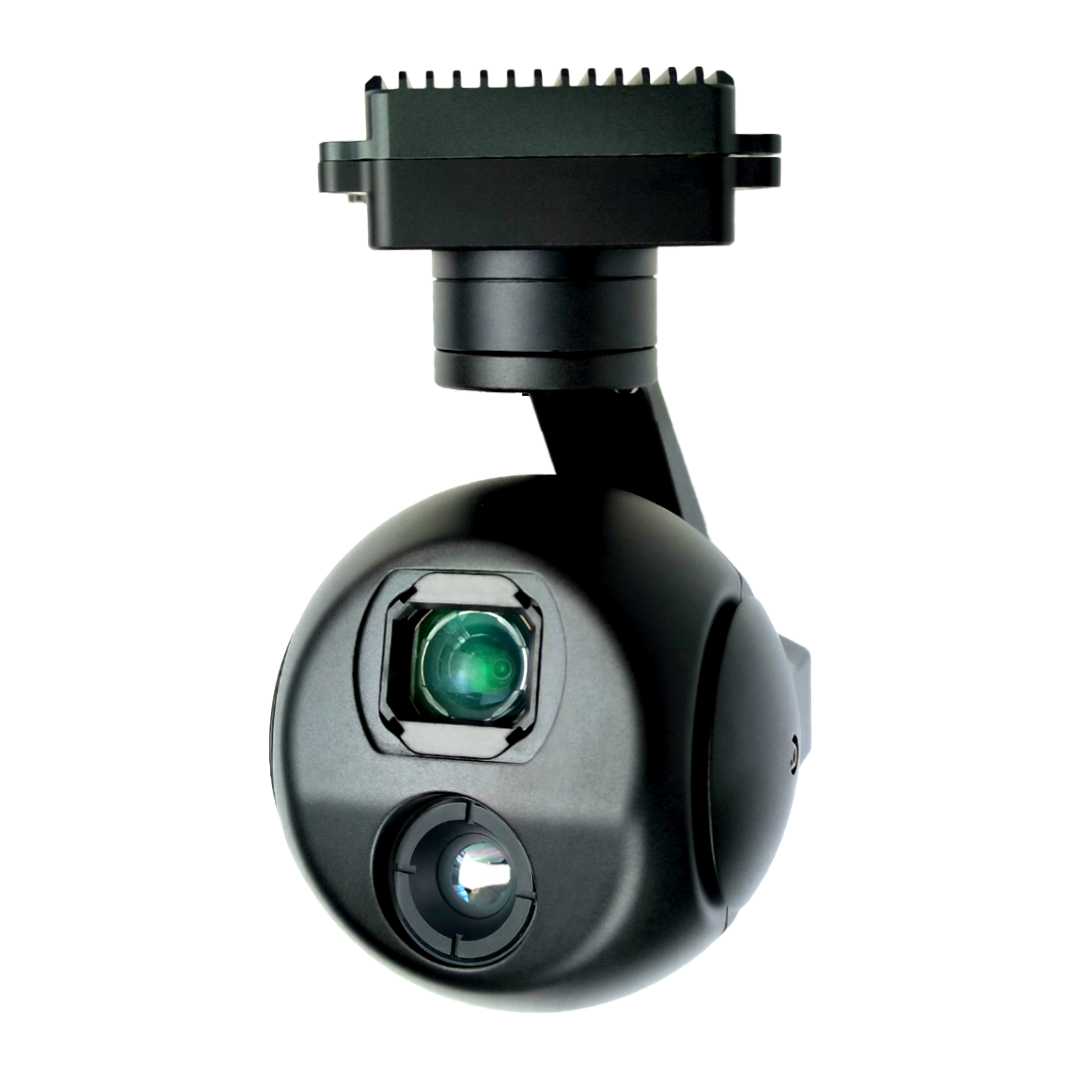

DHU05G609 is a dual light small gimbal that integrates 45x hybrid zoom camera, 640×512 thermal camera, with a high-precision professional 3-axis stabilization PTZ. It adopts IP output, IP control, adopts high-precision encoder FOC control scheme PTZ. It has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera uses a sensor with an effective pixel size of 4 million. Serial ports and S.BUS and network can control the camera and PTZ, supporting local TF dual channel recording and photography.
| Voltage： | DC 12V-26.2V/td> | Power： | Static 6W |
| Roll angle action range： | -45 °～ +45° | Pitch angle action range： | -45°～ +100° |
| Yaw angle action range： | -145°～+145° | Angle jitter in pitch and roll direction： | ±0.02° |
| Horizontal angle jitter： | ±0.03° | One click return function： | One click automatic quick return to the initial position |

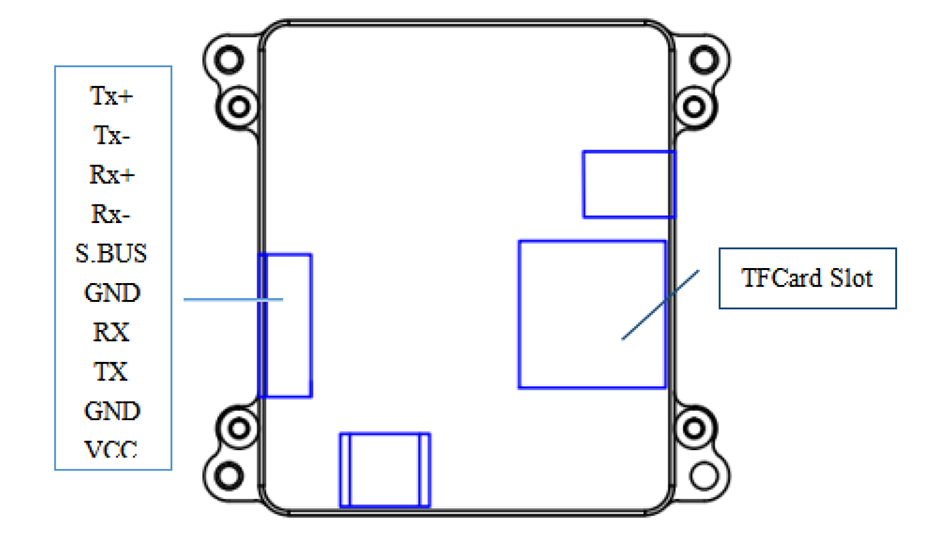

| PTZ control speed adjustable： | When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera | Control mode： | Support network IP, S.Bus and Serial port control (Optional PWM control) |
| CMOS Size： | 1/3 inch 4MP CMOS SENSOR |
| Optical zoom ： | 5x HD optical zoom lens, f=5±10%～25±10%mm |
| AF Time： | Real time focusing, fast focusing time < 1s |
| Video output： | Network RTSP 1080p output, video stream local TF storage |
| Field Angle(FOV)： | D : WIDE 61.1º TELE 12.41º H : WIDE 50.12º TELE 10.81º V : WIDE 38.07º TELE 8.13º |
| Network support mode： | 1080P 30 fps |
| HDMI support mode： | Micro-D HDMI 1080P 60fps |
| Resolution ratio： | 640×512 pixel |
| Space between pixels： | 12μm |
| Type： | Uncooled Vanadium Oxide Detector |
| Wavelength Range： | 8～14μm |
| Thermal sensitivity(NETD)： | ≤50mk@F1.0@25℃ |
| Field Angle： | 9.1mm Lens; FOV：45.76°× 37.31° |
| Measurement (Optional)： | Global temperature measurement, optional full pixel temperature saving |
| Min tracking target size： | 16×16 pixels | Max tracking target size： | 256×256 pixels |
| Target Memory Time： | 2 seconds | Tracking speed： | 50 Pixel/Frame max |
| Simultaneous detection qty： | 100 targets max | Recognized categories： | Human and Vehicle |
| Min detection target size： | 32×32 pixels | Debounce： | Dynamic stabilization |

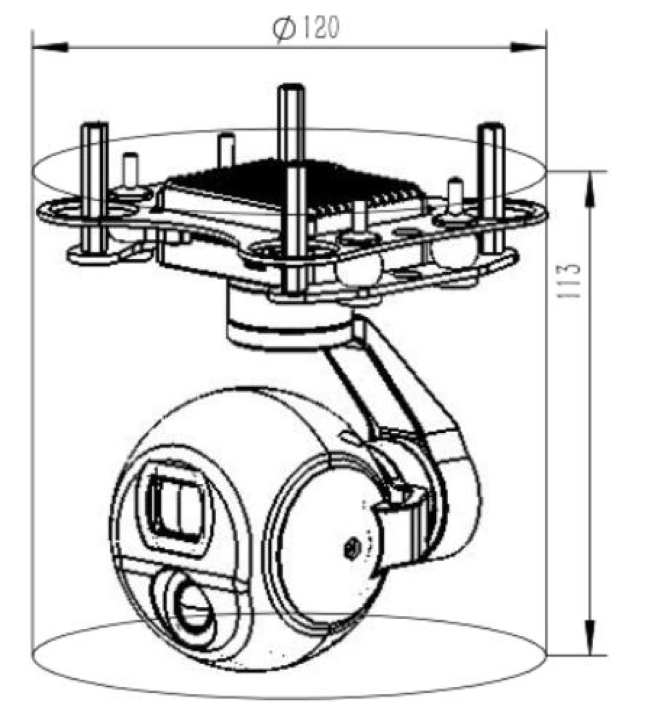

| Dimensions： | 120mm × 113mm | Working Condition： | -10℃ to +45℃ / 20% to 80% RH |
| Stored Environment ： | -20℃ to +60℃ / 20% to 95% RH | Weight： | 260±20g |
