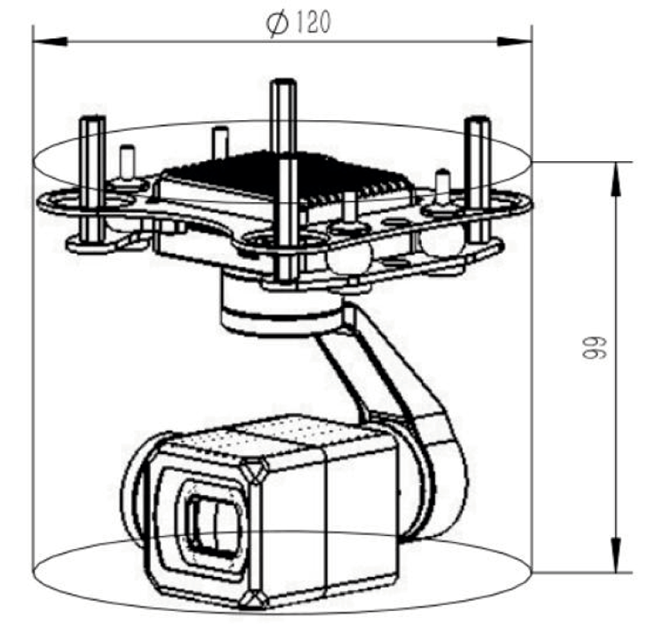

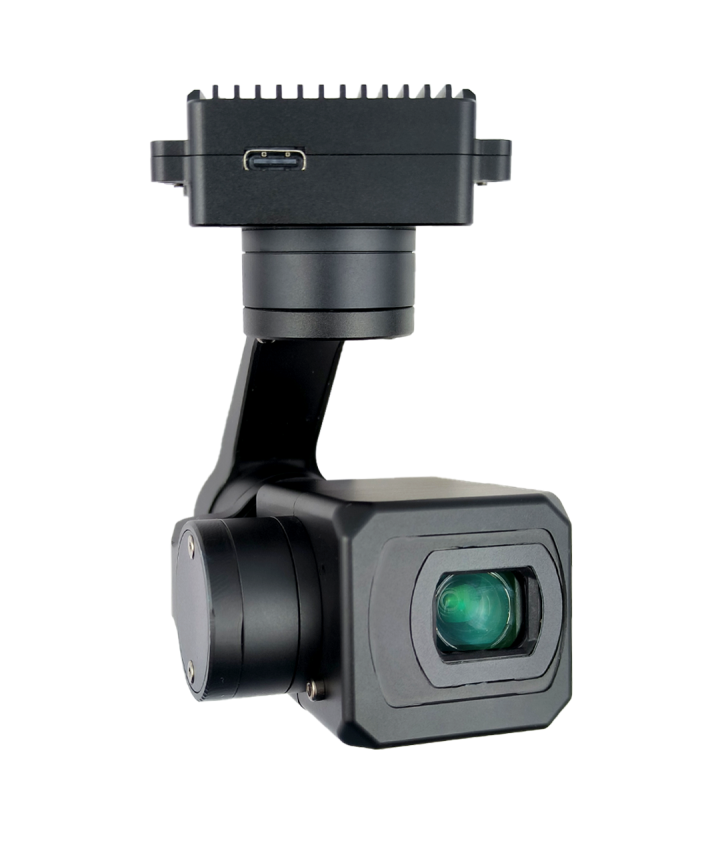

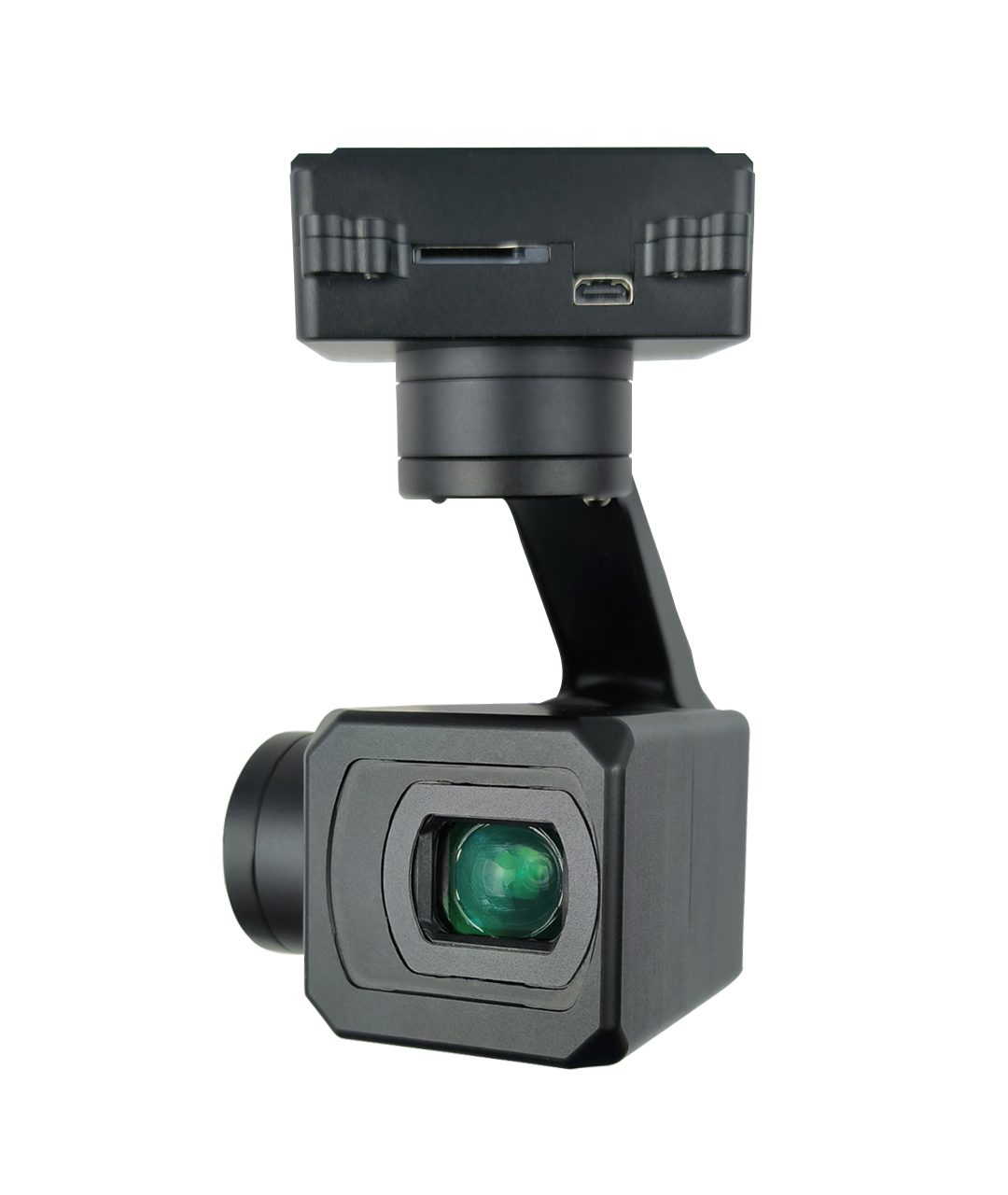

DHU05S35 is a single zoom gimbal that integrates 45x① hybrid zoom camera and high-precision professional 3-axis stabilization PTZ. It adopts IP、HDMI dual output, IP control, adopts high-precision encoder FOC control scheme PTZ. It has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera uses a sensor with an effective pixel size of 4 million. Serial ports② and S.BUS and network can control the camera and PTZ, supporting local TF dual channel recording and photography.
Voltage：
DC 12V-26.2V
Power：
Static 6W
Roll angle action range：
-45°～ +45°
Pitch angle action range：
-45°～ +120°
Heading Angle action range：
-145°～ +145°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal Angle jitter：
±0.03
One-click back to center function：
One key automatic fast return to the initial position
PTZ control speed adjustable：
When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera
Control mode：
Support network IP, S.Bus and Serial port control (Optional PWM control)
SENSOR：
1/3 inch 4MP CMOS SENSOR
Optical Zoom：
5x HD optical zoom lens, f=5±10%～25±10%mm
AF Time：
Real time fast focusing, focusing time < 1s
Video output：
Network RTSP 1080p output, video stream local TF storage
Field Angle(FOV)：
D : WIDE 61.1º TELE 12.41º H : WIDE 50.12º TELE 10.81º V : WIDE 38.07º TELE 8.13º
