DHU10G619 is an integrated dual sensor camera system which features a 10x optical zoom CMOS sensor with 9x digital zoom (a total of 90x hybrid zoom), a 19mm focal length 640*512 uncooled thermal imaging sensor with 9x digital zoom and a professional high-precision three-axis stabilization gimbal. It uses ethernet IP output and IP control. The gimbal uses a high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight, and low power consumption. The visible light camera uses an 2 million effective pixel wide dynamic CMOS sensor. The thermal imaging uses a 640×512 resolution vanadium oxide detector. The system supports network RTSP picture-in-picture stream output, supports multiple picture-in-picture modes, multiple pseudo-color displays, and global temperature measurement functions. Both the serial port① and the network can control the camera and the gimbal, and it supports local micro-sd card dual-channel video recording and photography.

Voltage：	DC 12V-26V	Power：	Dynamic 6.5W
Roll Angle：	-45°~+45°	Pitch Angle：	-45°~+100°
Yaw Angle：	-140°～ +140°	The amount of angular jitter in pitch and roll direction：	±0.02°
The amount of horizontal Angle jitter：	±0.03°	One-Click Restore：	One-click automatic quick return to the initial position
The speed of the gimbal control is adjustable：	The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera	Control mode：	Support network IP control, SBUS control, serial port control (optional PWM control)

CMOS Size：	1/2.8 inch 2 megapixel CMOS SENSOR
Optical zoom ：	10x optical zoom lens, f=5.15±5%～47.38±5%mm
focusing time：	Real-time fast focusing function, focusing time <1S
Video output：	Ethernet RTSP output 1080P, storage in micro-sd card
Field Angle(FOV)：	D : WIDE 69.5º±5% TELE 7.95º±5%   H : WIDE 61.5º±5% TELE 7.00º±5%   V : WIDE 35.0º±5% TELE 3.97º±5%
Network support mode：	1080P 30 fps
HDMI support mode：	Micro-D HDMI 1080P 60fps

Resolution ratio：	640×512 pixel
Space between pixels：	12μm
Type：	Uncooled vanadium oxide
Wavelength Range：	8～14μm
Thermal sensitivity(NETD)：	≤50mk@25℃@F1.0
Field of view：	19mm camera lens, FOV：22.9°×18.4°
Measurement function (optional)：	Central point, the highest temperature and lowest temperature display temperature function; Supports global temperature measurement

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

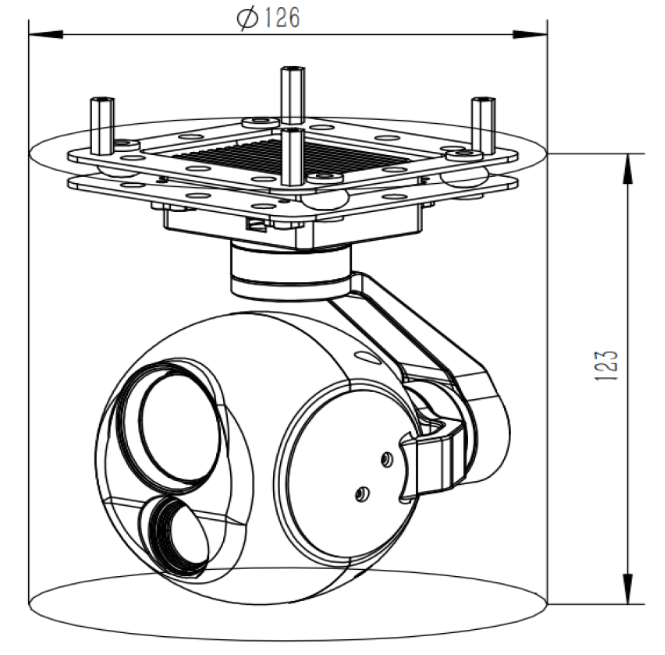

Dimensions：	φ:126mm H:123mm	Oerating Environment：	-10℃ to +55℃ / 20% to 80% RH
Storage Conditions ：	-20℃ to +60℃ / 20% to 95% RH	Weight：	370±10g
