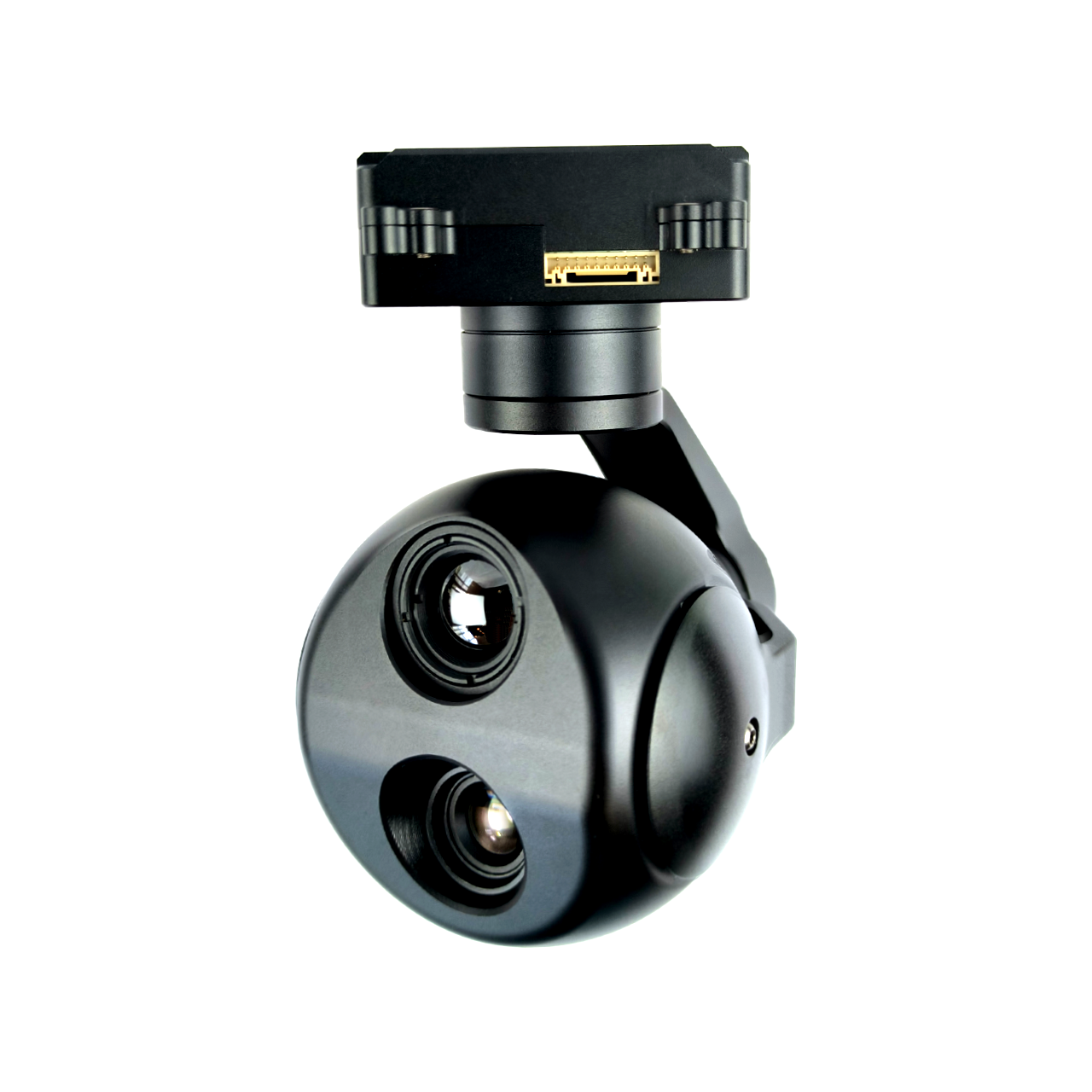

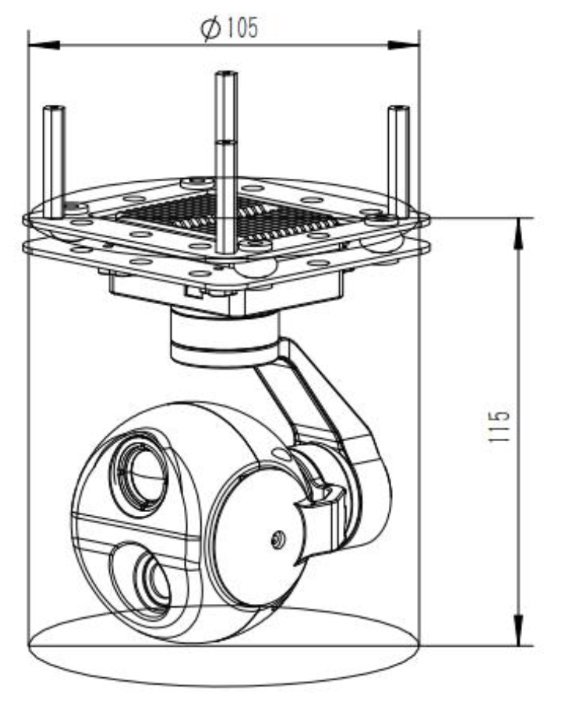

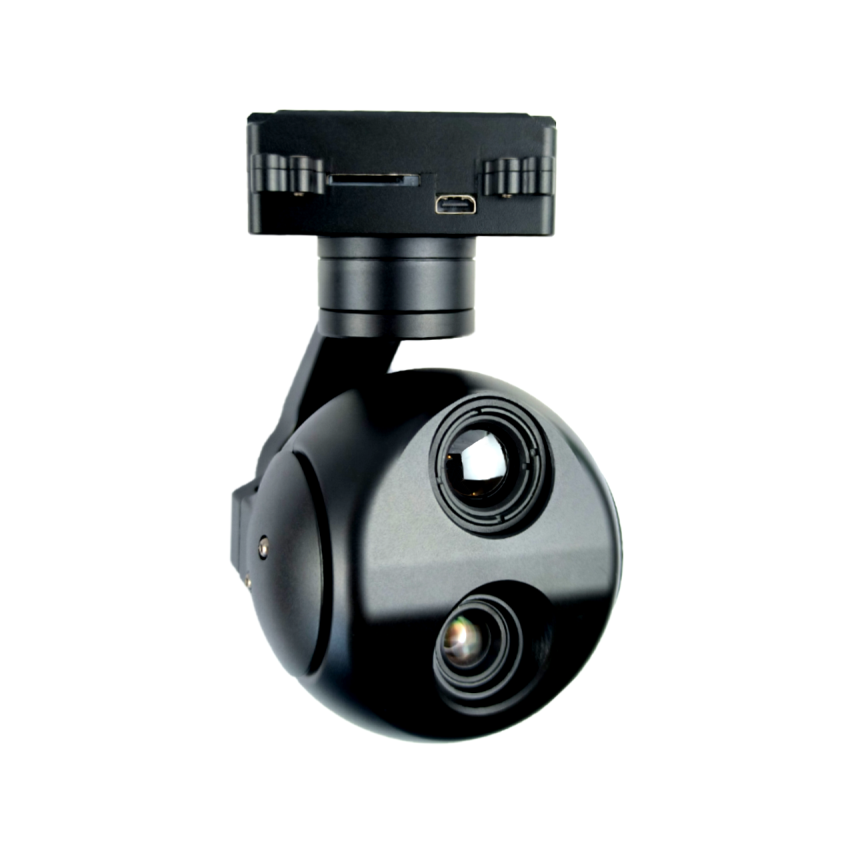

DHU290G613 is a fixed-focus dual-sensor integrated system that integrates 1080P fixed focus, 13mm 640×512 thermal imaging, and a high-precision professional three-axis stabilization gimbal camera. It uses network IP output, and the gimbal uses a high-precision encoder FOC control solution. It has the characteristics of high stability, small size, light weight, and low power consumption; the visible light camera uses a SENSOR with an effective 2 mega pixel. The gimbal and camera can be controlled by the serial port, S.BUS, and network, and supports local TF dual-channel video recording and photography.
Voltage：
DC 12V-26.2V/td>
Power：
Static 4.6W
Pitch Angle action range：
-45°～ +100°
Yaw Angle action range：
-145°～ +145°
Roll Angle action range：
-45°～ +45°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return function：
One-click automatic quick return to the initial position
Gimbal control speed adjustable：
The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera
Control mode：
Support network IP control ,serial port and S.BUS control
CMOS Size：
1/2.8 inch 2 mega pixel Wide dynamic range CMOS SENSOR
Digital zoom ：
Support 9x digital zoom
Video Output：
Network HD RTSP output 1080P, video stream local TF storage
Field Angle(FOV)：
FOV:60°x43°
Network support mode：
1080P 30 fps
HDMI support mode：
Micro-D HDMI 1080P 60fps
Resolution ratio：
640×512 pixel
Space between pixels：
12μm
Type：
Uncooled focal plane microbolometer
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤50mk@F1.0
Field Angle：
9.1mm Lens; FOV：32.9°×26.6°
Measurement (Optional)：
Support global temperature measurement, optional full pixel temperature saving function
