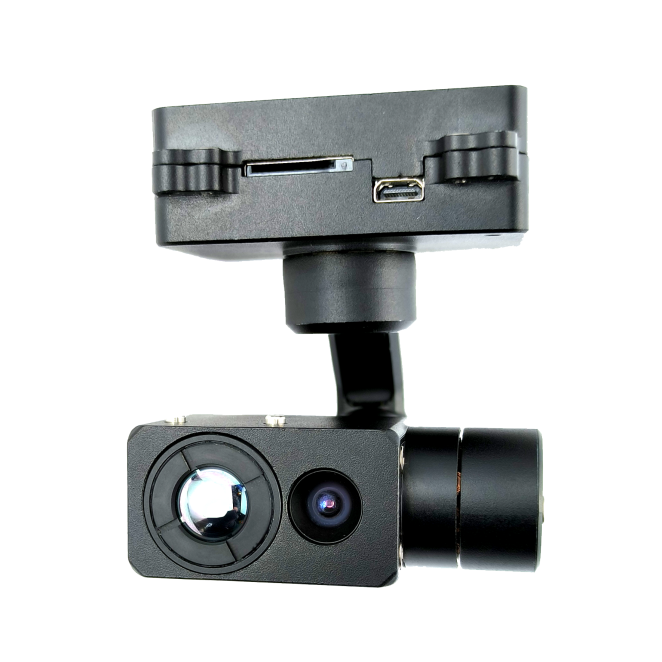

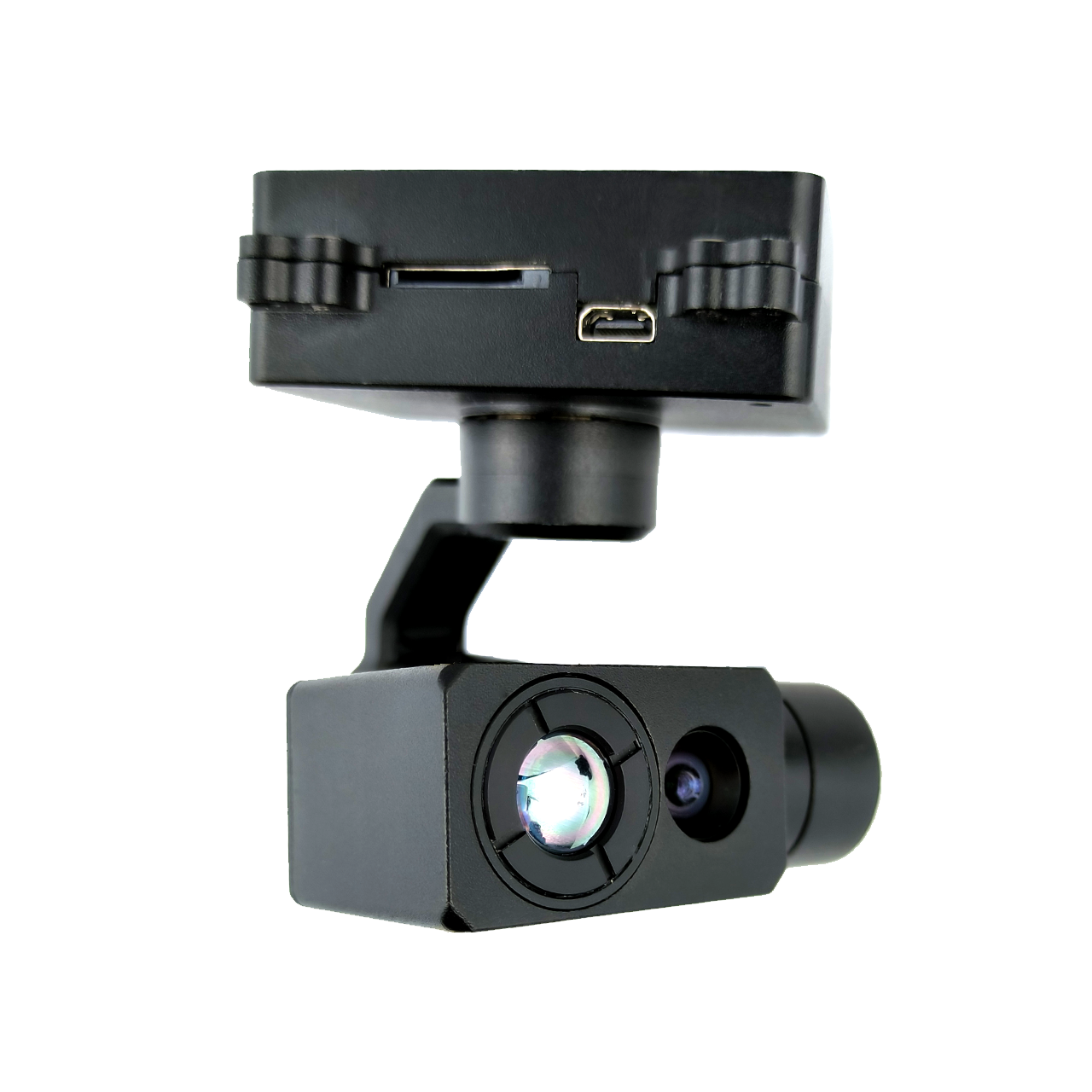

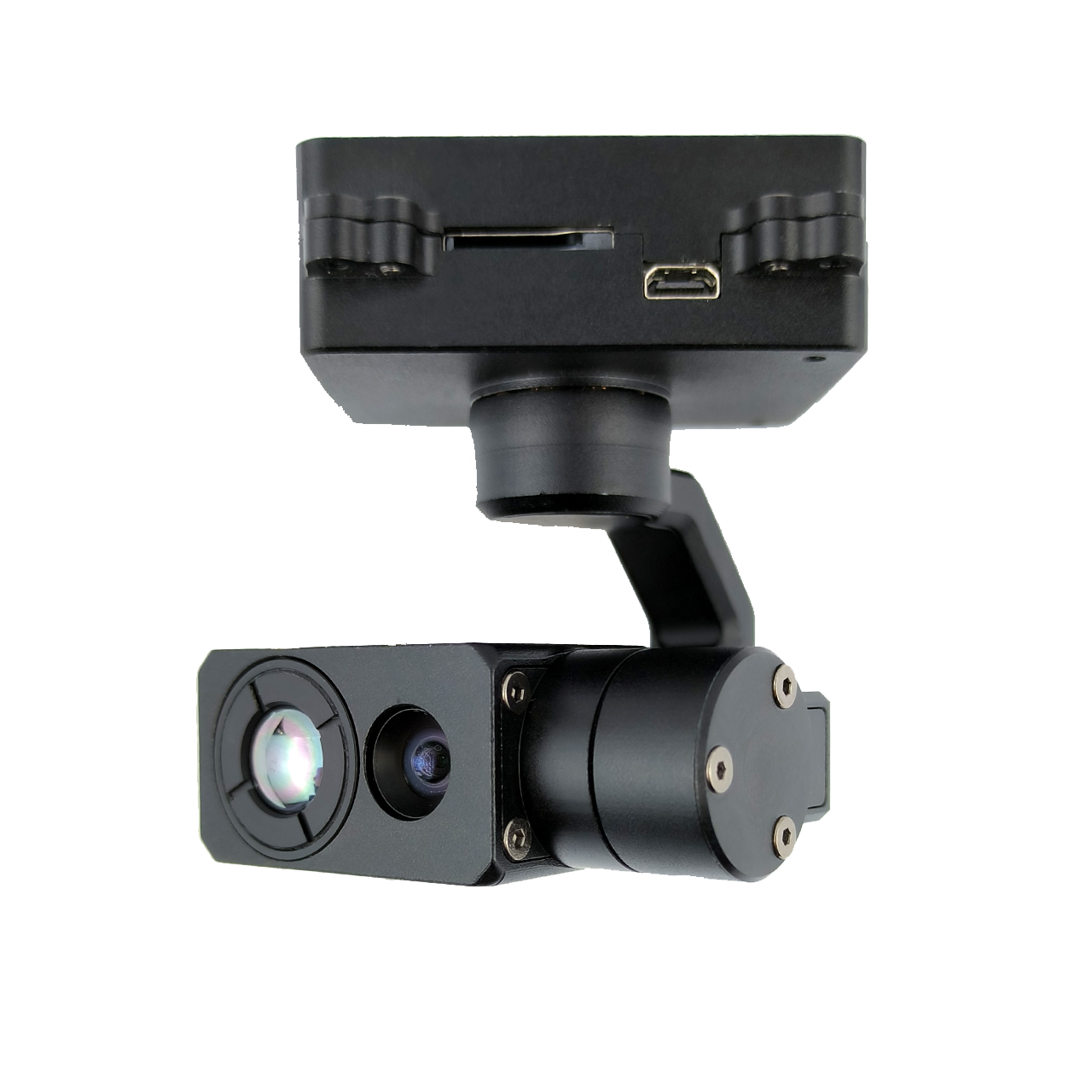

DHU335G609 is a fixed focus dual light drone gimbal integrated, Fixed focus visible light camera, 640×512 thermal imaging module, and high-precision professional 3-axis stabilized PTZ. It adopts network IP and HDMI dual output. The gimbal has the characteristics of high stability, small size, light weight and low power consumption; The visible light camera adopts CMOS SENSOR with 4 million effective pixels; The thermal imaging adopts 640×512 resolution vanadium oxide detector. The system supports network RTSP stream output, picture in picture switch, multiple pseudo color display, and global temperature measurement function. Both the serial port and the network can control the cameras and PTZ, support local TF two-way video recording and photography. 9x digital zoom will make the target more visible. This thermal imaging lens has a focal length of 9.1mm.
Voltage：
DC 12V-26.2V
Power：
Dynamic 4W
Roll Angle：
-25°～ +25°
Pitch Angle：
-30°～ +90°
Yaw Angle：
-140°～ +140°
Jitter Angle：
±0.02°
Horizontal Jitter Angle：
±0.03°
One-Click Restore：
One-click restore to the initial position
Adjustable Gimbal Speed：
When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera
Control mode：
Support network IP UART control (SBUS and PWM are optional)
CMOS Size：
4 Mega Pixels CMOS SENSOR
Digital Zoom：
9x
Compressed storage mode：
H264, H265, video stream local TF storage
HDMI video：
Micro-D HDMI 1080P 60fps
IP output mode：
1080P 30fps
Field Angle(FOV)：
FOV： 92°×59°
Resolution ratio：
640×512 pixel
Space between pixels：
12μm
Type：
Uncooled vanadium oxide
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤40mk@F1.0@25℃
Field of view：
9.1mm Lens，Angle：48.3° x 38.7°
Measurement function (optional)：
Support global temperature measurement, optional full pixel temperature storage function
