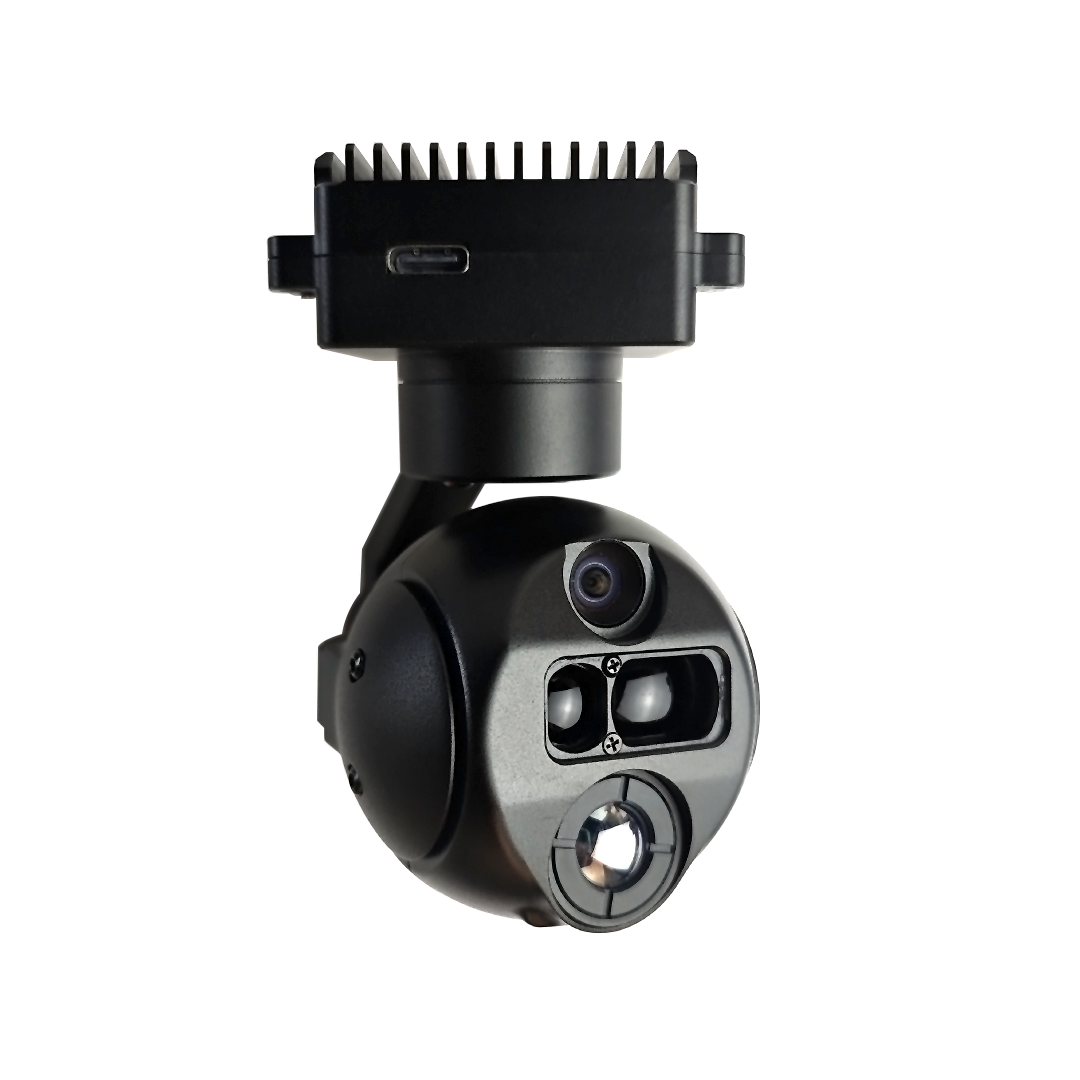

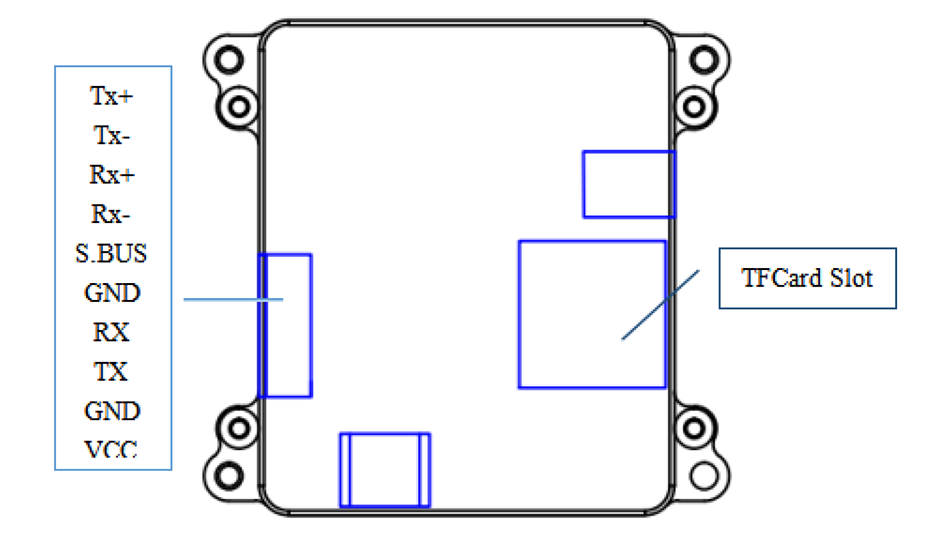

DHU335G609L15 is an integrated 4MP prime lens visible-light sensor with 9x digital zoom, a 9.1mm focal length 640×512 thermal imaging sensor with 9x digital zoom and an up to 1500km laser rangefinder, with professional stabilized 3-axis gimbal, supporting IP and HDMI video output. Adopted with high-precision encoder FOC control scheme, the gimbal has the features of high stability, compact size, light weight and low power consumption. The visible light camera uses a 4-megapixel sensor; the thermal imager utilizes a 640×512 resolution uncooled focal plane microbolometer. The camera system supports RTSP picture-in-picture streaming over the network, with 4 picture-in-picture modes, 10 pseudo-color display modes, and global temperature measurement. Both the serial port ① and the network can control the camera and the gimbal, and supports local TF card dual-channel recording and photo taking.
Voltage：
DC12V-26.2V
Power：
Static 7W
Roll Angle action range：
-45° ～ +45°
Pitch action range：
-45° ～ +100°
Yaw angle action range：
-140°～ +140°
The amount of angular jitter in pitch and roll direction：
±0.02°
Horizontal Angle jitter：
±0.03°
One-click return function：
One-click automatic quick return to the initial position
The speed of the head control is adjustable.：
The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera.
Control mode：
Support network IP control and serial port control And SBUS control (pwm optional )
CMOS Size：
CMOS SENSOR pixel: 4mega pixels
Digital zoom：
Support 9x digital zoom
Compressed storage mode：
H264，H265,video streaming, local TF storage
HDMI video：
Micro-D HDMI 1080P 60fps
Field Angle（FOV）：
FOV： 92°×59°
Resolution：
640*512
Pixel spacing：
12μm
Type：
Uncooled focal plane microbolometer
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@F1.0
Field of view：
9.1mm Lens; Angle: 45.76°×37.31°
Measurement function (optional)：
Center point, highest temperature, lowest temperature, temperature display
