DHU467 is a 4K network dual output system integrating 9 times digital zoom and high precision professional three-axis enhance stability pod. It adopts network IP output, and the adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera uses high-definition SENSOR with effective pixels of 8 million; The system supports 4K and 1080P network RTSP stream output. Network, serial port and S.BUS, and can control the camera and PTZ, and support local TF storage.
Voltage：
DC 12V-26.2V
Power：
Dynamic 4W
Roll angle action range：
-45°～ +110°
Pitch angle action range：
-35°～ +100°
Heading Angle action range：
-140°～ +140°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal Angle jitter：
±0.03
One-click back to center function：
One key automatic fast return to the initial position
Pan- tilt control speed is adjustable：
When the pan-tilt rotates, the speed is adaptive based on the current speed mode and the multiple of the visible light camera
Control mode：

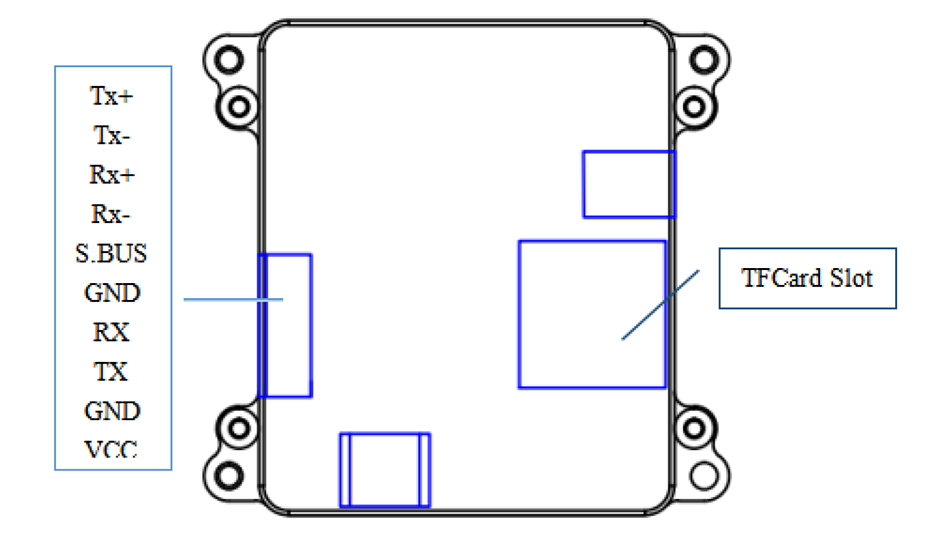

Support network IP control, SBUS control, serial port control(optional PWM control)
