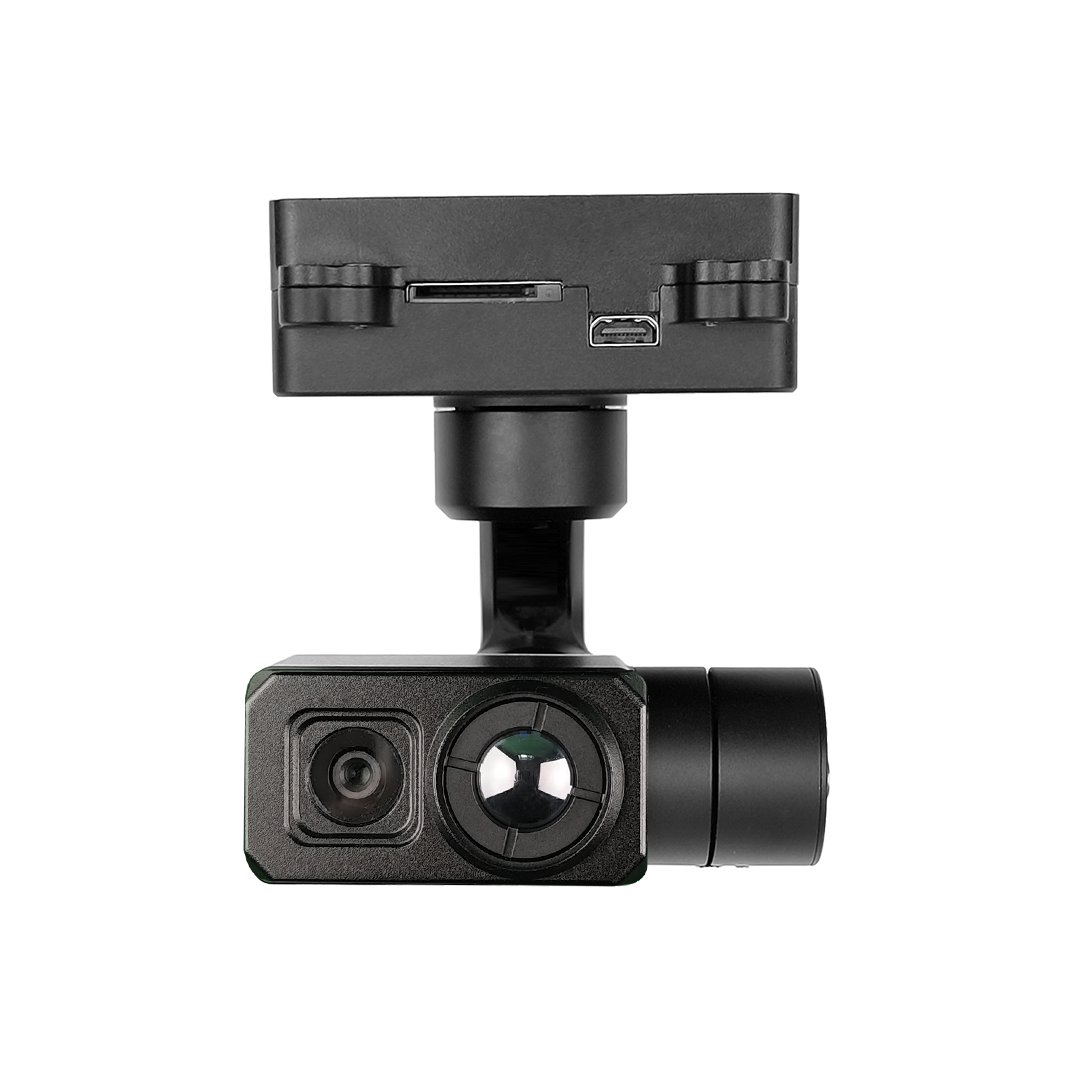

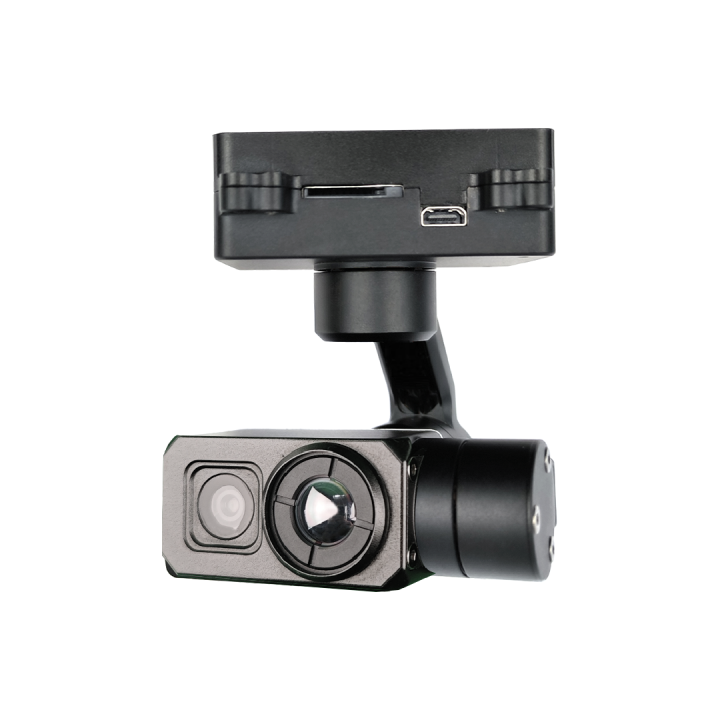

DHU586G609P is a fixed focus dual optical system that integrates 48 million fixed focus, 9.1mm640 × 512 thermal imaging, and high-precision professional three-axis stabilization pod. It adopts network IP output and high-precision encoder FOC control scheme for the gimbal, which has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera uses a SENSOR with an effective pixel count of 48 million. Serial port, S.BUS, and network can all control the camera and gimbal, supporting local TF dual channel recording and photography.
Voltage：
DC 12V-26.2V
Power：
Dynamic 4.5W
Roll Angle：
-30°～ +30°
Pitch Angle：
-45°～ +100°
Yaw Angle：
-140°～ +140°
Jitter Angle：
±0.02°
Horizontal Jitter Angle：
±0.03°
One-Click Restore：
One-click restore to the initial position
Adjustable Gimbal Speed：
When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera
Control mode：
Support network IP UART control (SBUS and PWM are optional)
CMOS Size：
1/2.0 inch 48 megapixel CMOS Sensor
Digital Zoom：
9x digital zoom
IP output mode：
1080P 30fps
Field Angle(FOV)：
4.8mm lens D78°，H65°，V51°
Resolution ratio：
640×512 pixel
Space between pixels：
12μm
Type：
Uncooled focal plane microcalorimeter
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤50mk@F1.0@25℃
Field of view：
9.1mm Lens，Angle：48.3° x 38.7°
Measurement function (optional)：
Support global temperature measurement, optional full pixel temperature storage function
