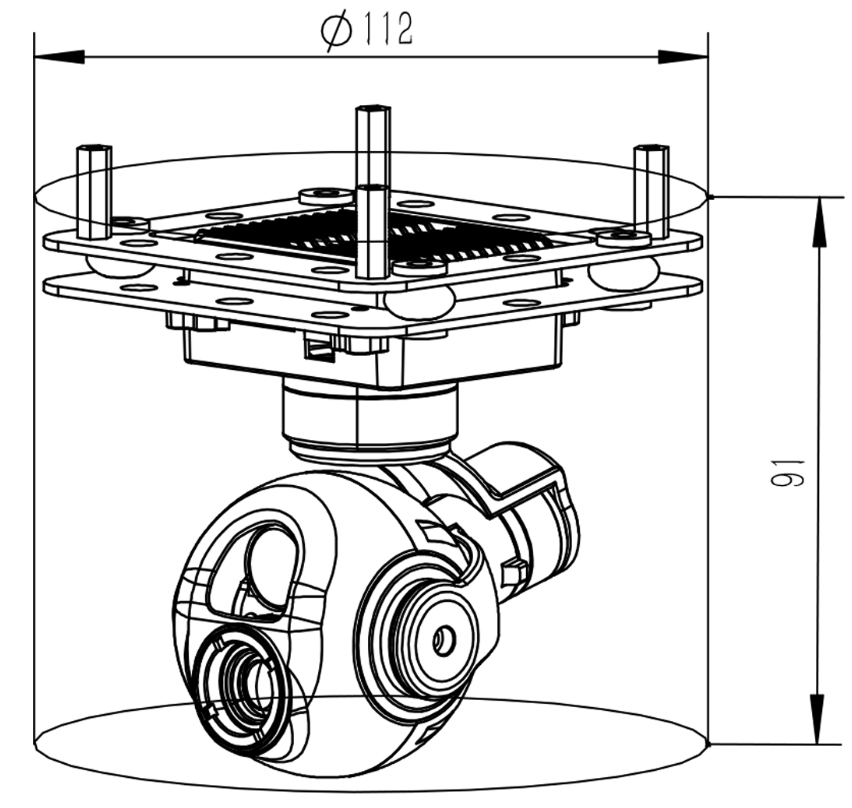

DHU662A609 is a fixed-focus dual-sensor integrated system that integrates 1080P fixed focus, 9.1mm 640×512 thermal imaging, and a high-precision professional three-axis stabilization gimbal camera. It uses network IP、HDMI dual output, and the gimbal uses a high-precision encoder FOC control solution. It has the characteristics of high stability, small size, light weight, and low power consumption; the visible light camera uses a SENSOR with an effective 2 mega pixel. The gimbal and camera can be controlled by the serial port, S.BUS, and network, and supports local TF dual-channel video recording and photography.
Voltage：
DC 12V-26.2V
Power：
Dynamic 5.5w
Pitch Angle action range：
-40°~ +100°
Yaw Angle action range：
-140°~ +140°
Roll Angle action range：
-45°~ +45°
Tilt and roll direction angle jitter：
±0.02°
Horizontal angle jitter：
±0.03°
One-key return function：
One-click automatic quick return to the initial position
Gimbal control speed adiustable：
The speed adaption is carried out based on the current speed mode and themultiple of the visible light camera
Control mode：
Support network IP control ,serial port and S.BUS control
CMOS Size：
1/2.8 inch 2.4 million pixels Wide dynamic range CMOS SENSOR
Digital zoom：
Support 9x digital zoom
Video Output：
Network HD RTSP output 1080P, video stream local TF storage
Field of view(FOV)：
FOV：35° 28° 21°
Resolution ratio：
640×512 pixel
Space between pixels：
12μm
Type：
Uncooled vanadium oxide
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤50mk@25℃@F1.0
Field angle：
9mm camera lens, FOV：48°×38°
Measurement function：
Support global temperature measurement and optional full pixel temperature saving function
