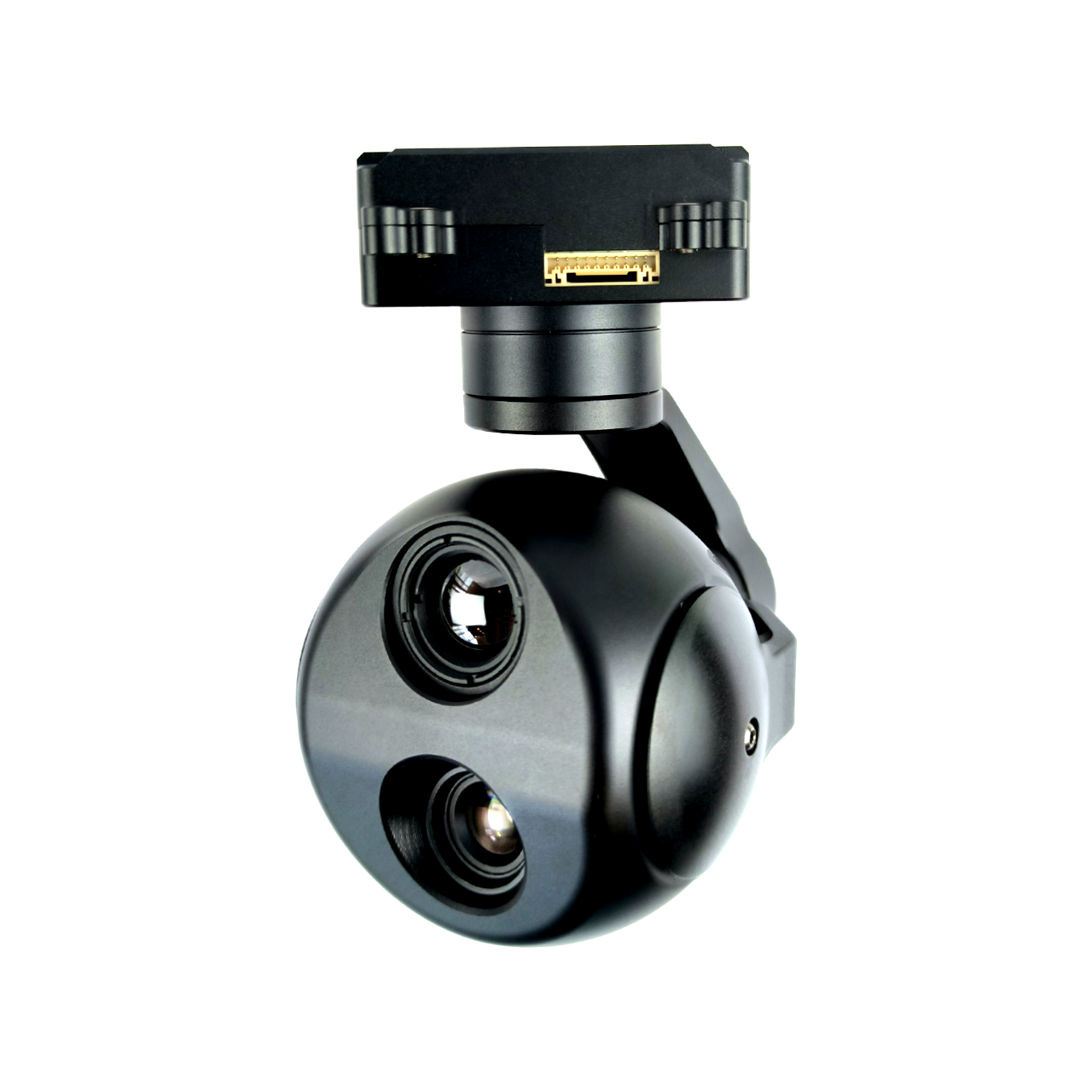

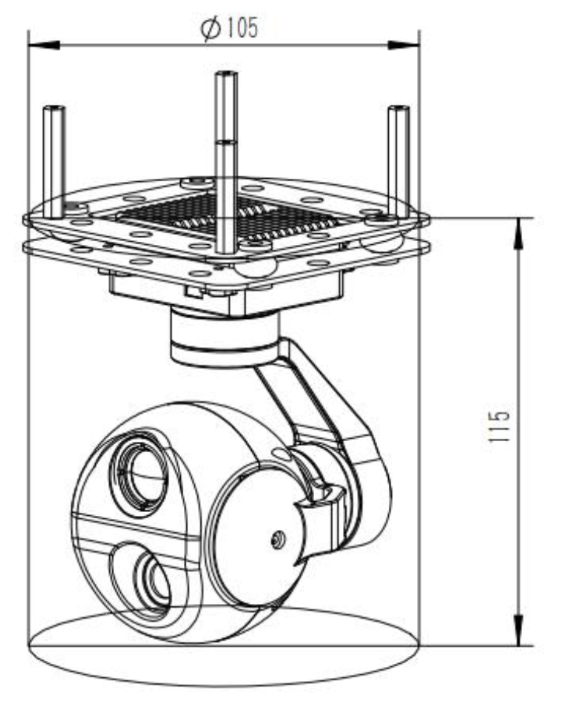

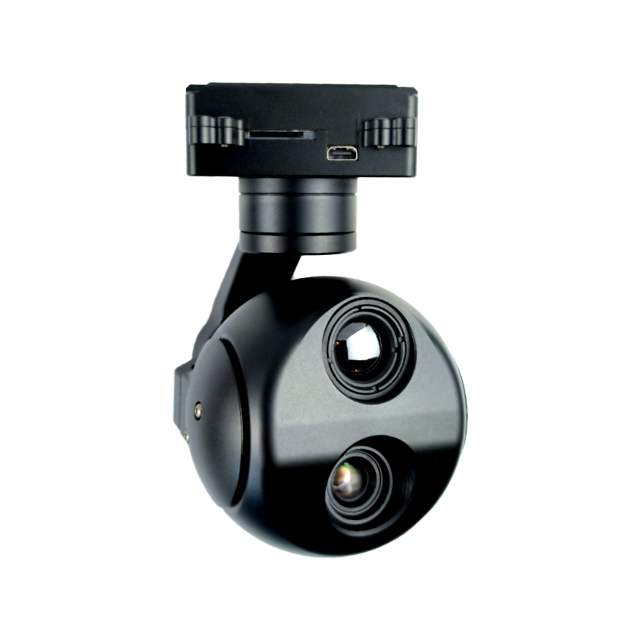

DHU662G613P-E is a dual-sensor camera system integrated 1080P prime lens visible light and 13mm 640×512 thermal imaging, with a high-precision professional 3-axis stabilized gimbal. It supports both IP network and HDMI dual output, the gimbal uses a high-precision encoder FOC control scheme, it has the characteristics of high stability, small size, light weight, and low power consumption. the visible light camera uses a wide dynamic sensor with an effective 2 mega pixel. Both Serial Port ①, S.BUS, and network can be used to control the camera and gimbal, and it supports local TF card dual-channel recording and photography.
Voltage：
DC 12V-26.2V/td>
Power：
Static 4.6W
Pitch Angle action range：
-45°～ +100°
Yaw Angle action range：
-145°～ +145°
Roll Angle action range：
-45°～ +45°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return function：
One-click automatic quick return to the initial position
Gimbal control speed adjustable：
The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera
Control mode：
Support network IP control ,serial port and S.BUS control
CMOS Size：
1/2.8 inch 2.4 million pixels Wide dynamic range CMOS SENSOR
Digital zoom ：
Support 9x digital zoom
Video Output：
Network HD RTSP output 1080P, video stream local TF storage
Field Angle(FOV)：
6mm lens FOV：49.8°× 29.3°
Network support mode：
1080P 30 fps
HDMI support mode：
Micro-D HDMI 1080P 60fps
Resolution ratio：
640×512 pixel
Space between pixels：
12μm
Type：
Uncooled focal plane microbolometer
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤50mk@F1.0
Field Angle：
9.1mm Lens; FOV：32.9°×26.6°
Measurement (Optional)：
Support global temperature measurement, optional full pixel temperature saving function
