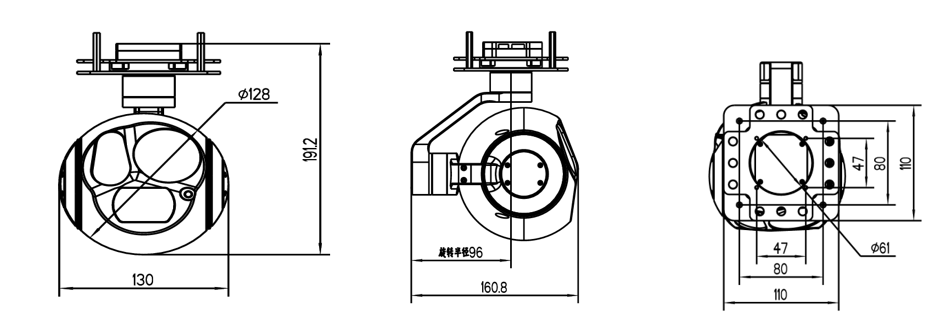

DIF30G1235L80-E is a professional 3-axis stabilized gimbal integrating 270x Hybrid zoom① camera, 35mm 1280×1024 thermal imaging and 8km laser rangefinder, with Electronic Image Stabilization (EIS). This gimbal is compact in design and has the characteristics of high stability, high integration and low power consumption; The visible light camera uses a high-definition effective 2 mega pixels COMS SENSOR; The thermal imaging adopts 35mm lens, a vanadium oxide 1280×1024 resolution detector, with an internal baffle. The Laser ranging has 8KM high-precision distance measurement function. Using our ground station software, you can synchronously control the PTZ and camera via network and serial port, read ranging data, local TF card storage and network file reading and writing, support two-way synchronous video recording, multiple PIP modes and pseudo color switching.
Voltage：
DC12～26.2V
Power：
Dynamic 10W
Roll angle：
﹣45°～ ﹢45°
Pitch Angle：
-30°～ +110°
Yaw Angle：
-285°～ +285°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return to the center function：
Quick return to initial position with one click
Adjustable Gimbal Speed：
When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification
Control Mode：

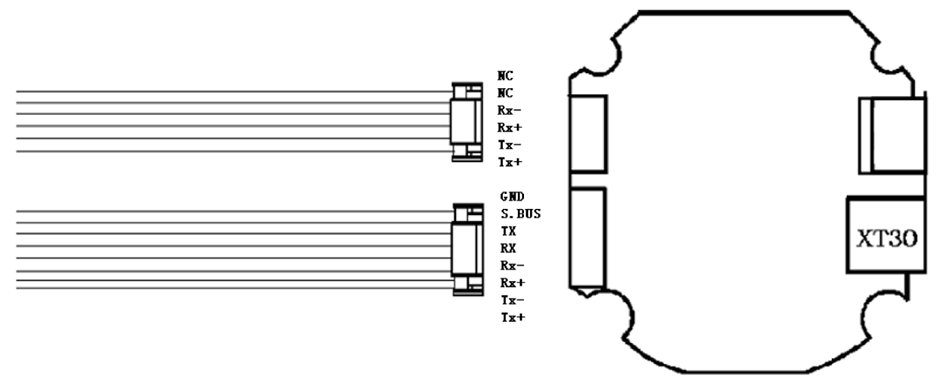

Support network IP control, serial port control, S.BUS control
CMOS Size：
1/2.8inch 2MP wide dynamic range CMOS SENSOR
Optical Zoom：
30x Optical Zoom, f=4.6～136 mm ±5%
Focus time：
Real-time fast focus function, focusing time <1S
Field Angle（FOV）：
D : WIDE 73.7º±5% TELE 2.6º±5% H : WIDE 65.4º±5% TELE 2.2º±5% V : WIDE 38.3º±5% TELE 1.3º±5%
Video output：
Network output RTSP 1080P stream, local TF 1080P storage
Support Mode：
1080P 30fps
Resolution：
1280×1024 pixel
Pixel spacing：
12μm
Type：
Uncooled Vanadium Oxide Detector
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@F1.0@25℃
Field of view：
35mm Lens，Angle：24.4°x 19.8°
Global temperature measurement：
Support global temperature measurement, optional full pixel temperature saving function
