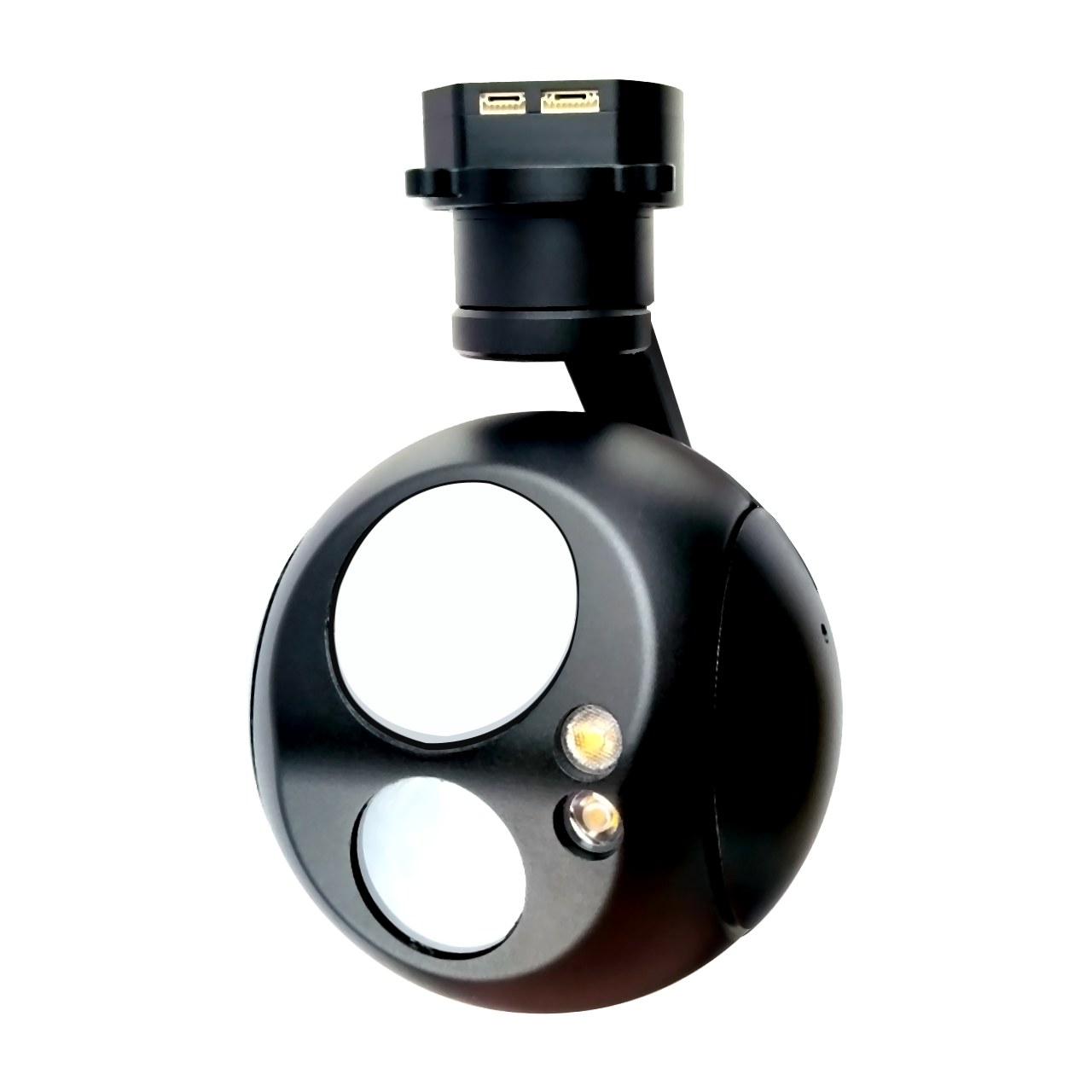

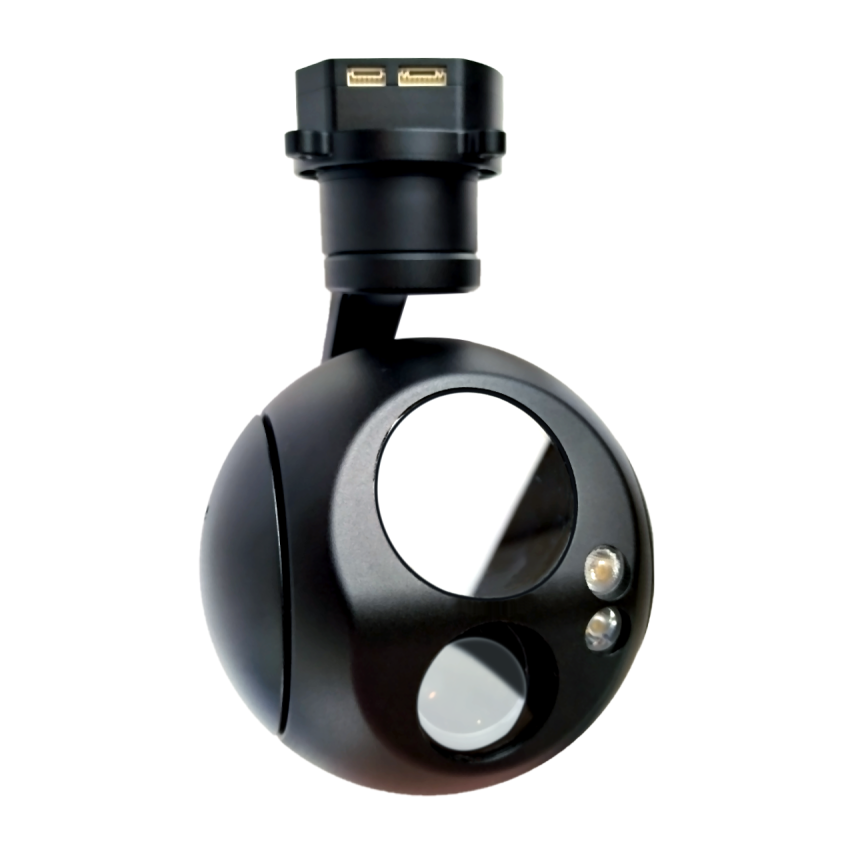

DIP04G12N is a high-precision professional three-axis stabilized gimbals with integrated 28x hybrid zoom, 1280*1024 thermal imaging with 25mm focal length and supplementary lights. This gimbals adopts compact design, featuring high stability, high integration and low power consumption. The visible light camera uses an 8 million effective pixel HD night vision sensor. Thermal imaging uses a 25mm lens, vanadium oxide 1280*1024 resolution detector with built-in shutter; LED supplementary lights. Provides software ground station, supports picture in picture display of dual video streams, network and serial port can directly control the gimbals camera, distance measurement data reading, support local TF storage and network file read/write operations, support dual-channel synchronous recording, support multiple picture in picture modes and pseudo-color switching.

Voltage：	DC 12V-26.2V	Power：	Static 6w
Pitch Angle：	-30～+120°jitter ±0.02°	Yaw Angle：	600°rotation jitter ±0.03°
Gimbal mode：	Quick return to initial position with one click， lock head/following mode	Control method：	Speed adaptive controllable, external control by network or serial port

CMOS Size：	1/1.2 inch 8 million pixel wide dynamic CMOS sensor
Optical zoom：	4x HD optical zoom lens, f=15.16±5%~48.65±5%mm
Focus time：	Real-time fast focus function, focusing time <1s
Video output：	Network output RTSP 1080P stream and 480P stream, local TF 1080P storage
Field Angle（FOV）：	D : WIDE 48.4º±5% TELE 14.8º±5%   H : WIDE 42.2º±5% TELE 12.9º±5%   V : WIDE 23.7º±5% TELE 7.3º±5%
Function：	supplementary lights, effective distance 20 meters

Resolution：	1280*1024 pixel
Pixel spacing：	12μm
Type：	Uncooled Focal Plane Microbolometer
Wavelength range：	8～12μm
Thermal sensitivity (NETD)：	≤50mk@F1.0
Field of view：	25mm lens, angle: 34.2° × 27.6°
Measurement function (optional)：	Center point, highest and lowest temperature display temperature function; global temperature measurement

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

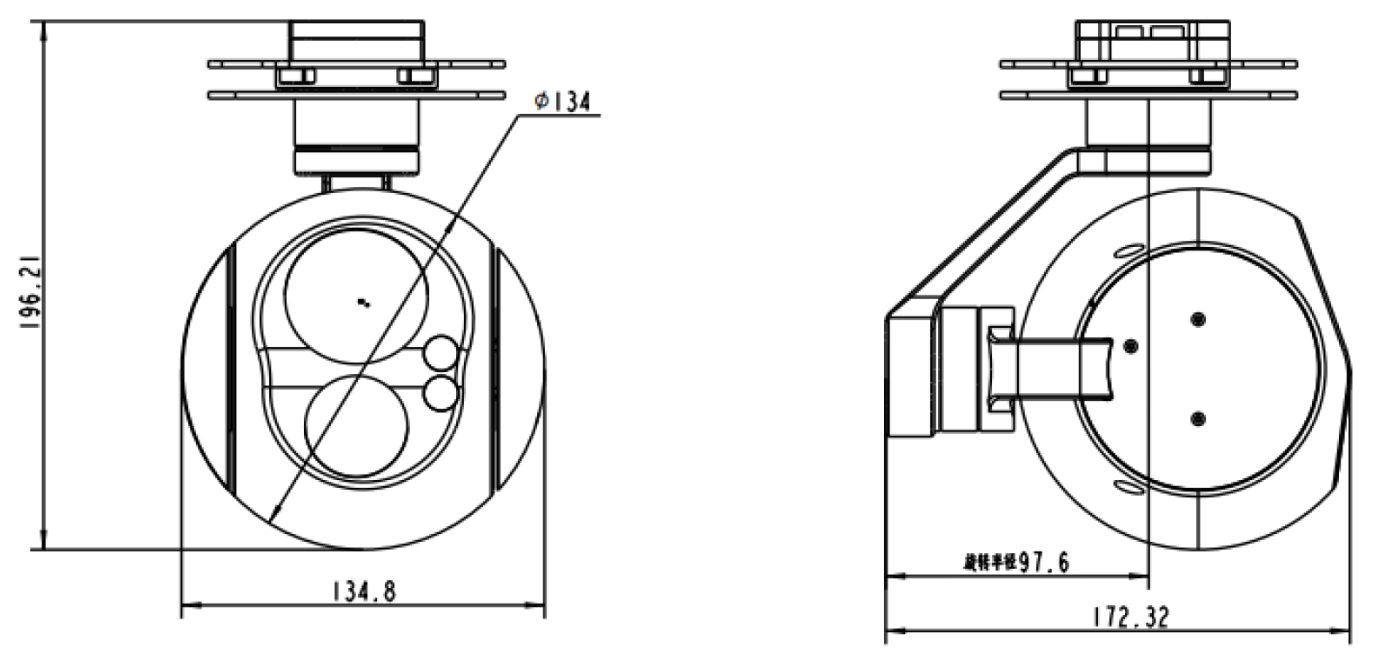

Dimensions：	135mm×171mm×192mm	Working Condition：	-10℃ to +50℃ / 20% to 80% RH
Storage Environment：	-20℃ to +60℃ / 20% to 95% RH	Weight：	1230±20g
