DIP20G12 is a dual sensor integrated camera system that integrates a 140x mixed zoom ①camera, a 35mm focal length 1280×1024 infrared thermal camera and a high-precision three-axis stabilized head. HDMI/ Ethernet RTSP streaming video output, support SBUS/UART/UDP/PWM control. PTZ adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera uses a dynamic sensor with an effective pixel width of 8 million, and the IR camera uses a 1280×1024 resolution uncooled vanadium oxide detector with a baffle design. The camera also supports picture-in-picture (PIP) mode, multiple false color modes and temperature measurement. You can control the camera and PTZ simultaneously using the serial port and network. This universal camera has an all-metal housing.

Voltage：	DC12～26.2V	Power：	Dynamic 8W
Roll Angle：	-45°～ +45°	Pitch Angle：	-30°～ +100°
Yaw Angle：	360°	Tilt and roll direction angle jitter：	±0.02°
Horizontal angle jitter：	±0.03°	One-Click Restore：	One-click restore to the initial position

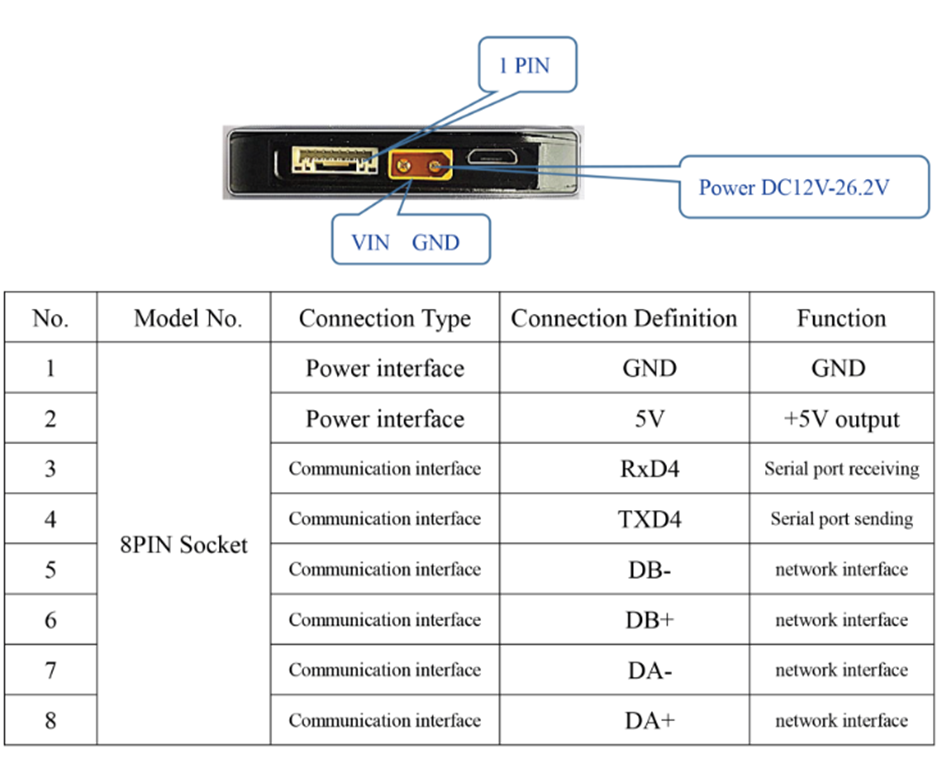

Adjustable Gimbal Speed：	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple	Control Modes：	Support network IP control, S.BUS control, UART control (PWM control is optional)

CMOS Size：	1/1.8 INCH 8 mega pixel wide dynamic CMOS SENSOR
Optical Zoom：	20x HD optical zoom lens, f=6.7～125 mm ±5%
AF Time：	Real time fast focusing, focusing time < 1s
Video Output：	Network output RTSP 1080P stream, local TF 1080P storage
Field Angle(FOV)：	D : WIDE 66.6º±5% TELE 4.0º±5%    H : WIDE 59.6º±5% TELE 3.5º±5%    V : WIDE 35.7º±5% TELE 2.0º±5%
Support Mode：	4K 1080P 30fps

Resolution ratio：	1280X1024 pixel
Space between pixels：	12μm
Type：	Uncooled vanadium oxide
Wavelength Range：	8～14μm
Thermal sensitivity(NETD)：	≤40mk@F1.0@25℃
Contrast, pseudo color：	Adjustable, multiple pseudo color modes
Field of view：	25mm Lens，Field of view：34.2°×27.6°
Measurement function (optional)：	Support global temperature measurement, optional full pixel temperature saving function

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

Dimensions：	132mm * 60mm*194mm	Operating Environment：	-10℃ to +55℃ / 20% to 80% RH
Storage Conditions：	-20℃ to +60℃ / 20% to 95% RH	Weight：	1450±20g
