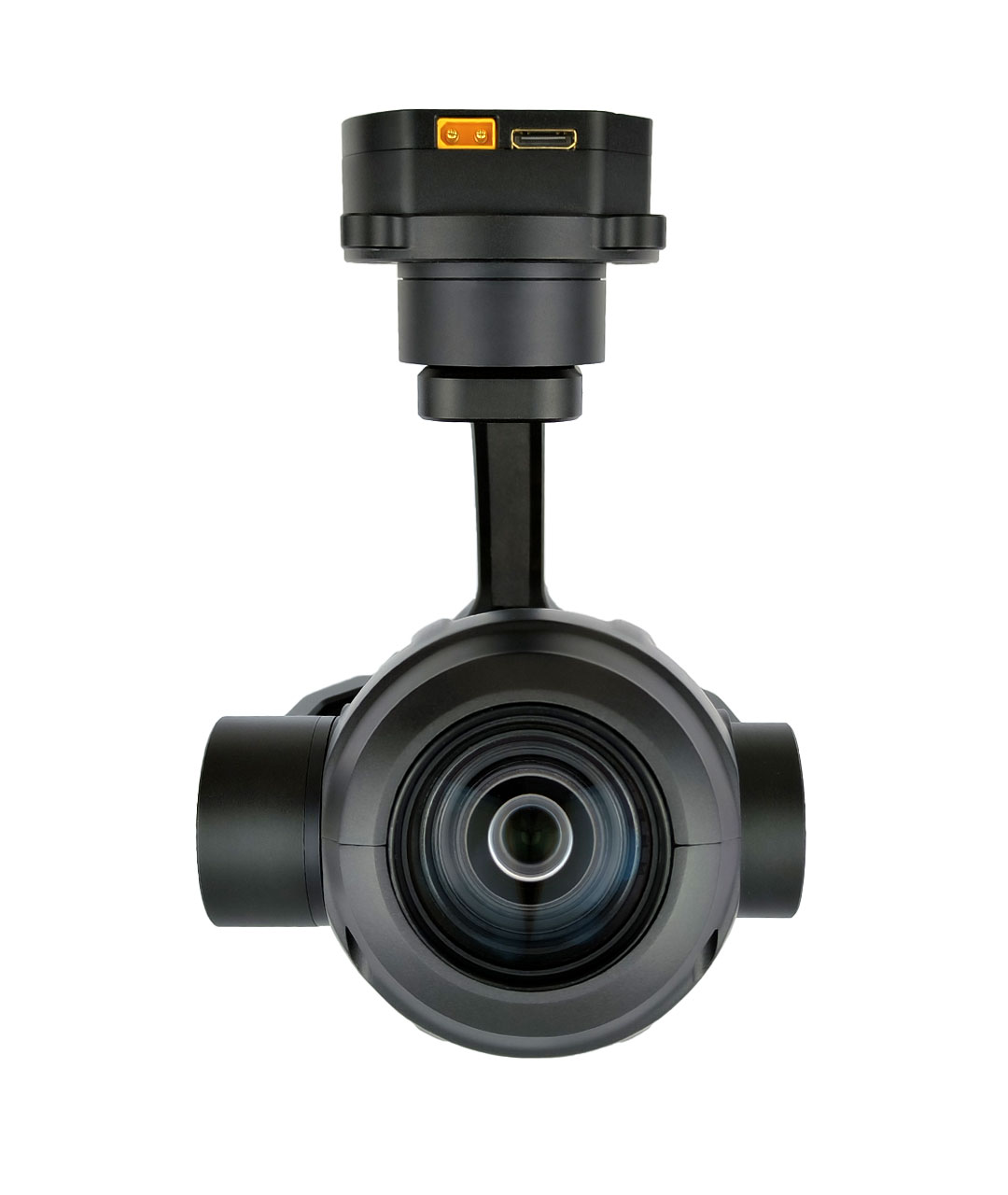

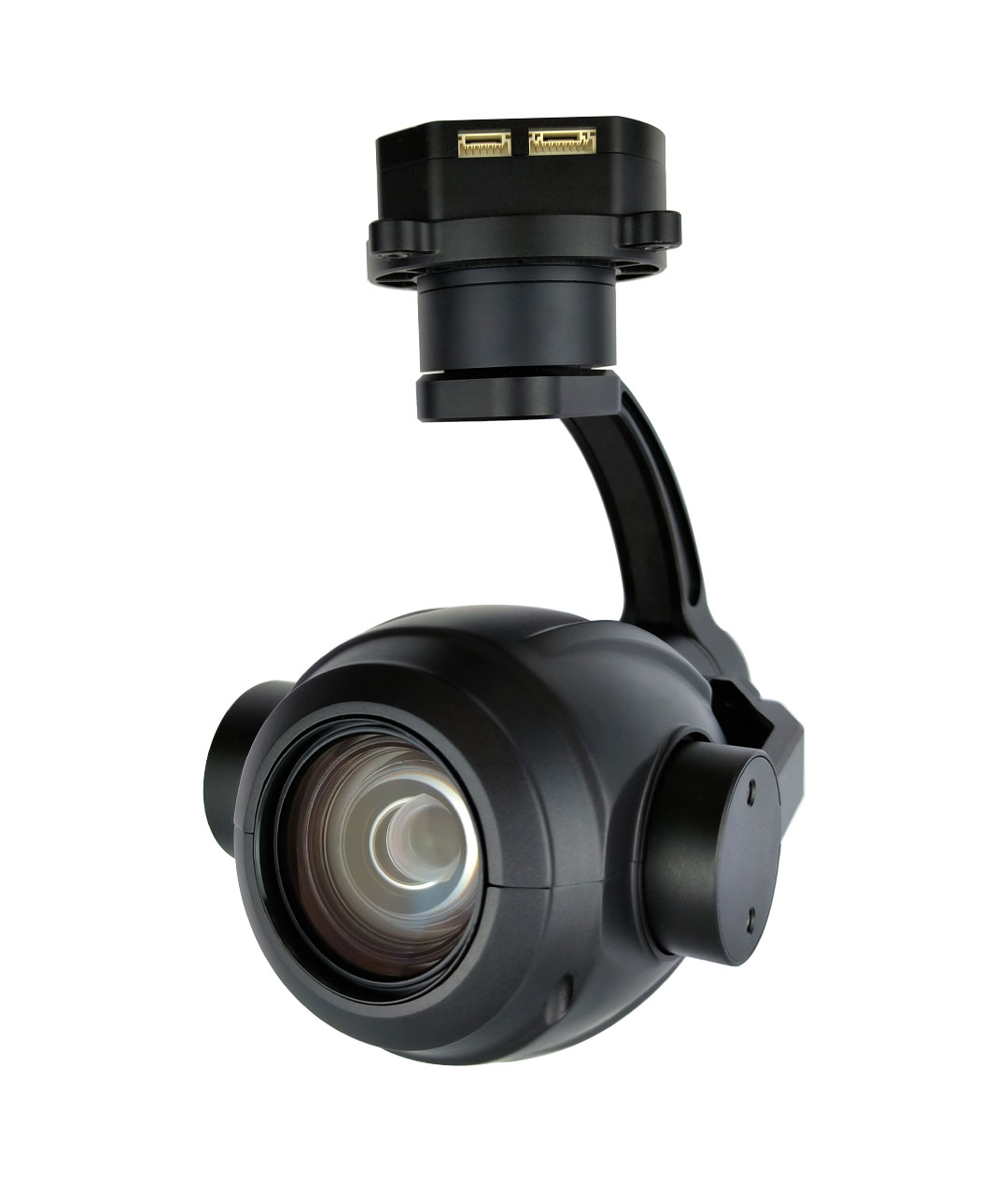

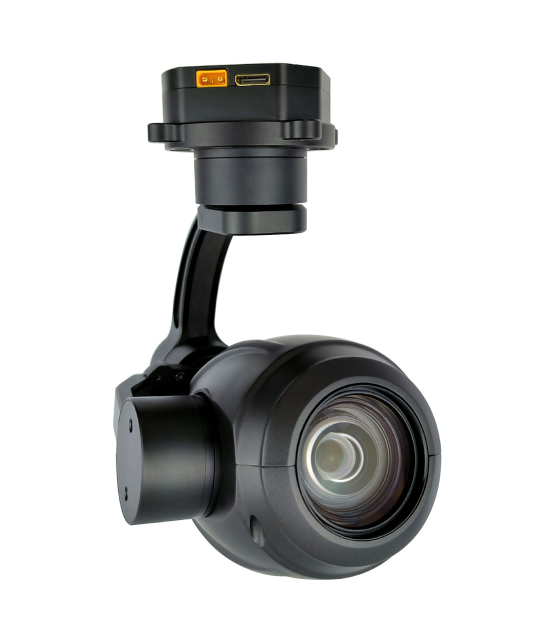

DIP20S78 which integrate the 140x Hybrid zoom① camera, Ethernet (RTSP) output, and 3-axis stabilized PTZ. The ground receiving end outputs standard RTSP, and the ground software supports PTZ control and zoom camera control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption. The camera adopts an effective pixel of 8 million STARVIS2, low-noise SENSOR.; Support 4K, 1080p local TF storage and RTSP code stream transmission. Network 2-way control.
Voltage：
DC12V-26.2V
Power：
6.72W
Roll angle action range：
-45°～ +45°
Pitch angle action range：
-30°~+120°
Yaw angle action range：
-280°~+280°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal Jitter Angle：
±0.03°
One-Click Restore：
One-click restore to the initial position
SENSOR：
1 / 1.8 Inch 8 mega pixel wide dynamic range CMOS sensor
Optical Zoom：
20x HD optical zoom lens, f=6.7～125 mm ±5%
Focusing time：
Real time focusing, fast focusing time < 1s
Video output：
Network HD RTSP output 1080p, 1080p video recording
Field Angle (FOV)：
D : WIDE 66。6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5%
