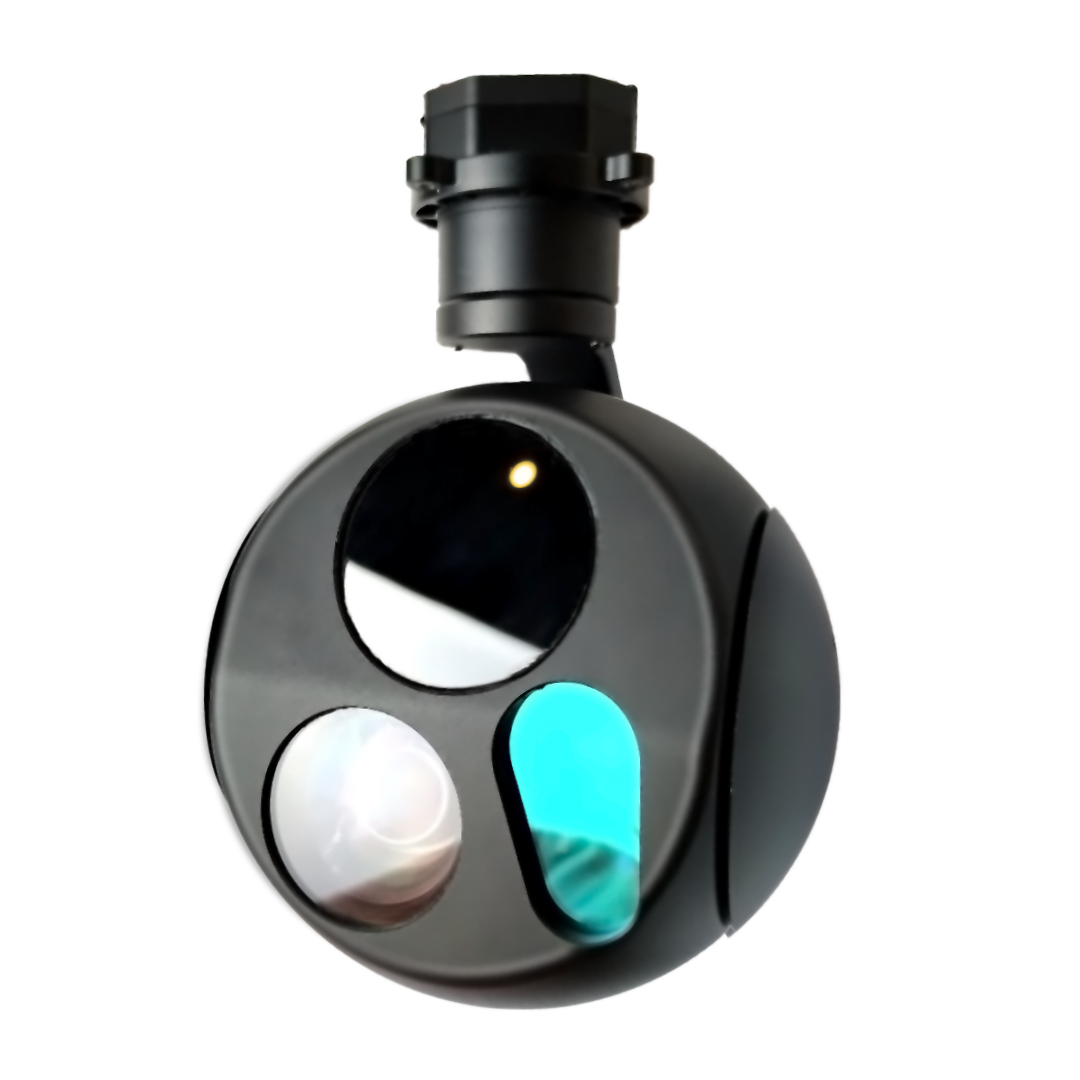

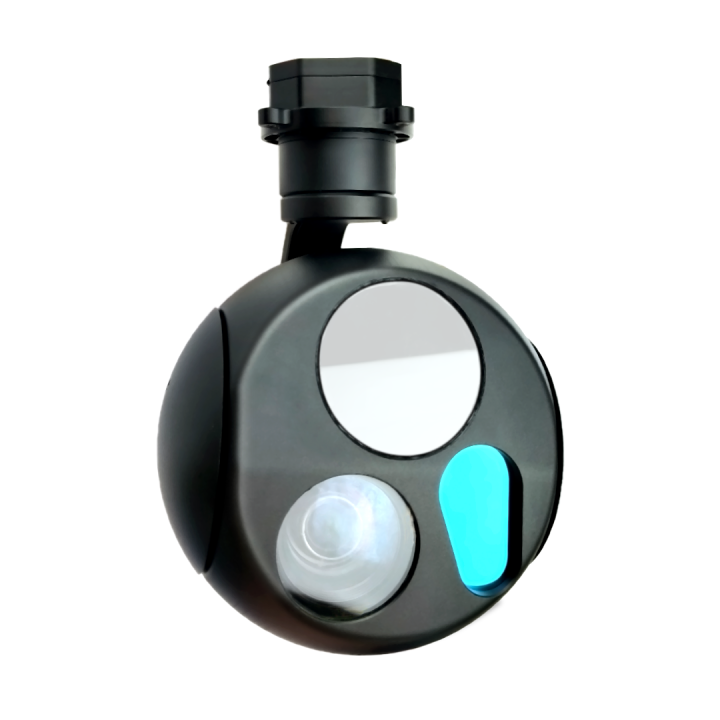

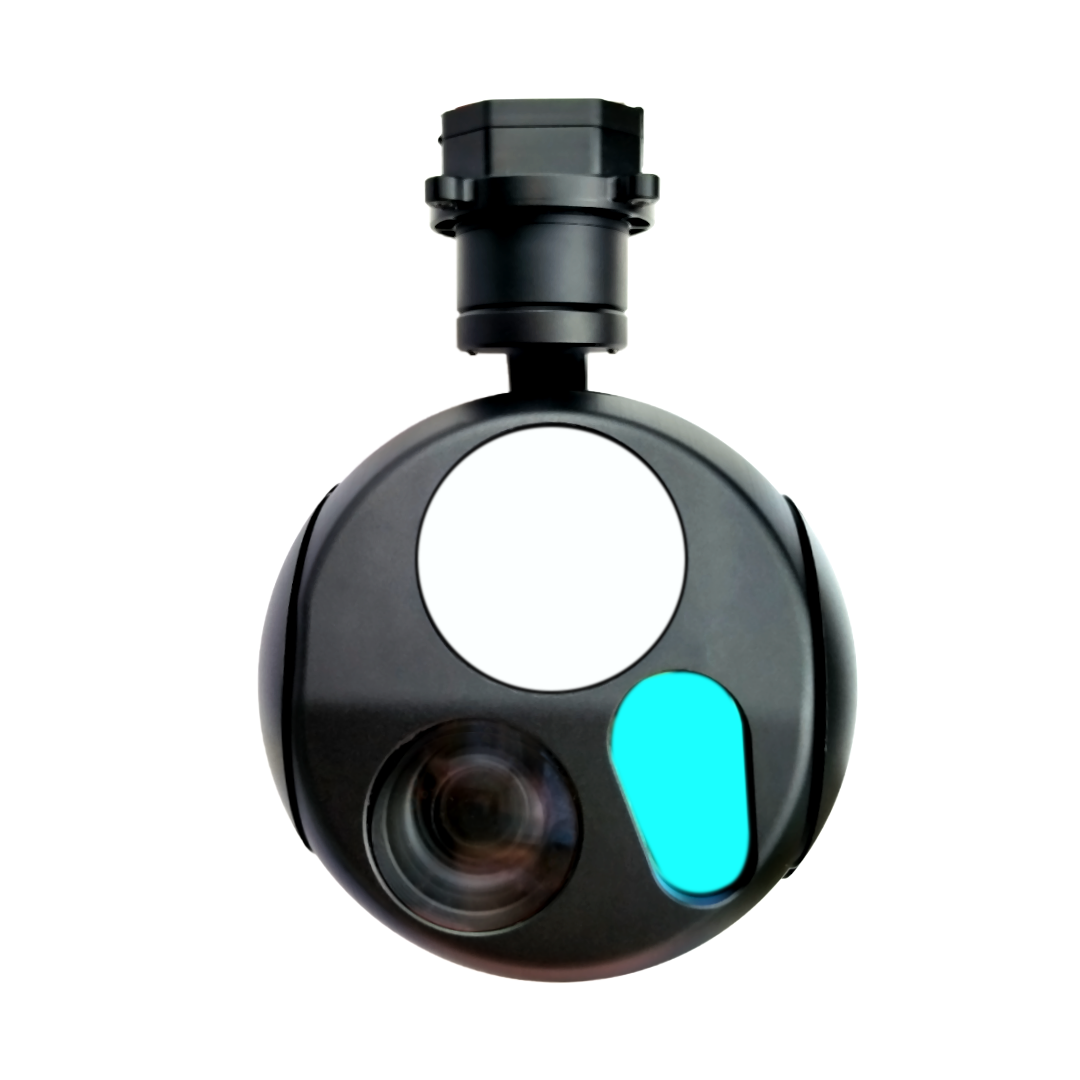

DIP30G650L50 is a professional 3-axis stabilized gimbal integrating 270x Hybrid zoom camera, 640 * 512 thermal imaging and 5KM laser ranging finder. This gimbal compact in design and has the characteristics of high stability, high integration and low power consumption; The visible light camera uses a high-definition effective 2 mega pixels COMS SENSOR; The thermal imaging adopts 50mm lens, a vanadium oxide 640×512 resolution detector, with an internal baffle. The Laser ranging has 5KM high-precision distance measurement function. Using our ground station software, support network and serial port synchronous control PTZ and camera, read ranging data, local TF card storage and network file reading and writing, support two-way synchronous video recording, multiple PIP modes and pseudo color switching.
Voltage：
DC12V-26.2V
Power：
Dynamic 10W
Roll Angle：
﹣45°～ ﹢45°
Pitch Angle：
-30°～ +120°
Yaw Angle：
-280°～ ＋280°
Gimbal Mode：
Support gimbal Lock/Follow mode; One-click return to the initial position
CMOS Size：
1/2.8inch 2MP wide dynamic range CMOS SENSOR
Digital Zoom：
30x Optical Zoom, f=4.5～135 mm ±5%
Focusing Time：
Real time fast focusing, focusing time < 1s
Field Angle（FOV）：
D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5%
Video Output：
IP output; RTSP 1080P video stream, Local TF 1080P recording
Resolution：
640*512 pixel
Pixel spacing：
12μm
Type：
Uncooled infrared microbolometer camera
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@F1.0@25℃
Field of view：
50mm Lens，Angle：8.78°× 7.03°
Measurement Functions：
Highest temperature, lowest temperature, all area temperature display
