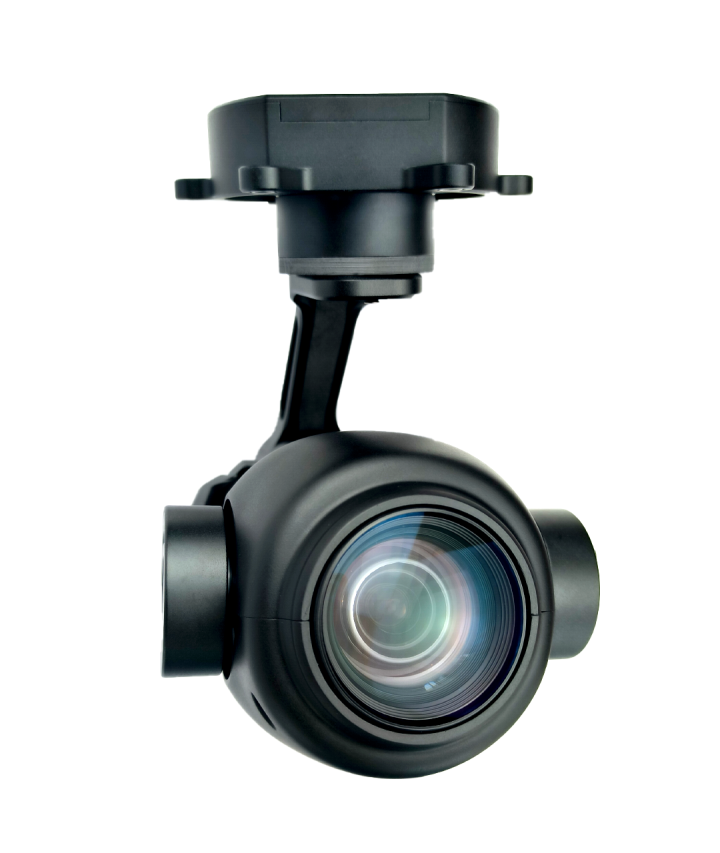

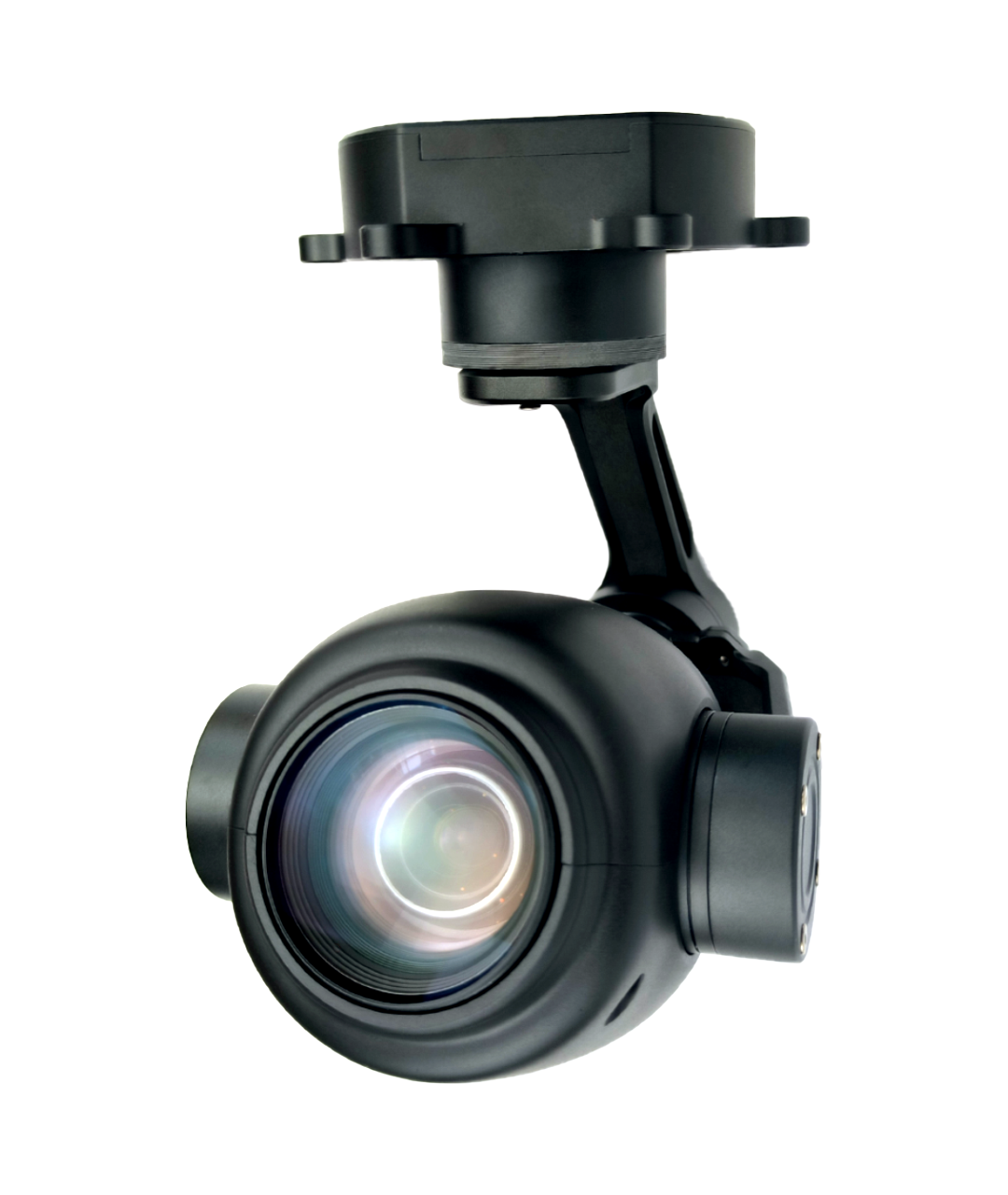

DIP30S4K is a 4K resolution gimbal which integrated 210x Mixed zoom① and 3-axis stabilization. It is 4K IP output gimbal. The ground receiving end outputs RTSP code stream, and the ground sending end software App supports PTZ control and zoom camera control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption. The camera adopts 8MP HD sensor. Support 4K, 1080p local TF storage and wireless transmission.

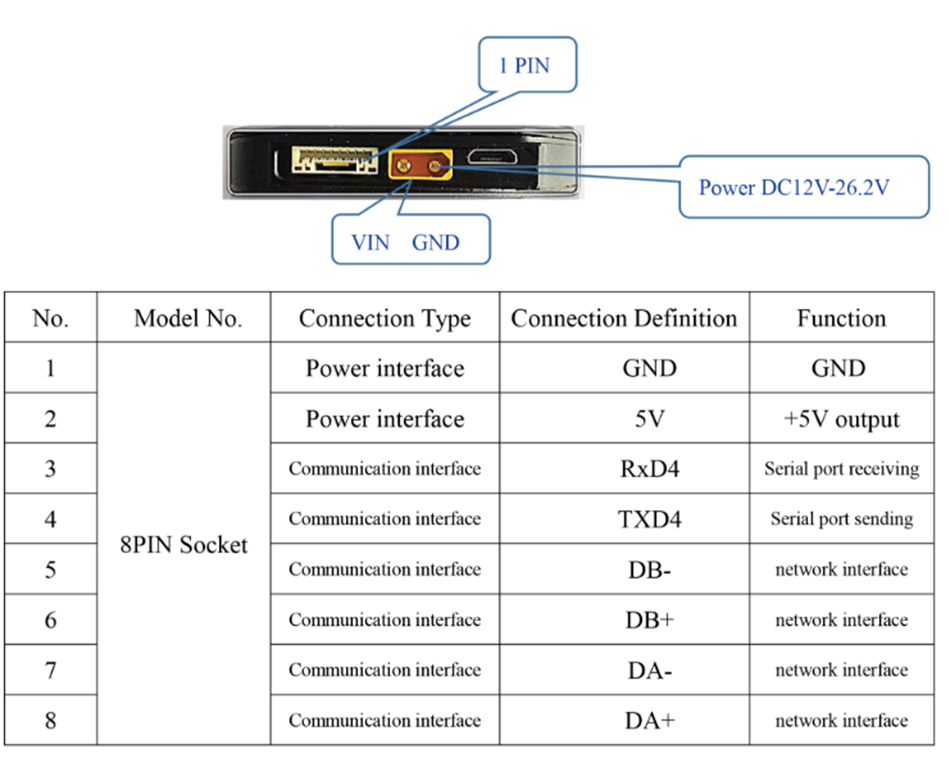

Voltage：
DC12V-26.2V
Power：
Dynamic 10W
Roll angle action range：
-45°～ +45°
Pitch angle action range：
–45°～ +100°
Yaw angle action range：
360 Degree continuous rotation°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal Jitter Angle：
±0.03°
One-Click Restore：
One-click restore to the initial position
SENSOR：
1/2.8 Inch 8MP CMOS SENSOR
Optical Zoom：
30x HD optical zoom lens, f=4.5±10%～135±10%mm
AF Time：
Real time fast focusing, focusing time < 1s
Video Output：
RTSP code stream, IP network output 4K resolution, 1080P video stream
Local Record：
Local TF storage, H.264, 4K, 1080P, video stream
Field Angle (FOV)：
D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5%
