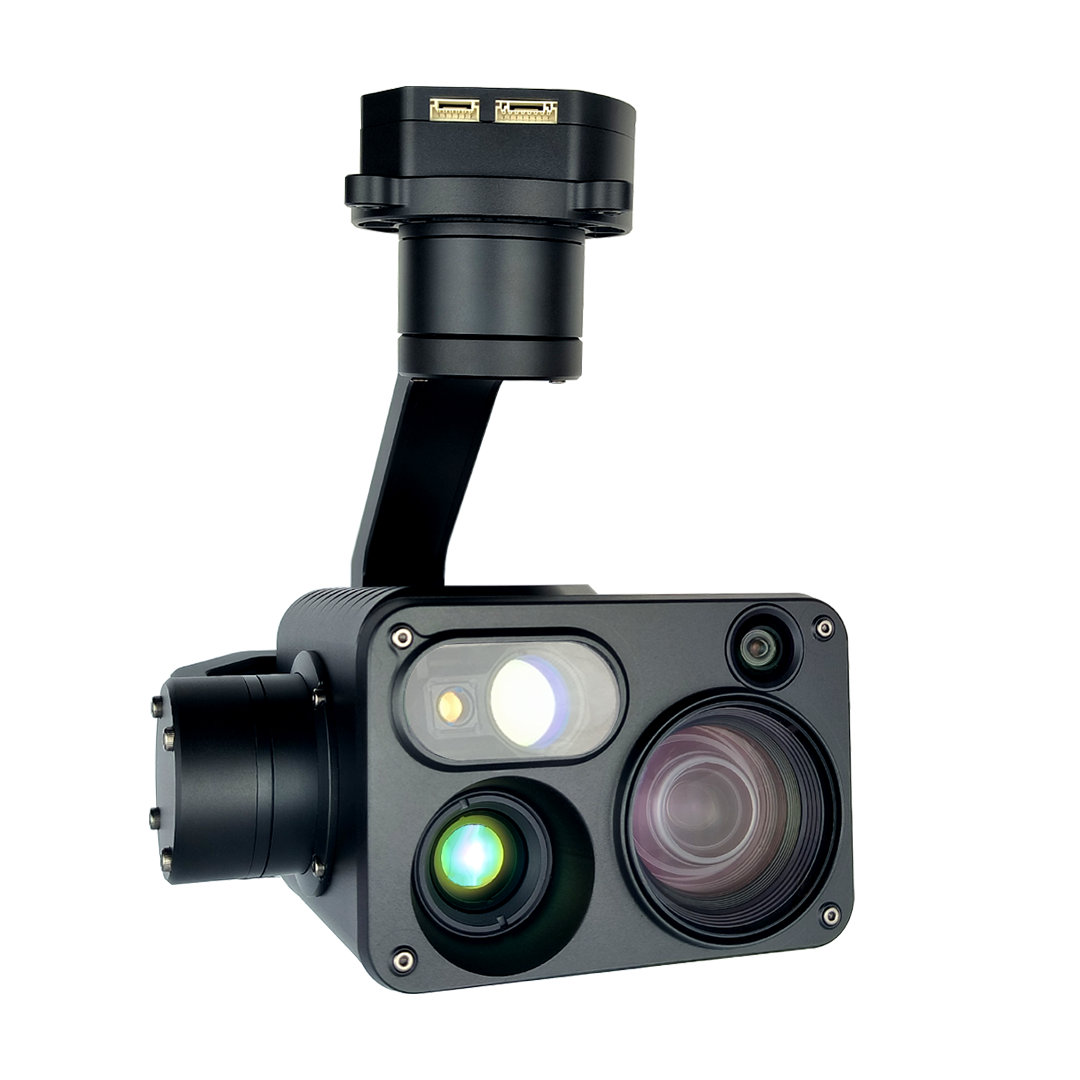

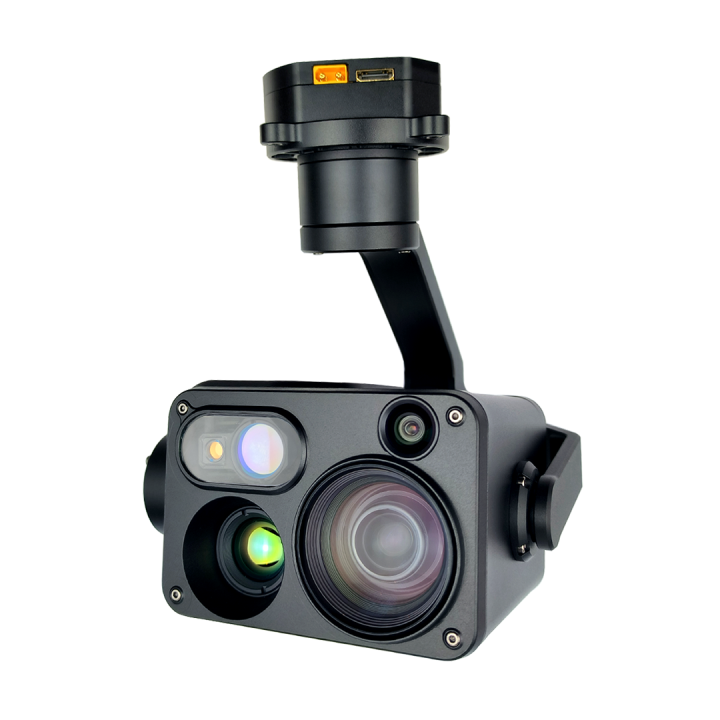

DIT30E is a professional three-axis gimbal that integrates 270x mixed optical zoom, fixed-focus 1080P, 640×512 thermal imaging camera with 19mm focal length and 3000m laser ranging finder.It adopts a compact design and features high stability, high integration, and low power consumption；the thermal imaging uses a vanadium oxide 640×512 resolution detector with a built-in baffle and 3000m high precision laser range finder.Providing ground station software,and supporting picture-in-picture display of dual-channel video,Network ,S.BUS and UART can directly control the gimbal & camera.Supports local TF storage and network file reading and writing operations, supports dual-channel simultaneous recording, supports multiple picture-in-picture modes and pseudo-color switching.
Voltage：
DC12～26.2V
Power Supply：
Dynamic 10W
Roll angle range：
﹣45°～ ﹢45°
Pitch angle range：
-30°～ +120°
Heading angle range：
-280°～ +280°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return to center function：
One-click automatic quick return to initial position
PTZ control speed adjustable：
When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple
Control method：

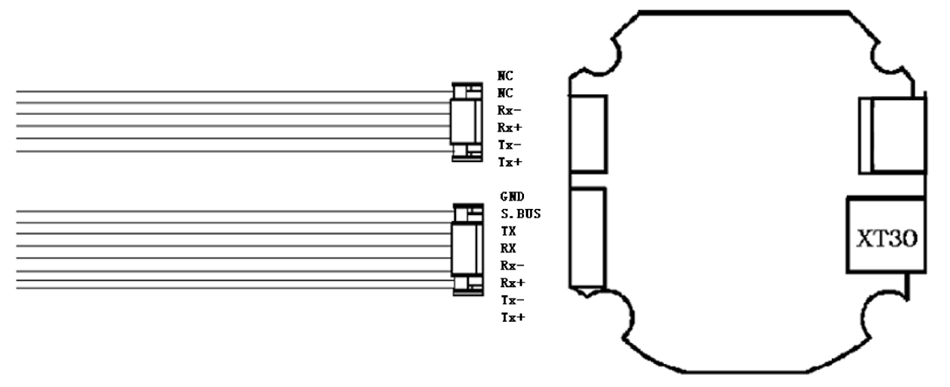

Support network IP control, S.BUS control, serial port control (PWM control is optional)
CMOS Size：
1/2.8 inch 8 mega pixels wide dynamic COMOS Sensor
Optical zoom：
30x HD optical zoom camera, f=4.5～135 mm ±5%
Focus time：
Real-time fast focusing function, focusing time <1S
Video Output：
Network RTSP 1080P stream,local TF 1080Pstorage
Field of View（FOV）：
D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5%
Support mode：
1080P 30fps
CMOS Size：
CMOS SENSOR pixel：2MP
Digital zoom：
Support 9x digital zoom
Compressed storage mode：
H264，H265,Video streaming local TF storage
（FOV）：
FOV： 94.6°× 86.6°
Support mode：
1080P@30fps
Resolution：
640*512 pixel
Pixel spacing：
12μm
Type：
Uncooled focal plane microbolometer
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@F1.0
Field of view：
19mm focal length，FOV：22.9°× 18.4°°
Measurement Functions：
Support global temperature measurement, optional full pixel temperature saving function
