DIU05L12 is a high-precision three-axis stabilized camera gimbal integrated with a 45X hybrid zoom visible camera and a 1200m laser range finder, for providing high stability, tiny figure, light weight and low power consumption. The camera uses a 4 mega pixels sensor and supports UART, S.BUS and IP control, back up with TF card pictures and videos storage. The system supports RTSP video format and both IP output.

Voltage：	DC 12V-26.2V	Power：	Static 5W
Roll Angle Range：	-45°～+45°	Pitch Angle Range：	-40°～+100°
Course Angle Range：	-145°～+145°	Pitch and Roll Angle Jitter：	±0.02°
Horizontal Angle Jitter：	±0.03°	One-click Return Function：	Quick return to initial position with one click
Adjustable PTZ Speed：	The current speed mode based on the multiple zoom of camera	Control Modes：	IP and UART and S.BUS control（or PWM for Option）

CMOS Size：	1/3″ CMOS SENSOR: 4 Mega Pixels
Optical zoom：	5x HD optical zoom lens, f=5±10%～25±10%mm
Focusing Time：	Real time fast focusing，focusing time <1S
Video Format：	RTSP 1080P and Local TF 1080P record
Field Angle(FOV)：	D : WIDE 61.1º TELE 12.41º    H : WIDE 50.12º TELE 10.81º    V : WIDE 38.07º TELE 8.13º
Support Mode：	1080P 30fps

Laser wave：	905nm (class 1 laser)
Detect range：	5～1200m
Accuracy / Resolution：	±1m

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

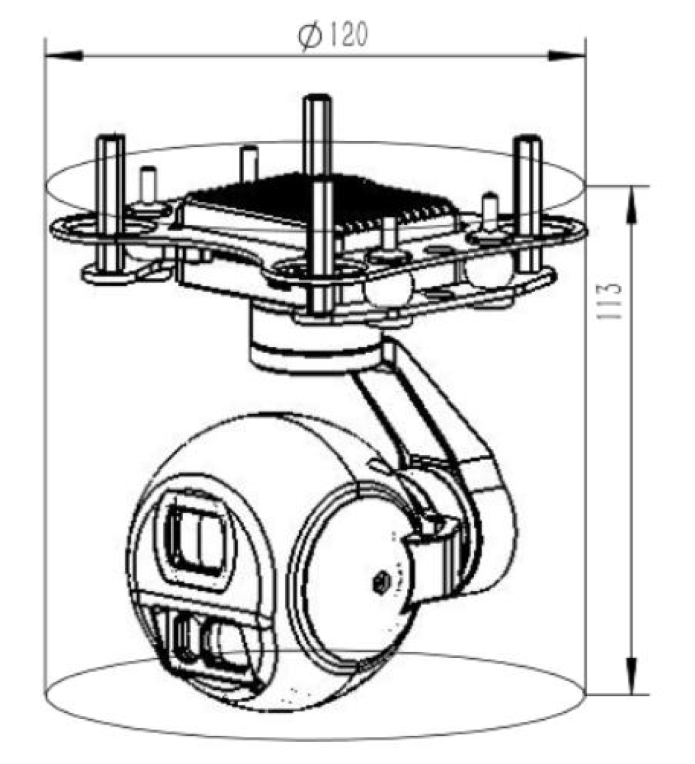

Dimensions：	120mm × 113mm	Operating Temperature：	-10℃ to +45℃ / 20% to 80% RH
Storage Temperature：	-20℃ to +60℃ / 20% to 95% RH	Weight：	240±10
