MDIY10A613D15N Four-in-one Gimbal Camera with dual output
China Moneypro

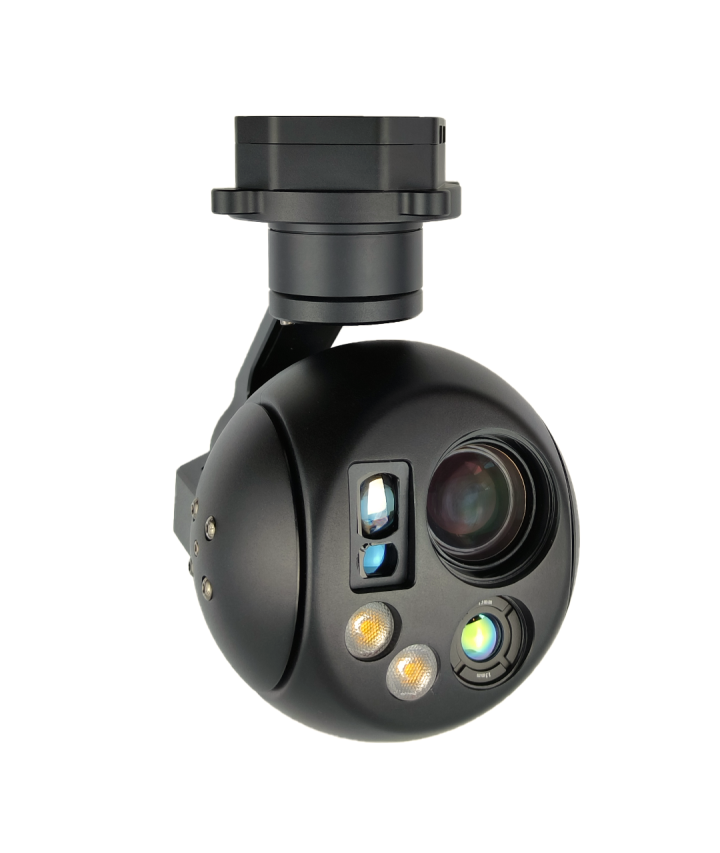

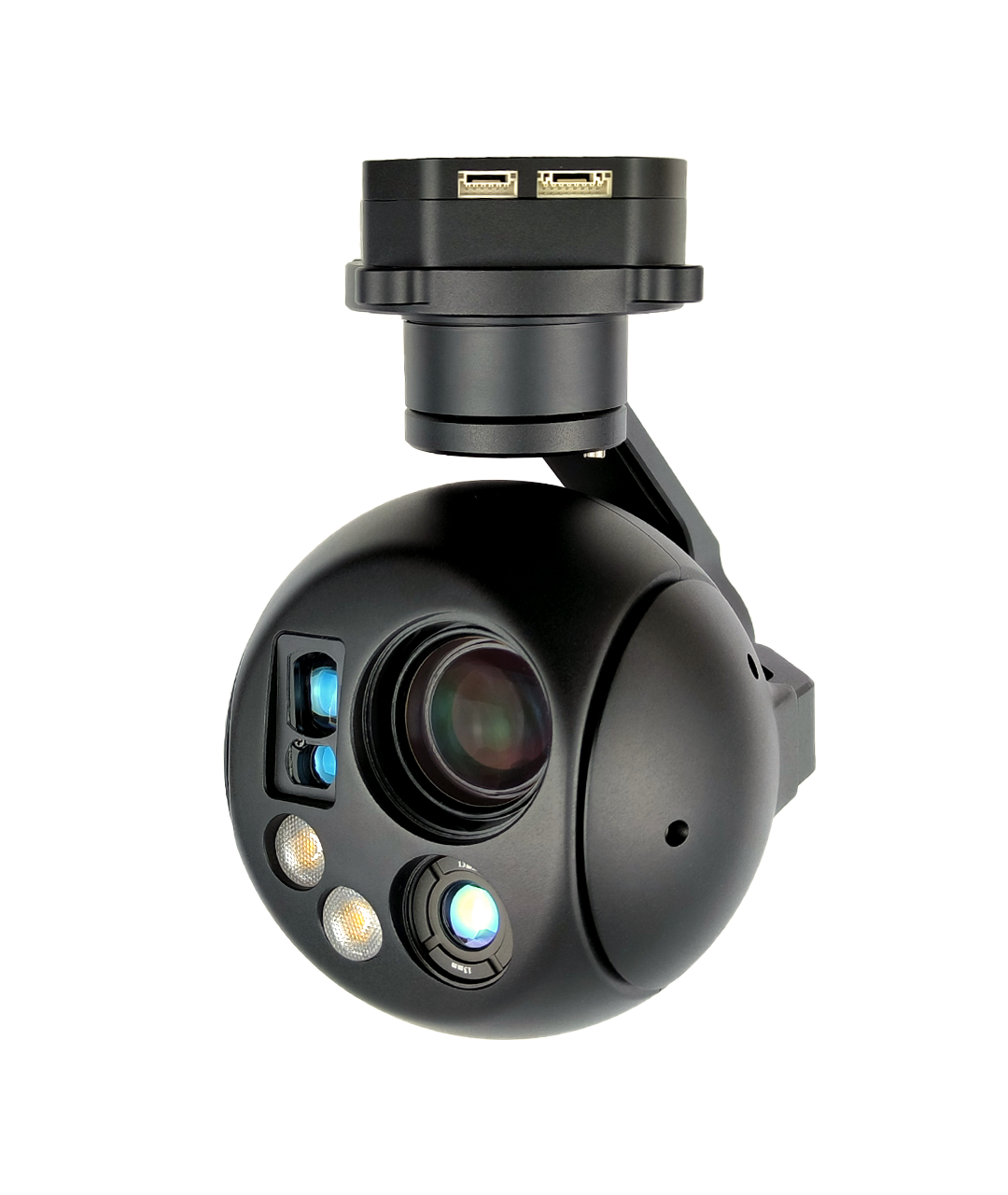

The DIY10A613D15N is a four-in-one gimbal camera system that integrates a 90x hybrid zoom (10x Optical Zoom + 9x Digital Zoom), a 13mm focal length 640×512 thermal imaging sensor, a 5-1500 meters laser rangefinder, supplementary lights with a high-precision professional three-axis stabilized gimbal. It uses Ethernet (RTSP)output. The gimbal uses a high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight, and low power consumption. The visible light camera uses a wide dynamic SENSOR with 2 million effective pixels, while the thermal imaging uses a vanadium oxide detector. The camera system supports RTSP stream real-time video output, multiple picture-in-picture modes and multiple pseudocolor displays, and it also supports global temperature measurement functions. You can control the camera and the gimbal via serial port① (UART), UDP and S.BUS. The camera outputs both visible light video and thermal imaging video, supporting video recording and photography on Micro-SD card and network remote accessing to stored videos and pictures on micro-SD card.
| Voltage： | DC12V-26.2V | Power Supply： | Static 7.2W |
| Roll angle range： | ﹣45°～ ﹢45° | Pitch angle range： | -30°～ +100° |
| Heading angle range： | -285°～ +285° | Angle jitter in pitch and roll directions： | ±0.02° |
| Horizontal angle jitter： | ±0.03° | One-click return to center function： | One-click automatic quick return to initial position |

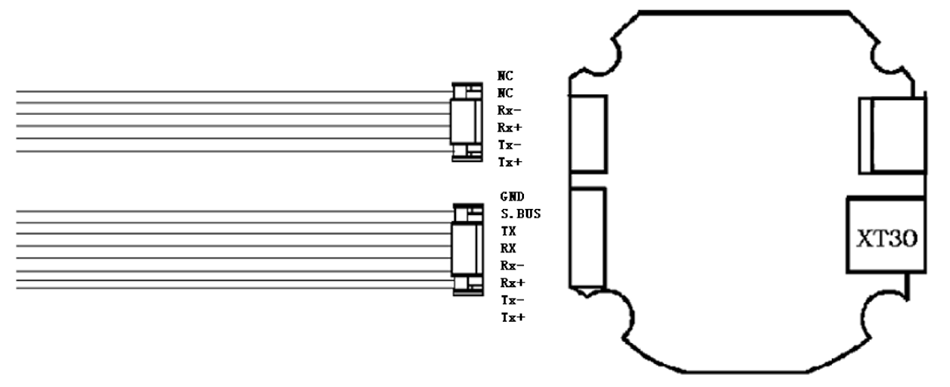

| Adjustable Gimbal Speed： | When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification | Control Mode： | UDP/UART/SBUS (OPTIONAL PWM) |
| CMOS Size： | 1/3″ CMOS SENSOR: 4 Mega Pixels |
| Optical zoom： | 10 x optical zoom+9x digital zoom; f=5.15±5%～47.38±5%mm |
| Focus time： | Real-time fast focusing function, focusing time <1S |
| Video Output： | Ethernet (RTSP) @1080P/30FPS |
| Field of View（FOV）： | D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7.00º±5% V : WIDE 35.0º±5% TELE 3.97º±5% |
| Resolution： | 640*512 pixel |
| Pixel spacing： | 12μm |
| Type： | Uncooled Vanadium Oxide Detectorr |
| Wavelength range： | 8～14μm |
| Thermal sensitivity (NETD)： | ≤50mk@F1.0@25℃ |
| Field of view： | 13mm lens，FOV：33°× 26° |
| Temperature Measurement： | Global temperature measurement,Optional full-pixel temperature saving function |
| Infrared Wavelength： | 905nm （classⅠSafety laser） |
| measuring range： | 5—1500 meters |
| Accuracy/resolution： | ≤1m |
| Min tracking target size： | 16×16 pixels | Max tracking target size： | 256×256 pixels |
| Target Memory Time： | 2 seconds | Tracking speed： | 50 Pixel/Frame max |
| Simultaneous detection qty： | 100 targets max | Recognized categories： | Human and Vehicle |
| Min detection target size： | 32×32 pixels | Debounce： | Dynamic stabilization |
;

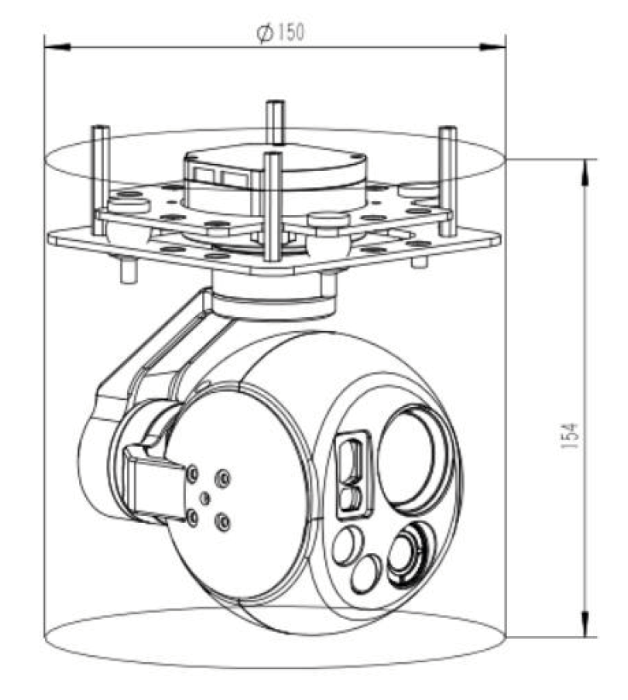

| Dimensions： | 150mm×154mm | Working Condition： | -10℃ to +60℃ / 20% to 80% RH |
| Storage Environment： | -20℃ to +80℃ / 20% to 95% RH | Weight： | 650±20g |
