MDIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output
China Moneypro
DIY10G12 is a dual sensor integrated camera system that integrates a 90x mixed zoom ①visible light camera, 25mm focal length 1280*1024 infrared thermal camera and a high-precision three-axis stabilizing PTZ. Ethernet RTSP streaming video output, support SBUS/UART/UDP/PWM control. PTZ adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera adopts high-definition SENSOR with an effective pixel count of 2 million, and the thermal camera uses a 1280*1024 resolution uncooled vanadium oxide detector with a baffle design. The camera also supports picture-in-picture (PIP) mode, multiple false color modes and temperature measurement. You can control the camera and PTZ simultaneously using the serial port and network. Supports distance measurement data reading,local TF storage and network file read/write operations, dual channel synchronous recording.
| Voltage： | DC12～26.2V | Power： | Dynamic 6W |
| Pitch Angle： | -20°～+110° | Yaw Angle： | 600° rotation |
| Gimbal mode： | one click centering, lock/follow mode | Tilt and roll direction angle jitter： | ±0.02° |
| Horizontal angle jitter： | ±0.03° | Control Modes： | Speed adaptive and controllable, external control via network or serial port |
| CMOS Size： | 1/2.8 INCH 2 mega pixel wide dynamic CMOS SENSOR |
| Optical Zoom： | 10x HD optical zoom lens, f=5.15±5%~47.38±5%mm |
| AF Time： | Real time fast focusing, focusing time < 1s |
| Video Output： | Network output RTSP 1080P stream, local TF 1080P storage |
| Field Angle(FOV)： | D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7º±5% V : WIDE 35º±5% TELE 3.97º±5% |
| Support Mode： | 1080P 30fps |
| Resolution ratio： | 1280X1024 pixel |
| Space between pixels： | 12μm |
| Type： | Uncooled vanadium oxide |
| Wavelength Range： | 8～12μm |
| Thermal sensitivity(NETD)： | ≤50mk@F1.0 |
| Contrast, pseudo color： | Adjustable, multiple pseudo color modes |
| Field angle： | 25mmLens，Field of view：34.2°×27.6° |
| Min tracking target size： | 16×16 pixels | Max tracking target size： | 256×256 pixels |
| Target Memory Time： | 2 seconds | Tracking speed： | 50 Pixel/Frame max |
| Simultaneous detection qty： | 100 targets max | Recognized categories： | Human and Vehicle |
| Min detection target size： | 32×32 pixels | Debounce： | Dynamic stabilization |

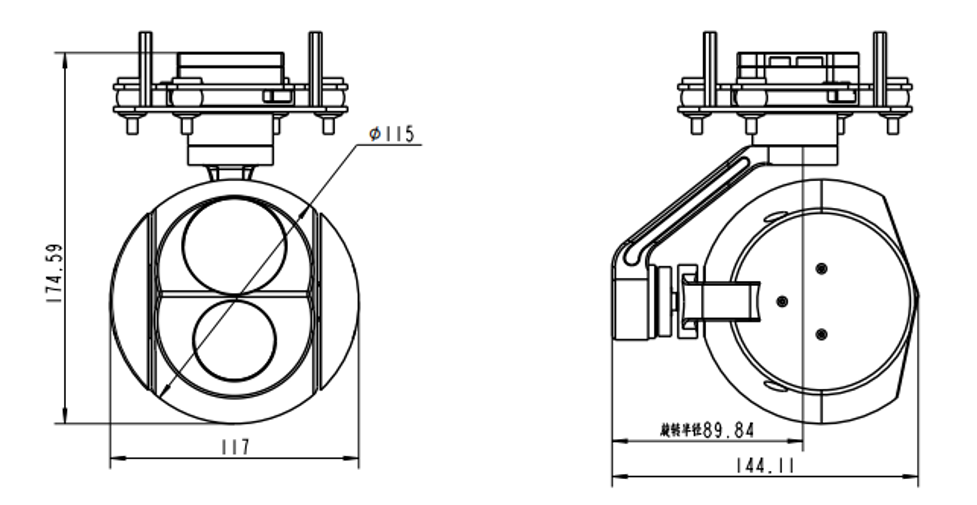

| Dimensions： | 117mm * 145mm*175mm | Operating Environment： | -10℃ to +55℃ / 20% to 80% RH |
| Storage Condition： | -20℃ to +60℃ / 20% to 95% RH | Weight： | 770±20g |
