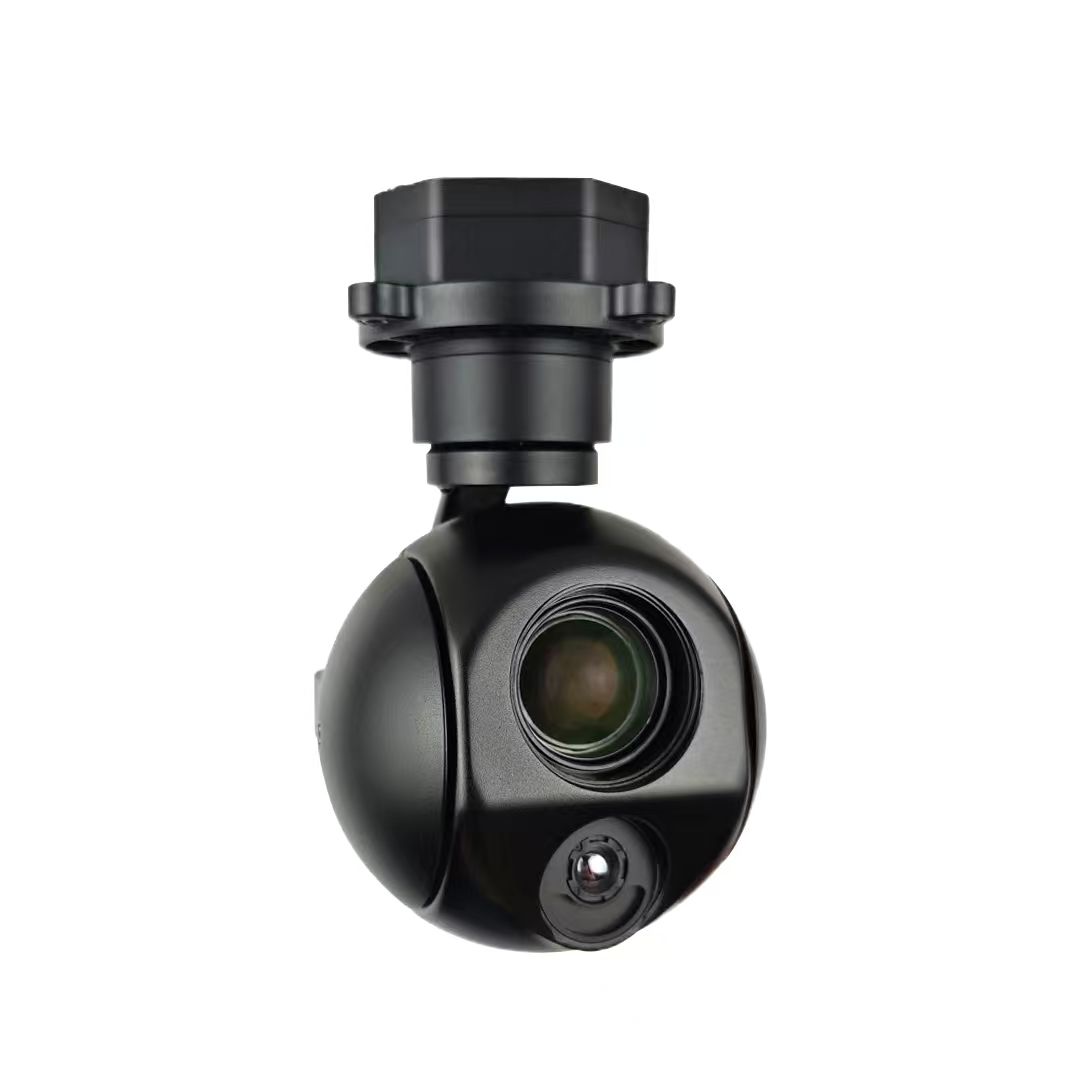

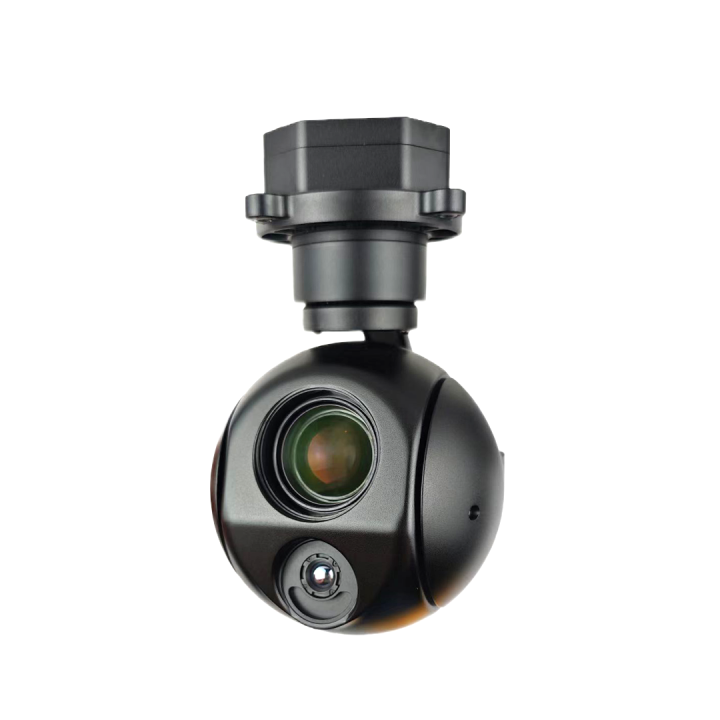

DIY10G207-E is a 90x hybrid zoom electronic stabilization camera gimbal that integrates a 7mm lens 256 × 192 vanadium oxide infrared thermal imager and high-precision three-axis stability. It supports IP and HDMI output, and has the characteristics of high stability, compact size, light weight, and low power consumption. The visible light camera uses a 200M pixel WDR sensor, supports serial port, S.BUS, and IP control, and uses TF card storage for backup. It also supports various PIP modes, pseudo color modes, and global temperature measurement.
Voltage：
DC 12V-26.2V
Power：
Dynamic 6.5W
Roll Angle action range：
-45°～ +45°
Pitch action range：
-45°～ +100°
Yaw angle action range：
-280°~ +280
Tilt and roll direction angle jitter：
±0.02°
Horizontal angle jitter：
±0.03°
One-key return function：
Quick return to initial position with one click
Adjustable PTZ Speed：
The current speed mode based on the multiple zoom of camera

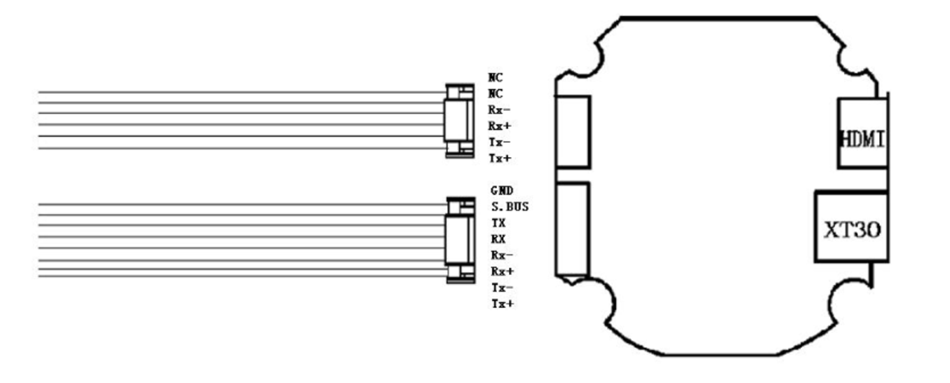

Control Modes：
IP、UART、SBUS(or PWM for Option)
SENSOR：
1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR
Optical Zoom：
10x HD optical zoom lens, f=5.15±5%～47.38±5%mm
AF Time：
Real time fast focusing, focusing time < 1s
Video Output：
RTSP stream IP network output, 1080P video stream local TF card storage
Local Record：
photos and videos storage on local TF card; 1080P video stream real-time output
Field Angle (FOV)：
D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7.00º±5% V : WIDE 35.0º±5% TELE 3.97º±5%
