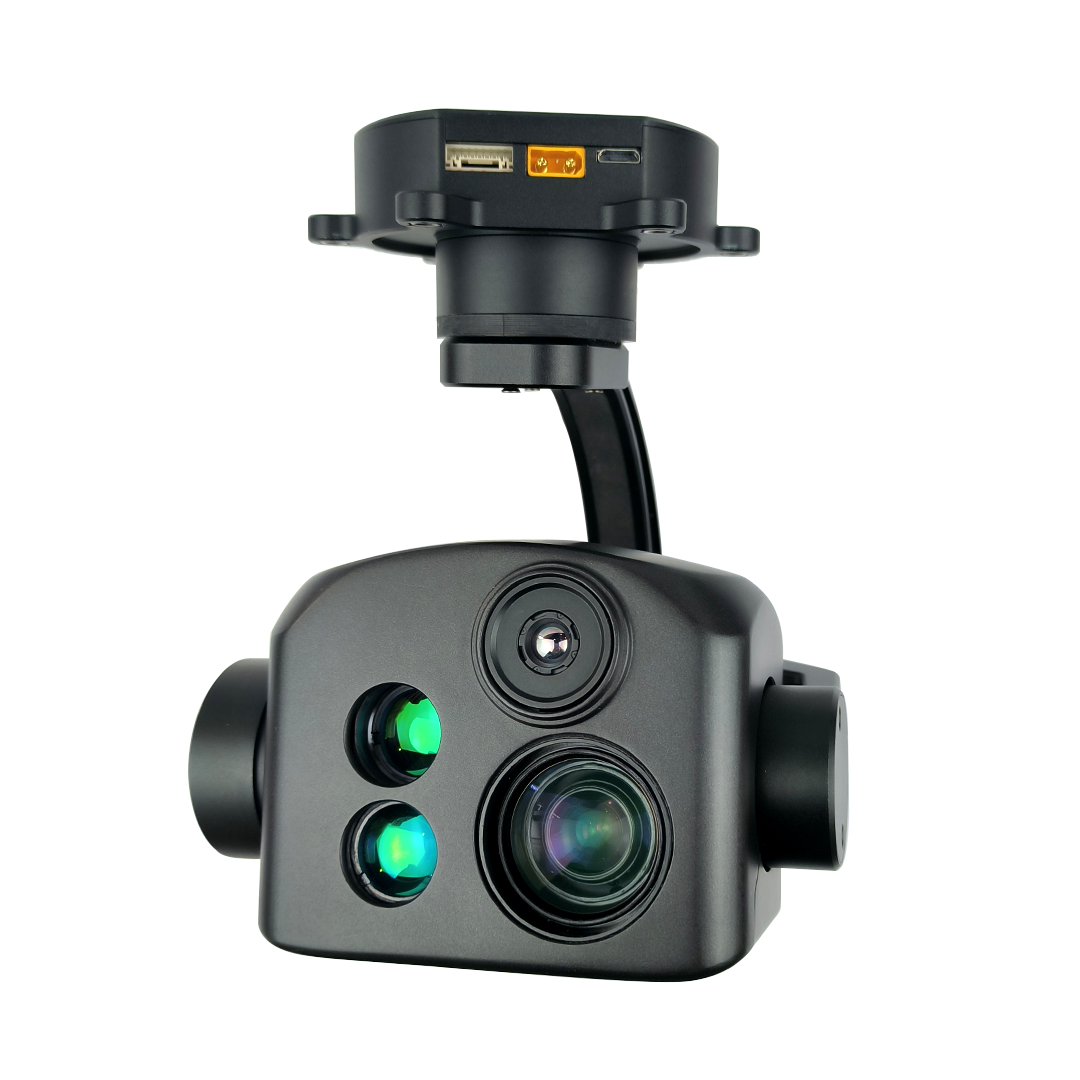

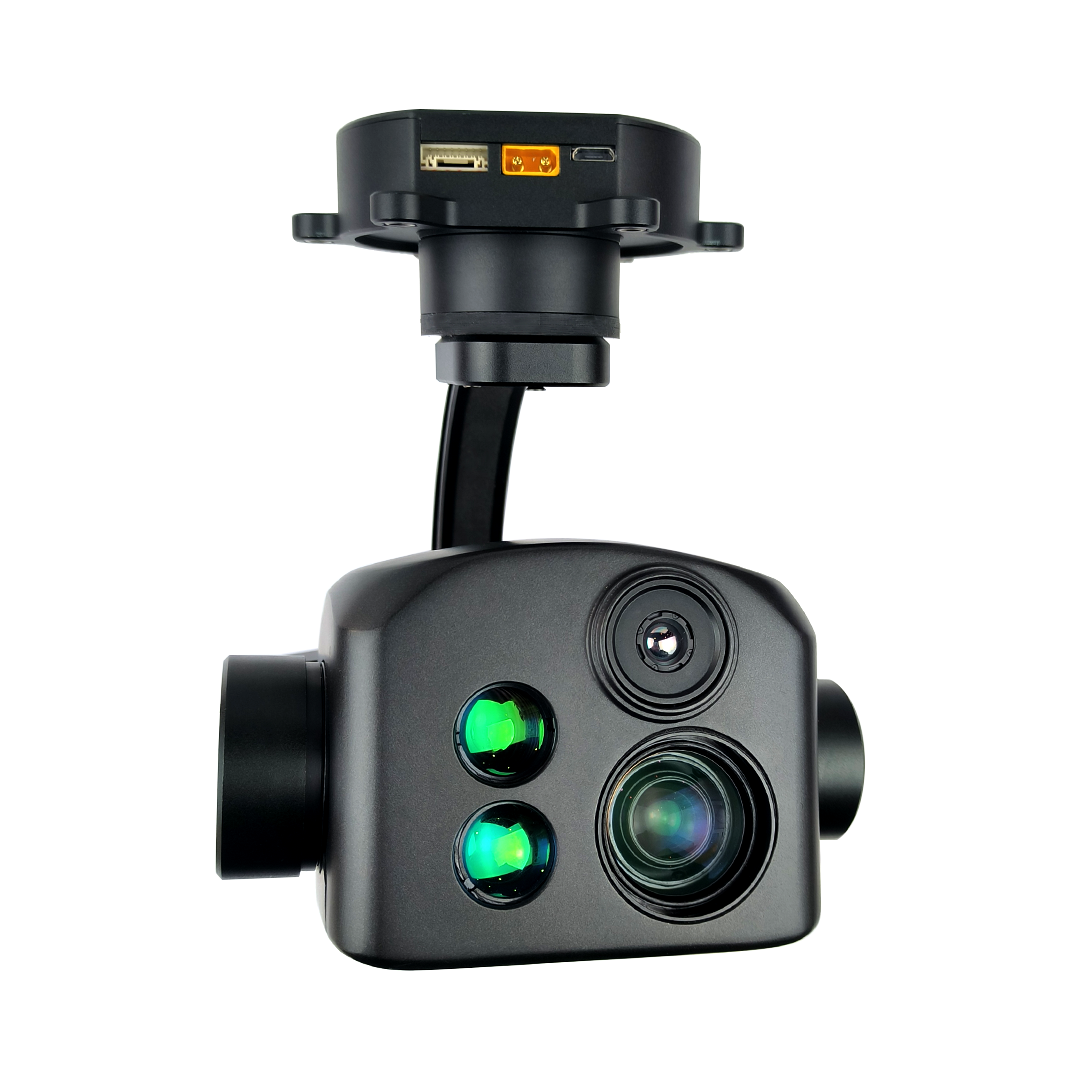

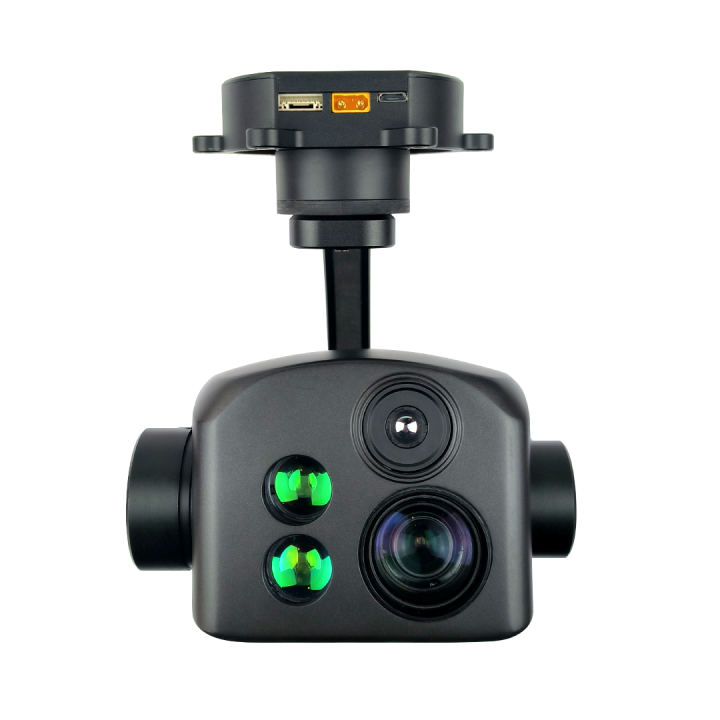

DIY10G207L15 is a dual sensor gimbal camera integrating 90x Hybrid Zoom① camera, 7mm focal length256 ×192 thermal imaging, a high-precision 1500m Laser rangefinder and a professional 3-axis stabilization PTZ. It adopts network IP output and control. The device adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption; The visible light camera adopts low illumination sensor 2 megapixels COMS SENSOR; The thermal imaging adopts 256 ×192 resolution vanadium oxide detector. The system supports RTSP code stream output, multiple pseudo modes and picture in picture switch. Both serial port and network can control the camera and PTZ, and support local TF 2-ways video and photography.
Voltage：
DC12V-26.2V
Power：
Dynamic 7W
Roll angle action range：
-45°～ +45°
Pitch angle action range：
-45°～ +120°
Yaw angle action range：
360°
Angle jitter in pitch and roll direction：
±0.02°
Horizontal angle jitter：
±0.03°
One click return function：
One click automatic quick return to the initial position
PTZ control speed adjustable：
When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera
Control mode：

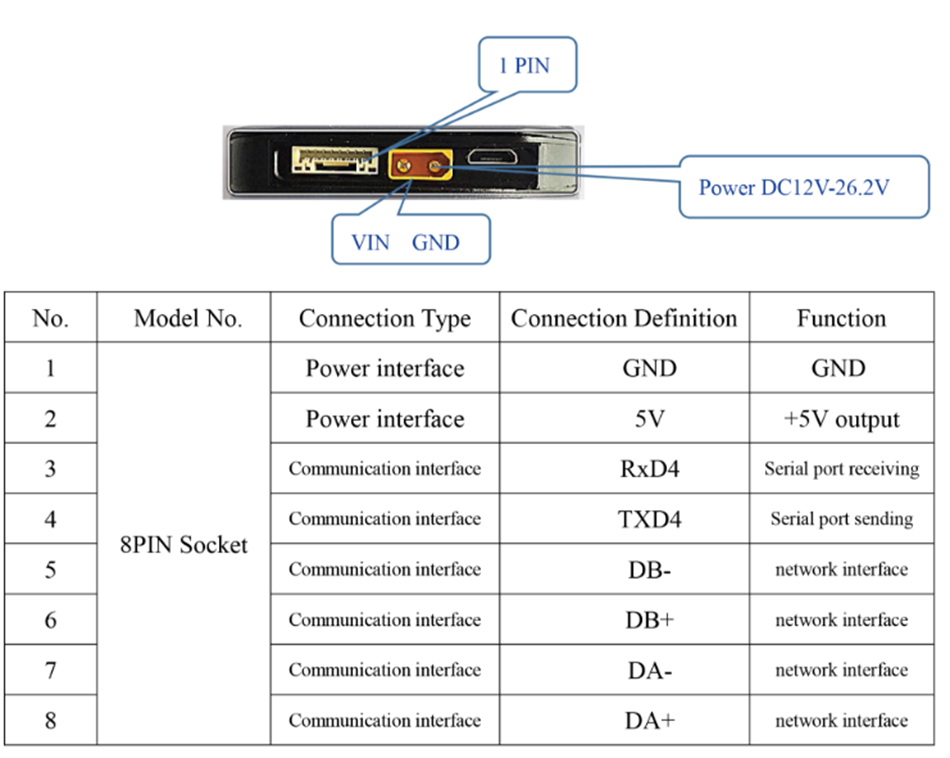

Support network IP control and Serial port control (Optional SBUs and PWM control)
CMOS Size：
1/2.8 inch 2 MP wide dynamic CMOS SENSOR
Optical Zoom：
10x HD optical zoom lens, f=5.15±5%～47.38±5%mm
focusing time：
Real time focusing, fast focusing time < 1s
Field Angle（FOV）：
D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7.00º±5% V : WIDE 35.0º±5% TELE 3.97º±5%
Video output：
Network RTSP 1080p output, video stream local TF storage
Resolution：
256×192 Pixels
Pixel spacing：
12μm
Type：
Uncooled vanadium oxide infrared thermal imagere
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤65mk@25℃@F1.0
Field of view：
7mm Lens, FOV:25°× 18.8°
Infrared wavelength：
905nm (Class I safety laser)
Measuring range：
5-1500 m (not allowed to illuminate objects less than 5 m)
