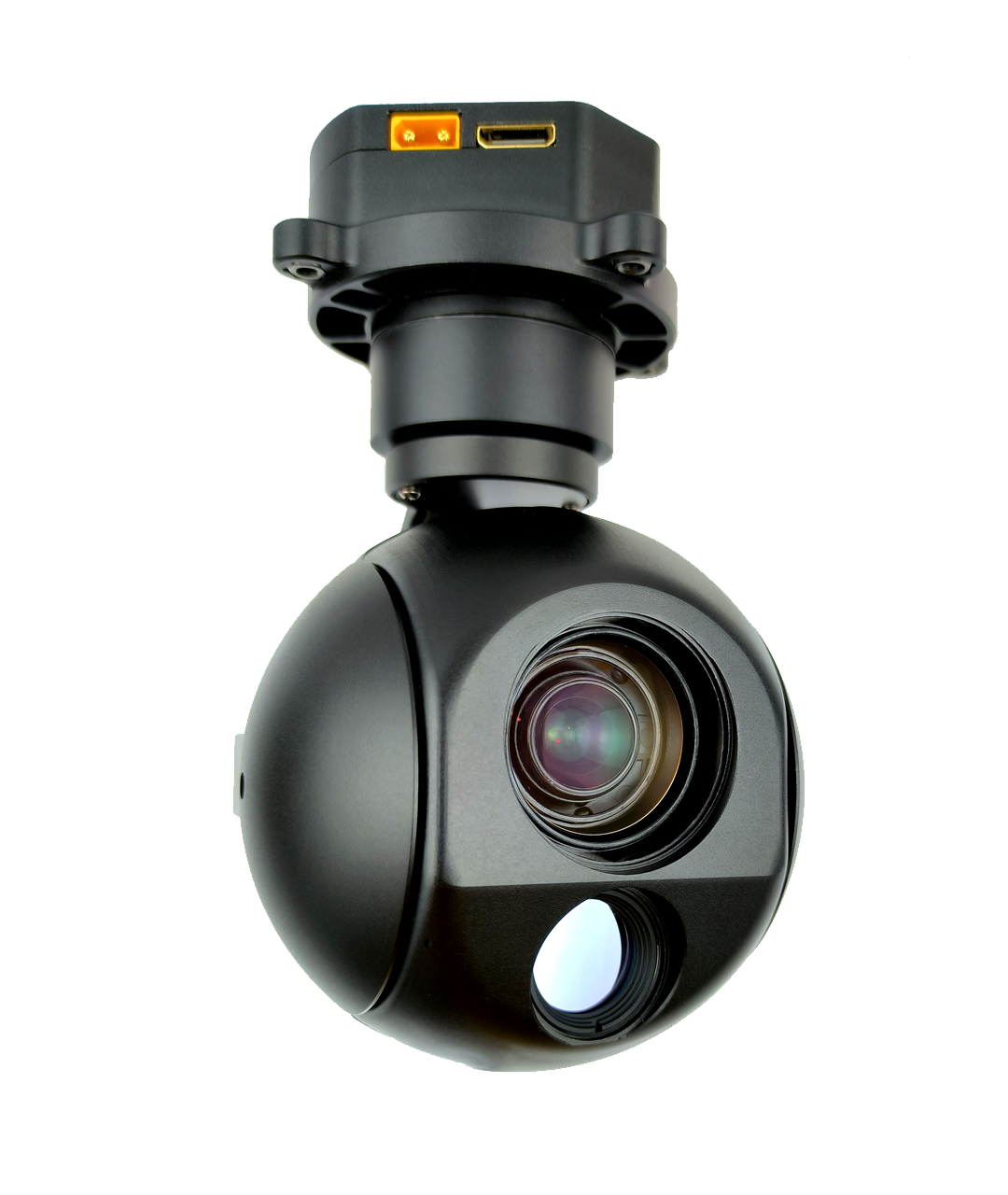

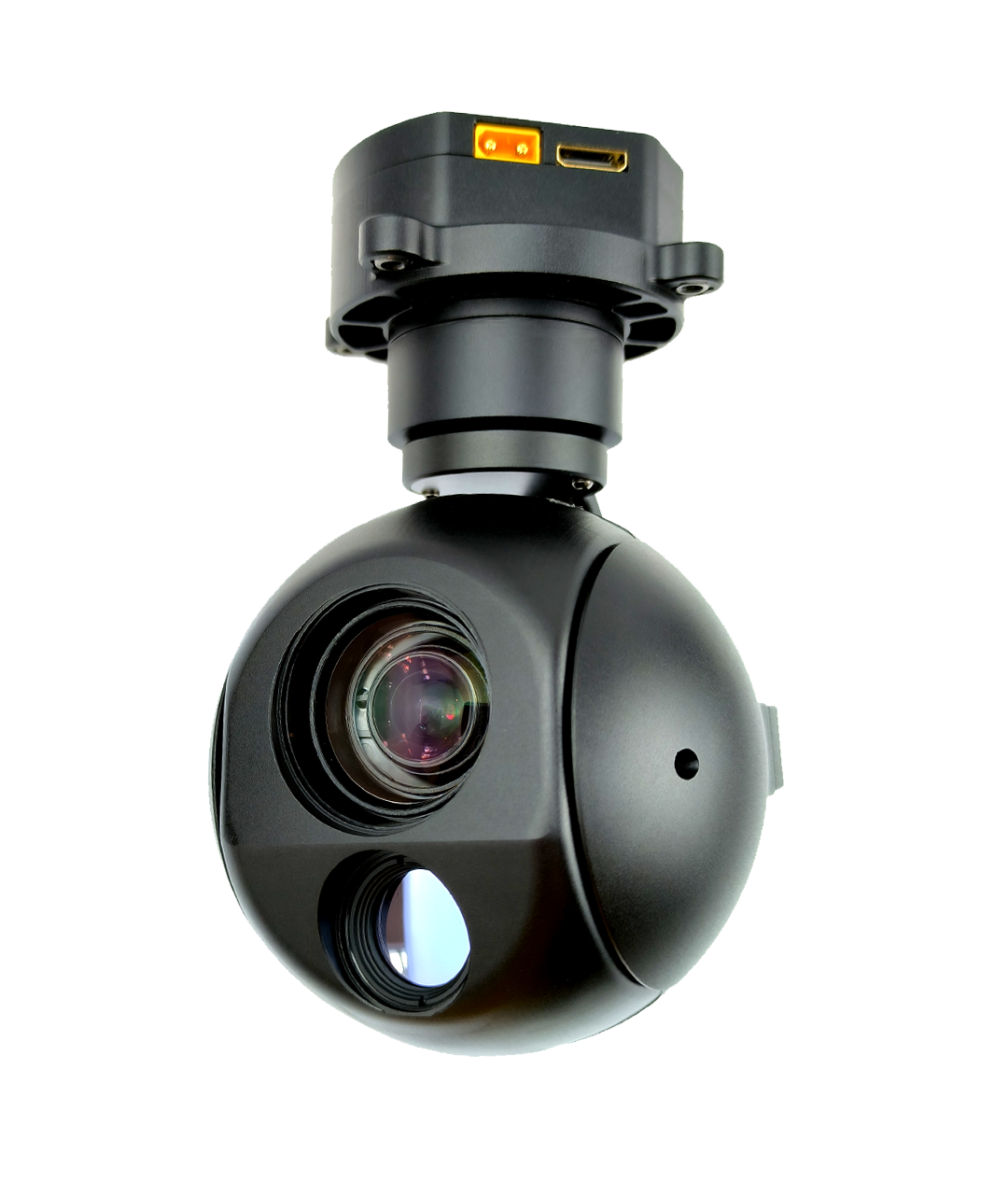

DIY10G613-E is an integrated dual sensor camera system which features a total of 90x hybrid zoom camera, a 13mm focal length 640*512 thermal imaging and a professional high-precision three-axis stabilization gimbal. It uses ethernet IP output and IP control. The gimbal uses a high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight, and low power consumption. The visible light camera uses an 2 million effective pixel wide dynamic CMOS sensor. The thermal imaging uses a 640×512 resolution vanadium oxide detector. The system supports network RTSP picture-in-picture stream output, supports multiple picture-in-picture modes, multiple pseudo-color displays, and global temperature measurement functions. Both the serial port② and the network can control the camera and the gimbal, and it supports local micro-sd card dual-channel video recording and photography.
Voltage：
DC 12V-26V
Power：
Dynamic 6.5W
Roll Angle action range：
-45°～ +45°
Pitch action range：
-45°～ +100°
Yaw angle action range：
-140°～ +140°
Tilt and roll direction angle jitter：
±0.02°
Horizontal angle jitter：
±0.03°
One-key return function：
One-click automatic quick return to the initial position
The speed of the gimbal control is adjustable：
The gimbal adjusts its rotation speed adaptively based on the current speed mode and the zoom level of the visible-light camera.
Control mode：

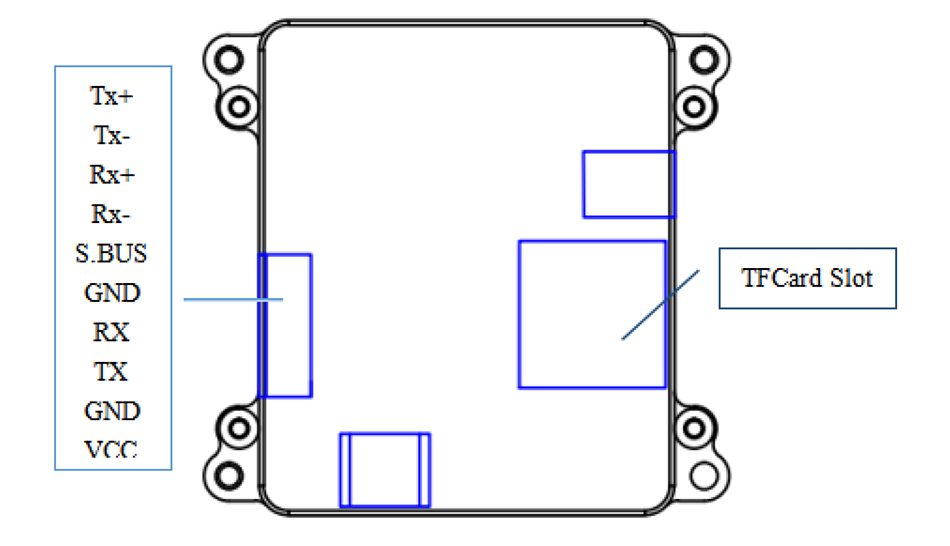

Support network IP control, SBUS control, serial port control (optional PWM control)
SENSOR：
1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR
Optical Zoom：
10x HD optical zoom lens, f=5.15±5%～47.38±5%mm
AF Time：
Real time fast focusing, focusing time < 1s
Video Output：
RTSP stream IP network output, 1080P video stream local TF card storage
Local Record：
photos and videos storage on local TF card; 1080P video stream real-time output
Field Angle (FOV)：
D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7.00º±5% V : WIDE 35.0º±5% TELE 3.97º±5%
Support Mode：
1080P 30fps
Resolution ratio：
640×512 pixel
Space between pixels：
12μm
Type：
Uncooled vanadium oxide
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤50mk@25℃@F1.0
Field angle：
13mm camera lens, FOV：32.9°x26.6°
Measurement function：
Support global temperature measurement and optional full pixel temperature saving function
