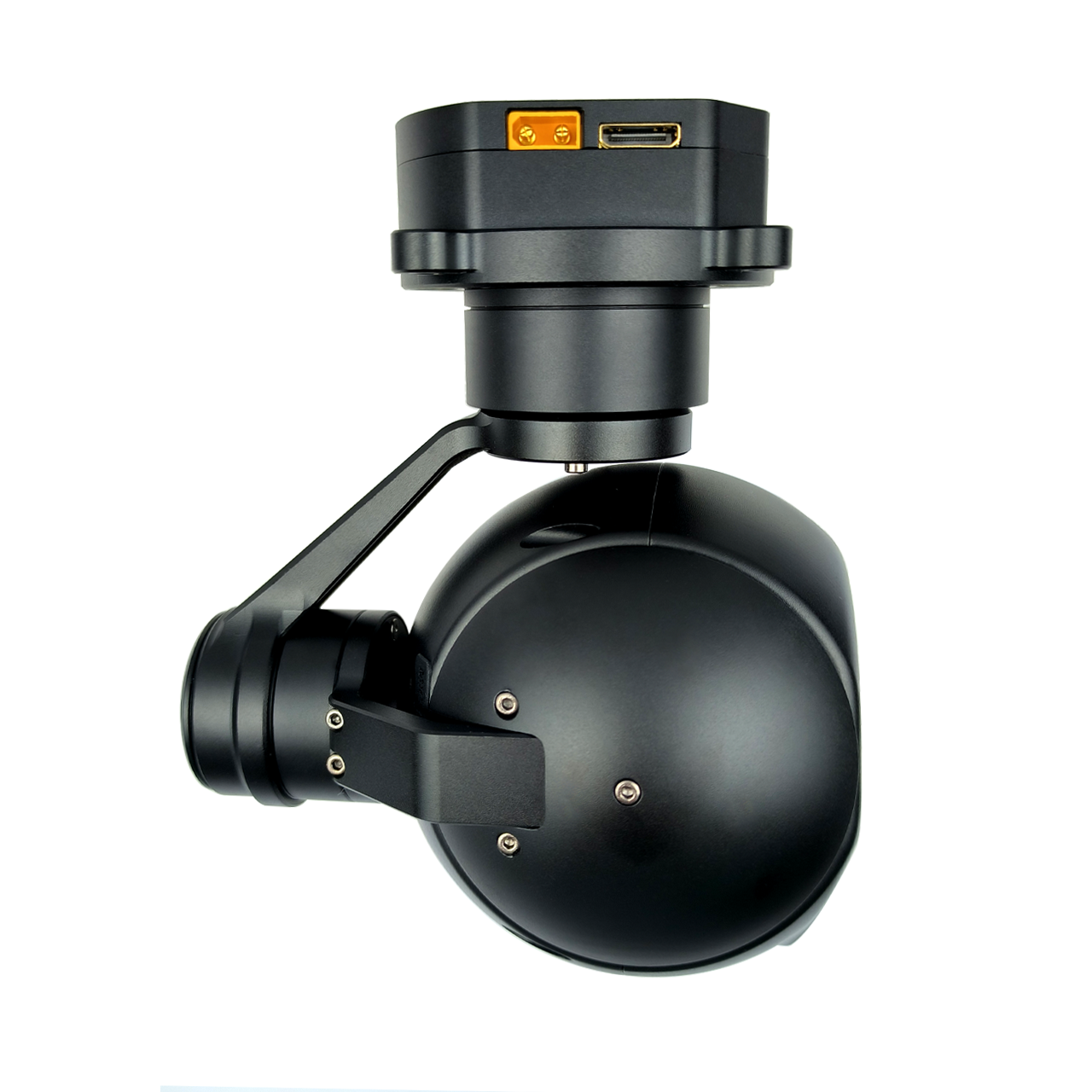

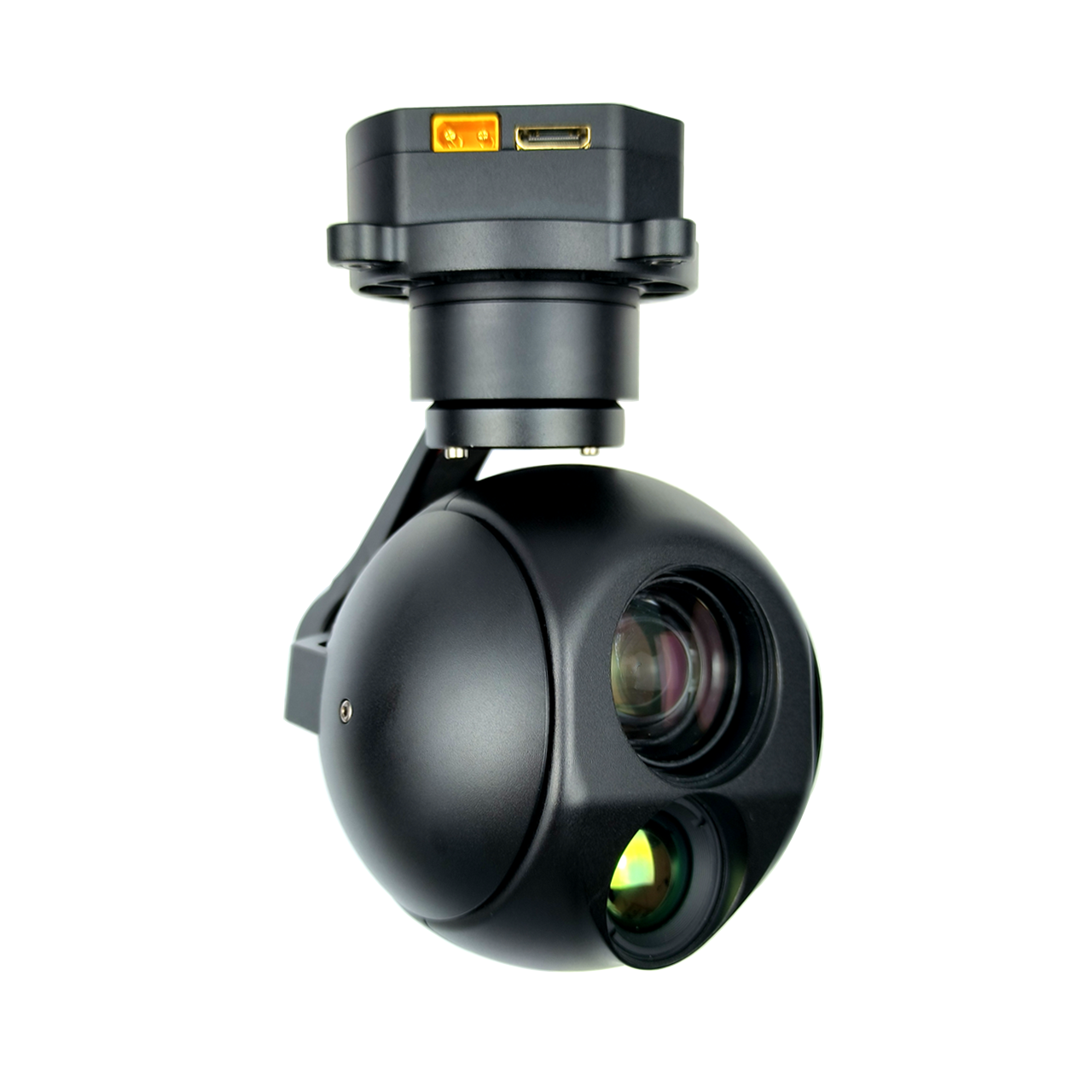

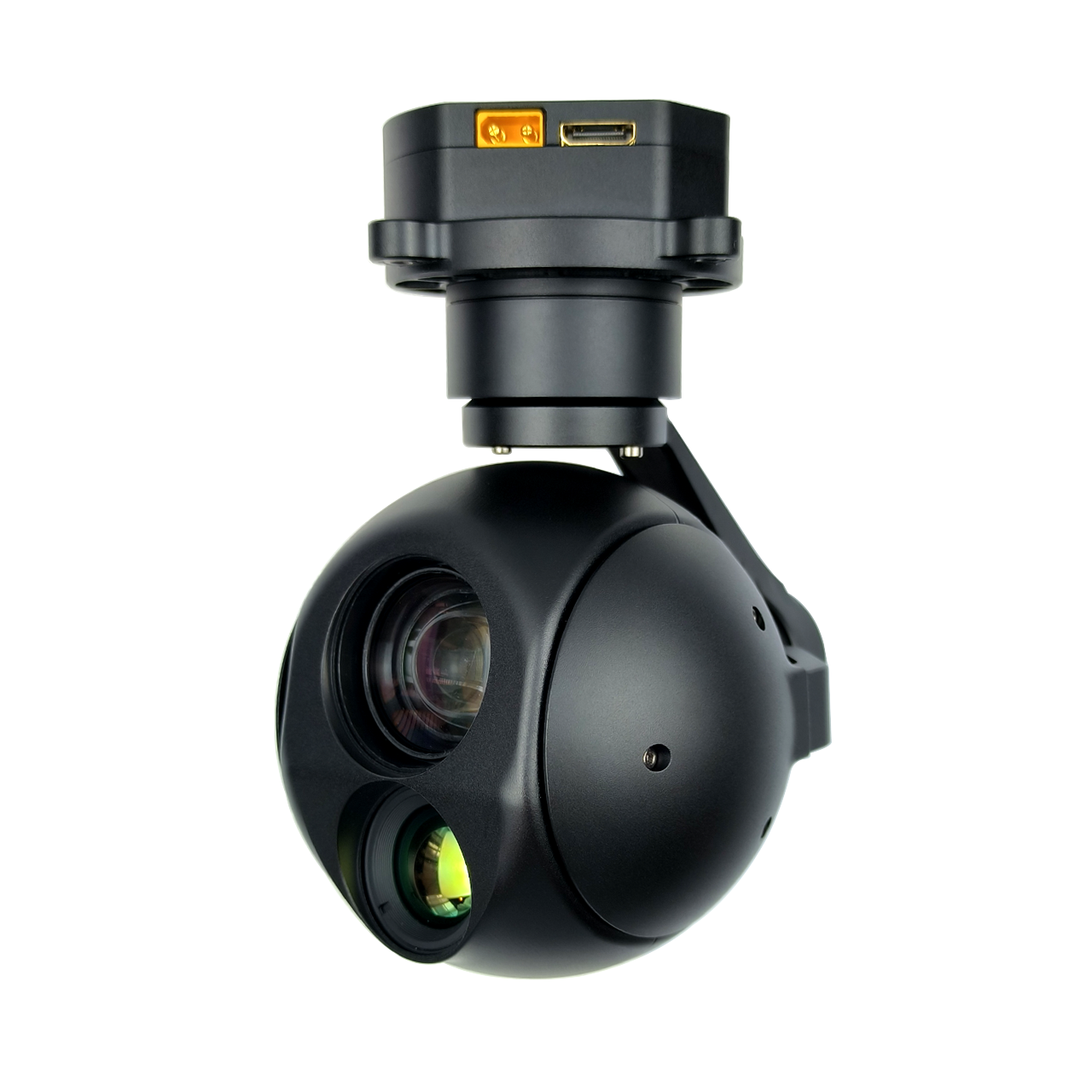

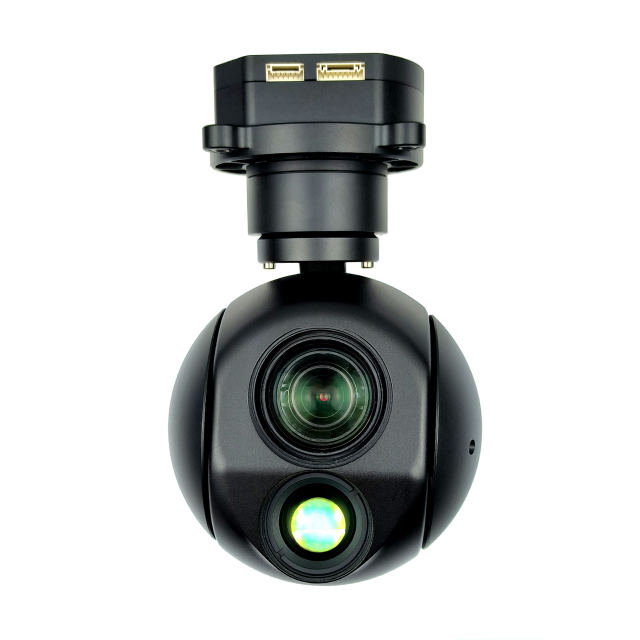

DIY10G619 is a drone gimbal payload which integrating 90x Hybrid zoom, 2MP EO camera, with 19mm lens 640×512 IR camera, and 3-axis stabilized PTZ. It adopts Ethernet output. The EO camera uses a wide dynamic sensor with 2 mega effective pixels; The IR camera adopts 640×512 resolution vanadium oxide detector with baffle design. The system supports picture-in-picture modes, pseudo-color switching. The UART and IP can synchronously control the camera and PTZ, and support local TF storage.

Voltage：	DC12～26.2V	Power：	Dynamic 6.5W
Roll Angle：	-45°～ +45°	Pitch Angle：	-30°～ +100°
Yaw Angle：	-285°～ +285°	Tilt and roll direction angle jitter：	±0.02°
Horizontal angle jitter：	±0.03°	One-Click Restore：	One-click restore to the initial position

CMOS Size：	1/2.8 inch2 mega effective pixels CMOS SENSOR
Optical Zoom：	10x HD optical zoom lens, f=5.15±5%～47.38±5%mm
AF Time：	Real time fast focusing, focusing time < 1s
Video Output：	IP HD RTSP output 1080P, video stream local TF storage
Field Angle(FOV)：	D : WIDE 69.5º±5% TELE 7.95º±5%    H : WIDE 61.5º±5% TELE 7.00º±5%    V : WIDE 35.0º±5% TELE3.97º±5%
Support Mode：	1080P 30fps

Resolution ratio：	640×512 pixel
Space between pixels：	12μm
Type：	Uncooled vanadium oxide
Wavelength Range：	8～14μm
Thermal sensitivity(NETD)：	≤50mk@25℃@F1.0
Contrast, pseudo color：	Adjustable, multiple pseudo color modes
Measurement function (optional)：	Center point, Lowest and Highest temperature display; Support global temperature measurement
Field angle：	19mm lens，FOV：22.9°×18.4°

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

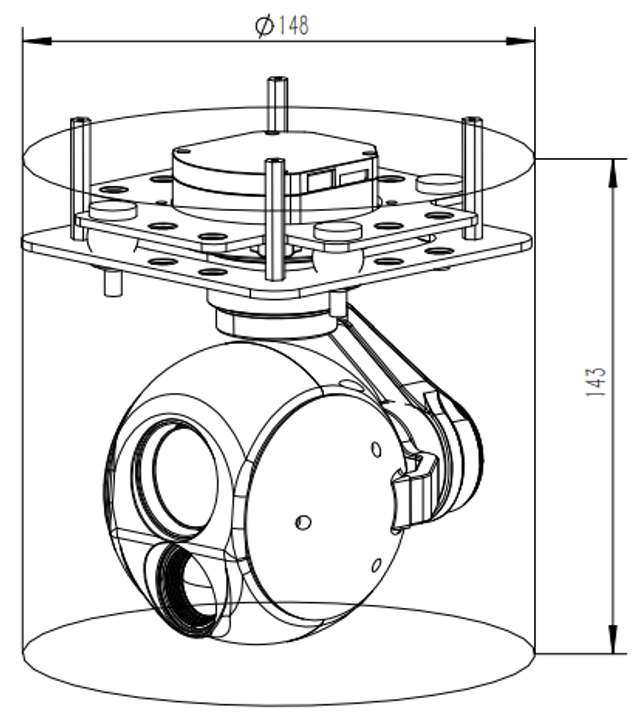

Dimensions：	φ:148mm H:143mm	Work Condition：	-10℃ to +60℃ / 20% to 80% RH
Storage Condition：	-20℃ to +80℃ / 20% to 95% RH	Weight：	525±20g
