DIY10L12 is a zoom dual-optical integrated system integrating 90 times hybrid zoom, 1200-meter laser ranging module, and high-precision professional three-axis stabilization pod. It uses network IP, HDMI dual output, IP control, and the pan/tilt adopts high-precision The encoder FOC control scheme has the characteristics of high stability, small size, light weight and low power consumption; the visible light camera uses a wide dynamic SENSOR with 2 million effective pixels. Serial port , S.BUS and network can control the camera and PTZ, and support local TF dual-channel video and photo taking.
Voltage：
DC 12V-26.2V
Power：
Dynamic 6W
Roll Angle action range：
-45°～ +45°
Pitch action range：
-30°～ +95°
Yaw angle action range：
-295°～ +295°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal jitter Angle：
±0.03°
One-click return function：
One-click to return to the initial position
PTZ Speed adjustable：
When the gimbal rotates, it performs speed adaptation based on the current speed mode and visible light camera multiple

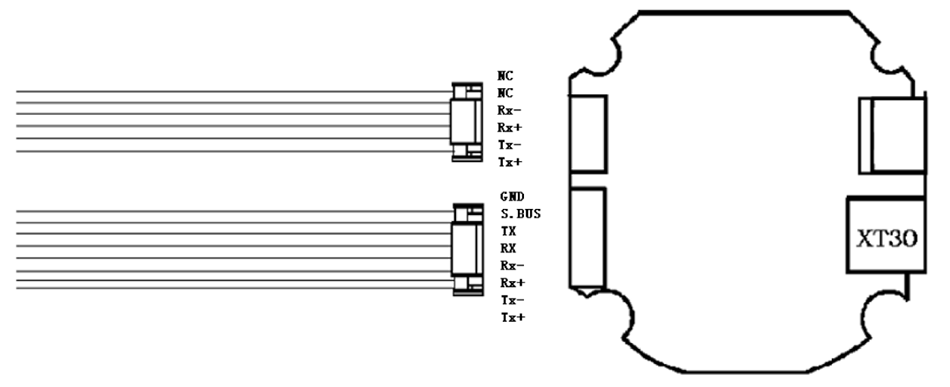

Control mode：
Support Network,IP ,Network Sbus control（PWM optional）
CMOS Size：
1/2.8inch 200MP Effective pixels CMOS SENSOR
Optical zoom：
10x HD Optical zoom lens f=5.15±5%～47.38±5%mm
Focus time：
Real-time fast focusing function,focusing time<1S
Video Output：
Network HD RTSP output 1080P,Video stream local TF storage
Field Angle(FOV)：
D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7.00º±5% V : WIDE 35.0º±5% TELE 3.97º±5%
