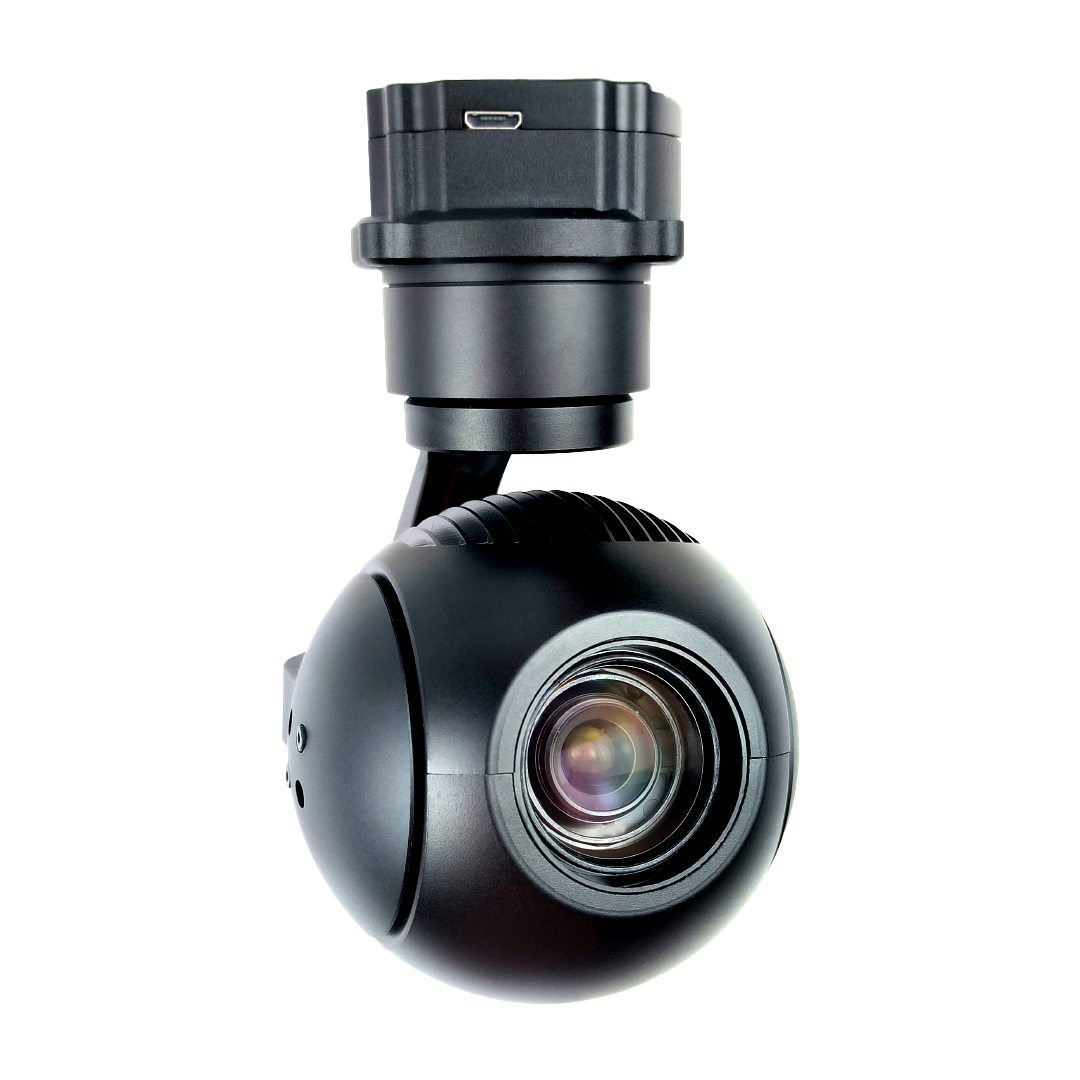

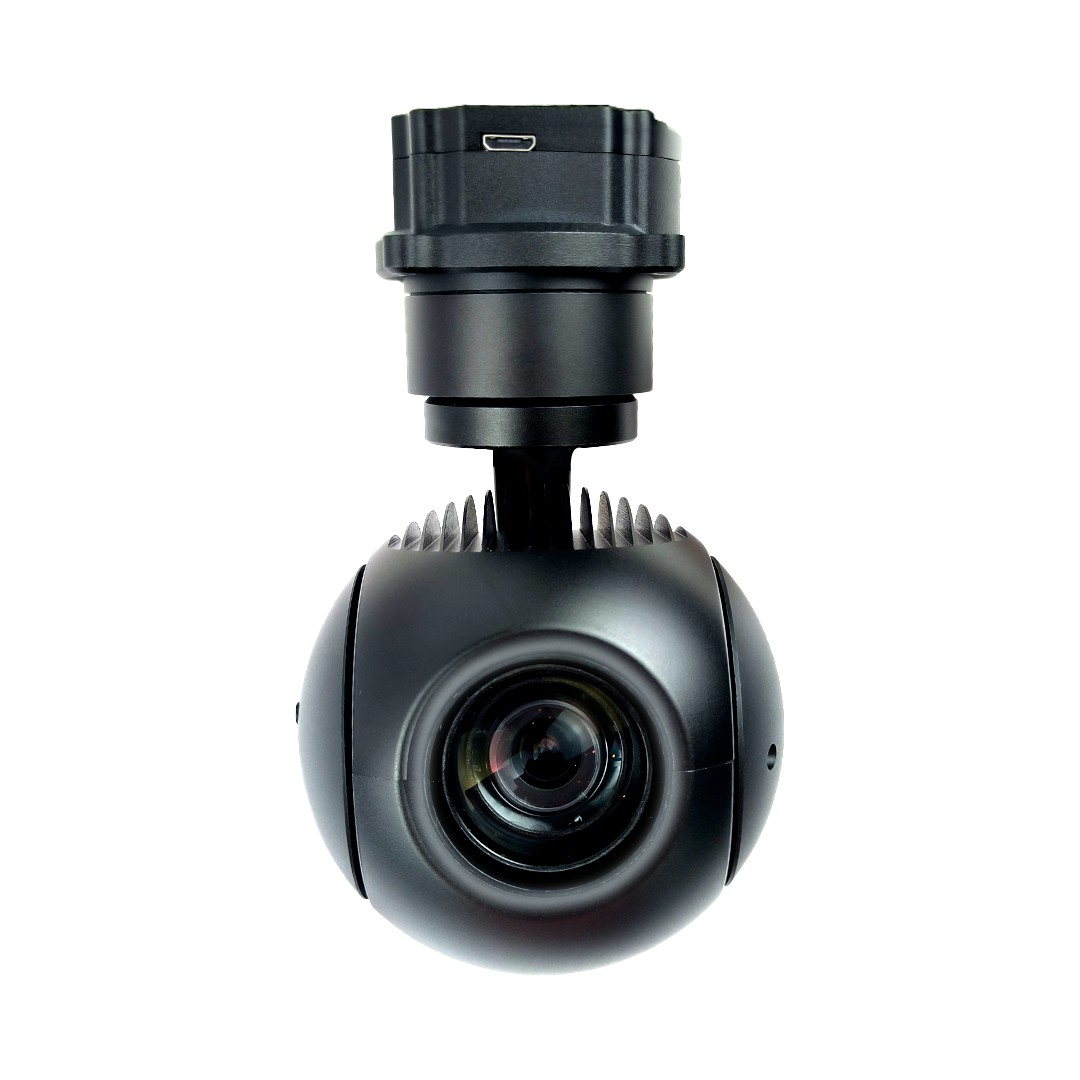

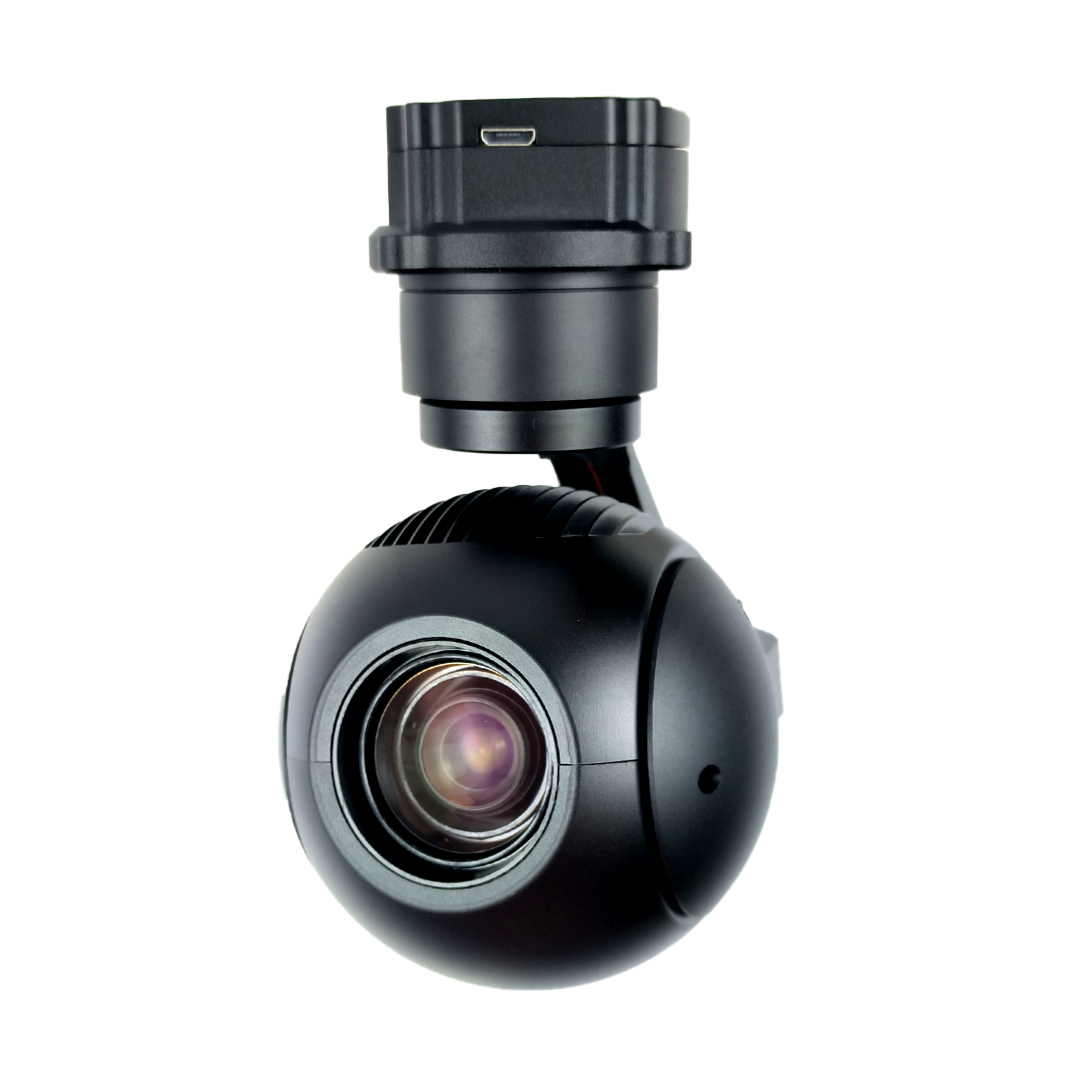

DIY10S4K is a 70x Mixed zoom, high-precision 3-axis stabilized gimbal. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption. The visible light camera adopts wide dynamic sensor with an 8 mega effective pixel, 1080P network RTSP stream output and 4K photo storage. Both serial port and the network can control the camera and the PTZ, and support local TF card FAT 32 storage and wireless transmission. The ground receiving end outputs standard RTSP, and the ground software supports PTZ control and camera control。
Voltage：
DC12V-26.2V
Power：
Dynamic 5W
Roll angle action range：
-45°～ +45°
Pitch angle action range：
-45°～ +120°
Yaw angle action range：
-285°～ +285°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal Jitter Angle：
±0.03°
One-Click Restore：
One-click restore to the initial position
Adjustable Gimbal Speed：
The gimbal adjusts its speed adaptively based on the current speed mode and the zoom level of the visible light during rotation.

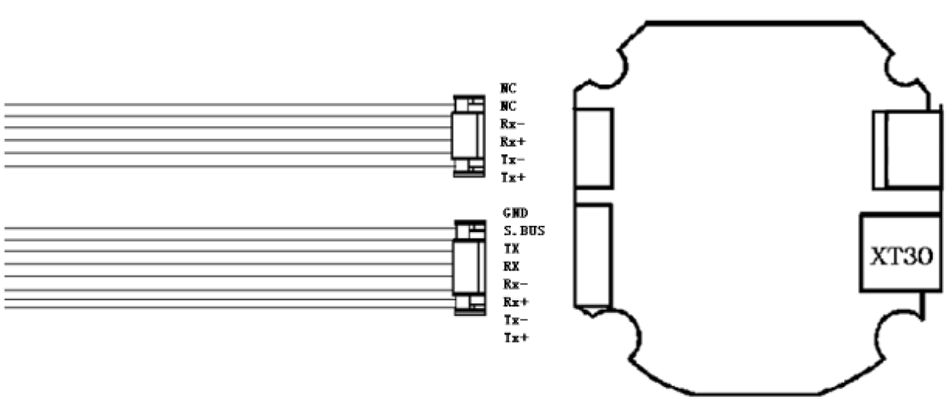

Control mode：
Network IP control, serial port and S.BUS control(optional PWM )
SENSOR：
8 mega pixels CMOS SENSOR
Optical Zoom：
10x HD optical zoom lens,f=5.15±5%～47.38±5%mm
AF Time：
Real time fast focusing, focusing time < 1s
Video Output：
Network HD RTSP output 1080P, video stream local TF storage
